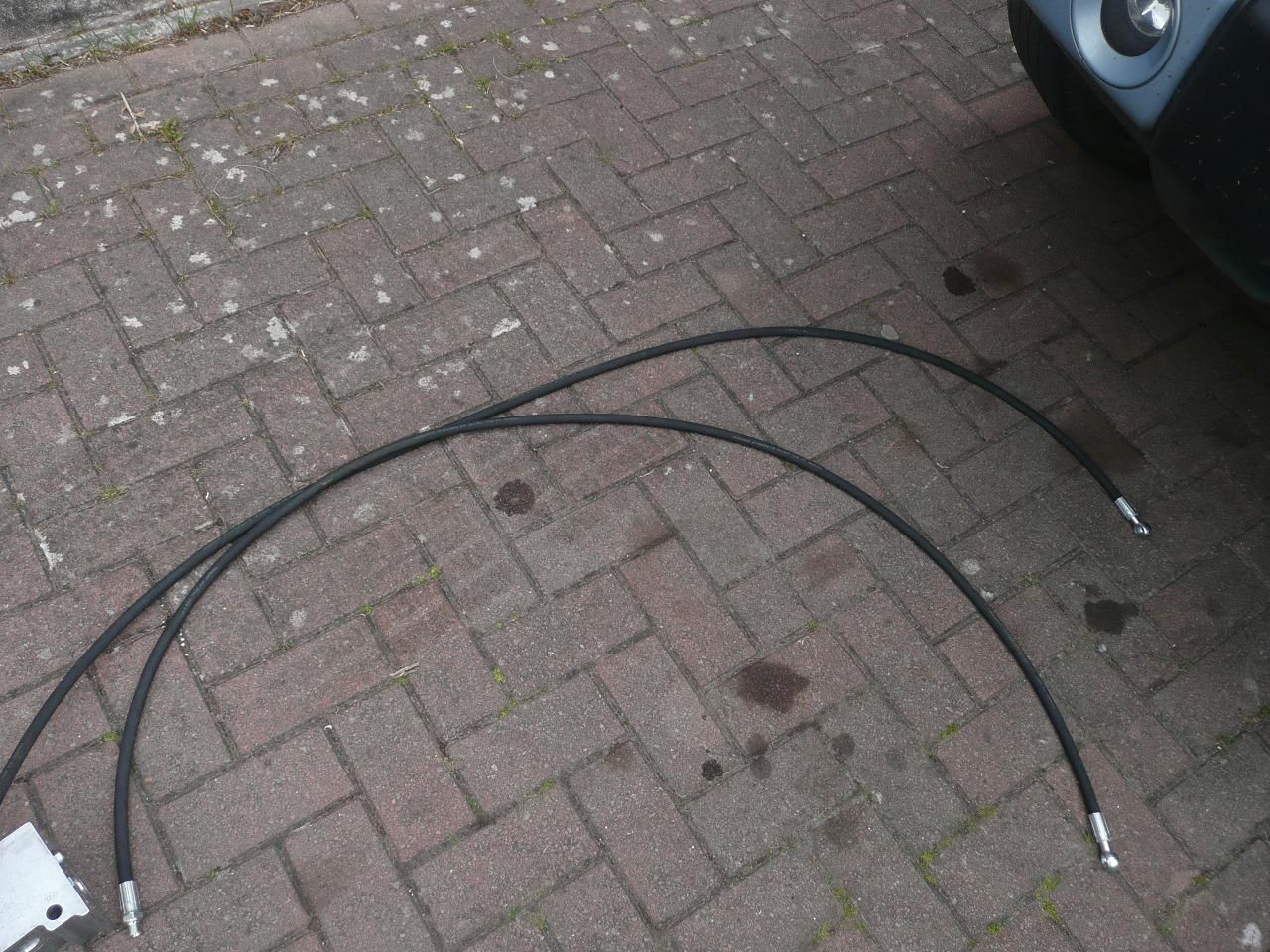

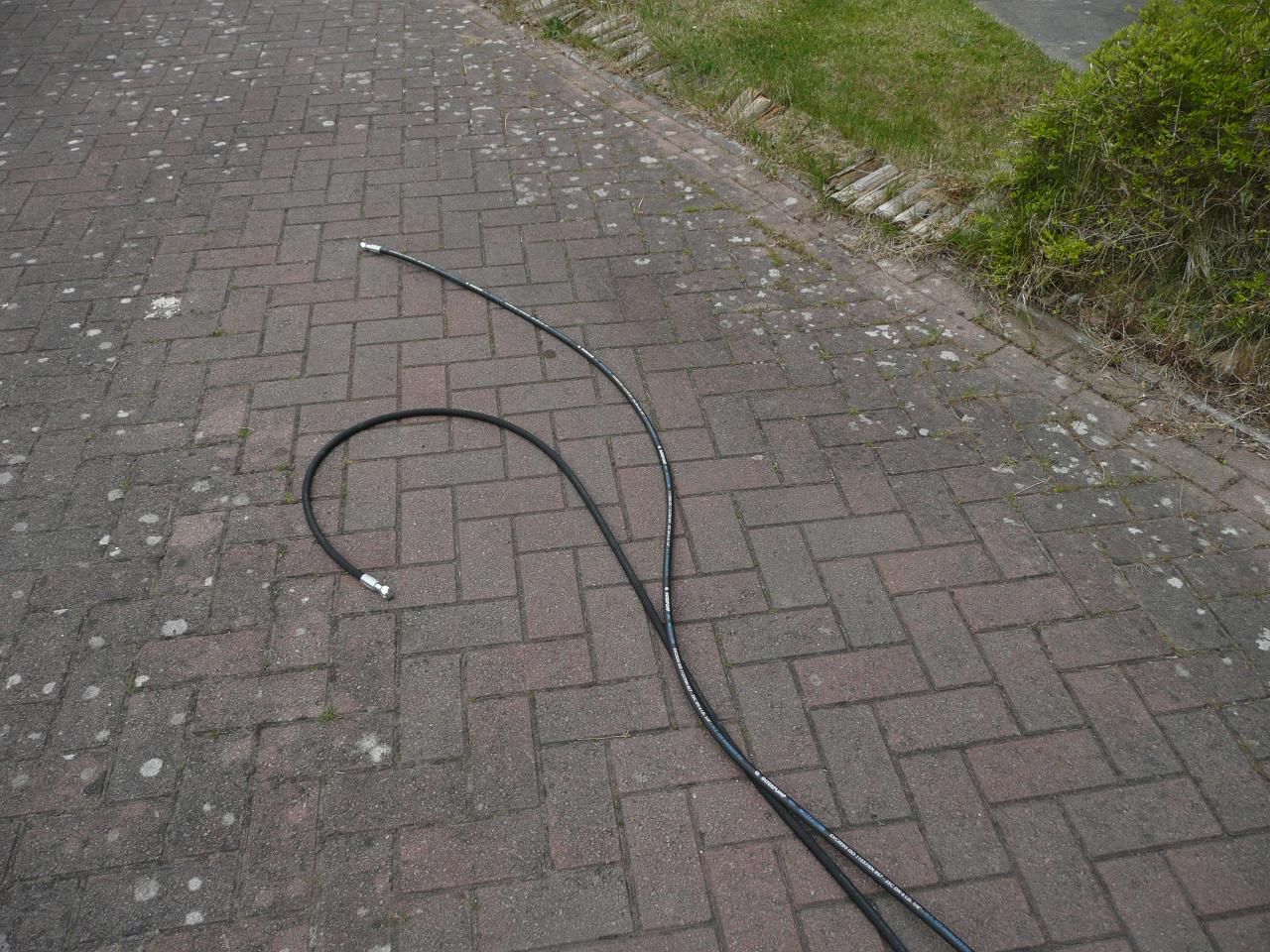

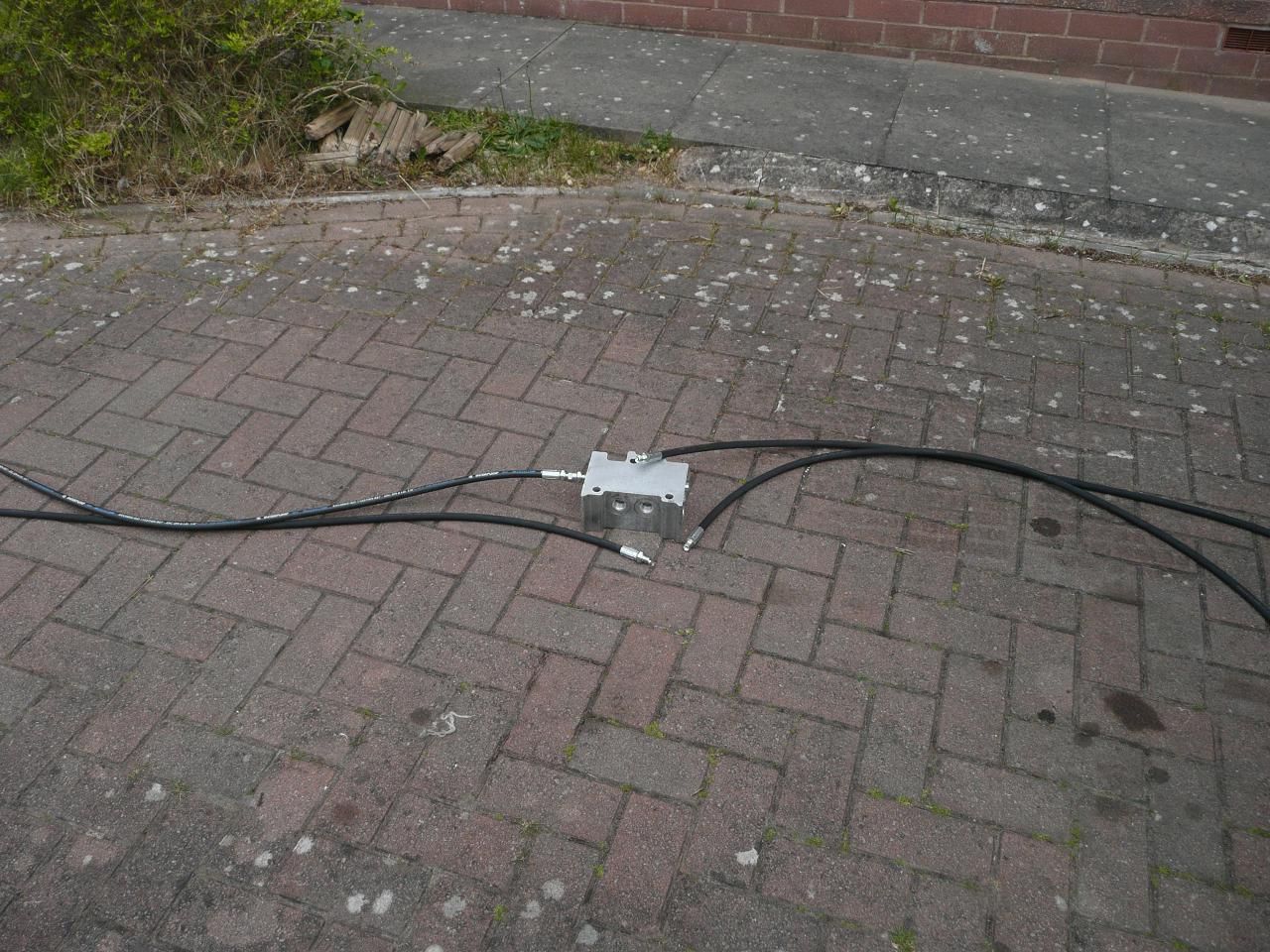

can you be more specific which lenght is for which pipe exactly please? ... i'm on it as well to make new pipes and modulator just to be preparedPipe lengths to be confirmed but I aimed for
1990 A
1940 A
2490 A
2440 A
930 B
880 B
can you be more specific which lenght is for which pipe exactly please? ... i'm on it as well to make new pipes and modulator just to be prepared
Ooh, well spotted. And the runs from pump to block must be longer than 990 / 830mm surely? What route do they take?
Sadly my current Disco doesn't have ACE, but if I still had the old one I'm sure your work on this would have come in very useful!
Be aware that the HP hose from pump to valve block is special, it has a damper within and if it's missing the system will be annoyingly noisy, IMO only this one pipe shluld be bought from the store
RAVE - ACE - Description and operation :
The flexible hose which supplies pressure from the pump to the supply pipe attached to the front cross member is
fitted with an attenuator. The attenuator comprises a bullet shaped valve which is located between two spiral wound
springs held at each end of the flexible hose. This valve operates as a restrictor to damp pressure waves of hydraulic
fluid from the pump, reducing noise and strain on components downstream. The attenuator is integral with the supply
hose and pipe and cannot be serviced separately.
AA-haa... so if you keep that first part original it's OK, i thought that you want to replace it with one piece pipe from the block cos a friend of mine did this then it was noisy as hellCompression fitting onto metal pipe!
