L322CH

New Member
can anyone please help my 2003 L322 TD6 been parked up for 10 months ,now no pixels on display ,suspension is hard wont lower or raise.also if i drive autobox feels like its in some low mode goes through all gears but when you slow down there is a thud before it stops

can anyone please help my 2003 L322 TD6 been parked up for 10 months ,now no pixels on display ,suspension is hard wont lower or raise.also if i drive autobox feels like its in some low mode goes through all gears but when you slow down there is a thud before it stops
What is the state of the battery?

Could well be some codes that need clearing if the battery has gone flat, make sure it's on high range, try a cycle between hi and low and back again

i not changed any gearbox settings ,just put it in drive but its acting like this now,also orange traingle lit on dash,but i have lost all pixels so cannot see if there are any messages

You say suspension is hard and wont raise or lower, you sure its not down on the stops?

Break it down into bits of problems that may well not be related.

Clunks can be suspension bushes.
Suspension issues, compressor?

J

You say suspension is hard and wont raise or lower, you sure its not down on the stops?

Break it down into bits of problems that may well not be related.

Clunks can be suspension bushes.
Suspension issues, compressor?

J
That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?

That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?

Gearbox is a separate issue and its probably knackered :oops: Needs a fluid change? first.

J

That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?
not too sure if its on bumpstops
it was ok before i parked it up so not a bush problem
but why wont the up down work to raise suspension
why the gearbox issue

12.6 volts, that is not fully charged.
No it's not, but anything over 12.6 is a starting point that should be sufficient to not cause immediate low battery errors.
In my opinion it's just as important to check what voltage the battery drops to during cranking

Plus is several ECUs are getting ready for take off, then that will put significant load on the battery and drop the reading

No it's not, but anything over 12.6 is a starting point that should be sufficient to not cause immediate low battery errors.
In my opinion it's just as important to check what voltage the battery drops to during cranking

Plus is several ECUs are getting ready for take off, then that will put significant load on the battery and drop the reading
That is why if the voltage is on the low side to start with, you are rapidly in trouble.

Last edited:
not too sure if its on bumpstops

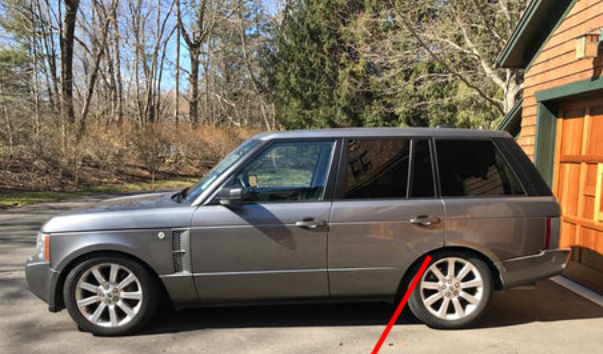

Is it sitting like this?
