RizzleKicks
Active Member
Sierraferry , would you have a pic of that earth cable ?
RizzleKicks
Active Member
Andy , is it easy enough to make an earth cable ?
Yep, just a short piece of wire with female spades at each end, one end fits where it should in the light unit & the other end conveniently on that sensor bracket (see previous pics) but to check it's going to work just pop the light lens cover off & put/hold an earth wire on one of the 8mm nuts & earth the other end some suitable & if it's just an earth problem it should work.
RizzleKicks
Active Member
Ok Andy cheers. I did have a fish around but could not find the cable in in the roof. Will make a cable in the next few days
RizzleKicks
Active Member
Hi Andy , what size of spade did you use on the metal plate they the light sits on ? Also what did you use on the other slide , a spade pr a hoop ?
Have a butchers at my pics & you'll see I used two female spades (you can get assorted packs from Halfords). Not sure of the size maybe 5 or 6mm.
RizzleKicks
Active Member
Ok Bud thanks
RizzleKicks
Active Member
Hi Andy, the spade connector that you have connected to the vehicle what size was it and how did you get it to stay ? I’ve tried and it keeps slipping off
Give it a tweak or two with a pair of pliers then!
RizzleKicks
Active Member
Tried that with out any success
Hi, I don't remember having any problems with mine slipping off but the female spades were the same either end of my earth lead. I'll have a look in my 'wiring connector' box tomorrow as I know I have a couple of different sizes in there.
Tried that with out any success
Depends how you're 'tweaking', across the thickness ... nah not really
A squeeze across the width may do the trick or just change the fitting for new ...
Did you try holding a temporary earth wire to the 8mm nut ? as per post 23 just to make sure (like mine) it is only the 'missing' earth that's causing your issue.
RizzleKicks
Active Member
Hi Andy , I did and it worked a treat , if you could let me know about the space sizes that would be great
RizzleKicks
Active Member
Morning Andy,Hi Andy , I did and it worked a treat , if you could let me know about the space sizes that would be great
Did you manage to have a look to see what size of spade was used , also what year is your Disco ?

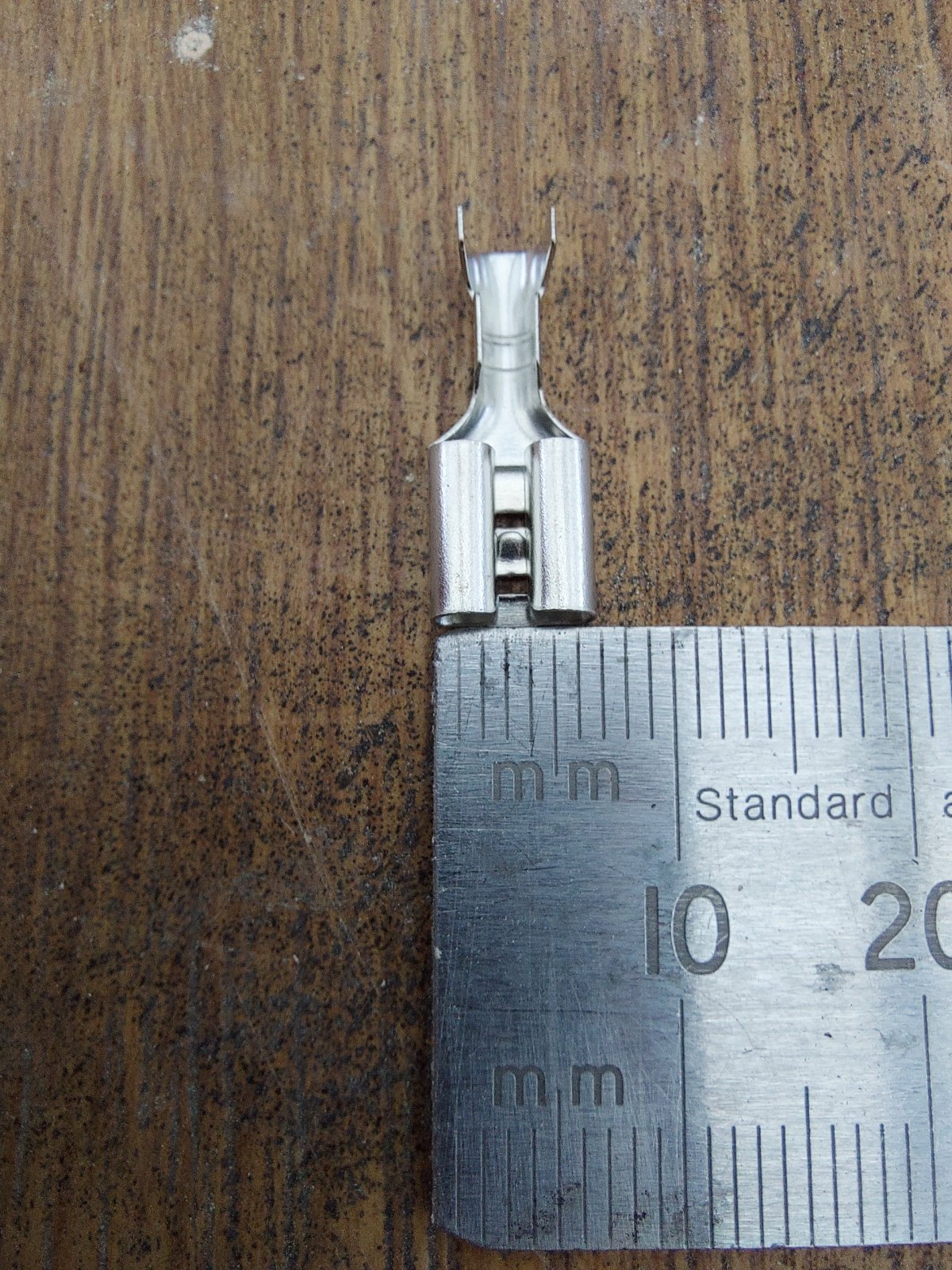

The bigger ones are what I used (as I think they were in the disco tool kit I carry about

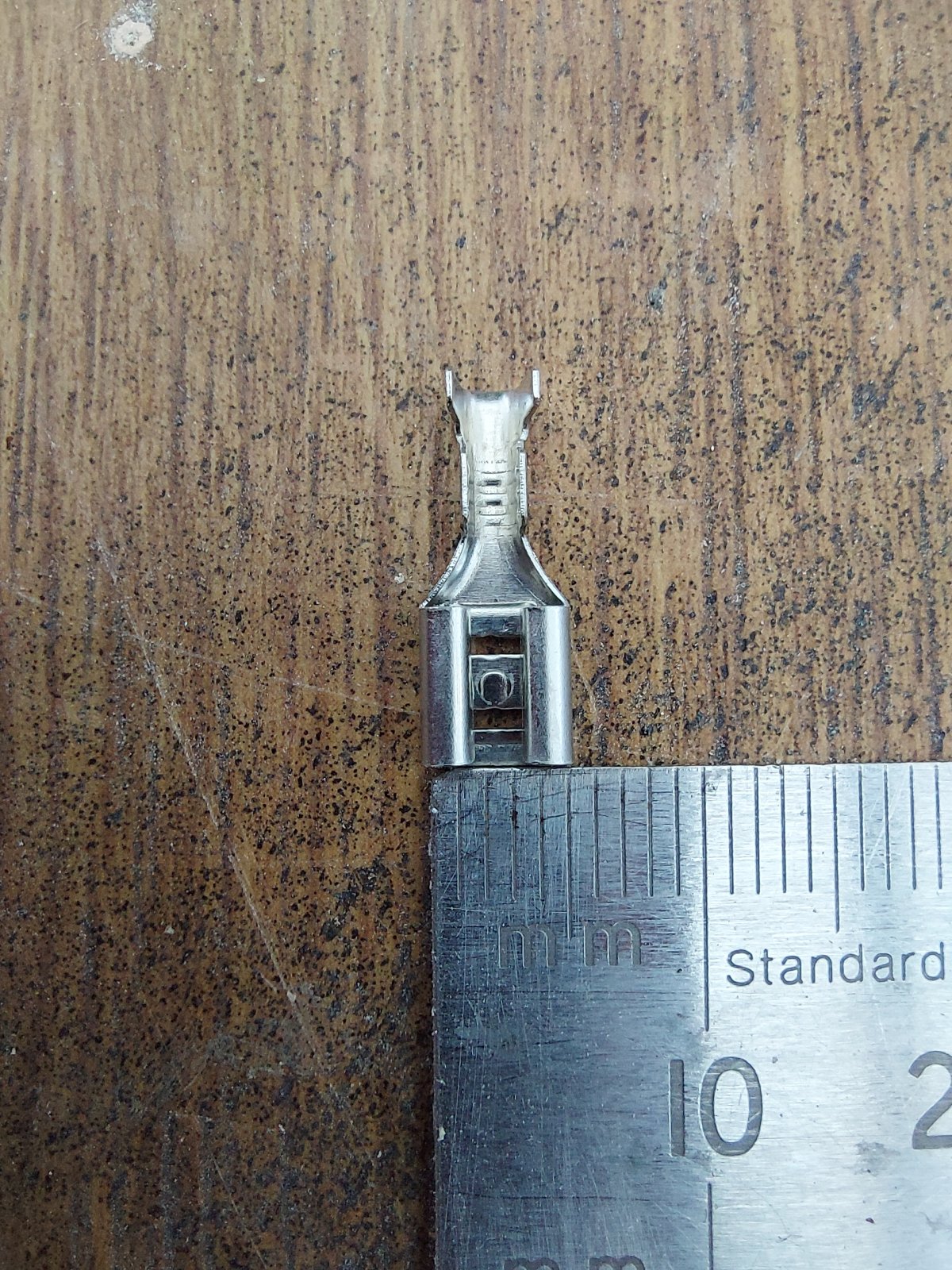

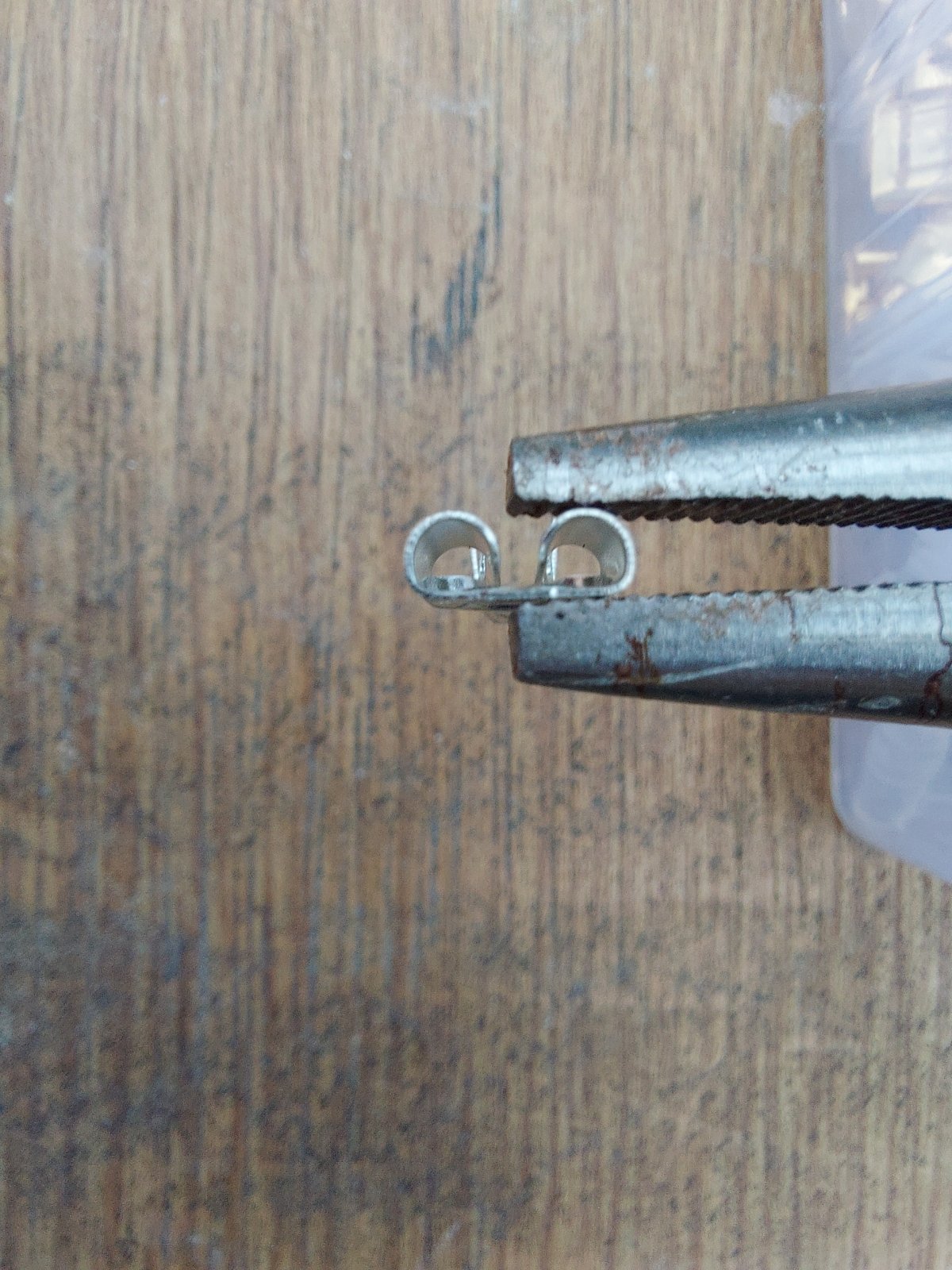

) but the kit they came from has a smaller version which would be better for the bracket end. As said have you tried giving the 'claws' a squeeze BEFORE you slide it onto the male spade (see pics). Mine is MY2001.
) but the kit they came from has a smaller version which would be better for the bracket end. As said have you tried giving the 'claws' a squeeze BEFORE you slide it onto the male spade (see pics). Mine is MY2001.Attachments
