Q

quaversnice

New Member

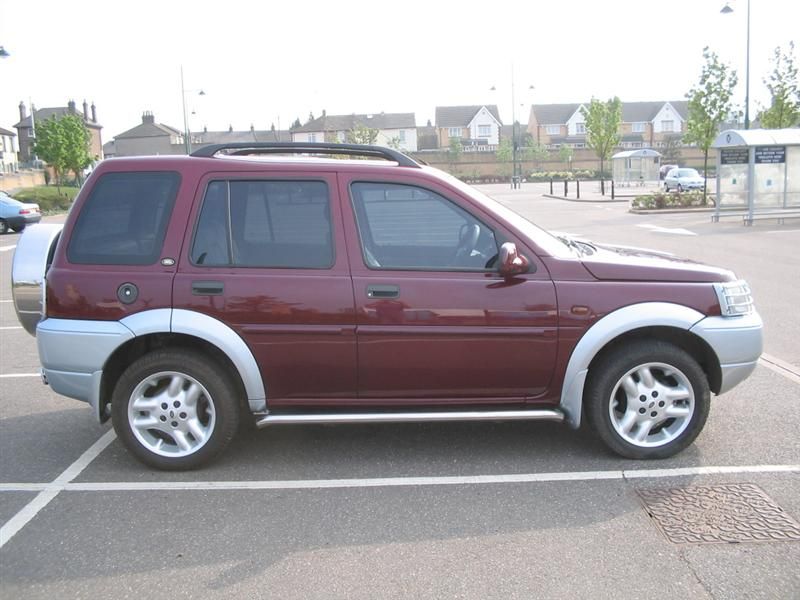

i did 2 tests on my new 2me freelander the lines i put on the vcu stayed facing after a drive and i cant turn the rear wheel when its jacked up can it be fixed ?or is it new parts cos i know they cost big time will it do any damage if i dont sort it asap :confused: we got our first nipper on the way and i want to keep my costs down [so why did i buy a landy dooo]


Attachments

  • freelander 008 (Medium).jpg
    freelander 008 (Medium).jpg
    69.6 KB · Views: 295
Remove the rear prop as a matter of urgency - that will give yu time to resolve the issue and remove the risk of further damage.

quaversnice said:
rear prop removed its nice to drive now the guy i got off is sorting me a vcu thanks for the help
Click to expand...

if it wer mine I'd be droppin the oil out the IRD and rear diff ;)

if its bin used like that for a while it could be full o bits o metal ;)

makes a very effective grinding paste to wear wots left of the gears ;)

mondo said:
if it wer mine I'd be droppin the oil out the IRD and rear diff ;)

if its bin used like that for a while it could be full o bits o metal ;)

makes a very effective grinding paste to wear wots left of the gears ;)
Click to expand...
thanks for the tip think i will do ,the motor was parked up from xmass till now so that might have done it ?

Stupid question but when you put two lines on the vcu are you sure you put them at the correct places ?? (I think it's better to put a mark on the two drive shafts instead ?) And turning the wheel when it's jacked up needs a certain amount of effort/strength as far as I can see from others who did the test ? (Some even mentioned to put an extra length of tube before they could get some movement in it ????)

willo said:
Stupid question but when you put two lines on the vcu are you sure you put them at the correct places ?? (I think it's better to put a mark on the two drive shafts instead ?) And turning the wheel when it's jacked up needs a certain amount of effort/strength as far as I can see from others who did the test ? (Some even mentioned to put an extra length of tube before they could get some movement in it ????)
Click to expand...
o no willo :confused: now you got me worried man i will get some picc of the lines and see what you think :rolleyes:

After you put it back on yer real motor.

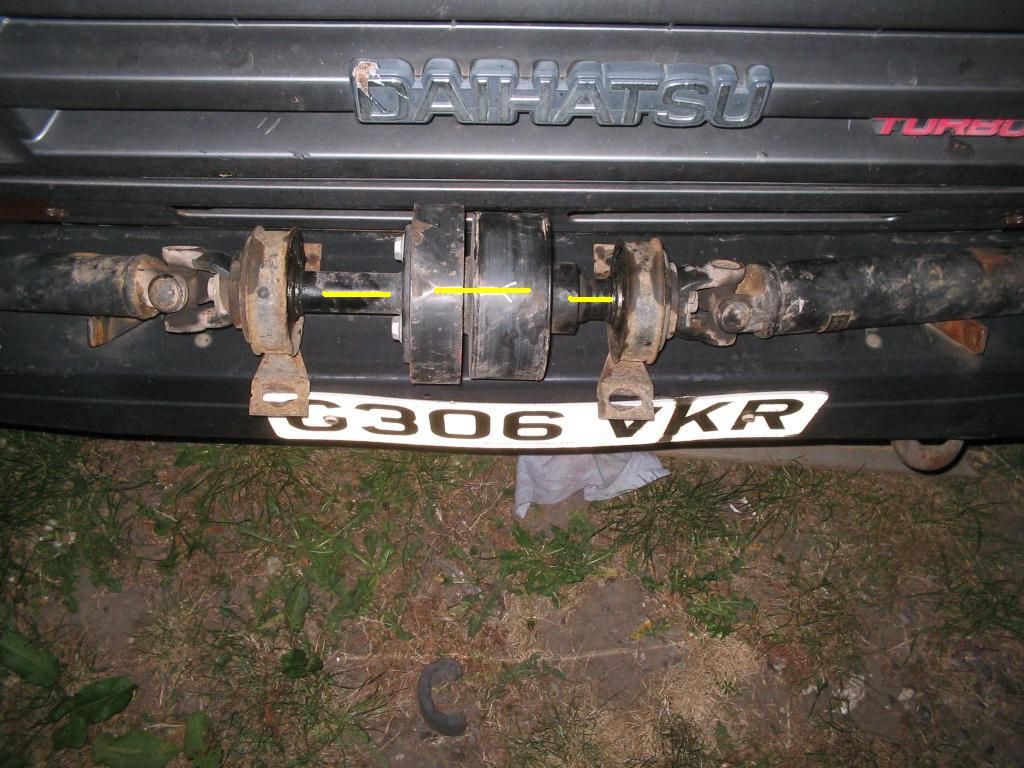

mark it up where ive indicated with yellow lines then try it agen !:D


Attachments

  • vcu.jpg
    135.2 KB · Views: 320
