Do you remember I did this?

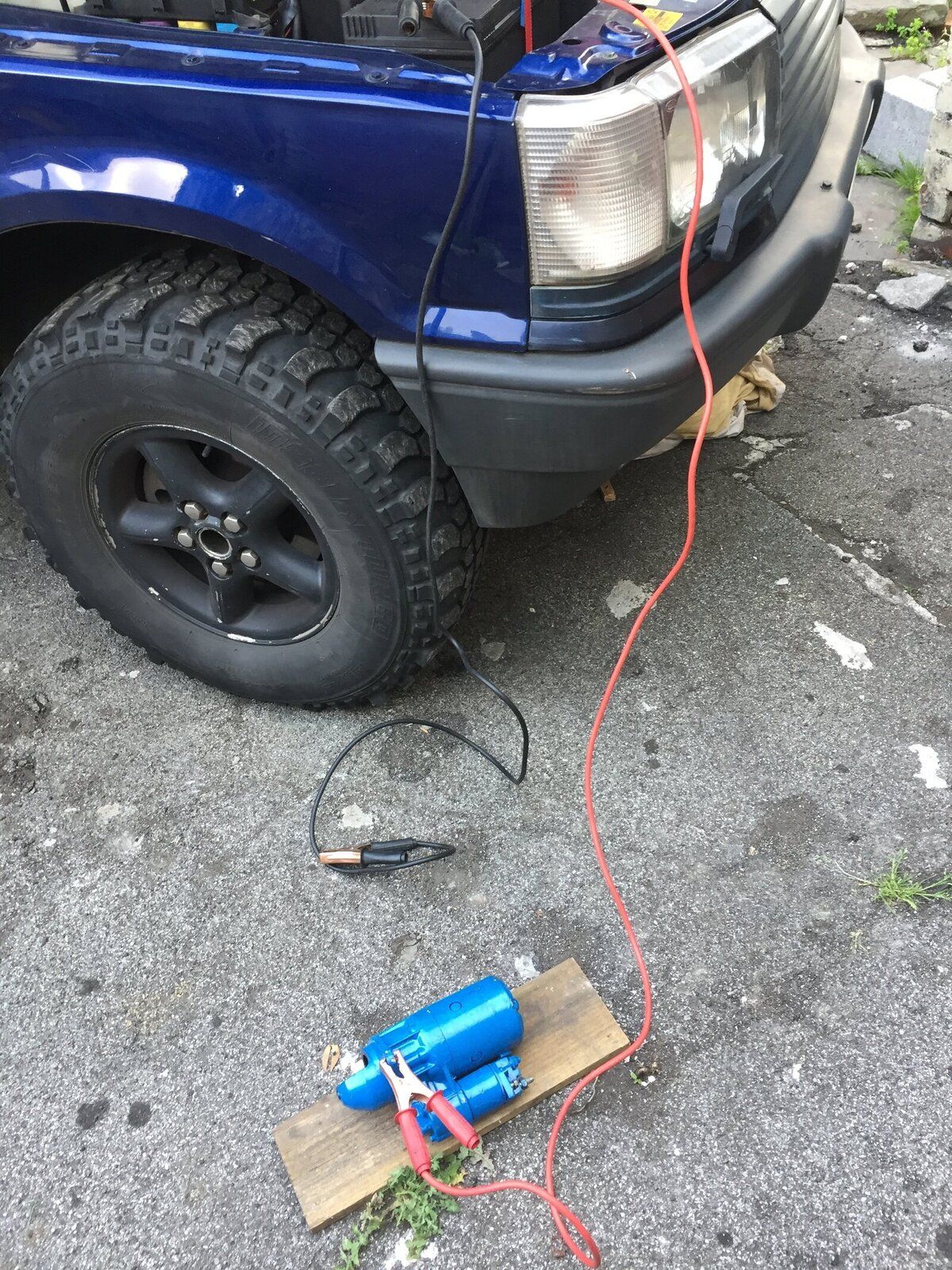

It welded the starter solenoid together and now the green light in the battery looks like crystals. Never charged and it’s still fine. Doozle takes more chug too

OK, I fitted the MF31-1000 on the Rangie this afternoon with the Ctek keeping a "Supply" voltage on the car so no loss of radio-codes or resetting of windows etc.
This Ctek connection was important at this time because my sunroof shade is shedding its skin; so resetting the sunroof just causes the velour to peel off and hang down like a sad, floppy rag.
Bloody-hell that battery IS a really, really tight fit. So much so that the battery cover struggles to fit back on and is under pressure/distortion from the front LH-side of the battery being a tiny bit too tall for the contours of the battery cover-plate.
But it is in and I shall be monitoring the Volts closely to check that this has been a good investment over the 110AH Duracell that was in there that kept dropping volts. :D
Will pop it on charge now.

DanClarke said:
OK, I fitted the MF31-1000 on the Rangie this afternoon with the Ctek keeping a "Supply" voltage on the car so no loss of radio-codes or resetting of windows etc.
This Ctek connection was important at this time because my sunroof shade is shedding its skin; so resetting the sunroof just causes the velour to peel off and hang down like a sad, floppy rag.
Bloody-hell that battery IS a really, really tight fit. So much so that the battery cover struggles to fit back on and is under pressure/distortion from the front LH-side of the battery being a tiny bit too tall for the contours of the battery cover-plate.
But it is in and I shall be monitoring the Volts closely to check that this has been a good investment over the 110AH Duracell that was in there that kept dropping volts. :D
Will pop it on charge now.
Click to expand...
Duracell is just a name now, the company was bought out by Berkshire Hathaway, a private equity company, so quite likely the quality has gone out the window as they do what they always do and try to squeeze more profit.

OK, so I let my Ctek Charger do its "intelligent charging" thing all night and just now I checked it and it says it has finished and the battery is fully charged.
Measured the voltage with my DVM and it is only 12.94. I thought a fully charged battery was 13.2? But, maybe as it is connected to an "awake" car the 0.26v difference is what is being lost across the BeCM etc. ?
At least that is my reasoning for the 12.94V I am seeing.

DanClarke said:
OK, so I let my Ctek Charger do its "intelligent charging" thing all night and just now I checked it and it says it has finished and the battery is fully charged.
Measured the voltage with my DVM and it is only 12.94. I thought a fully charged battery was 13.2? But, maybe as it is connected to an "awake" car the 0.26v difference is what is being lost across the BeCM etc. ?
At least that is my reasoning for the 12.94V I am seeing.
Click to expand...
Smart chargers drop to a float charge voltage of, usually, 12.9volts, so that sounds perfectly normal.

Datatek said:
Smart chargers drop to a float charge voltage of, usually, 12.9volts, so that sounds perfectly normal.
Click to expand...
Thanks Keith, I went out in it today and on return home and with engine just turned off the Display in the Cigar-lighter socket reported 13.4v (the reading with the engine on was 14.3 just before this).
The battery certainly spins the engine over a lot quicker. :)

UPDATE:
After leaving the car for a few days I was a little bit surprised to find the Ctek Tell-Tale on "AMBER" (12.4 .. 12.6 Volts) and a DVM measured 12.48V across the battery.
Now checking for parasitic drains OTHER THAN RF fob stuff. The car has no aftermarket items on it.
Is the boot located cigar-outlet a permanently live one, and does a USB charger draw current even if nothing is plugged in? I guess it must have a min/max draw depending on load.

Well, after only 2 hours on a Ctek Charger the Ctek has gone into "Supply Mode" so it cannot have been that discharged.
I suspect I am just being super-sensitive about it.

DanClarke said:
UPDATE:
After leaving the car for a few days I was a little bit surprised to find the Ctek Tell-Tale on "AMBER" (12.4 .. 12.6 Volts) and a DVM measured 12.48V across the battery.
Now checking for parasitic drains OTHER THAN RF fob stuff. The car has no aftermarket items on it.
Is the boot located cigar-outlet a permanently live one, and does a USB charger draw current even if nothing is plugged in? I guess it must have a min/max draw depending on load.
Click to expand...
If the boot cig lighter is original, it goes off with the ignition. A USB charger will draw a small amount of current when plugged in but not in use, the amount will vary from make to make.

Thanks Keith,
I will keep an eye on it and if it drops too quickly I shall have to start looking for parasitic draw's, mind you 12.48V is not "discharged" and only c. 0.75V below fully charged so I am probably tilting at windmills.

DanClarke said:
Thanks Keith,
I will keep an eye on it and if it drops too quickly I shall have to start looking for parasitic draw's, mind you 12.48V is not "discharged" and only c. 0.75V below fully charged so I am probably tilting at windmills.
Click to expand...
After settling for an hour or so after coming off charge, 12.8 is fully charged, 12.48 seems a bit on the low side, depends on how long it's stood and how much it continues to drop.

DanClarke said:
Well the new MF31-1000 is rated as a "Truck" battery, I am hoping the Voltage drop is not continuous down below 12.48.
Click to expand...

120ah and 1200CCA IIRC!! ;)

I've not measured mine, but it still spins over like a top after 3 weeks sitting..
