Evening all, could anyone help me i have recently bought a discovery 1 200tdi and would like to remove the body from the chassis i am aware there are 8-10? mounting points but what else would need to be undone/removed to enable me to lift the body off the chassis? all help appreciated thanks in advance



Last edited: Dec 9, 2013

robint

Well-Known Member

• Dec 9, 2013

• #2

might have to drop the rad , extend the gear levers , and possibly extend the steering box spline



P

Paulmitchell1984

Well-Known Member

• Dec 9, 2013

• #3

welcome to the site...10 bolts then big hammer and a helicopter



J

jeffdisco1

New Member

• Dec 9, 2013

• #4

Paulmitchell1984 said:

welcome to the site...10 bolts then big hammer and a helicopter

Click to expand...

i cant find my helicopter:doh:



J

jayf12000

Member

• Dec 10, 2013

• #5

have never done this but off the top of my head i'd say brake hoses, clutch slave cylinder, handbrake cable, fuel filler hose, engine wireing, i'm sure there's more just cant think of them.



chrisyleigh

Active Member

• Dec 10, 2013

• #6

As above , my guess is ,rad, intercooler, wiring , brake lines , accerlater cable , remover air box , windscreen washer lines , expantion bottle
Basicly any thing thats connected to both body and engine/chassie



J

jeffdisco1

New Member

• Dec 10, 2013

• #7

brilliant thanks for the help!



Q

quattro6999

New Member

• Dec 10, 2013

• #8

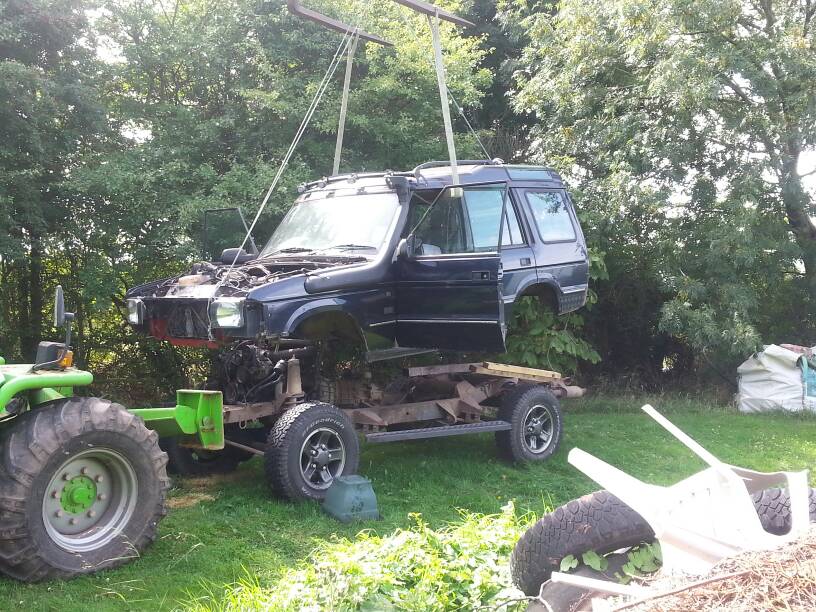

All body mounts (obviously) rad, brake lines, center console out, rear seat belt to chassis mounts, handbrake cable filler hose, coolant pipes to bulkhead, engine wiring loom, steering column, any earth straps. Think that is all.....oh, onenof these helps too



Attachments

•

  123.1 KB · Views: 3,536
