jamesmartin
Well-Known Member
the bottom sentence was oil pressure connector location
jamesmartin
Well-Known Member
yes i remove the whole console first is yours auto
brianconwy
Well-Known Member

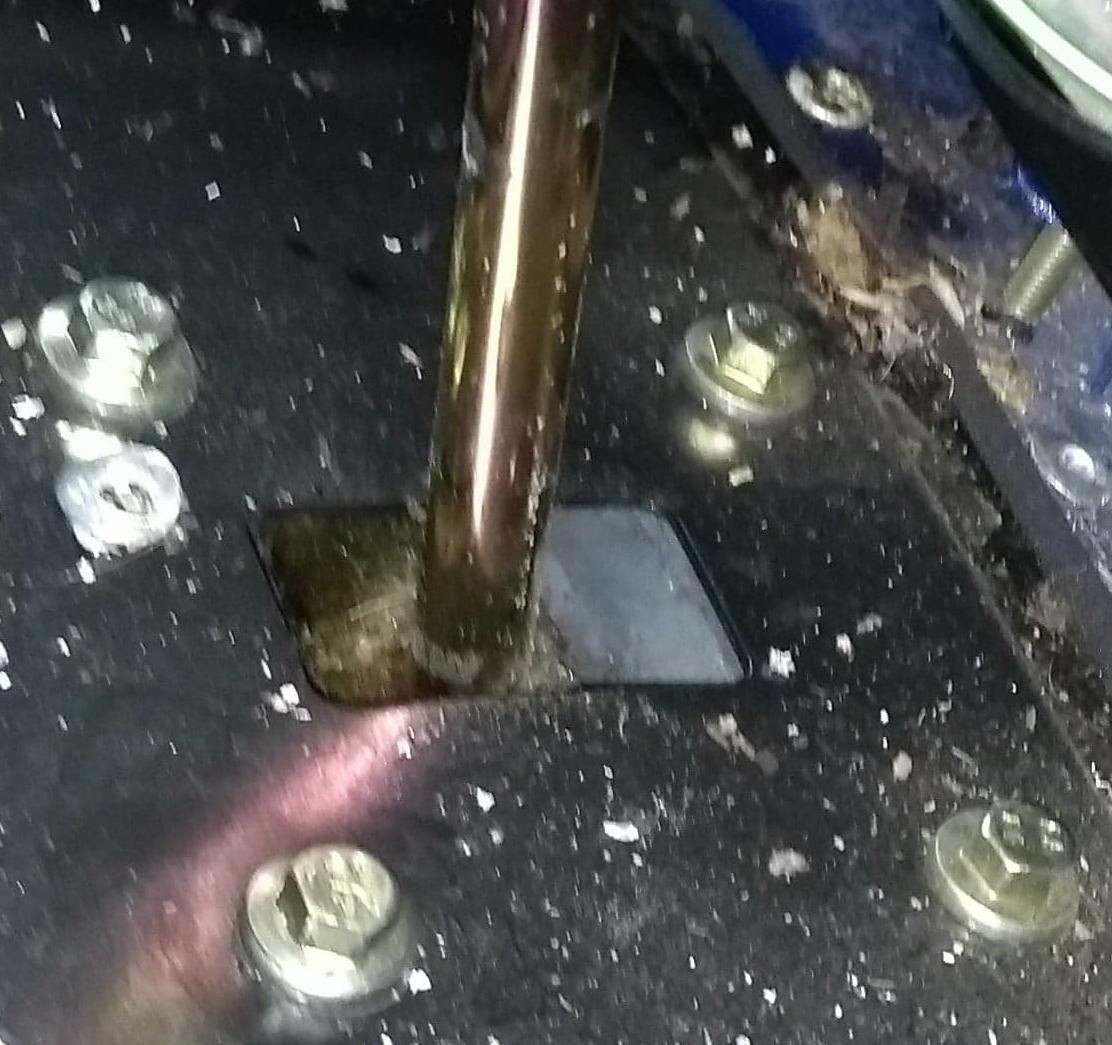

I thought about this but just to make sure do you mean these?
That looks easy.
That looks easy.
jamesmartin
Well-Known Member
yes
brianconwy
Well-Known Member
We have undone the breather pipe by the transfer box cable. Where is the second one and the oil temperature connector? Thanks for all the help.
brianconwy
Well-Known Member
All the bolts are out of the bellhousing. Need to try and get gearbox undone and back now.
jamesmartin
Well-Known Member
auto or manual
brianconwy
Well-Known Member
Manual. Td5 LT230. Having no luck separating bellhousing from engine. Any tricks to help ease it out? The engine is now supported by an engine support beam.
jamesmartin
Well-Known Member
first recheck all bolts are out ,is engine supported at the rear , raise box as high as poss then let it go repeat till you can get a long lever bar in ,they generally need levering back
ps you have supported engine by a beam but a jack underneath would help better
brianconwy
Well-Known Member
We have taken out eight main bolts and a little one facing the other way on the faceplate. The engine is supported at the front. I will go and try that. Thanks.
berg450
Well-Known Member
The top 2 bolts between engine and bell housing also fix the cooler pipe coming from the oil cooler behind the engine block. I had to bend them up a bit to be able to remove the gearbox, was even more difficult to put it back
brianconwy
Well-Known Member

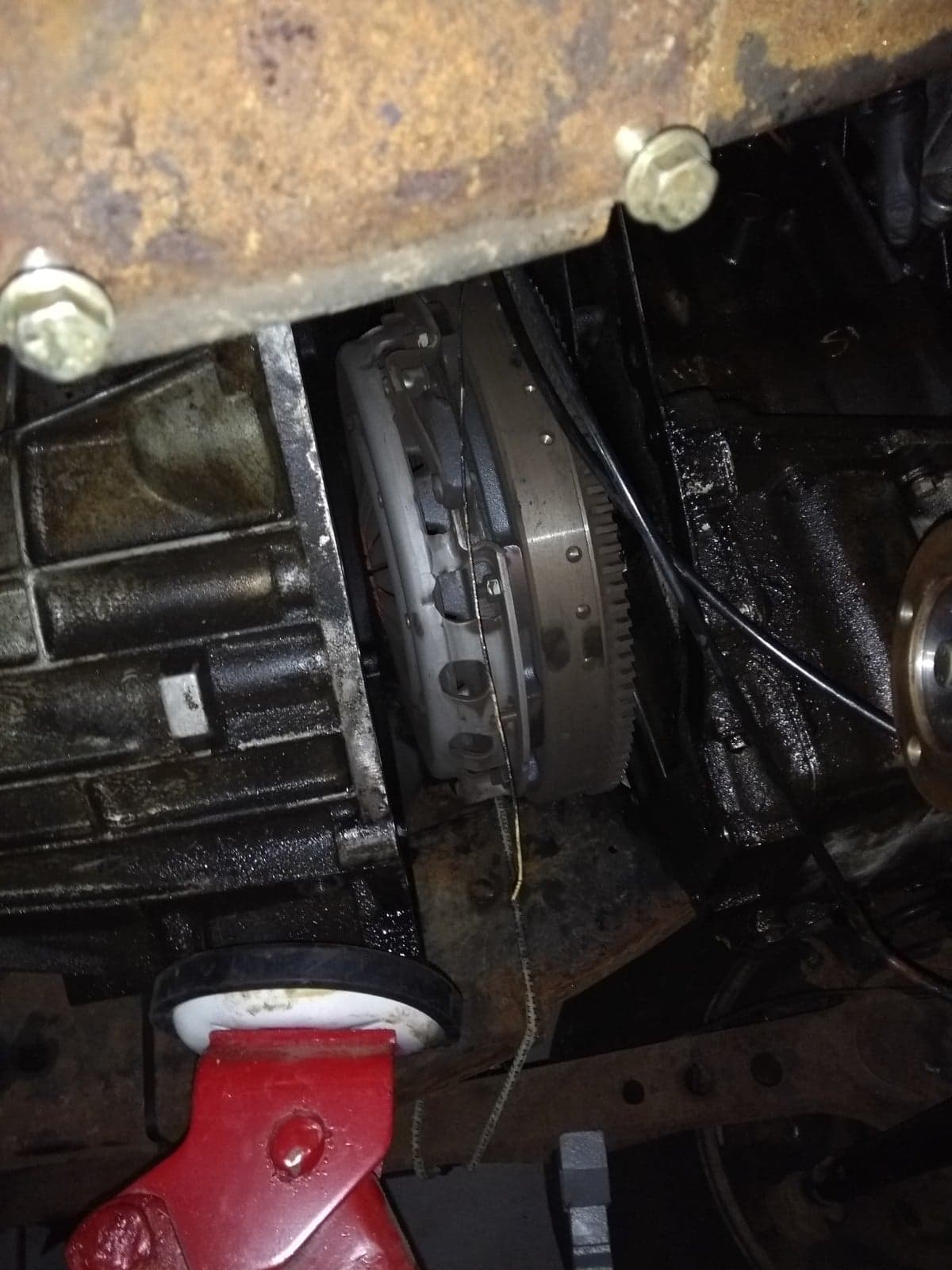

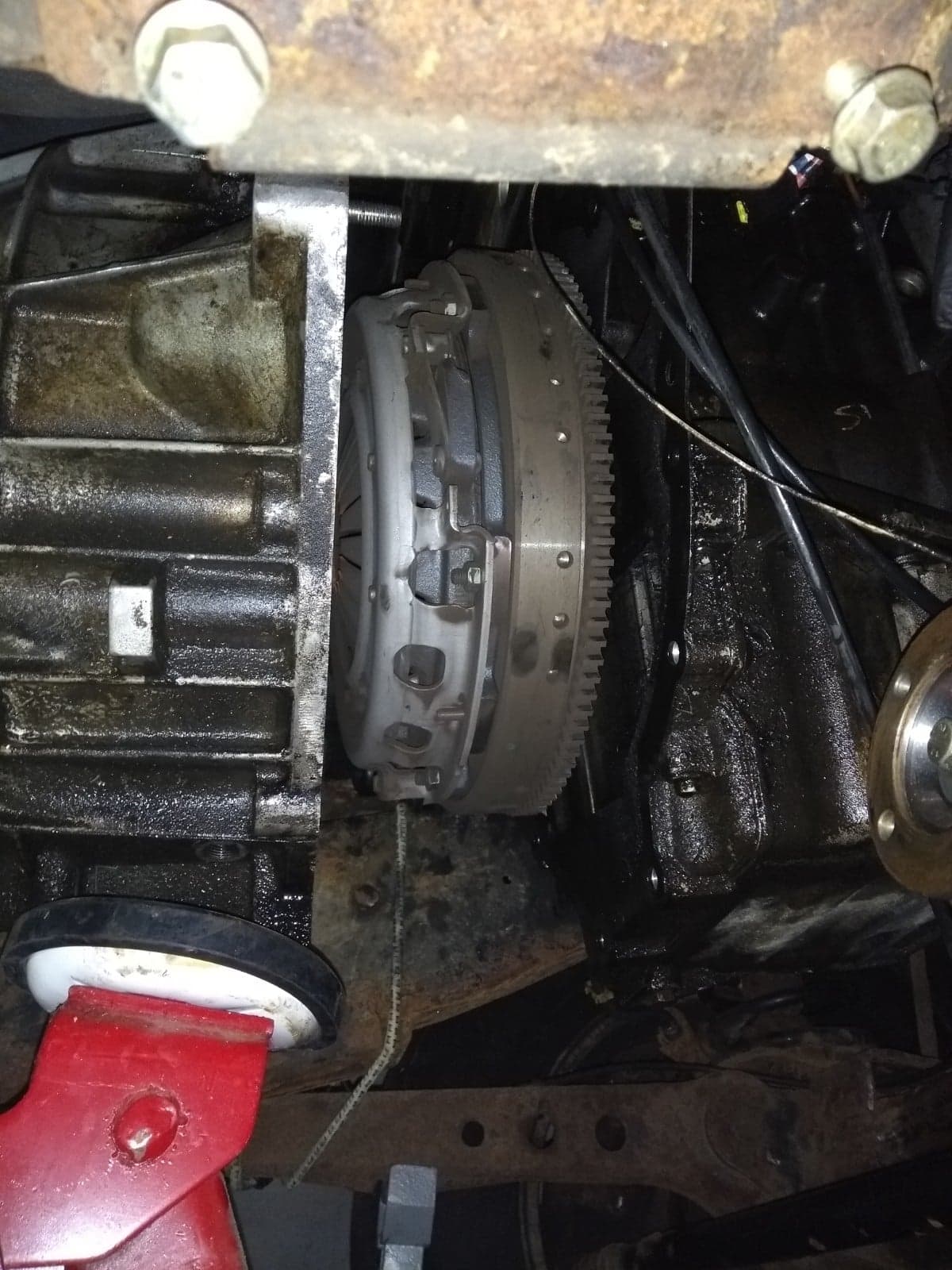

The gearbox has parted company with from the engine but it is catching on the clutch cover plate. the gearstick is close to the floorpan. Must have the angles wrong.
brianconwy
Well-Known Member

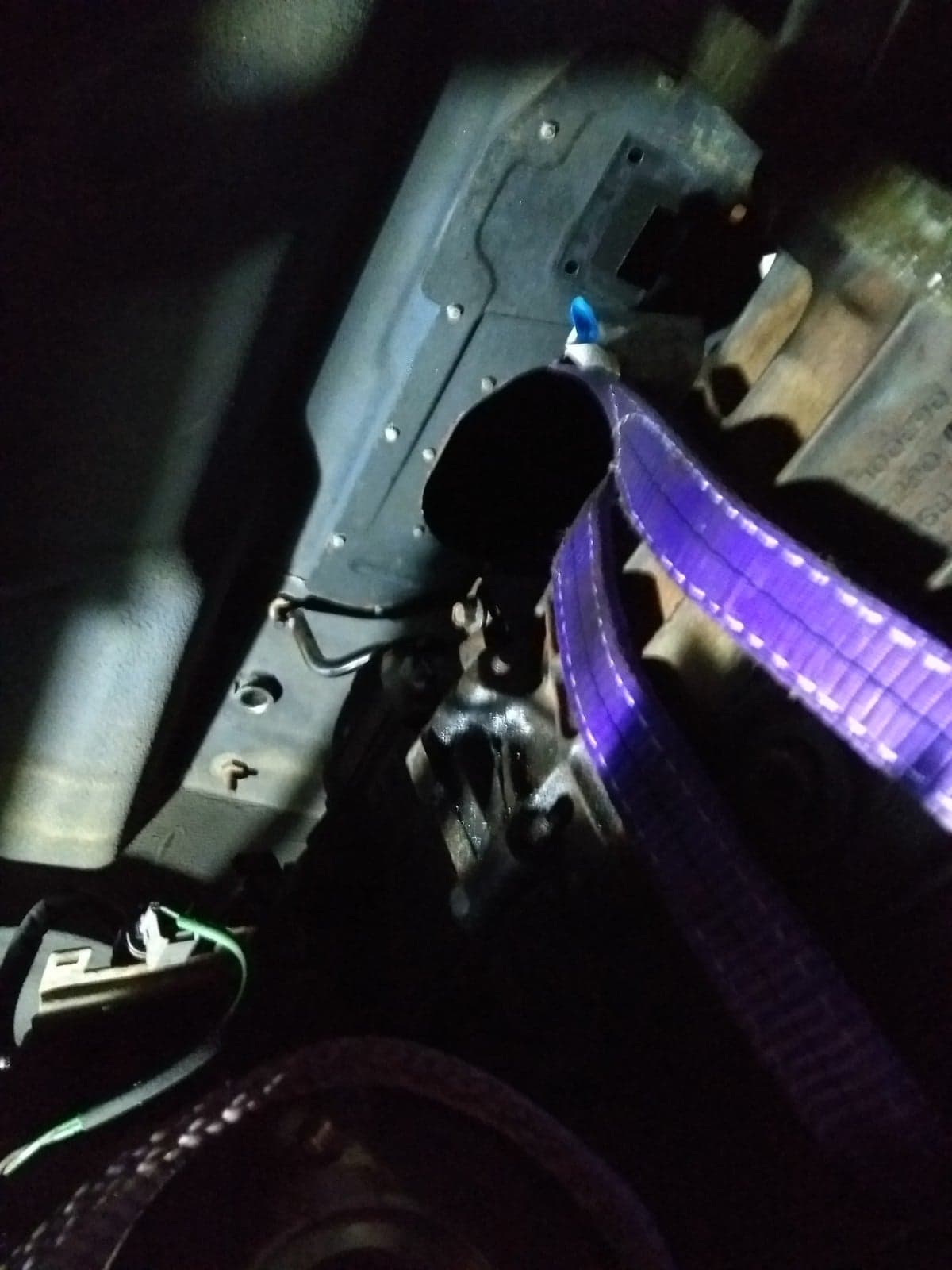

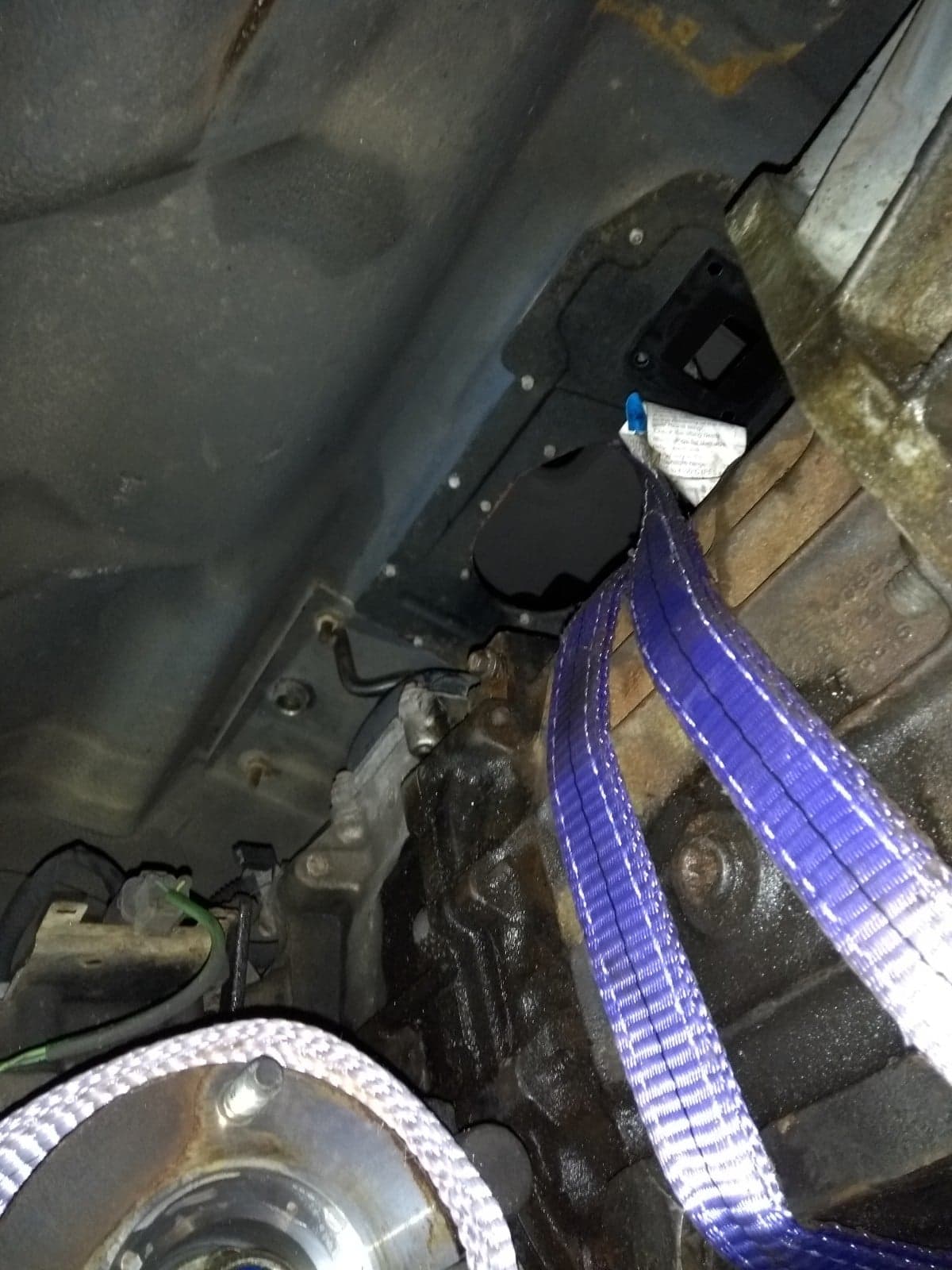

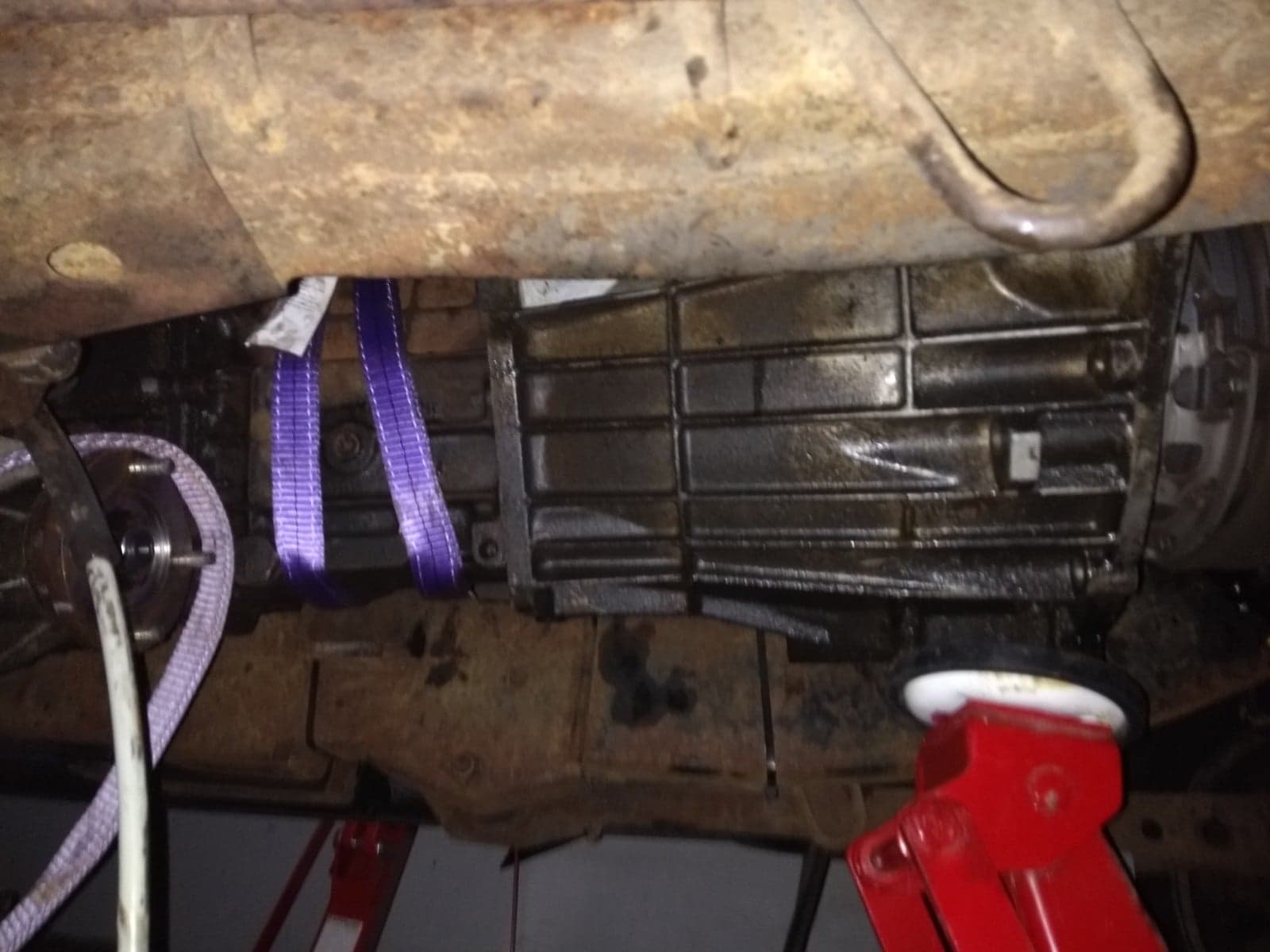

Some pictures of where we are at.
Going to support it on blocks as it is now late and get back to it next fine day which might be Monday. At least I am have a weeks annual leave to get it sorted. Should have booked two weeks. lol.
Going to support it on blocks as it is now late and get back to it next fine day which might be Monday. At least I am have a weeks annual leave to get it sorted. Should have booked two weeks. lol.
brianconwy
Well-Known Member

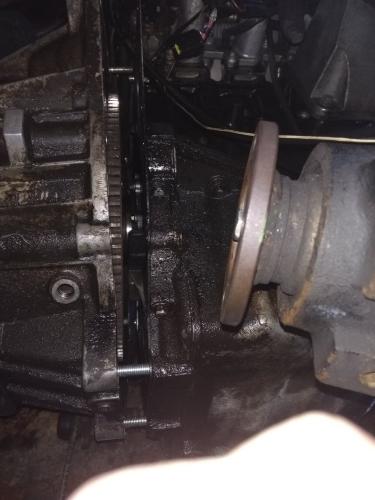

The gearbox is now free. Going to take the old clutch off. Before calling it a day.
brianconwy
Well-Known Member
Now the bad weather has broken, I have got the new clutch fitted. i have done away with the straps and fastened a chain to a bolt on the gear box. Does the front of the engine need to be lifted? By lifting it there seems more of a gap at the bottom of the bellhousing. It is around the right height but a good six inches from the engine.
jamesmartin
Well-Known Member
i support the rear of engine as level as possible but leaving clearance between bell housing and bulkhead,when its aligned it will push up by hand dont force it,put it in gear and in diff lock so rotating a out put flange will turn box splines to align with clutch
brianconwy
Well-Known Member
That's the problem we have now is that when we rotate the output shaft there is no movement at the splines.If I turn the splines the out put shafts turn till I put my hand on one. There is linkage but not solid linkage. I hope I am missing something obvious here. I don't think it has diff lock. Not linked up anyway. It is 2003. Thanks.
jamesmartin
Well-Known Member
of course no diff lock its a d2 ,adjust hand brake up till it locks
brianconwy
Well-Known Member
That's great. Turning nicely now. I am now cold and wet. Going to get back to it tomorrow and hope for better weather. Thanks ever so much.
