Rave is on the computer at home and I'm in Walmart parking lot. How do I get to the linkage? From underneath or through the console?
Datatek
Well-Known Member
On a P38 from above or possibly below depending on where the linkage has failed. Is it an auto?
Western Slope Rover
Well-Known Member
Auto. It seems the cable has broken.
Western Slope Rover
Well-Known Member
Got it home by crawling underneath and manually putting it into drive.
Datatek
Well-Known Member
Sorry, but it sounds like you will need to go under to the point where the cable connects to the selector arm on the box and move the lever into drive.
Engine off of course.
Datatek
Well-Known Member
Beat me to it, glad you got home OK.
Better now than when the winter really puts it's teeth in ...
tomcat59alan
Well-Known Member
It's a Classic Keith.
Western Slope Rover
Well-Known Member
tomcat59alan
Well-Known Member
Winter storm warning issued for Western Colorado until 8am Tuesday.6-12 inches of snow.
Western Slope Rover
Well-Known Member
And I start chemo in 2 days. Bad timing for this one.Winter storm warning issued for Western Colorado until 8am Tuesday.6-12 inches of snow.
tomcat59alan
Well-Known Member
Good luck mate.hope it's successful.
Western Slope Rover
Well-Known Member
Got to get there first.
Winter storm warning issued for Western Colorado until 8am Tuesday.6-12 inches of snow.
Not good for WSR tho is it ...
Western Slope Rover
Well-Known Member
I'm trying to figure out how to get the damn thing out. Rave is no help.
IIRC, the cable is adjustable at the GB end, and fixed within the selector ... It has been a while since I changed one, and I remember the selector is awkward to get out of the car ... I think it has to come to bits to change the cable too...
I have a spare selector which I could photograph if it would help ... let me know .....
I have a spare selector which I could photograph if it would help ... let me know .....
Western Slope Rover
Well-Known Member
Thanks.
Right, inside the vehicle the changer sits on a plate pop rivetted to the tunnel - with the actual changer bolted to it - you can see the pop rivets and the SS bolts in my pic ( off a project
) below.... ( gear knob is held on by a c-clip under the cover, and then the nut hold the knob on .... )---
---

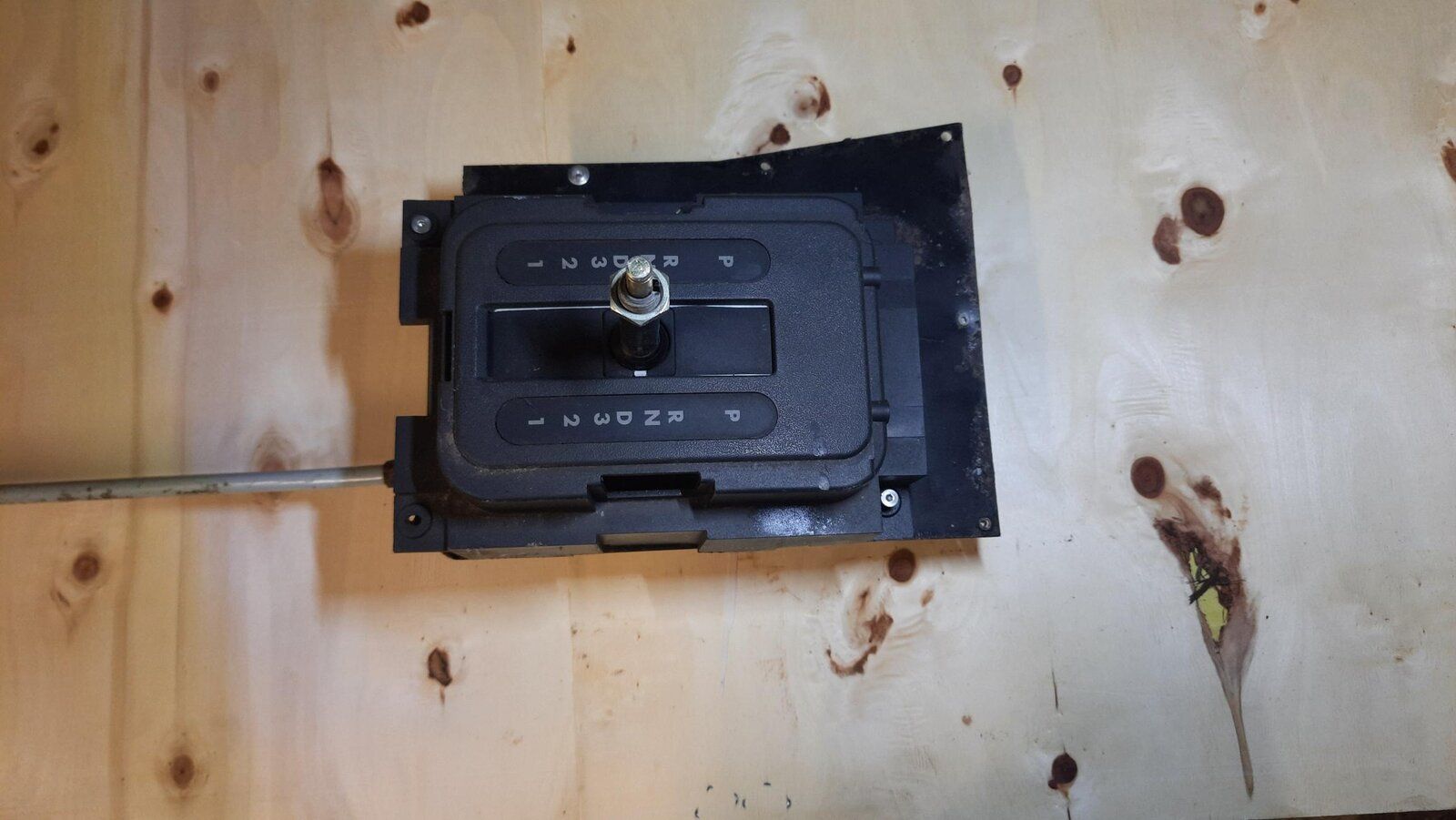

So, under the plastic cover, this is what you'll find ... cable obviously at the bottom on this pic ....

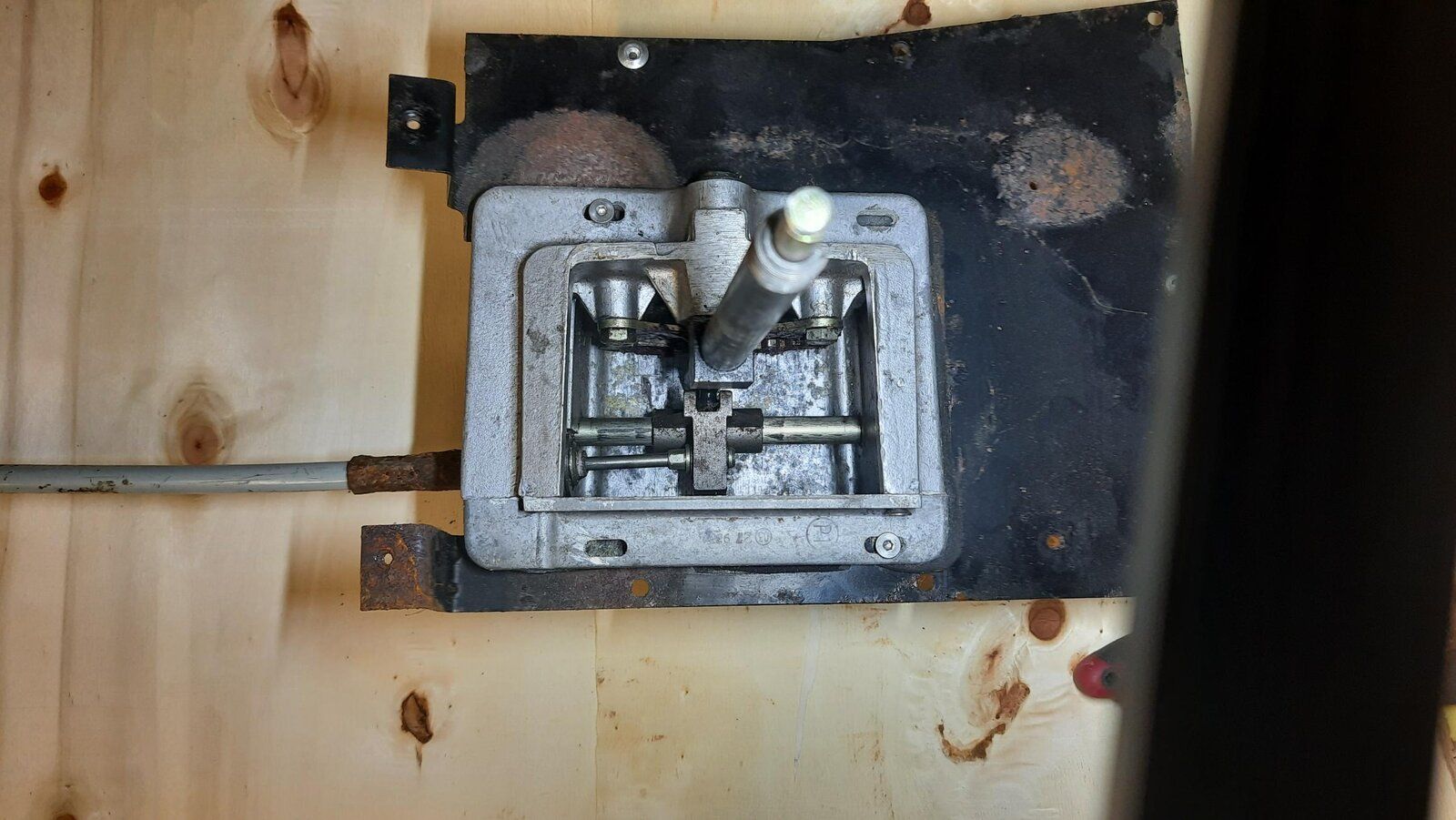

Inside the changer itself:-

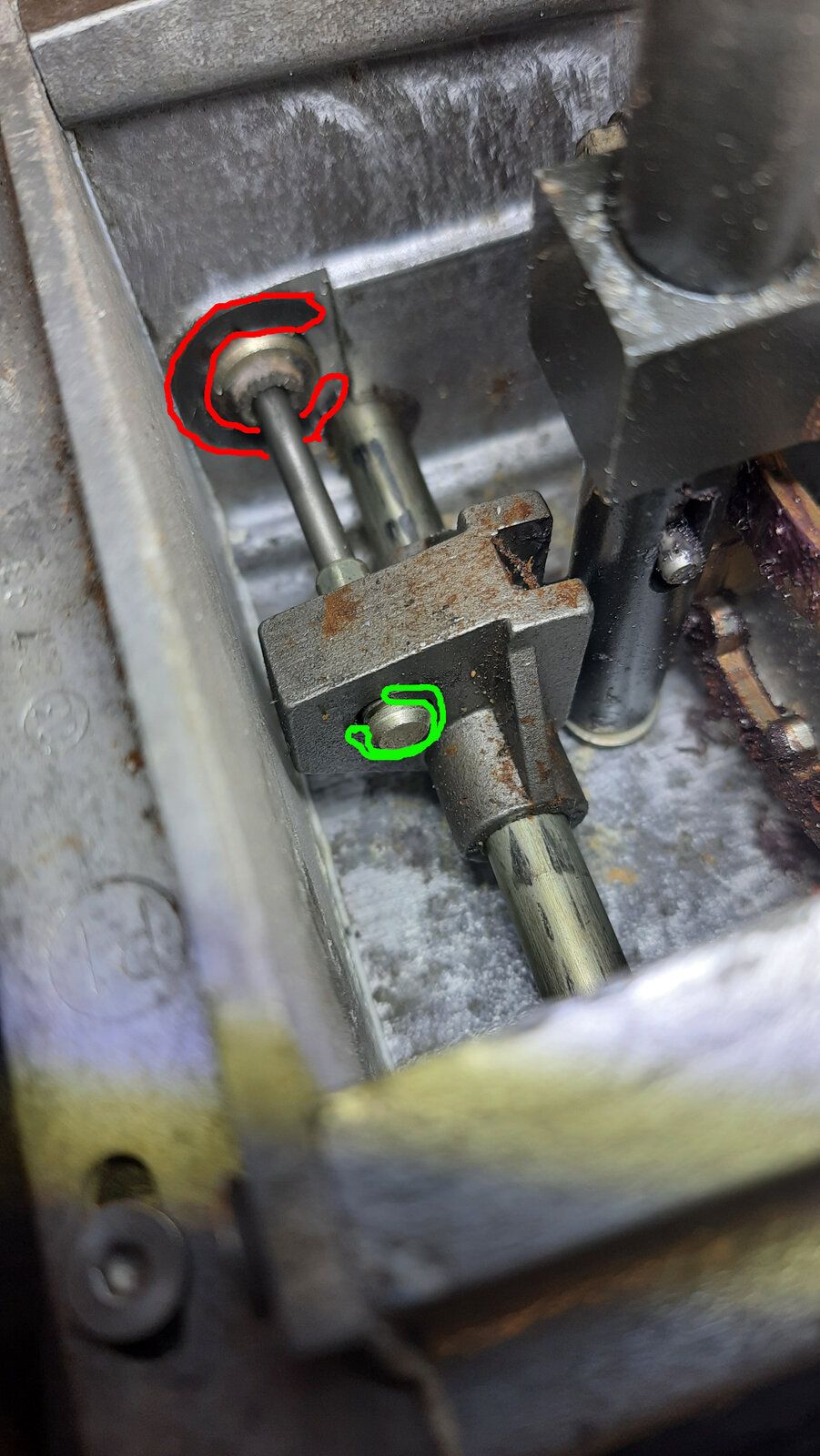

So, the cable outer is held into the body by the "red" clip ... and the cable inner in to the mechanism by the "green" clip ....
Hope that helps - if you need anything else, let me know
