discool

Well-Known Member

• Mar 4, 2015

• #21

Ok by suppling the link between the two rear lamps u have confirmed that the 12v backwards supply travels as far as to where dash illuminating connects onto this circuit.
So somewhere under the dash there's a break between that point and the supply fuse for this circuit where the supply should originate... so best of luck in finding that one.

No problem with the front side light on the same side then?



F

flatline

Active Member

• Mar 4, 2015

• #22

Nope,just the rear.



F

flatline

Active Member

• Mar 4, 2015

• #23

Ok so the n/s front main bulb is only getting one 12v supply from the 3 pin plug. Opposite side from the rear.



discool

Well-Known Member

• Mar 4, 2015

• #24

flatline said:

Ok so the n/s front main bulb is only getting one 12v supply from the 3 pin plug. Opposite side from the rear.

Click to expand...

Oh dear.
Ok start again, check bulb holder, check fuse there's two per bulb dip and high, and also if ok that there's actual voltage at the fuse.



F

flatline

Active Member

• Mar 4, 2015

• #25

Ill check the book tonight and see what number the fuses are.



discool

Well-Known Member

• Mar 4, 2015

• #26

I would look in my haynes book but still on a train on my way home



F

flatline

Active Member

• Mar 5, 2015

• #27

The fuse is fine,ill have to try and trace the wires back at weekend i guess.



F

flatline

Active Member

• Mar 6, 2015

• #28

bit of an update,for some reason one of the previous owners had fitted a blade fuse to one of the wires from the light relay and gidden it under the alarm sounder. It was rusty and baked in years of crud,easy fix so the front lights are now working.

The rear ligjt is goi g to need more investigation as i printed out the wiring diagram from autodata and the fog light are fed from the same wire and they are not working.



discool

Well-Known Member

• Mar 6, 2015

• #29

Getting there

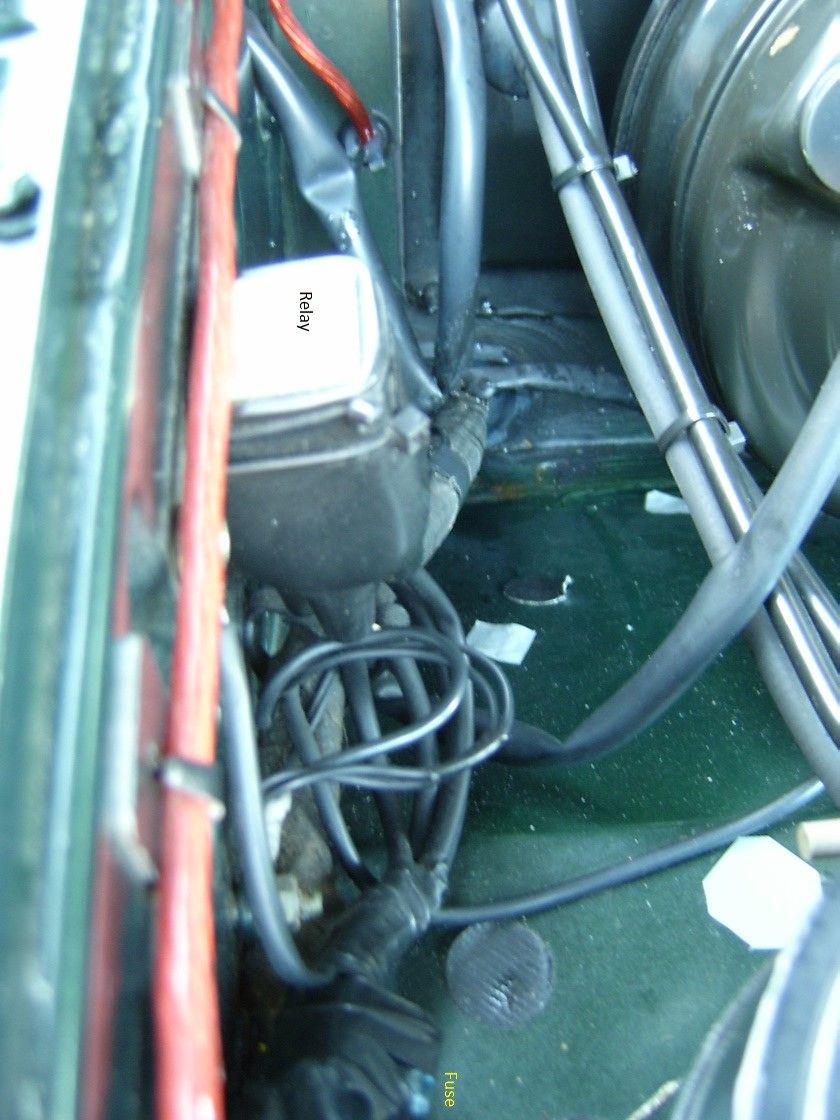

I have a relay in a relay for my driving lamps in a similar position with a blade fuse, if your relay is for additional lamps it could be a standard position that a LR dealer uses to fit a relay for this purpose.

My relay picks up its supply from the engine bay fuse-box and the switching supply from the main high beam circuit at the rear of the o/s bulb all in a pre made loom..



Attachments

•
  S4200771 (2).JPG

  126.7 KB · Views: 75

Last edited: Mar 6, 2015

F

flatline

Active Member

• Mar 6, 2015

• #30

Mine is the same as yours but the wires have been chopped and changed for some reason,ill get some pictures tomorrow.

The blade fuse you're talking about,do you mean the one in the fuse box or do you have another on?



discool

Well-Known Member

• Mar 6, 2015

• #31

Another one, you can just about see the blue fuse at the bottom of my pic.



F

flatline

Active Member

• Mar 6, 2015

• #32

Same place as mine,i thought it was put there by a previous owner,has yours got an alarm?



discool

Well-Known Member

• Mar 6, 2015

• #33

flatline said:

Same place as mine,i thought it was put there by a previous owner,has yours got an alarm?

Click to expand...

Yes and the sounder is on the inner wing in the usual place.



F

flatline

Active Member

• Mar 7, 2015

• #34

Fixed the front light with a new water proof inline blade fuse,found the relay for the fog lights and tried it with a brand new relay and still no luck.
