Datatek
Well-Known Member
What car?
peaky1979
Member
Sorry a 2006 range rover sport hse 2.7 tdv6
peaky1979
Member
Ur so welcome
Always a team effort from everyone
Great u have one and may I ask which one u have plse

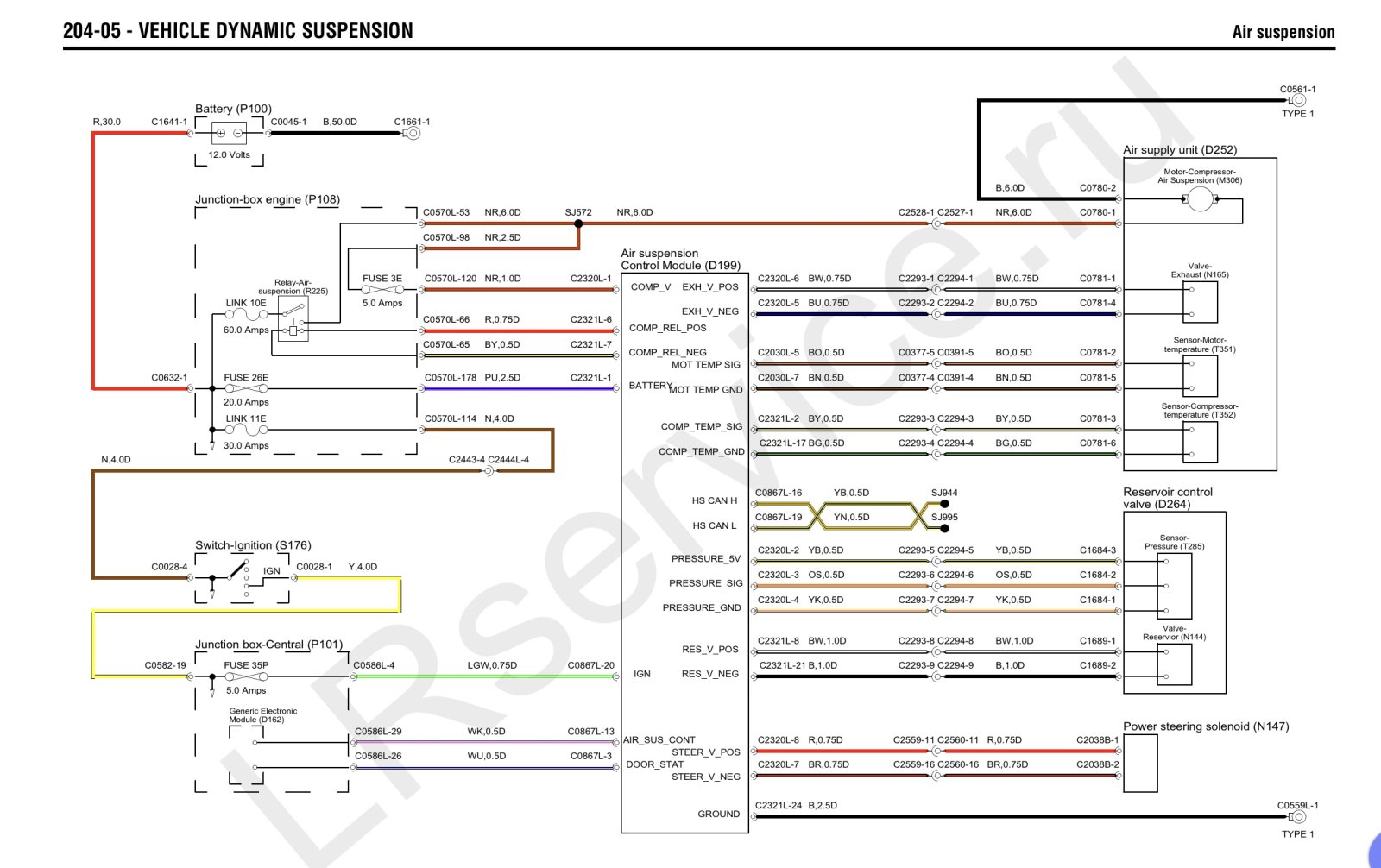

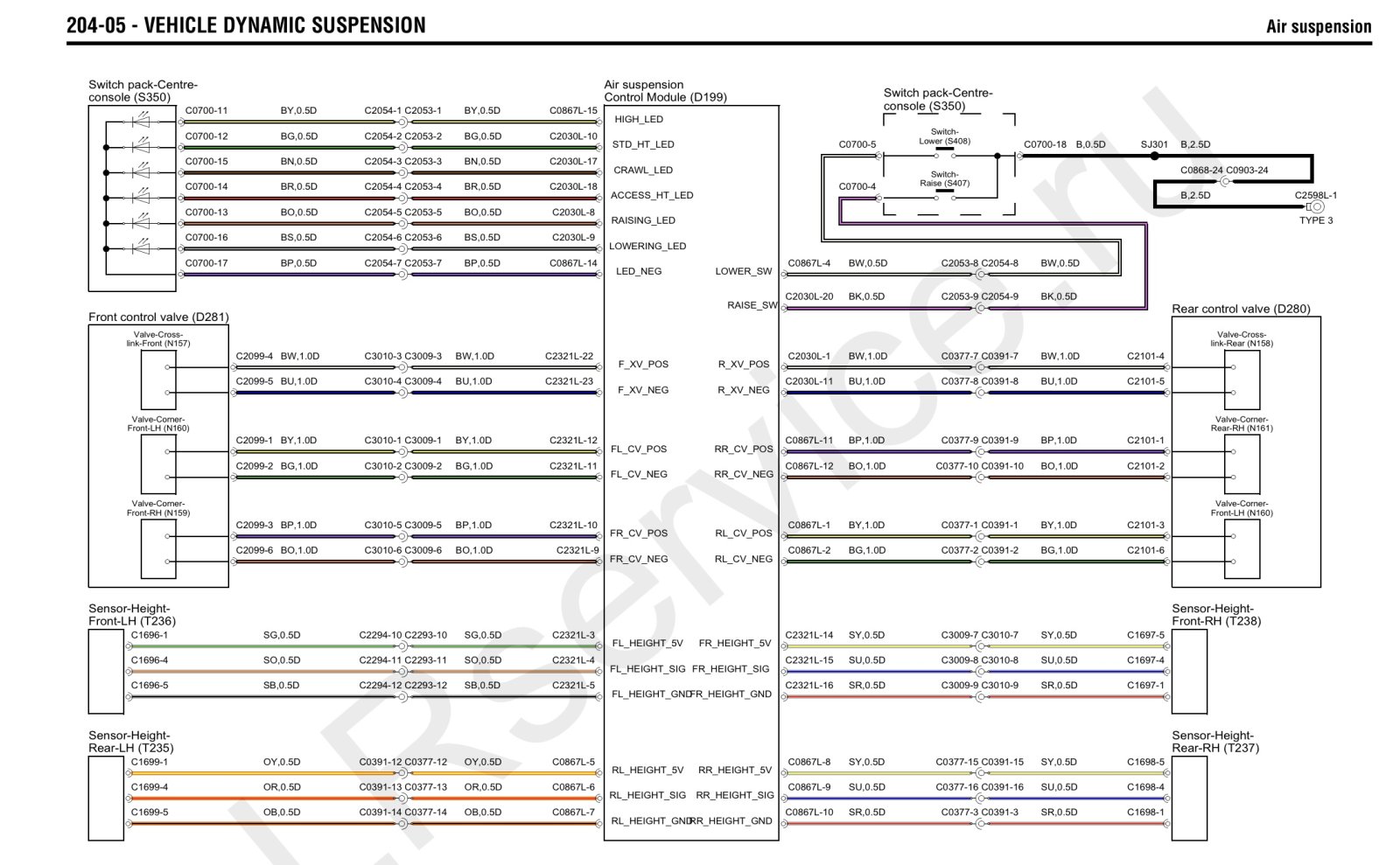

Don’t forget to always ask if u get stuck on anything and glad the wiring diagrams are useful to u
peaky1979
Member
I have the Kingbolen s 800. I really wanted a picture off the wires going into the passenger side rear plug as I have a plug with wires in it but there a different colour from the loom
Thks and haven’t heard of that one before
Ah I see , u should still be able to match them up correctly seeing u have a new connector with wires already attached

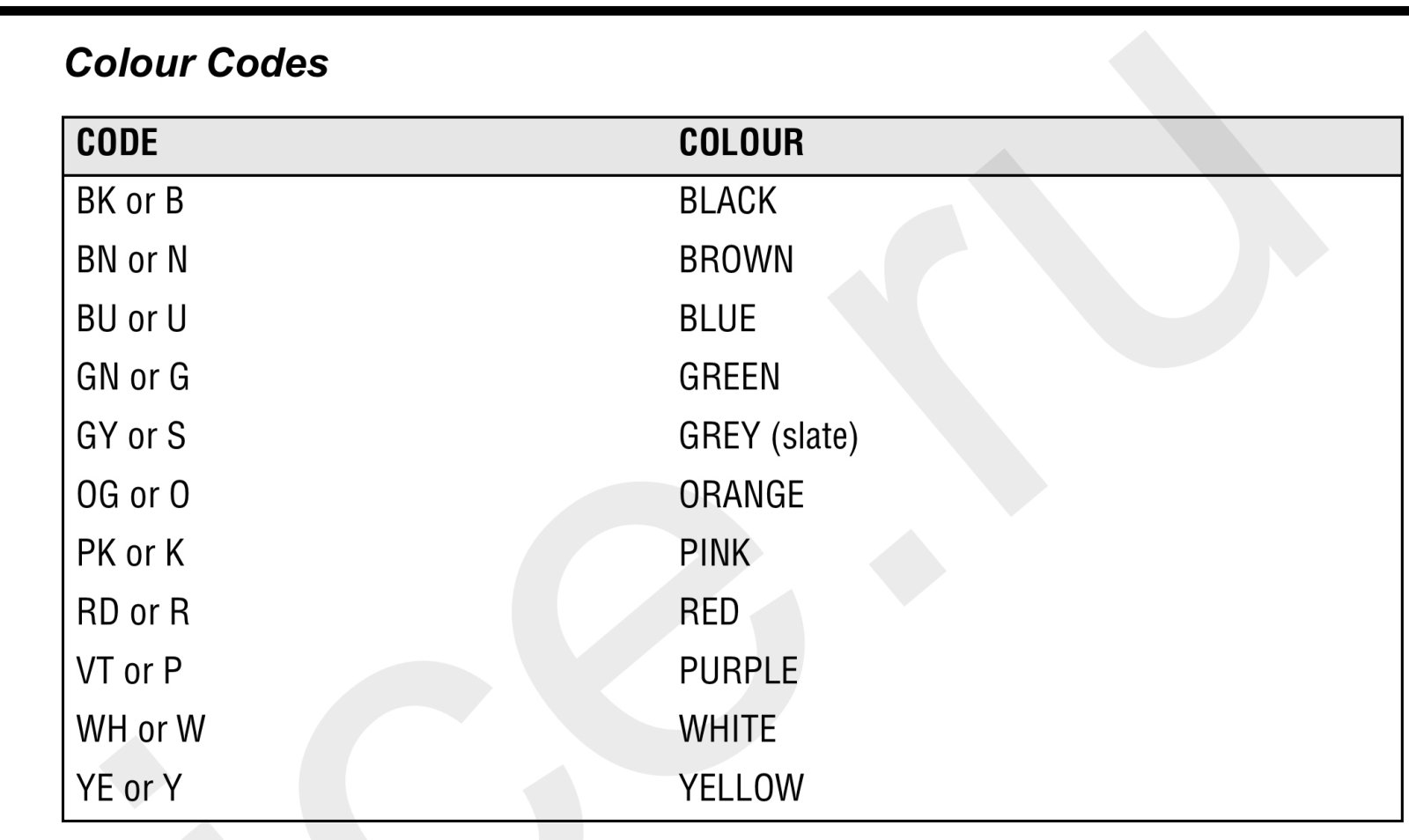

Get a note book , write down the colour and PIN number from the wiring diagram then match the wires up with the associated wire on the new connector wires
If ur still unsure If u take a picture of the new connector and wires Plse we can then tell u where each wires go to what pin
Assume the colour of the main loom matches what’s in the wiring diagram above , if not are u able to get a clear picture of them as well plse as we should then be able to assist u further
Indeed there should be PIN numbers on the side of the connector
Hope that helps and useful to u
