alexc2701
Active Member
You need a handy tapping stickDon't you hate it when trying to grease a UJ and the grease goes to three journals but not to the one that realy needs it.
when the ujs fail on the prop , i have to either replace them or what a lot are doing is fitting an entire new prop
aplogises yes mine is a D3
alexc2701
Active Member
Assuming it's the same as my D2 front prop 1 grease able uj at front prop with no grease point but a hole (just needs a nipple) and then a double cardan joint with a center bearing it's easy to swap them. If your vice is big enough you can do with an over and undersized socket to press out if not a copper or ally drift or anything softer to use a punch works fine. Proper rebuild kit for front prop is like 50 quid. If center bearing like mine is okay then 2 ujs is 15 unless you want genuine parts a fair bit cheaper than a new prop. Kinda fun to change once you have the prop off too if you like that kinda thing
Jamscone
Active Member
Yeah, plus some spare bits.
https://www.landyzone.co.uk/land-rover/farming-parts-and-misc-sale-nordelph-norfolk.319567
I like grease guns, something about them appeals. Although I may have taken it a bit far now.
https://www.landyzone.co.uk/land-rover/farming-parts-and-misc-sale-nordelph-norfolk.319567
I like grease guns, something about them appeals. Although I may have taken it a bit far now.
being new to the disco i've spent quite a while reading up on the usual preventive maintenance on these
is always good to find out what can and can't be done,
last time i done ujs was on my old series , learning how to get them straight whilst in the vice, lol
alexc2701
Active Member

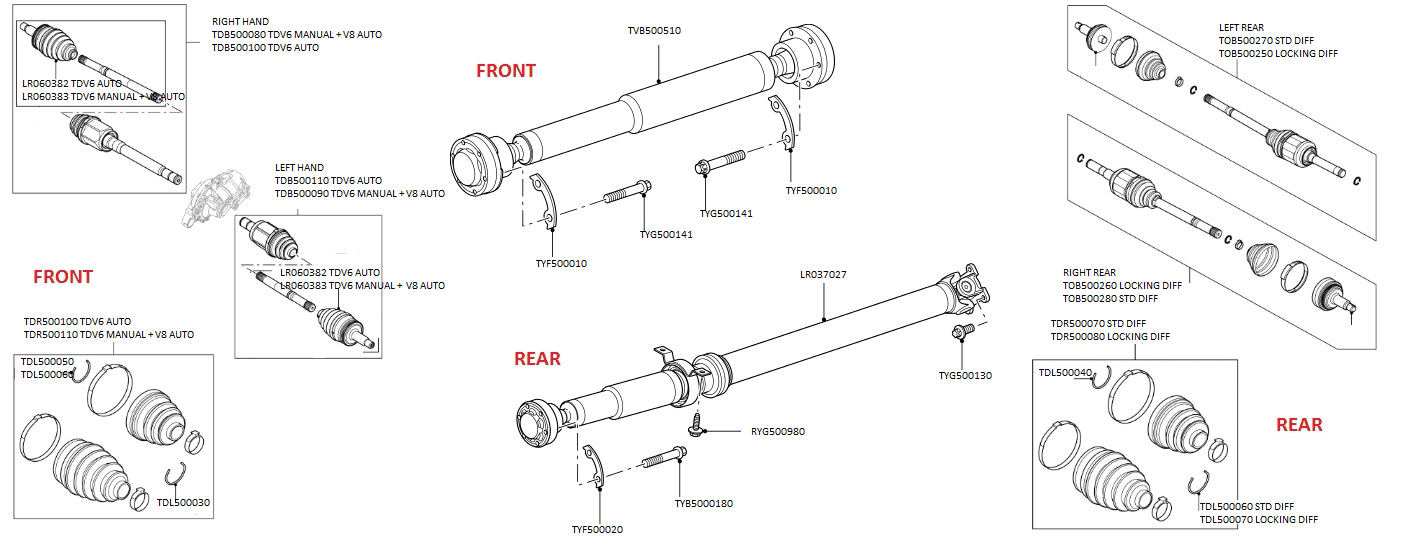

If it's the same as mine ref pic it's a bastard. The cardon makes it really hard to get fingers in and the center bearing makes it hard to line up compared to like a normal yolk. But very doable with a beer and some swears.
If I was doing on a better example I was gana keep longer I'd do the center bearing too. If gana wade spend more too the seals are better
Attachments

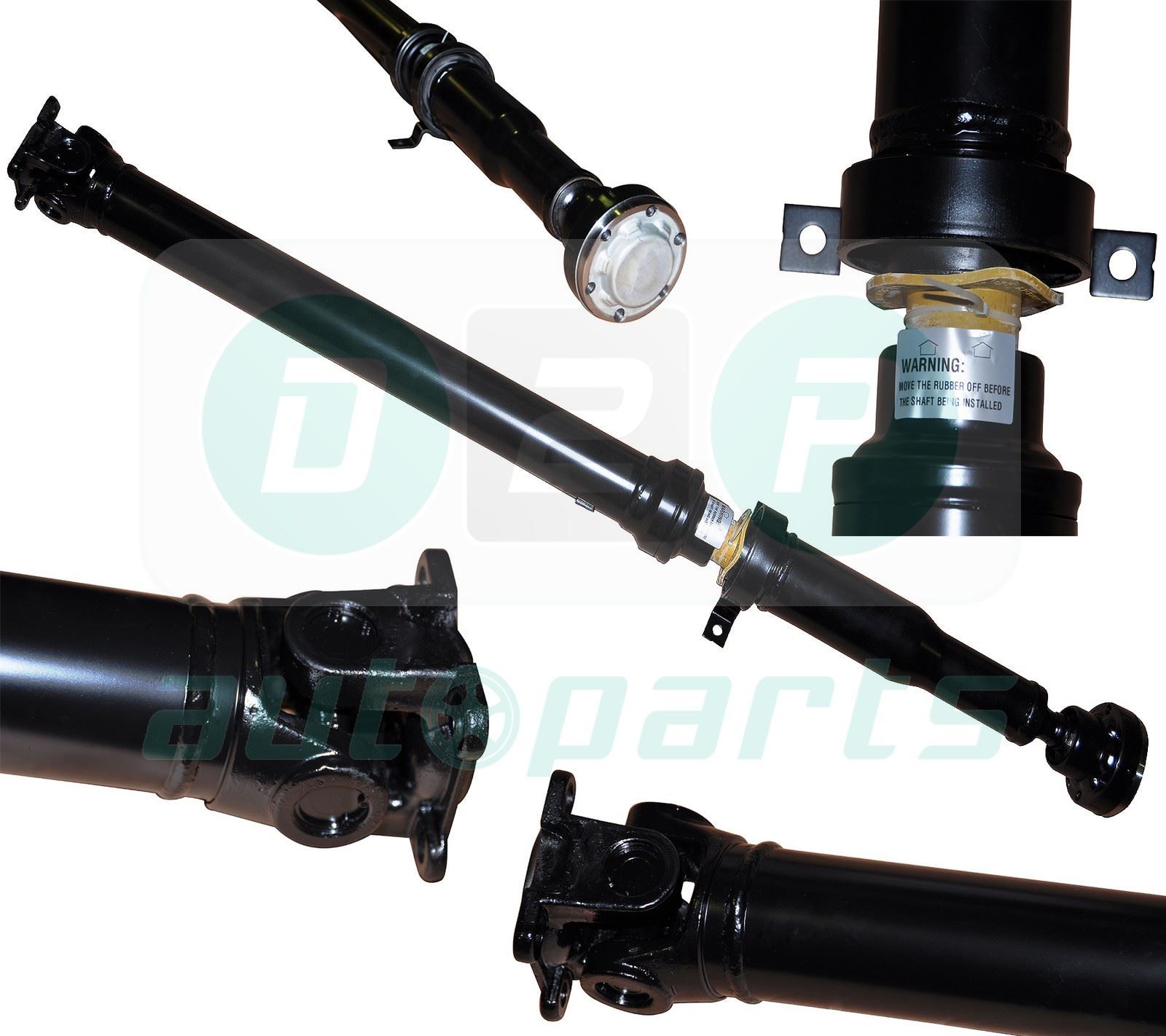

Modern props are great things, at work its std practice for a truck to do a million kms on the original and these are sealed for life jobbies.
Now some of the truck models did have grease nipples and they would take 20 pumps of the grease gun before grease would appear, Soo how does the sealed for life manage a million on one charge of grease?
But if off roading you just cant beat nipples, plus I also find as the grease sweats a little its lubes the immediate area.
Now some of the truck models did have grease nipples and they would take 20 pumps of the grease gun before grease would appear, Soo how does the sealed for life manage a million on one charge of grease?
But if off roading you just cant beat nipples, plus I also find as the grease sweats a little its lubes the immediate area.
i won't say a word about swivel housings , where they remove the level and drain plugs,
Level plug still there its the drain they did away with when they bought out the one shot grease.
talking about props etc i keep meaning to get round to reflashing my gearbox with the updated software , for the california stop
just got to get the ecu info off the iid
alexc2701
Active Member

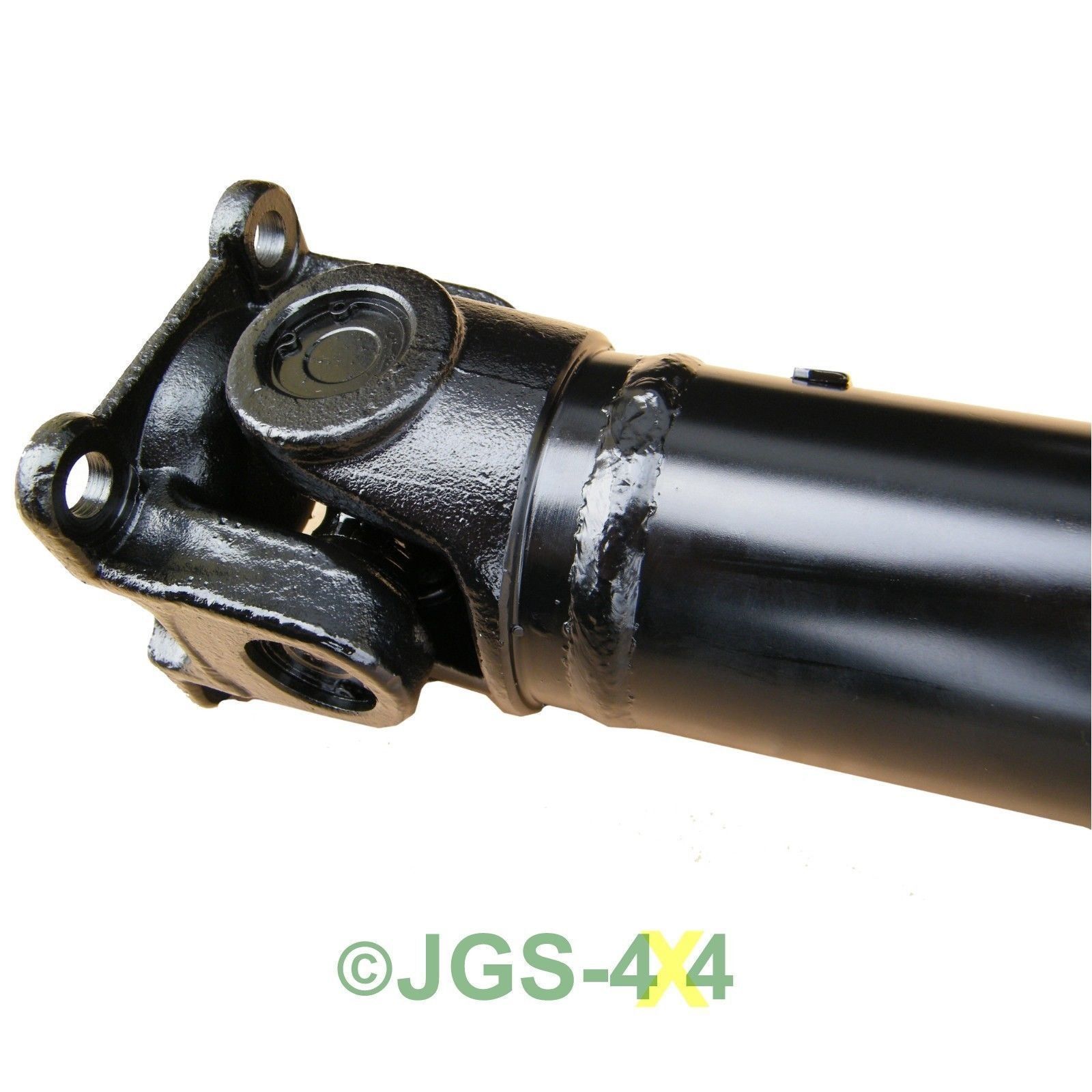

Looks easier to swap as only one uj and no cardan but unsure if you'd fit a nippled joint in without seeing in real life. Not a normal one anyway, you can get ones with nipples in the bearing caps that'd obviously fit as it comes out between the circlip
Nipples are way better if you think wading too as you can purge out any water that has got in the system. Got to be better. There's always a way to fit a nipple usually just costs abit more
I wouldn't trust one that hadn't been greased in few years
