Mark Piercy said:

Blue print ref numbers.

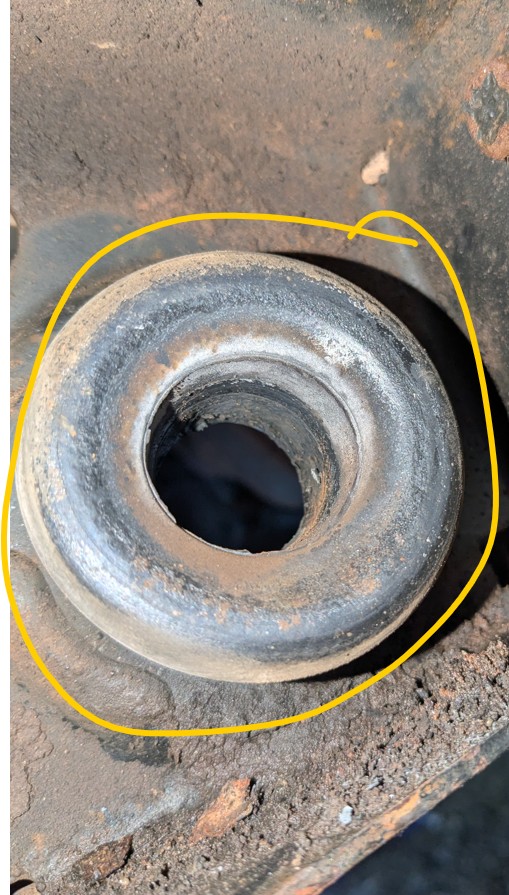

ADJ138048 are the bushes,
ADJ138049 are the rear most bushes that fit to the chassis.

Click to expand...

Here you go... Again

Defo OEM bushes, I had serious death wobble from polys fitted by PO, but seems you're going that way anyway. You can fit diy with a bearing puller kit and impact driver. Dont grind the ends of the bush bolts until you get them moving. Sds drill and chisel v effective...loosen the nut off the bolt a few turns and put the end of the chisel in the hole

can someone please tell me how much NW is used to tighten the screw 7 and 5? and where could I read up on this myself? Thank you!!!

54 - FRONT AXLE AND FINAL DRIVE
Differential to axle case nuts ............................................ 40 30 +
Propeller shaft to differential nuts .................................. 48 35
Radius arms to axle nuts and bolts .................................. 125 92
Radius arms to chassis nuts ............................................ 160 118
Shock absorbers to axle nuts ........................................... 45 33
Air spring securing pin retaining bolts .............................. 20 15 +
Propeller shaft to front axle nuts ................................... 48 35
Track rods to steering knuckles nuts ................................ 50 37
Panhard rod to axle bolt ................................................... 200 148
Drag link to steering knuckle nut ...................................... 50 37
Brake calipers to steering knuckles bolts ......................... 220 162
Mass damper to front axle bolts ....................................... 45.


NM first number, ft/lbs second number.

It’s in rave , or the workshop manual for P38.

J

thank you very much! the workshop manual for P38 is great.
