tempo345 · Jul 9, 2014

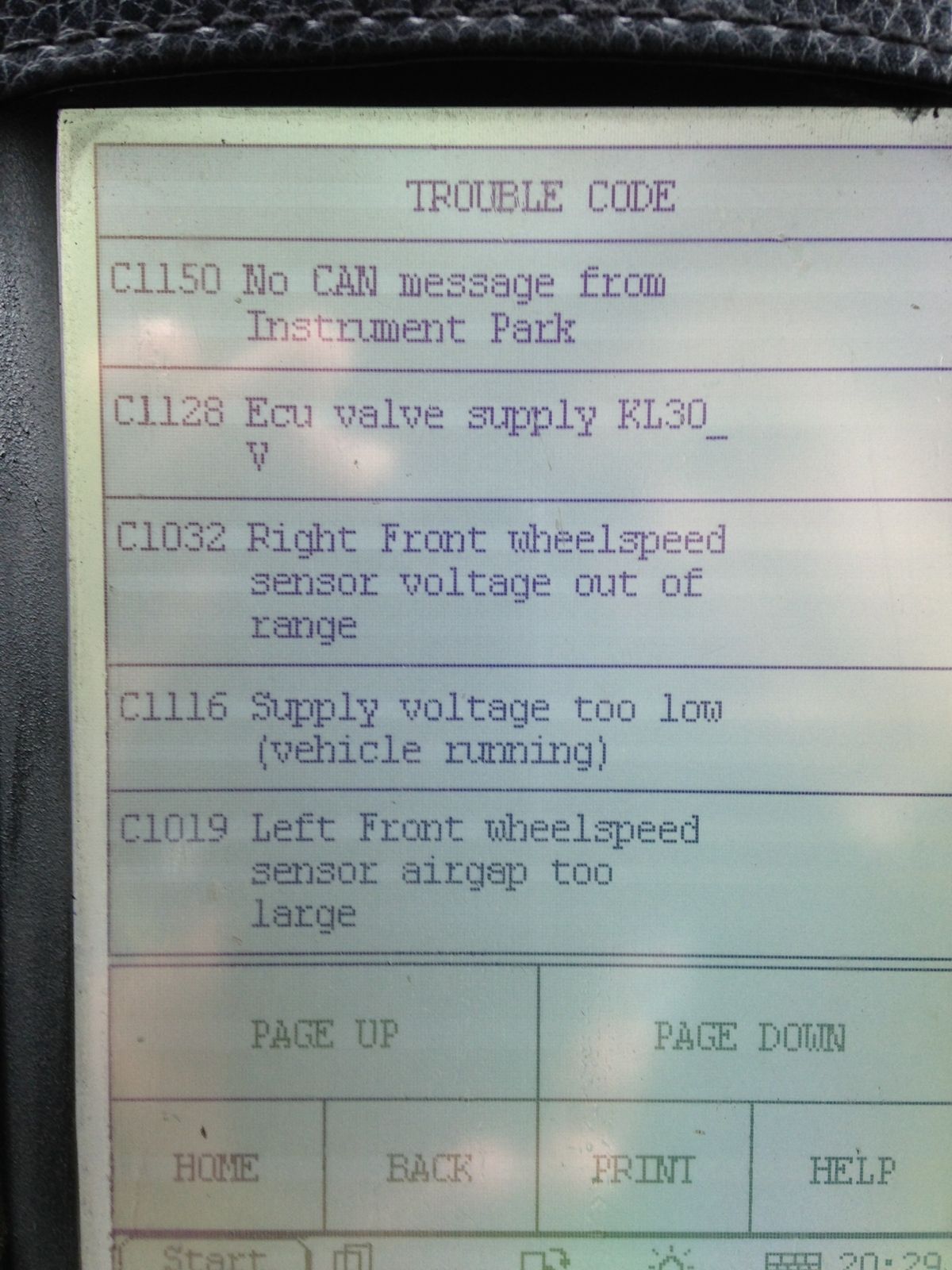

Hi I have a Freelander TD4 2000 reg, that had been standing for 4 years, I have fixed quite many things to put it back on road, viz, alternator, all belts, full service, new clutch plates, pressure cleaned the breaking & clutch system, one new ABS ring, but it still has the three light on the dashboard (three Amigo's). I got it tested with computer and got following results as in the pic below. I am not sure where to start now, could it be the front ABS sensors need replacing or since its been sitting for 4 years that I need to take out the ABS unit to check?
Would appreciate if someone can put me in the right direction.....
Thanks

jedi · Jul 10, 2014

Left and right front abs sensons need looking at.....the other faults could just be from a flat battery

fredi250 · Jul 10, 2014

I recently returned to life a 1998 that had been standing 18 months had to change front sensors and rings and repair HDC switch on gear lever

tempo345 · Jul 11, 2014

I have checked and serviced the the HDC Switch it seems ok
I have also replaced a working one from another freelander, still have three amigo's, so HDC switch is not the issue in this case....
Can any one advice how I can test if the ABS sensors are ok?

matt1295 · Jul 11, 2014

Get a multimeter and test the resistance of each sensor look between 950-1100ish

If u do find a sensor faulty replace the ring while your there as there only a few £ each then u no the corner has been replaced

jedi · Jul 11, 2014

Try pushing the left one in a little..the right one needs replacing. Acording to you error scan logs....but at around 20 quid's each by 2 new uns

tempo345 · Jul 13, 2014

How do I push it in as its all rusty and doesnt budge?
