snapper said:

Tried emailing webmaster and even tracked the owner down on Facebook but no reply to either...

Anyone else have copies of these PDF's?

Click to expand...

Callsperhour said:

I'm very late to the party...but did you ever get the FBH instructions?

Click to expand...

Nodge68 said:

What do you want to know?

Click to expand...

Madmustang said:

I would like to know what remote switch you used and how you fitted it please?

Click to expand...

Nodge68 said:

I used a cheap remote off EBay and fitted it in the engine bay fuse box.
I took power from a spare fuse location, connecting it to the remote. I ran the output from the remote to the FBH plug and used a patch lead to connect it into the plug, thus powering the FBH from its auxiliary input control. I also took the trigger feed from the FBH and ran it to the internal fuse box, so I could run the booster fan when the FBH was hot.

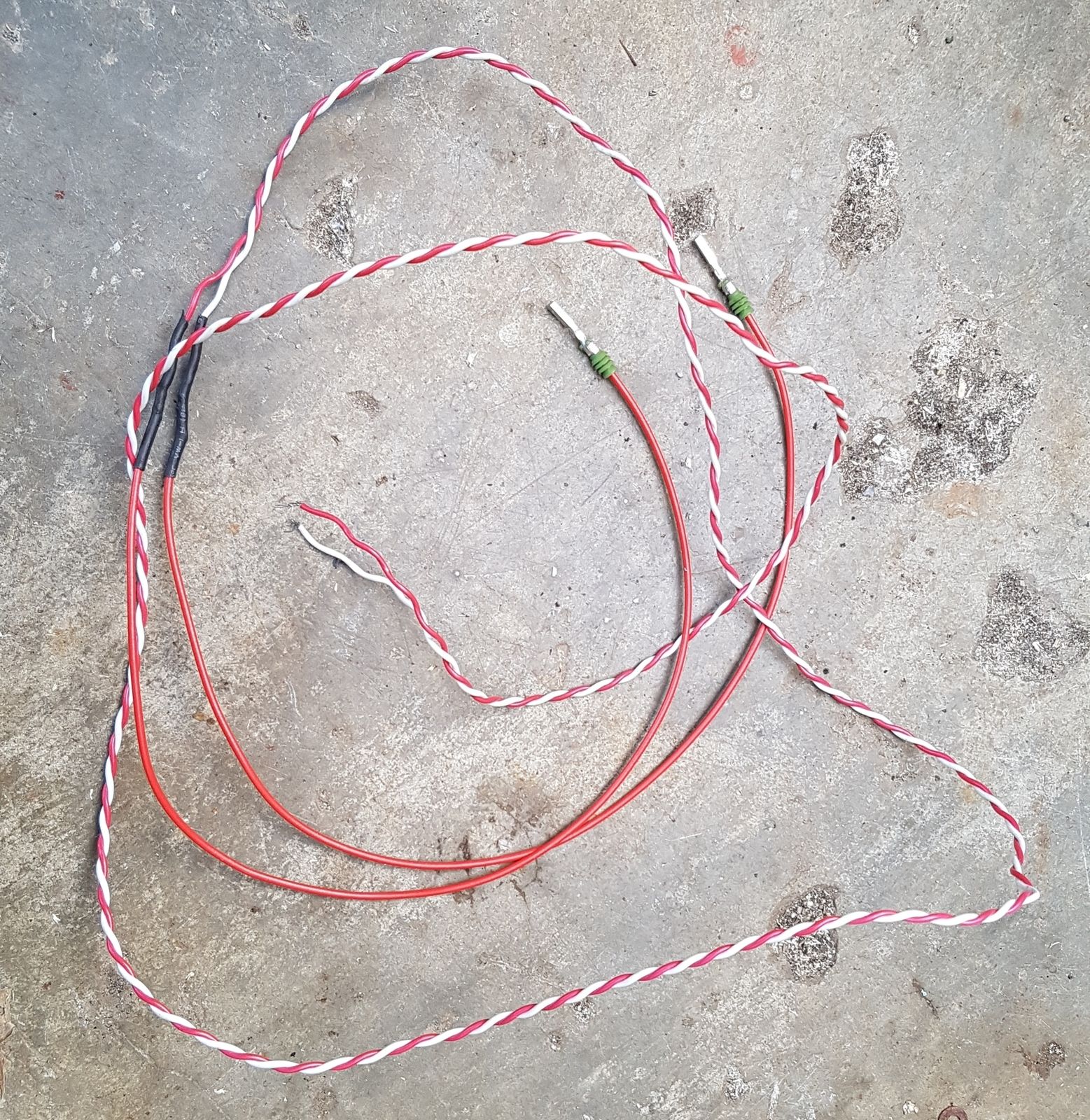

Harness made up to connect to the FBH plug. View attachment 160511

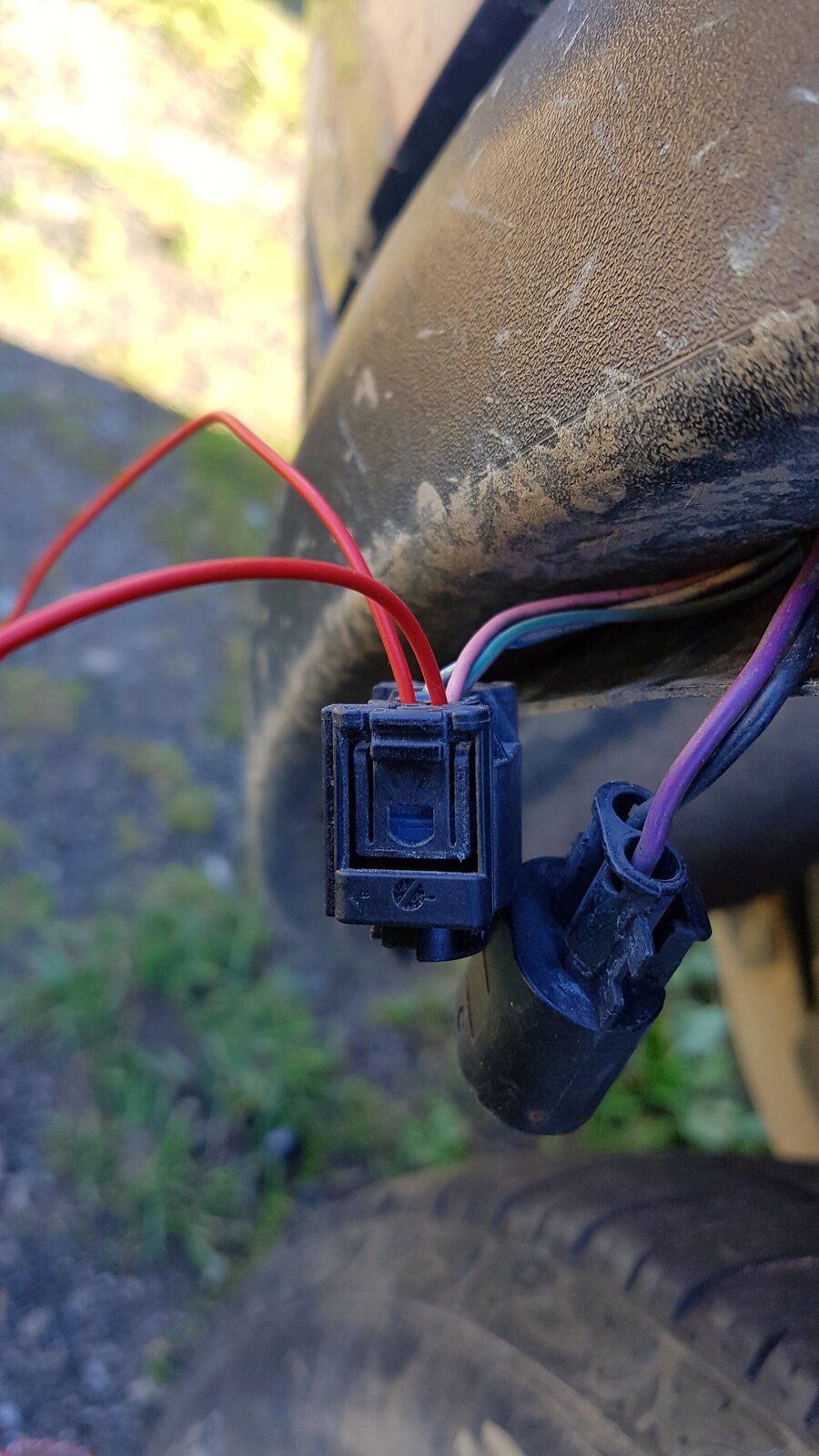

Harness fitted to the FBH plug. View attachment 160512

I can't remember the pin out just now, but I'll look it out in a bit.

Click to expand...
