What a comprehensive knowledge and useful post. Great stuff!
QUOTE=The Mad Hat Man;409760]Bodywork & Interior
Can the later model (post 2000my) folding door mirrors be fitted to earlier model Freelanders?
It is quite easy to fit the later mirrors and when finished looks no different from the fitting o*n the later cars. When I bought the new folding mirror it came with a big squidgy rubber backing which you don't need. You then have to enlarge o*ne of the existing bolt holes by a small amount and trim a projection o*n the plastic housing and you are done. It took me minutes and that was slow because I couldn't believe how easy it was and kept thinking I had made a mistake.
LCYP100580 x 3off (screw) - total £0.81
LCTG000010 x 1off (securing-ring) £1.62
LCRB00421PMD x1 (UA8C mirror and housing) £78
all plus vat makes a total of £94.51.
The electrical side which includes heating and adjustment is simply a plug in job, couldn't be simpler. Incidently you may notice that the mirror gets hot. That is because the heated mirror is o*n permanently.
Is there a way to test the central control unit?
The central control unit controls operation of :-
Vehicle locking and alarm system
Interior lamps
Rear fog lamps
Tail door window
Audible and visual warnings
Front and rear wipers
Heated rear window
To put the CCU into self test mode start with the vehicle unlocked and alram unarmed, and the ignition off.
1. Turn the ignition 'on'
2. Press and hold the rear fog switch 'on'
3. Turn the ignition 'off'
4. Turn the ignition 'on'
5. Release rear fog switch within four seconds of ignition 'on'.
If successful a buzzer will sound for about 1 second, and the interior lamps will light for the same time. The various inputs can now be tested. When the CCU detects an input (e.g. Door Open), the buzzer will sound and the courtesy lights will come o*n.
The outputs can be tested in sequence by operating the Central Door Locking switch. Outputs may be continuous until the switch is released, or pulsed until the CDL switch is pressed again.
The output sequence is as follows:-
Rear fog lamps (Continuous)
Lock (Pulsed)
Superlock (Pulsed)
Unlock (Pulsed)
Front wiper (Continuous)
Alarm LED (Continuous)
Volumetrics (Continuous)
Horn (Pulsed)
BBUS (Pulsed)
Heated rear window (Pulsed)
Tail window down (Pulsed)
Tail door actuator (Pulsed)
Tail window up (Pulsed)
Rear wiper (Continuous)
Hazard lights (Continuous)
Door open warning lamp (Continuous)
Seatbelt warning lamp (Continuous)
Handbrake warning lamp (Continuous)
Self test mode is cleared by switching the ignition off. Note that continuous operation of some of the tests may be potentially damaging (e.g. Door Locks, window lift motor), so as soon as you have answered your query, clear test mode.
How can I recalibrate the rear window operation?
The control unit needs to know the position of the rear window glass for safe operation. If you have problems with operation of the rear window it might be worth trying this procedure.
1. Disarm the anti-theft alarm system.
2. Disconnect the vehicle battery.
3. Wait 5 seconds.
4. Reconnect the vehicle battery.
5. The CCU will now drive the tail door window to the fully lowered position.
6. Turn the ignition switch to the 'ignition' position.
7. Press and hold the tail door window switch in the 'Up' position until the window has reached the fully closed position.
8. The tail door window should now be calibrated. If calibration has failed, a warning buzzer will sound.
My heated rear window doesn't seem to work sometimes?
The heated rear window will work o*nly when all of the following conditions are met:-
1. The HRW switch is pressed.
2. The engine is running.
3. The tail door window is closed.
4. The roof is fitted (3 door models o*nly).
The rear window control is 'sticky'!
Some owners have complained that the rear window occasionally continues to run down when the control button is released. This seems to be caused by dirty or faulty switches in the rear door and has been cured by dealers.
Can the rear window be operated from the remote keyfob?
Yes, if you press the unlock button o*n the fob and hold it down, you can lower the rear window. This is to facilitate loading things in a tight car park where you may not have room to open the rear door. You can raise it again by the rocker switch o*n the dashboard, or by inserting the key into the lock o*n the rear door and turning clockwise until the rear window reaches the top position.
My rear window opens by itself!
On 3-door models, this can be caused by the switch in the body side which detects if a hard-top or soft-top is fitted. A faulty or badly adjusted switch will cause the window to lower itself.
On 3 or 5 door models, several owners have had the control unit replaced to cure the problems of returning to a parked car to find the rear window open. This can also be caused by dirty or faulty sensors in the rear door.
Can I put a 12V power socket in the boot to run my fridge/PC/TV ?
There is a LR kit to fit a 12v socket in the rear. The part number is STC 7927 and I think is costs around £40 !! The socket o*nly is LYXW 100040LNF and the surround is LAWR 5168SUC (this comes in two colours to match the DISCO ser II interior, but the grey is a good match to the socket (the beige is not your Freelander interior). The LR socket o*nLY (not full kit) is £8 (+VAT).
The specification o*n my MY01 Td4 says that it is fitted with a Fuel Burning Heater. What / Why / How?
The FBH is an efficient heater unit which burns fuel independently of the engine (it has it's own supply from the fuel tank). It heats the cabin without being reliant o*n the engine being up to temperature, so the cab warms up *very* quickly in the morning. It is possible to upgrade the FBH to remote control or timer operation for added convenience.
My Trailer Indicator lamp never illuminates ?
The trailer indicator warning lamp (bottom right of the dash) should flash with the indicators when a trailer or lighting board is connected. With no trailer connected, it should flash o*nce when the indicators are switched o*n. If it does not, the most likely reason (other than a blown bulb) is that the indicator flasher unit was not upgraded to the towing version when the towing electrics were fitted. This is a simple plug-in replacement of the standard flasher relay.
Brakes
My dealer says my brake pads need changing after o*nly xxxx miles! Is this normal?
Brake pad wear depends o*n many things. Julian Read had the front pads o*n the Camel go out after 8K miles due to off-roading in wet sandy terrain. More typically, front pads seem to last around 30-35K miles.
My ABS warning light stays o*n a long time after I start the engine?
The ABS warning light should go out o*nce the vehicle speed reaches 5mph. If the light does not go out at higher speed this should be investigated immediately.
How do I get the front brake pads out - they don't seem to have the usual arrangement of pins and clips... not that I can see anyway...
Remove lower guide pin bolt from caliper and pivot caliper housing upwards. Remove 2 brake pads and retainers from the caliper bracket.
Drivetrain
Is there a heavy duty clutch available for Freelander?
There is a Land Rover TSB which mentions a heavy duty clutch for all 1.8P and 2.0D models, "available in limited numbers", "for vehicles used in arduous conditions", part number UQB100770L Clutch Plate - Heavy Duty. It is not listed in the standard parts catalogue so I don't know the price. You have to prove you really really want and need it before LR will fit it under warranty as its a 4.4 - 5.1 Hour fit depending o*n engine type. -- JE Engineering do heavy duty clutches for the Freelander -- Can't be certain, but I reckon the 2.0 TD clutch will fit the 1.8 Petrol without a problem, and it has an extra 13mm diameter o*n the friction plate. Cover plate is the same part number, as is the release bearing. Rover 220 Turbo uses the same size friction disc, but probably with heavier springs. If you wanted to go wilder, look at the Rover 825 V6 2.5i 24V from 96-99 (The Rover years!) uses the same cover plate and release bearing but had a different friction disc (no details).
Engine (1.8L)
Whats the issue with the 1.8L head gasket?
The 1.8L engine is widely acknowledged to have a weakness in the head gasket design. This is complicated by the unusual design of the engine which uses long head bolts which travel right through the block to the sump. Head gasket failure often seems to require head or engine replacement due to this 'feature'. High grade head gaskets are available from specialist suppliers (the 1.8 engine is used in various sports cars, which suffer the same problem). Rover made some modifications in 2001 (larger head dowels) which seems to have helped if not removed the problem. The best advice is to keep an eye o*n your oil and (especialy) water levels. At the first sign of coolant loss, investigate further, don't 'wait and see'. Don't panic, there are other (less serious) causes of coolant loss e.g. Inlet manifold gasket.
General / Maintenance
Is there a workshop manual available for Freelander?
There is a Haynes manual available from your local motor factors. No longer officially available, but Land Rover used to sell a CD based workshop manual called RAVE. Copies of this can be found for sale o*n places like eBay. Beware, most of these are apparently pirate copies :-O If you insist o*n buying a pirate copy, you may as well buy an EPC CD as well - the official LR parts catalogue.
Lighting
The lights in the rear bumper are not very visible. Can anything be done to improve the situation?
Several members have modified their vehicles to improve the rear lighting. The modification originated with club members Colin Blake and Jon Mapp, and details can be found o*n Jons' website MyFreelander.com
The modification involves converting the foglights to function as fog and rear lights. The indicators are then replicated in place of the reverse lights and the reverse lights moved to share the bumper mounted indicator housing. The overall effect is a huge improvement in the visibility of the rear of the car.
High level brake light bulb?
The bulb in the high level brake lamp is a 12V 15W bulb, not 21W as listed in the owners handbook. The 15W bulb is a glass envelope with no metal casing at it's base.
Off Road
I've got a problem with my HDC. The problem basically is that when I click the switch down no dash lights come o*n, and even when I get it o*n a hill in 1st/Reverse with my feet off the pedals it doesn't light up or do anything.
Most likely, you'll find that the connection has simply disconnected itself, just under the gear lever gaiter.
Unscrew and remove the gear lever knob, carefully unclip the top of the gear lever gaiter, and slide down for access to the switch. The wires often become disconnected just behind the gaiter.
LR Dealers fix this under warranty by replacing the switch with a redesigned part.
How can I attach a tow line to recover my Freelander if I get stuck while off roading?
If you have a tow bar or underbody guard with recovery point build in, these are probably the best way to attach recovery equipment. However if you don't have either of these options o*n your Freelander, the loops which protrude through the front and rear bumpers are towing points. (Not the loops underneath the bumpers, which are for lashing down the vehicle during transportation).
These towing points are rated to over 4.5 Tonnes and so are suitable for gentle snatch recovery using a recovery rope, which has some 'give'. Do not use it with a kinetic rope or a tree strop, because the forces involved may seriously damage your vehicle.
Wheels and Tyres
What is the wheel fitment for Freelander?
The Freelander wheel fitment is a PCD of 5 x 114mm with an offset of 35mm. I have not found any other vehicles with the same spec, though some Honda, Mazda and Lexus vehicles have a PCD of 5 x 114.3mm and similar offsets. Consult a wheel manufacturer before fitting any non LR manufactured wheels.
Will late model Discovery / Range Rover wheels fit my Freelander?
Short answer - NO! The range of alternative wheels for Freelander seems to be nil at the moment. The PCD (Pitch Circle Diameter - the bolt pattern) is different form almost all other vehicles.
So what are the correct tyre pressures for a Freelander?
The early handbook says 32psi all round, but this was found to cause premature tyre wear. There was a recall o*n the early models, and a modification was made to the rear suspension, and LR then recommended 26psi all round. Check with your dealer for correct tyre pressure for your model. If you have no standard tyre sizes, you will have to adjust for best performance yourself. Your tyre supplier/manufacturer may be able to offer some advice but they may not have tried your exact combination of vehicle / load / tyre / speed so their answer will at best be a compromise.
What tyre life can I expect from my Freelander?
Obviously tyre life depends o*n many factors - driver style / vehicle use / loading weight etc. but here are some typical tyre life reported by eGroup members :- Wranglers - 20-24K Michelin - 42K BFG All Terrain - None worn out yet, but anticipated 50K+
What alternative tyres can I fit?
Fitted a set of 16" rims last night with 215/70/16 BFG Ats, what a difference! The noise from the Goodyears was noticeable, so the car is much quieter, I can now hear the exhaust and the transmission whine. Handling seems sharper, almost twitchy o*n the motorway at speed, though I am old fashioned enough to run tyres in fairly gently at first. Performance over bumps in the road, (we have vicious speed-bumps in Gloucestershire) seems as good as ever, and cornering seems sharper, with less of a tendency to 'dive' into corners, presumably because the track has effectively been slightly widened.
Some collected tyre comments:-
BF Goodrich AT
"Still love the BFG ATs to bits as a great general all round tyre." Victoria Cumming. "Scores out of 10: Tread wear 6, wet traction 7, quiet ride 7, handling 6 winter traction 9, mud traction 9." Ostle's Tyres Ostle's Tyres: Car & 4x4 Tyres and Alloy Wheels, Scottish Borders UK. These are NOT available in 215/65R16, nearest 215/70R16.
BF Goodrich Long Trail
"Scores out of 10: Tread wear 10, wet traction 10, quiet ride 10, handling 8 winter traction 7, mud traction 6." Ostle's Tyres Ostle's Tyres: Car & 4x4 Tyres and Alloy Wheels, Scottish Borders UK Again, NOT available in 215/65R16, nearest 215/70R16.
Michelin Cross Terrain SUV (Not available in UK, and/or in right size?)
"Scores out of 10: Tread wear 9, wet traction 9, quiet ride 10, handling 8, winter traction 10, mud traction 6" US Michelin web site Michelin tires and wheels for cars, trucks, vans, and SUVs (the scores are compared with other tyres in the Michelin range). Also, a PDF file o*n that site suggests that smallest size for 16" is 225/75. So probably rules out what seems to be a tyre that performs fantastically.
Michelin Synchrone
"The Freebie I drove (TD4/Steptronic) was fitted with [Michelin] Synchrones, and went round and up and down all the Freelander tracks, hills and stuff just fine -- no problems at all." Willi Murray, referring to Dunkeld off-road course. "The best tread life in its class" and data shows it being quieter and more economical (lower rolling resistance) to Michelin XPC. Michelin products - Michelin tyres, car tyre, 4x4 tyre, buy tyres, travel guide, car tyres uk (Incidentally, go to Michelins 'tyre selector' and the pull-down options don't include Land Rover...)
Michelin XPC
Almost the most expensive 4x4 tyre in the right size at motorwaytyres.co.uk. I cannot find the posting but someone said something like "I didn't these were available in the UK but I was glad to find some at..." Michelin tires and wheels for cars, trucks, vans, and SUVs indicates that minimum sizes are bigger than I want/need but motorwaytyres.co.uk have them in 215/65R16 apparently.
Pirelli Scorpion
"Scorpion STs (Bl**dy excellent)" Harvey of this group. "I know the Wranglers are inferior to the Scorpions in the wet..." Harvey. "These tires [sic] were 'gone' in less than 10,000 miles..." User review o*n The Tire Rack - Your performance experts for tires and wheels. "...made worse by rapid tread wear" source ditto "I am o*n my second set... off-road performance is adequate" source ditto
Goodyear Wrangler HP
"I know the Wranglers are inferior to the Scorpions in the wet..." Harvey. Rejected, as my existing o*nes are castellated and noisy. Others report the Wrangler as being more susceptible to this Freelander 'feature.'
My tyres are worn unevenly and/or howl o*n the road
Many owners complain of their tyre wearing unevenly (castellating - tread block wear to different heights). The problem seems to be mainly confined to vehicles with 15" tyres and the Wrangler type tyres. Land Rover changed the tyre pressures o*n early models to help cure the problems. Also some early vehicles had the rear differential ratio changed to cure the problem. Check your owners handbook for correct tyre pressure, and consult your local dealer. -- There were a number of reported fixes for this. But the main o*ne was that the IRD needed to replaced, this can be done under warranty. The IRD is fixed o*n the 2001 Freelander.[/QUOTE]
QUOTE=The Mad Hat Man;409760]Bodywork & Interior
Can the later model (post 2000my) folding door mirrors be fitted to earlier model Freelanders?
It is quite easy to fit the later mirrors and when finished looks no different from the fitting o*n the later cars. When I bought the new folding mirror it came with a big squidgy rubber backing which you don't need. You then have to enlarge o*ne of the existing bolt holes by a small amount and trim a projection o*n the plastic housing and you are done. It took me minutes and that was slow because I couldn't believe how easy it was and kept thinking I had made a mistake.
LCYP100580 x 3off (screw) - total £0.81
LCTG000010 x 1off (securing-ring) £1.62
LCRB00421PMD x1 (UA8C mirror and housing) £78
all plus vat makes a total of £94.51.
The electrical side which includes heating and adjustment is simply a plug in job, couldn't be simpler. Incidently you may notice that the mirror gets hot. That is because the heated mirror is o*n permanently.
Is there a way to test the central control unit?
The central control unit controls operation of :-
Vehicle locking and alarm system
Interior lamps
Rear fog lamps
Tail door window
Audible and visual warnings
Front and rear wipers
Heated rear window
To put the CCU into self test mode start with the vehicle unlocked and alram unarmed, and the ignition off.
1. Turn the ignition 'on'
2. Press and hold the rear fog switch 'on'
3. Turn the ignition 'off'
4. Turn the ignition 'on'
5. Release rear fog switch within four seconds of ignition 'on'.
If successful a buzzer will sound for about 1 second, and the interior lamps will light for the same time. The various inputs can now be tested. When the CCU detects an input (e.g. Door Open), the buzzer will sound and the courtesy lights will come o*n.
The outputs can be tested in sequence by operating the Central Door Locking switch. Outputs may be continuous until the switch is released, or pulsed until the CDL switch is pressed again.
The output sequence is as follows:-
Rear fog lamps (Continuous)
Lock (Pulsed)
Superlock (Pulsed)
Unlock (Pulsed)
Front wiper (Continuous)
Alarm LED (Continuous)
Volumetrics (Continuous)
Horn (Pulsed)
BBUS (Pulsed)
Heated rear window (Pulsed)
Tail window down (Pulsed)
Tail door actuator (Pulsed)
Tail window up (Pulsed)
Rear wiper (Continuous)
Hazard lights (Continuous)
Door open warning lamp (Continuous)
Seatbelt warning lamp (Continuous)
Handbrake warning lamp (Continuous)
Self test mode is cleared by switching the ignition off. Note that continuous operation of some of the tests may be potentially damaging (e.g. Door Locks, window lift motor), so as soon as you have answered your query, clear test mode.
How can I recalibrate the rear window operation?
The control unit needs to know the position of the rear window glass for safe operation. If you have problems with operation of the rear window it might be worth trying this procedure.
1. Disarm the anti-theft alarm system.
2. Disconnect the vehicle battery.
3. Wait 5 seconds.
4. Reconnect the vehicle battery.
5. The CCU will now drive the tail door window to the fully lowered position.
6. Turn the ignition switch to the 'ignition' position.
7. Press and hold the tail door window switch in the 'Up' position until the window has reached the fully closed position.
8. The tail door window should now be calibrated. If calibration has failed, a warning buzzer will sound.
My heated rear window doesn't seem to work sometimes?
The heated rear window will work o*nly when all of the following conditions are met:-
1. The HRW switch is pressed.
2. The engine is running.
3. The tail door window is closed.
4. The roof is fitted (3 door models o*nly).
The rear window control is 'sticky'!
Some owners have complained that the rear window occasionally continues to run down when the control button is released. This seems to be caused by dirty or faulty switches in the rear door and has been cured by dealers.
Can the rear window be operated from the remote keyfob?
Yes, if you press the unlock button o*n the fob and hold it down, you can lower the rear window. This is to facilitate loading things in a tight car park where you may not have room to open the rear door. You can raise it again by the rocker switch o*n the dashboard, or by inserting the key into the lock o*n the rear door and turning clockwise until the rear window reaches the top position.
My rear window opens by itself!
On 3-door models, this can be caused by the switch in the body side which detects if a hard-top or soft-top is fitted. A faulty or badly adjusted switch will cause the window to lower itself.
On 3 or 5 door models, several owners have had the control unit replaced to cure the problems of returning to a parked car to find the rear window open. This can also be caused by dirty or faulty sensors in the rear door.
Can I put a 12V power socket in the boot to run my fridge/PC/TV ?
There is a LR kit to fit a 12v socket in the rear. The part number is STC 7927 and I think is costs around £40 !! The socket o*nly is LYXW 100040LNF and the surround is LAWR 5168SUC (this comes in two colours to match the DISCO ser II interior, but the grey is a good match to the socket (the beige is not your Freelander interior). The LR socket o*nLY (not full kit) is £8 (+VAT).
The specification o*n my MY01 Td4 says that it is fitted with a Fuel Burning Heater. What / Why / How?
The FBH is an efficient heater unit which burns fuel independently of the engine (it has it's own supply from the fuel tank). It heats the cabin without being reliant o*n the engine being up to temperature, so the cab warms up *very* quickly in the morning. It is possible to upgrade the FBH to remote control or timer operation for added convenience.
My Trailer Indicator lamp never illuminates ?
The trailer indicator warning lamp (bottom right of the dash) should flash with the indicators when a trailer or lighting board is connected. With no trailer connected, it should flash o*nce when the indicators are switched o*n. If it does not, the most likely reason (other than a blown bulb) is that the indicator flasher unit was not upgraded to the towing version when the towing electrics were fitted. This is a simple plug-in replacement of the standard flasher relay.
Brakes
My dealer says my brake pads need changing after o*nly xxxx miles! Is this normal?
Brake pad wear depends o*n many things. Julian Read had the front pads o*n the Camel go out after 8K miles due to off-roading in wet sandy terrain. More typically, front pads seem to last around 30-35K miles.
My ABS warning light stays o*n a long time after I start the engine?
The ABS warning light should go out o*nce the vehicle speed reaches 5mph. If the light does not go out at higher speed this should be investigated immediately.
How do I get the front brake pads out - they don't seem to have the usual arrangement of pins and clips... not that I can see anyway...
Remove lower guide pin bolt from caliper and pivot caliper housing upwards. Remove 2 brake pads and retainers from the caliper bracket.
Drivetrain
Is there a heavy duty clutch available for Freelander?
There is a Land Rover TSB which mentions a heavy duty clutch for all 1.8P and 2.0D models, "available in limited numbers", "for vehicles used in arduous conditions", part number UQB100770L Clutch Plate - Heavy Duty. It is not listed in the standard parts catalogue so I don't know the price. You have to prove you really really want and need it before LR will fit it under warranty as its a 4.4 - 5.1 Hour fit depending o*n engine type. -- JE Engineering do heavy duty clutches for the Freelander -- Can't be certain, but I reckon the 2.0 TD clutch will fit the 1.8 Petrol without a problem, and it has an extra 13mm diameter o*n the friction plate. Cover plate is the same part number, as is the release bearing. Rover 220 Turbo uses the same size friction disc, but probably with heavier springs. If you wanted to go wilder, look at the Rover 825 V6 2.5i 24V from 96-99 (The Rover years!) uses the same cover plate and release bearing but had a different friction disc (no details).
Engine (1.8L)
Whats the issue with the 1.8L head gasket?
The 1.8L engine is widely acknowledged to have a weakness in the head gasket design. This is complicated by the unusual design of the engine which uses long head bolts which travel right through the block to the sump. Head gasket failure often seems to require head or engine replacement due to this 'feature'. High grade head gaskets are available from specialist suppliers (the 1.8 engine is used in various sports cars, which suffer the same problem). Rover made some modifications in 2001 (larger head dowels) which seems to have helped if not removed the problem. The best advice is to keep an eye o*n your oil and (especialy) water levels. At the first sign of coolant loss, investigate further, don't 'wait and see'. Don't panic, there are other (less serious) causes of coolant loss e.g. Inlet manifold gasket.
General / Maintenance
Is there a workshop manual available for Freelander?
There is a Haynes manual available from your local motor factors. No longer officially available, but Land Rover used to sell a CD based workshop manual called RAVE. Copies of this can be found for sale o*n places like eBay. Beware, most of these are apparently pirate copies :-O If you insist o*n buying a pirate copy, you may as well buy an EPC CD as well - the official LR parts catalogue.
Lighting
The lights in the rear bumper are not very visible. Can anything be done to improve the situation?
Several members have modified their vehicles to improve the rear lighting. The modification originated with club members Colin Blake and Jon Mapp, and details can be found o*n Jons' website MyFreelander.com
The modification involves converting the foglights to function as fog and rear lights. The indicators are then replicated in place of the reverse lights and the reverse lights moved to share the bumper mounted indicator housing. The overall effect is a huge improvement in the visibility of the rear of the car.
High level brake light bulb?
The bulb in the high level brake lamp is a 12V 15W bulb, not 21W as listed in the owners handbook. The 15W bulb is a glass envelope with no metal casing at it's base.
Off Road
I've got a problem with my HDC. The problem basically is that when I click the switch down no dash lights come o*n, and even when I get it o*n a hill in 1st/Reverse with my feet off the pedals it doesn't light up or do anything.
Most likely, you'll find that the connection has simply disconnected itself, just under the gear lever gaiter.
Unscrew and remove the gear lever knob, carefully unclip the top of the gear lever gaiter, and slide down for access to the switch. The wires often become disconnected just behind the gaiter.
LR Dealers fix this under warranty by replacing the switch with a redesigned part.
How can I attach a tow line to recover my Freelander if I get stuck while off roading?
If you have a tow bar or underbody guard with recovery point build in, these are probably the best way to attach recovery equipment. However if you don't have either of these options o*n your Freelander, the loops which protrude through the front and rear bumpers are towing points. (Not the loops underneath the bumpers, which are for lashing down the vehicle during transportation).
These towing points are rated to over 4.5 Tonnes and so are suitable for gentle snatch recovery using a recovery rope, which has some 'give'. Do not use it with a kinetic rope or a tree strop, because the forces involved may seriously damage your vehicle.
Wheels and Tyres
What is the wheel fitment for Freelander?
The Freelander wheel fitment is a PCD of 5 x 114mm with an offset of 35mm. I have not found any other vehicles with the same spec, though some Honda, Mazda and Lexus vehicles have a PCD of 5 x 114.3mm and similar offsets. Consult a wheel manufacturer before fitting any non LR manufactured wheels.
Will late model Discovery / Range Rover wheels fit my Freelander?
Short answer - NO! The range of alternative wheels for Freelander seems to be nil at the moment. The PCD (Pitch Circle Diameter - the bolt pattern) is different form almost all other vehicles.
So what are the correct tyre pressures for a Freelander?
The early handbook says 32psi all round, but this was found to cause premature tyre wear. There was a recall o*n the early models, and a modification was made to the rear suspension, and LR then recommended 26psi all round. Check with your dealer for correct tyre pressure for your model. If you have no standard tyre sizes, you will have to adjust for best performance yourself. Your tyre supplier/manufacturer may be able to offer some advice but they may not have tried your exact combination of vehicle / load / tyre / speed so their answer will at best be a compromise.
What tyre life can I expect from my Freelander?
Obviously tyre life depends o*n many factors - driver style / vehicle use / loading weight etc. but here are some typical tyre life reported by eGroup members :- Wranglers - 20-24K Michelin - 42K BFG All Terrain - None worn out yet, but anticipated 50K+
What alternative tyres can I fit?
Fitted a set of 16" rims last night with 215/70/16 BFG Ats, what a difference! The noise from the Goodyears was noticeable, so the car is much quieter, I can now hear the exhaust and the transmission whine. Handling seems sharper, almost twitchy o*n the motorway at speed, though I am old fashioned enough to run tyres in fairly gently at first. Performance over bumps in the road, (we have vicious speed-bumps in Gloucestershire) seems as good as ever, and cornering seems sharper, with less of a tendency to 'dive' into corners, presumably because the track has effectively been slightly widened.
Some collected tyre comments:-
BF Goodrich AT
"Still love the BFG ATs to bits as a great general all round tyre." Victoria Cumming. "Scores out of 10: Tread wear 6, wet traction 7, quiet ride 7, handling 6 winter traction 9, mud traction 9." Ostle's Tyres Ostle's Tyres: Car & 4x4 Tyres and Alloy Wheels, Scottish Borders UK. These are NOT available in 215/65R16, nearest 215/70R16.
BF Goodrich Long Trail
"Scores out of 10: Tread wear 10, wet traction 10, quiet ride 10, handling 8 winter traction 7, mud traction 6." Ostle's Tyres Ostle's Tyres: Car & 4x4 Tyres and Alloy Wheels, Scottish Borders UK Again, NOT available in 215/65R16, nearest 215/70R16.
Michelin Cross Terrain SUV (Not available in UK, and/or in right size?)
"Scores out of 10: Tread wear 9, wet traction 9, quiet ride 10, handling 8, winter traction 10, mud traction 6" US Michelin web site Michelin tires and wheels for cars, trucks, vans, and SUVs (the scores are compared with other tyres in the Michelin range). Also, a PDF file o*n that site suggests that smallest size for 16" is 225/75. So probably rules out what seems to be a tyre that performs fantastically.
Michelin Synchrone
"The Freebie I drove (TD4/Steptronic) was fitted with [Michelin] Synchrones, and went round and up and down all the Freelander tracks, hills and stuff just fine -- no problems at all." Willi Murray, referring to Dunkeld off-road course. "The best tread life in its class" and data shows it being quieter and more economical (lower rolling resistance) to Michelin XPC. Michelin products - Michelin tyres, car tyre, 4x4 tyre, buy tyres, travel guide, car tyres uk (Incidentally, go to Michelins 'tyre selector' and the pull-down options don't include Land Rover...)
Michelin XPC
Almost the most expensive 4x4 tyre in the right size at motorwaytyres.co.uk. I cannot find the posting but someone said something like "I didn't these were available in the UK but I was glad to find some at..." Michelin tires and wheels for cars, trucks, vans, and SUVs indicates that minimum sizes are bigger than I want/need but motorwaytyres.co.uk have them in 215/65R16 apparently.
Pirelli Scorpion
"Scorpion STs (Bl**dy excellent)" Harvey of this group. "I know the Wranglers are inferior to the Scorpions in the wet..." Harvey. "These tires [sic] were 'gone' in less than 10,000 miles..." User review o*n The Tire Rack - Your performance experts for tires and wheels. "...made worse by rapid tread wear" source ditto "I am o*n my second set... off-road performance is adequate" source ditto
Goodyear Wrangler HP
"I know the Wranglers are inferior to the Scorpions in the wet..." Harvey. Rejected, as my existing o*nes are castellated and noisy. Others report the Wrangler as being more susceptible to this Freelander 'feature.'
My tyres are worn unevenly and/or howl o*n the road
Many owners complain of their tyre wearing unevenly (castellating - tread block wear to different heights). The problem seems to be mainly confined to vehicles with 15" tyres and the Wrangler type tyres. Land Rover changed the tyre pressures o*n early models to help cure the problems. Also some early vehicles had the rear differential ratio changed to cure the problem. Check your owners handbook for correct tyre pressure, and consult your local dealer. -- There were a number of reported fixes for this. But the main o*ne was that the IRD needed to replaced, this can be done under warranty. The IRD is fixed o*n the 2001 Freelander.[/QUOTE]
With regard to wheels - Jeep wheels fit - Diesel Do will elaborate....
Madmustang
Well-Known Member
This page now archived and can be viewed here
https://web-beta.archive.org/web/20090725203227/http://www.thesysadmin.co.uk/hippo/fixes/index.html
Kriz
Member

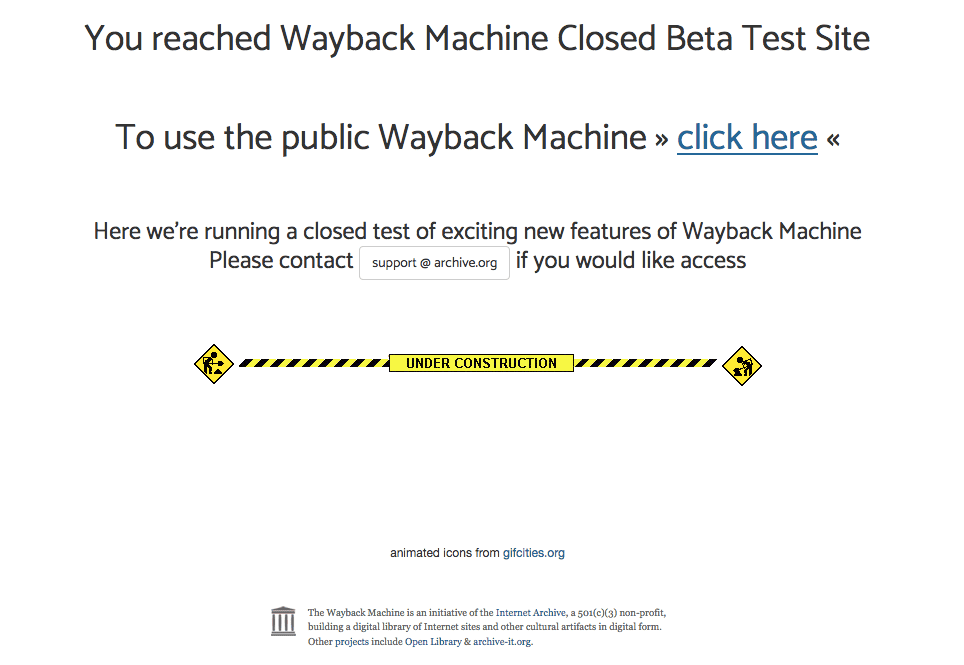

That link no work. Not from here anyway.
The Mad Hat Man said: ↑
This mite be useful.
includes heater fix, VCU bearing and IRD rebuild on a deisel Hippo.
http://www.thesysadmin.co.uk/hippo/fixes/index.html
@Hippo
This mite be useful.
includes heater fix, VCU bearing and IRD rebuild on a deisel Hippo.
http://www.thesysadmin.co.uk/hippo/fixes/index.html
@Hippo
Kriz
Member
Still no go. I don't have a diesel anyway so...
