comdek said:
Are you able to see if the hylomar sealant is still secure on the cylinder liners?
You might need a boroscope to look that far in.
Take a look at this thread to see someone doing an engine rebuild on a K 4 cylinder engine, which have the same liner system
http://www.the75andztclub.co.uk/forum/showpost.php?p=1395788&postcount=44
Thanks for he updates and posting the many pictures.
Zefrench
comdek
Member

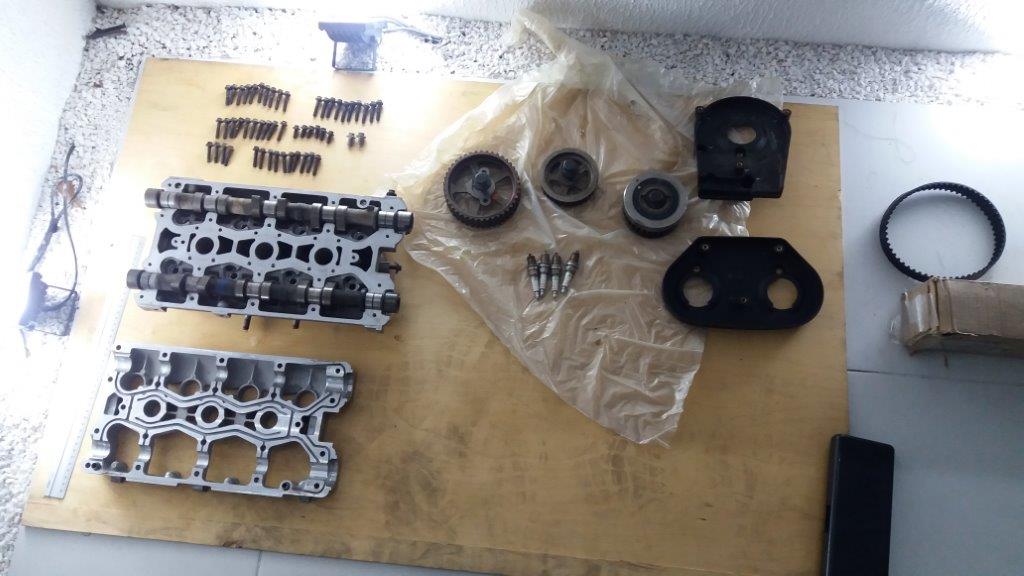

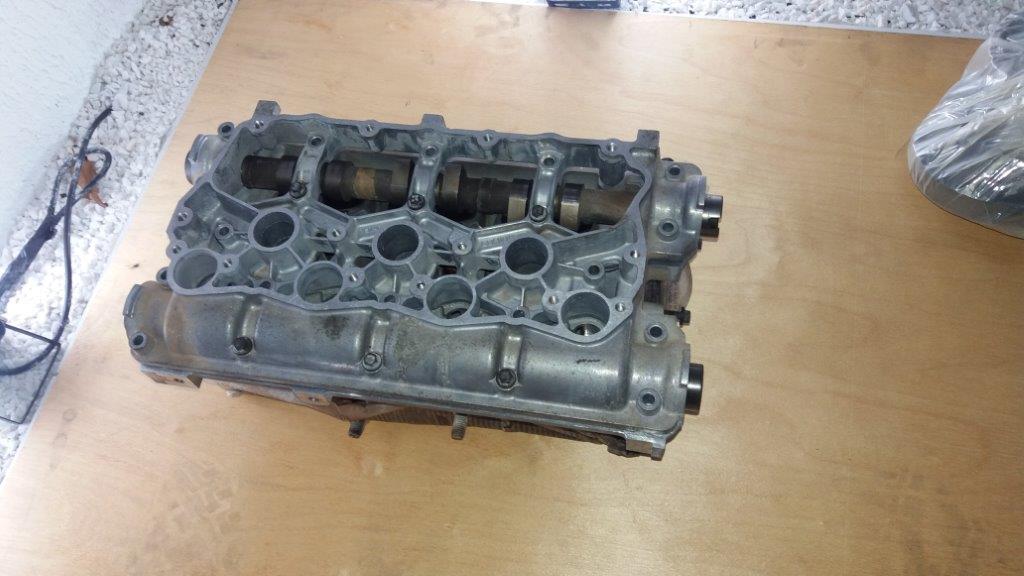

I took the heads to rebuild and it came back disassembled. What type of sealant do I use to put the cam carrier back? Loctite 518 (Anaerobe) is compatible?
I've already purchased the gaskets, head bolts, cam belts, seals, and the torque converter seal.
About the torque converter, I drained his entire ATF. Is it necessary to put the new ATF into the torque converter or does it fill up automatically when starting the engine?
I'll post more photos as soon as possible. Every minute I work on the engine is precious (almost 10 minutes a week).
I've already purchased the gaskets, head bolts, cam belts, seals, and the torque converter seal.
About the torque converter, I drained his entire ATF. Is it necessary to put the new ATF into the torque converter or does it fill up automatically when starting the engine?
I'll post more photos as soon as possible. Every minute I work on the engine is precious (almost 10 minutes a week).
Nodge68
Well-Known Member
Dexron VI isn't a compatible fluid for the Jatco, although it might work OK.
The best non Texaco fluid that is compatible is Carlube ATF-U. This is about £26 per gallon and far exceeds the original LR specification.
Last edited:
comdek
Member
Nice, I´ll check if I find Carlube here.

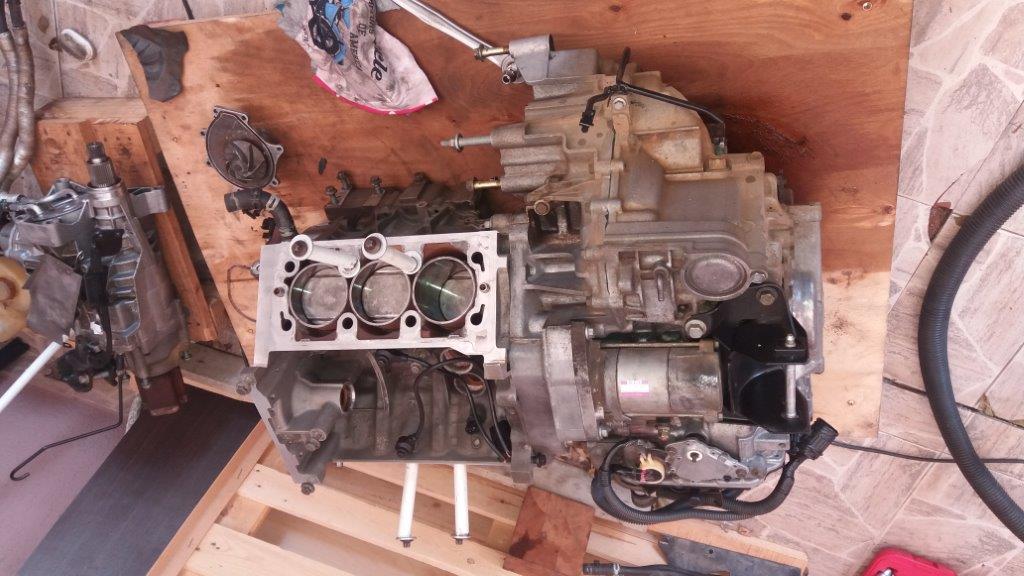

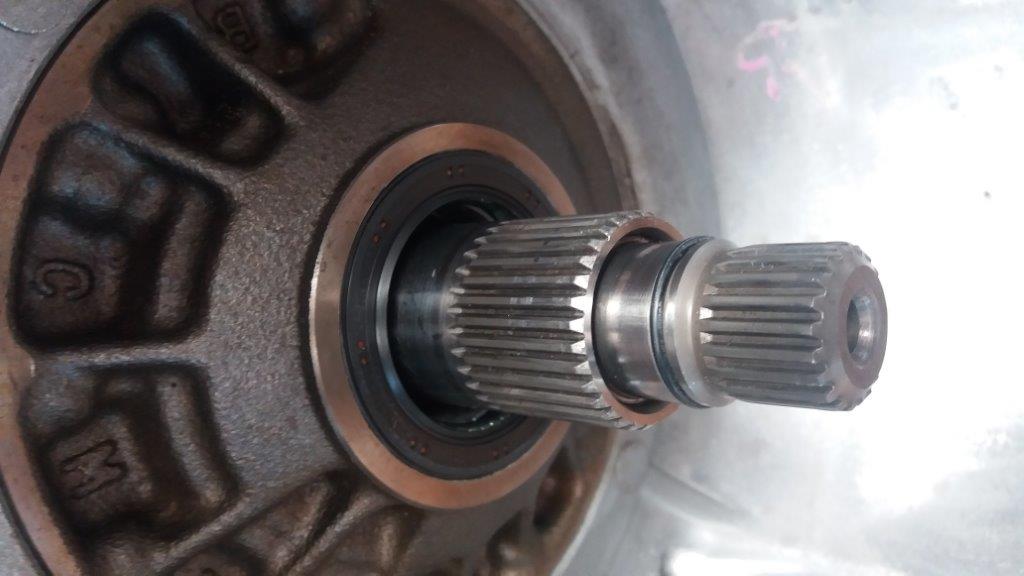

Today I changed the flywheel oil seal, torque converter seal and reassembled the jatco with the engine and the IRD.

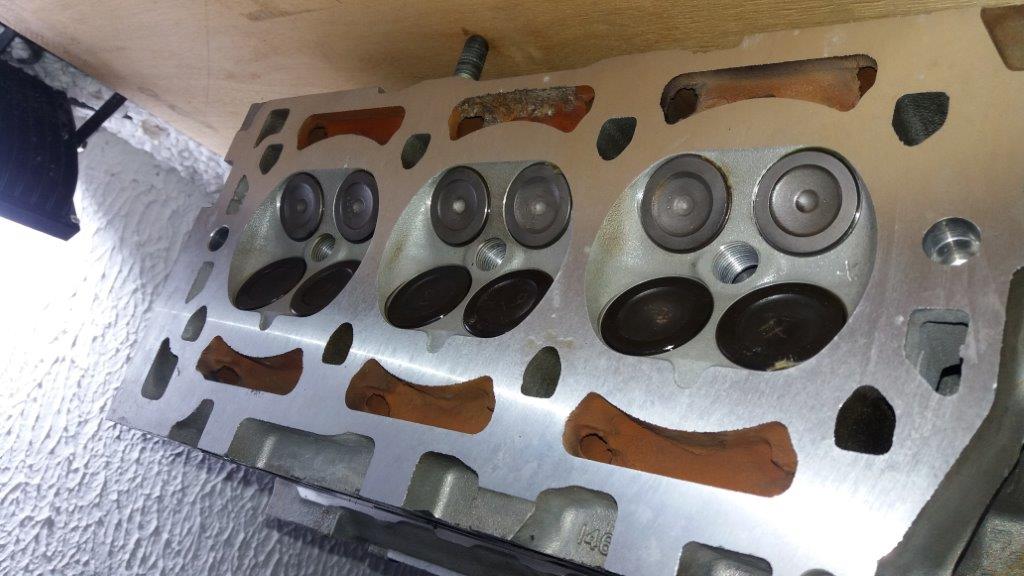

The cylinder heads came back from the grinding, like a new. Tomorrow I'm going buy Loctite 518 to close the camcarrier. I will use synthetic 10W40 oil to lubricate the camshafts.
Today I changed the flywheel oil seal, torque converter seal and reassembled the jatco with the engine and the IRD.
The cylinder heads came back from the grinding, like a new. Tomorrow I'm going buy Loctite 518 to close the camcarrier. I will use synthetic 10W40 oil to lubricate the camshafts.
