This thread is for anyone who’s thinking of converting from a 200tdi to a v8.
I’m in the process if converting mine at the moment.
I will be posting photos of the conversion as i go.



Mikewilliams

Active Member

• Feb 5, 2018

• #2

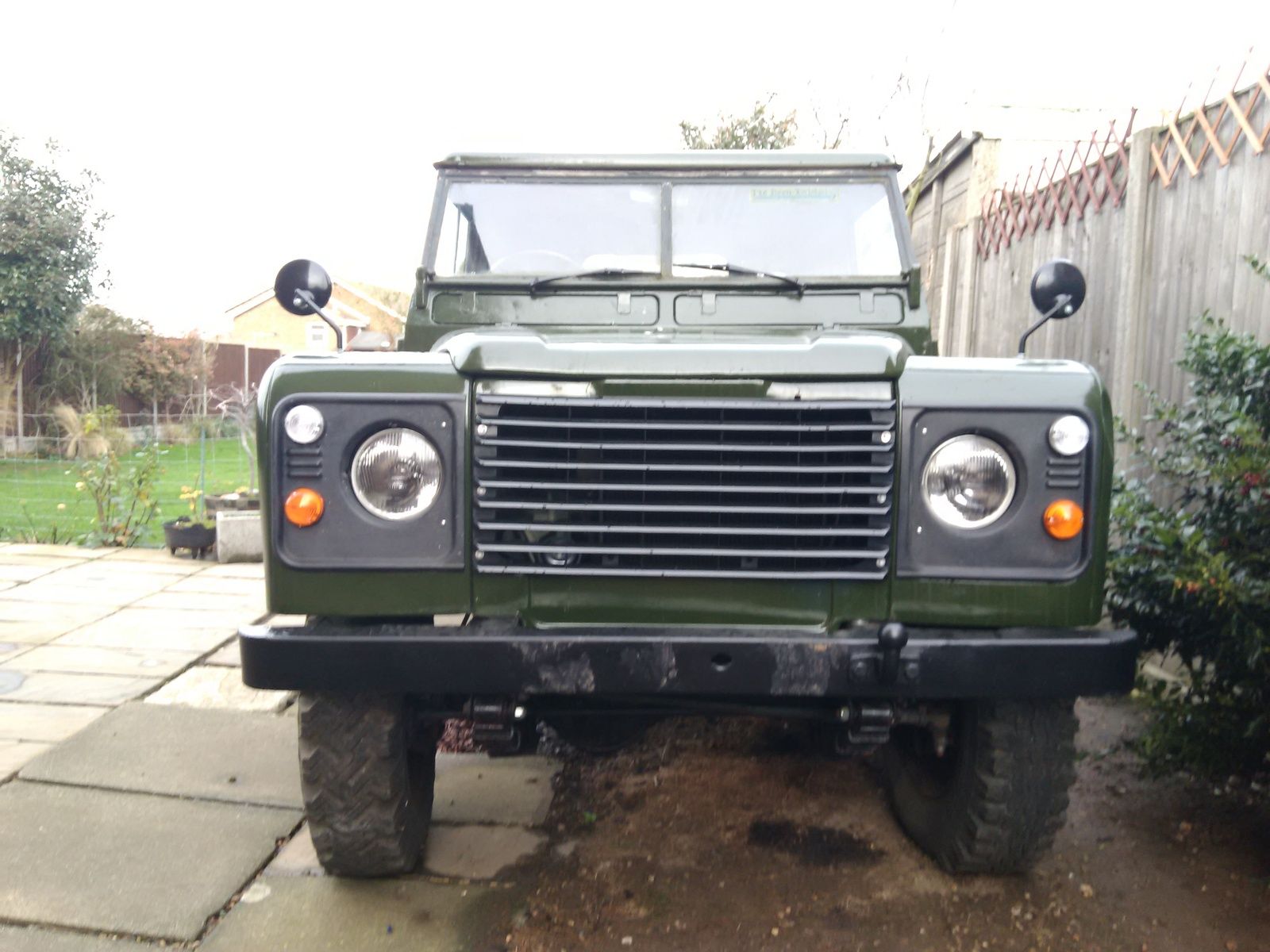

This is my 90 a 1990 200tdi on 35-12.5-15 wheels/tyres. Lt77 gearbox 1.222 transferbox.



Mikewilliams

Active Member

• Feb 5, 2018

• #3

Out comes the 200tdi.



Mikewilliams

Active Member

• Feb 5, 2018

• #4

Next the bulkhead, windscreen and seatbox out



Last edited: Feb 5, 2018

Mikewilliams

Active Member

• Feb 5, 2018

• #5

Next the lt77 gearbox and lt230 transferbox



zeaphod

Well-Known Member

• Feb 5, 2018

• #6

Isn't the first step to buy shares in BP? lol



Mikewilliams

Active Member

• Feb 5, 2018

• #7

Damn! I knew i’d forgotten a step



Mikewilliams

Active Member

• Feb 5, 2018

• #8

Bare block ready for mockup



Attachments

•

  648.4 KB · Views: 152

Mikewilliams

Active Member

• Feb 5, 2018

• #9

300tdi gearbox crossmember fitted discovery 2 manual v8 r380 fitted
Notice the 300tdi/td5 seatbox trial fitted.



Lloydwayne83

Member

• Feb 5, 2018

• #10

Just doing a series 3 was petrol converted to diesel 20 years ago never finished I got it sold engine on eBay bought V8 and fitted with lt77 box was a pig to get right hopefully worth it



Attachments

•

  197.7 KB · Views: 146

Mikewilliams

Active Member

• Feb 5, 2018

• #11

Ok, some photos to show the difference between the mounting positions of the v8 and 200tdi

Nearside

Offside

I will be modifying the mounting brackets on the v8 engine to pick up on the 200tdi positions on the chassis. (Dont want to cut the brackets off the chassis because its galvanised).



Last edited: Feb 5, 2018

Lloydwayne83

Member

• Feb 5, 2018

• #12

Good idea I went same way used a box section and nut and bolted together only mine was closer and my gearbox had short bell housing so went back more



Mikewilliams

Active Member

• Feb 5, 2018

• #13

Lloydwayne83 said:

Good idea I went same way used a box section and nut and bolted together only mine was closer and my gearbox had short bell housing so went back more

Click to expand...

I want to keep the engine in the ‘land rover v8 position’ to keep everything else stock.
I know that standard exhaust manifolds wont fit because of the issue with the engine mounts but i was always planning on fabricating my own stainless ones anyway.



Lloydwayne83

Member

• Feb 5, 2018

• #14

I used standed twin exhaust manifold and disco down pipes and center section which takes a lot of messing to fit mainly because of cross member then finihedf with a stainless P38 Piper back box sounds great



Flagshiplandy

Active Member

• Feb 6, 2018

• #15

Mikewilliams said:

I want to keep the engine in the ‘land rover v8 position’ to keep everything else stock.
I know that standard exhaust manifolds wont fit because of the issue with the engine mounts but i was always planning on fabricating my own stainless ones anyway.

Click to expand...

Good Luck with the conversion! I will have a crack at this one day



Mikewilliams

Active Member

• Feb 17, 2018

• #16

Mounts fabricated. Still need to clean them up a bit then get them galvanised.



Attachments

•

  276.8 KB · Views: 148
•

  276.8 KB · Views: 142

Nick666

Active Member

• Feb 17, 2018

• #17

Look smart! Following



Mikewilliams

Active Member

• Jun 11, 2018

• #18

Update!
I swapped the mockup block for the actual engine i’m going to eventually use.
Only temporarily installed for me to fabricate the manifolds and exhaust.



Mikewilliams

Active Member

• Jun 11, 2018

• #19

Passenger side manifold tacked up!

Collectors ready!



Mikewilliams

Active Member

• Jun 11, 2018

• #20

Passenger side manifold welded up! Collector and v band tacked on!
