Download & unzip 'diagnostic installer helper' from https://topix.landrover.jlrext.com/topix/ui/mylinks

Edit -

For SDD select the link SDD Manual Software Download.
This will download the required files needed to your downloads area in your browser ready for you to install.
Download the JLR Installer Helper from the TOPIx Links Page and select Visual C to download.

You do not need to install anything else from the helper screen.

Last edited:
thanks i've done that, sorry for being stupid, which of the 5 do i need to install?
assume this is only for 165 and not 164 as that has been working just fine until now

Download & unzip the installer file - you'll probably get a 'Windows protected your PC' box, click on 'more info' then on 'run anyway'

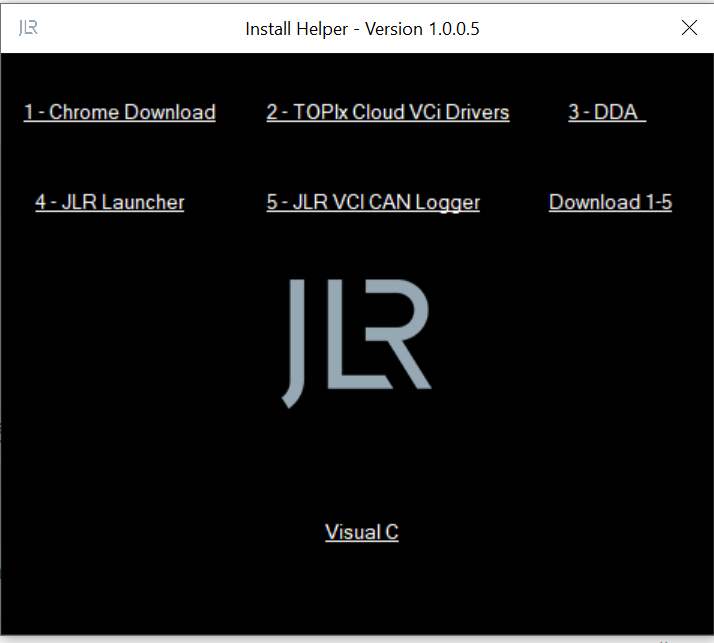

You'll get this:-


Click on the 'Visual C' link at the bottom, don't bother with the rest, they're not needed for SDD.

You may be better off uninstalling SDD 165 first as the installation of Visual C sets the required paths for the registration of parts of the install - you may also get a keylogger / trojan warning, if you do, allow it - it's a false positive (SDD165 is downloaded from JLR, not some clone site - don't forget to run the 'patch' used for SDD164 before first use, the offline credentials used previously work fine.

Graculus said:
Download & unzip the installer file - you'll probably get a 'Windows protected your PC' box, click on 'more info' then on 'run anyway'
You'll get this:-
View attachment 331546

Click on the 'Visual C' link at the bottom, don't bother with the rest, they're not needed for SDD.

You may be better off uninstalling SDD 165 first as the installation of Visual C sets the required paths for the registration of parts of the install - you may also get a keylogger / trojan warning, if you do, allow it - it's a false positive (SDD165 is downloaded from JLR, not some clone site - don't forget to run the 'patch' used for SDD164 before first use, the offline credentials used previously work fine.
Click to expand...
Aha!! That was the only one i didn't try!! Cheers

Well after figuring out how to make win 10 use internet explorer and enable ActiveX.. battery is now reset!
No option to choose capacity or standard/agm etc so I'll be buying a new regular battery

kermit_rr said:
Well after figuring out how to make win 10 use internet explorer and enable ActiveX.. battery is now reset!
No option to choose capacity or standard/agm etc so I'll be buying a new regular battery
Click to expand...
you need to edit the CCF to change the size and/or type, easy enough to do but you need a keygen for engineering access.

Graculus said:
you need to edit the CCF to change the size and/or type, easy enough to do but you need a keygen for engineering access.
Click to expand...
Ah yes i have that! I've ordered a new standard battery now though.. but will make sure the size is correct in ccf

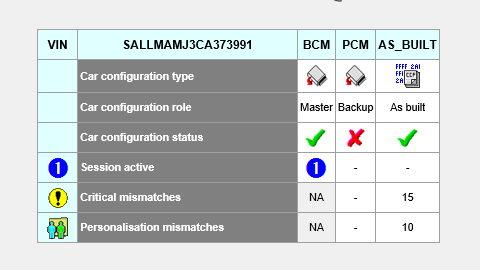

I notice there's no backup and it complained about 15 critical mismatches
