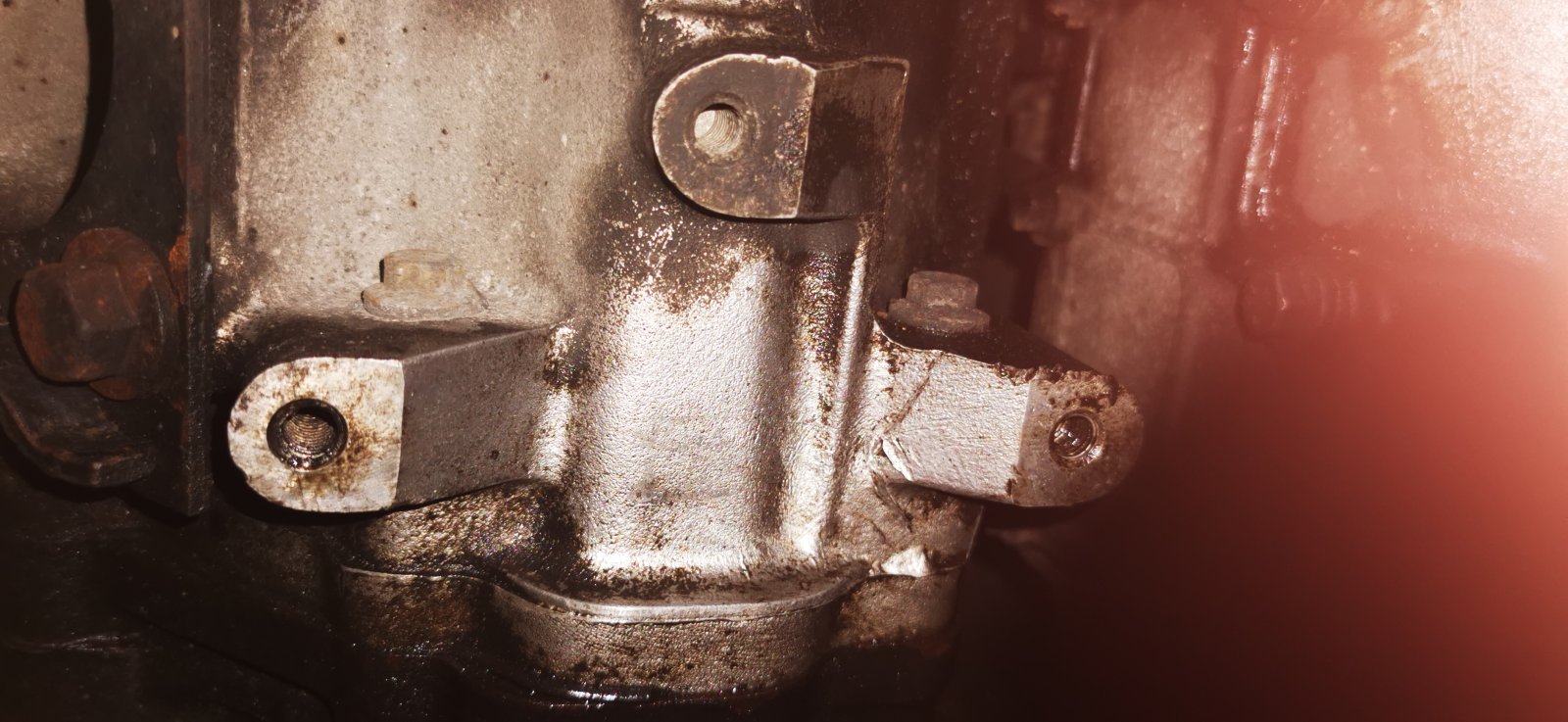

I'll stick my neck out, cos I don't know but they might be the attachment holes for mounting a special LR tool, i.e a fing what makes it easier to remove i.e. support the box when removing it.
Others who know better will now tell me I'm off the target., maybe!
Nothing to do with your post but still one of my favourite songs by Don McClean.
Empty Chairs.
NPG
Well-Known Member
Like said, they are used to bolt the support bracket for gearbox removal. There is mention of this in RAVE but you'll need to fabricate it yourself as apparently it's not something you can just buy. As for the specs, they are protected by the JLR Secrets Act and won't be disclosed anytime soon
Comforting to know.Like said, they are used to bolt the support bracket for gearbox removal. There is mention of this in RAVE but you'll need to fabricate it yourself as apparently it's not something you can just buy. As for the specs, they are protected by the JLR Secrets Act and won't be disclosed anytime soon

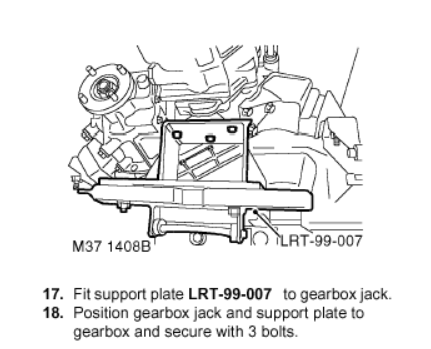

View attachment 293964
All we need now is the dimensions etc!
Cardboard with a pencil
Wont the card board go soggy
not sure it would be strong enough.
