pwood999

pwood999

Well-Known Member
Full Member
The other day my suspension failed to pump up. Nanocom showed no faults, and pump running, but when i checked the pump it was off. Not the usual thermal switch or relay fault. Found the plug & socket on the pump wiring loom was severely burnt. Guess the spade connections must have been loose for while.

So temporary fix was to replace with regular 6.3mm spade terminals & my spare compressor.

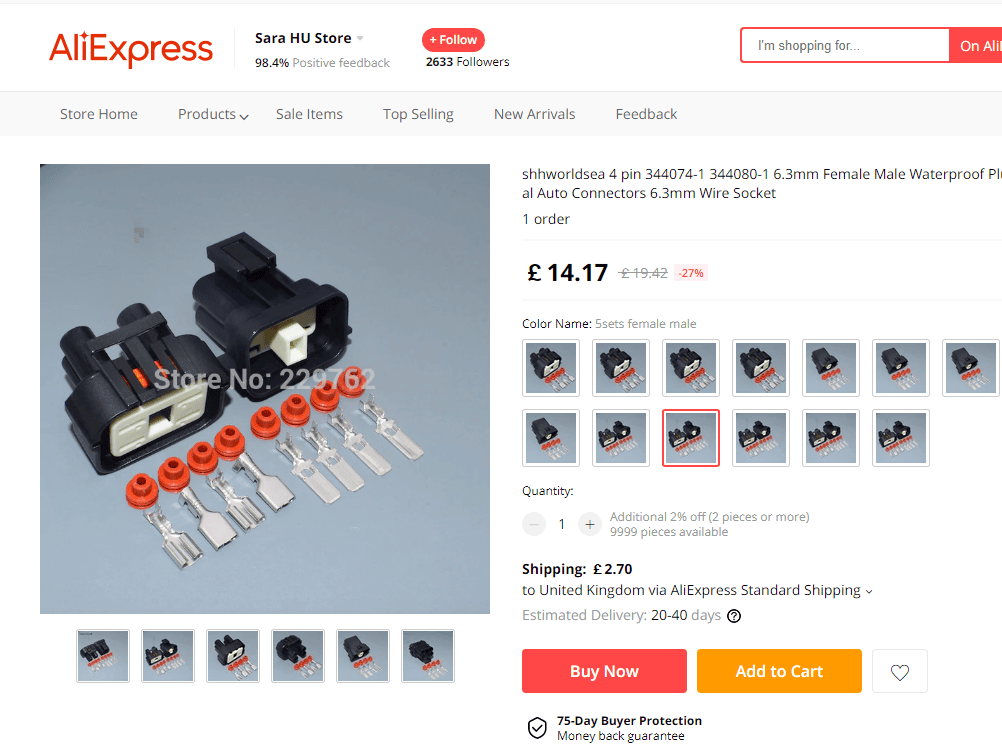

Eventually found what looks like the correct connector on AliExpress, so I ordered 5 pairs. If they actually are correct there might be a few spare going in case anyone has the same problem.

Pete


pwood999 said:
The other day my suspension failed to pump up. Nanocom showed no faults, and pump running, but when i checked the pump it was off. Not the usual thermal switch or relay fault. Found the plug & socket on the pump wiring loom was severely burnt. Guess the spade connections must have been loose for while.

So temporary fix was to replace with regular 6.3mm spade terminals & my spare compressor.

Eventually found what looks like the correct connector on AliExpress, so I ordered 5 pairs. If they actually are correct there might be a few spare going in case anyone has the same problem.

Pete

View attachment 229067
Click to expand...
Hi Pete,

Put me down for a couple of them if you have them to spare. It's happened to me before and I'd love to have a spare or two in my toolbox.

Cheers!
