I am fabricating a drop plate to mount a tow-bar to my 90 and I want to add tie bars to strengthen it. I am making it in 10mm plate and have made it into channel for extra strength but I will be towing some heavy stuff so it will need extra support - where do people bolt the tie bars to please?



jamesmartin

Well-Known Member

• Mar 15, 2019

• #2

2 pices of angle would have done ,theres 2 tubes welded to underside of chassis about a foot from the rear that tie down brackets bolt 2 or tow brackets supports do



EvangelicAtheist

Active Member

• Mar 15, 2019

• #3

jamesmartin said:

2 pices of angle would have done ,theres 2 tubes welded to underside of chassis about a foot from the rear that tie down brackets bolt 2 or tow brackets supports do

Click to expand...

Thanks James, I didn't originally plan any tie bars so I designed it to be strong and look pukka, and I have a mate who bent the plate into channel for me so all I have to do is drill the mounting holes, but having thought about it I think it will need the tie bars. Cheers for the steer.



jamesmartin

Well-Known Member

• Mar 15, 2019

• #4

EvangelicAtheist said:

Thanks James, I didn't originally plan any tie bars so I designed it to be strong and look pukka, and I have a mate who bent the plate into channel for me so all I have to do is drill the mounting holes, but having thought about it I think it will need the tie bars. Cheers for the steer.

Click to expand...

it needs tie bars in any case on a defender they are fitted as standard as tow ball is going to sit under the rear cross member level, the bolts are 10mm by about 110mm



jamesmartin

Well-Known Member

• Mar 15, 2019

• #5



EvangelicAtheist

Active Member

• Mar 17, 2019

• #6

Thanks James,

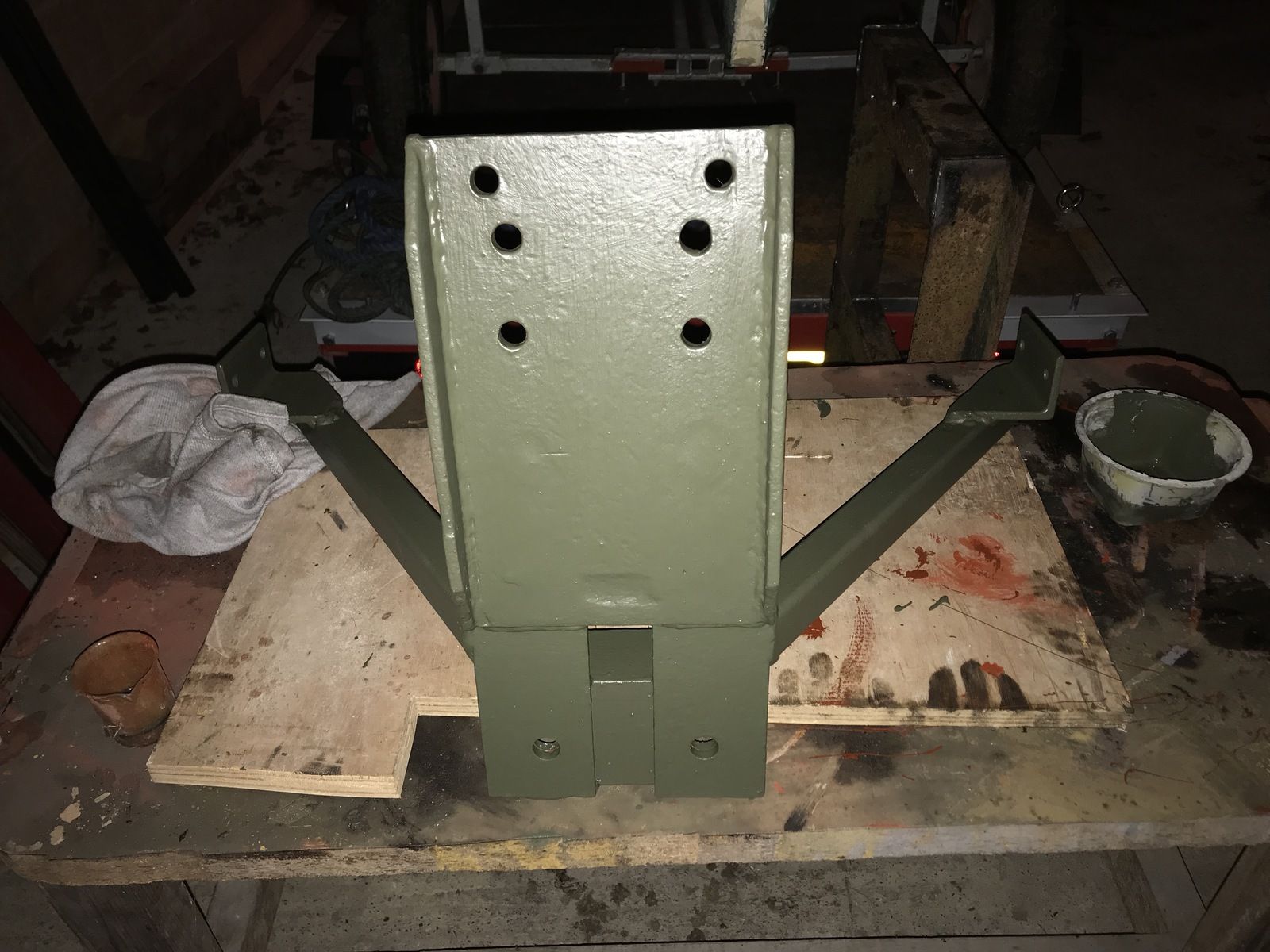

here is what I ended up fabricating, the 10mm channel didn't work out as it was bent too narrow, so I used an old drop plate I had that was too short, which I extended with some thick angle and then made the tie bars from box section.
