KISSMYAURA

Well-Known Member

• Oct 28, 2024

• #141

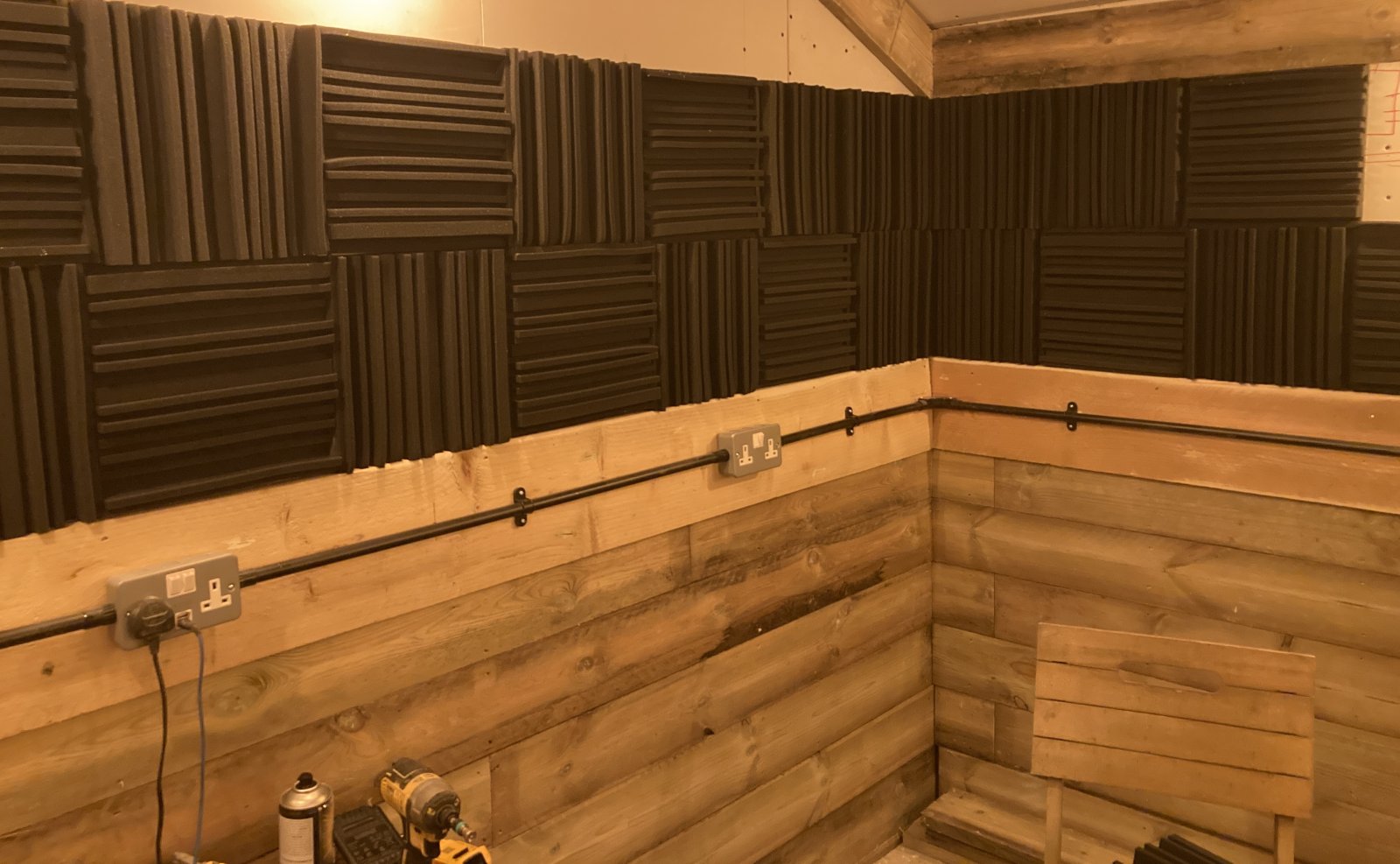

Plaster board, and acoustic tiles above that then a green sawn single ring at ceiling height for lights.
Then acoustic tile the inside of door, rubber floor mats n get the drums, mixing desk, PA, amps etc back in.
Inside its 25Sqm, 4.5x5.5 mrters so plenty big enough.



KISSMYAURA

Well-Known Member

• Oct 28, 2024

• #142

From outside to inside 3 door air-lock

Exterior walls: 4x2 stud OSB sandwich

Cladding>house Wrap>OSB>Vapour shield>loft Insualtion> OSB ......With Metal Framed Door (1)


Then 50mm air gap to room within a room.

Inner room :4x2 stud OSB/Plasterboard Sandwich

OSB >Pondliner/ DMP>Sound insulation>Plasterboard inner. With framed doors (2+3) each side of inner sandwich.



KISSMYAURA

Well-Known Member

• Oct 28, 2024

• #143

Nealry used up all my scrap wood from the carport build as noggins, cripples and jacks etc.
Oh yea and have two large dutbins full of kindling!

Forgot to mention this was an old stable, the floor is like a mattress with tow fat peeps standing on and on one sitting on one end corner its crooked as fook.



KISSMYAURA

Well-Known Member

• Nov 28, 2024

• #144

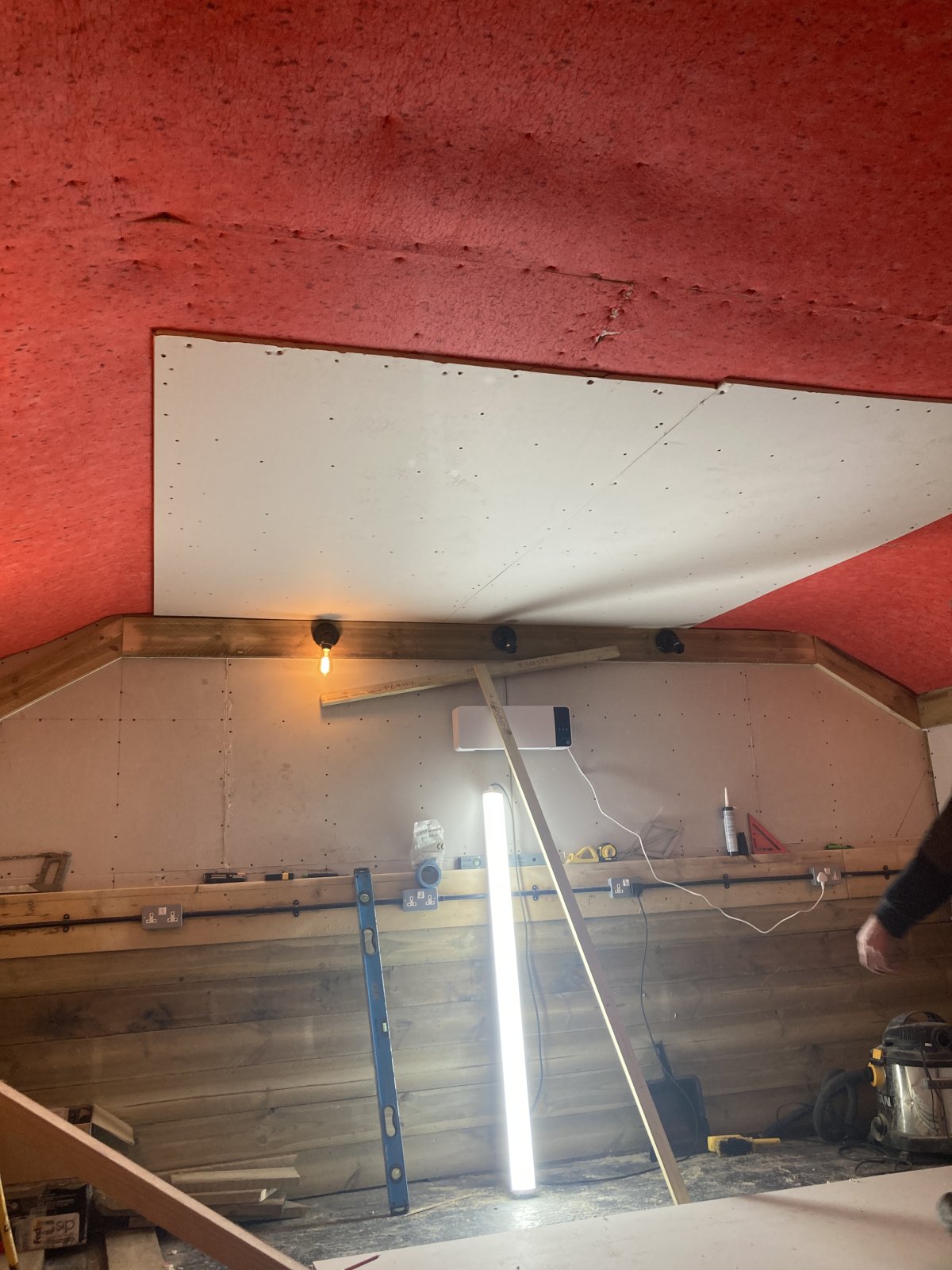

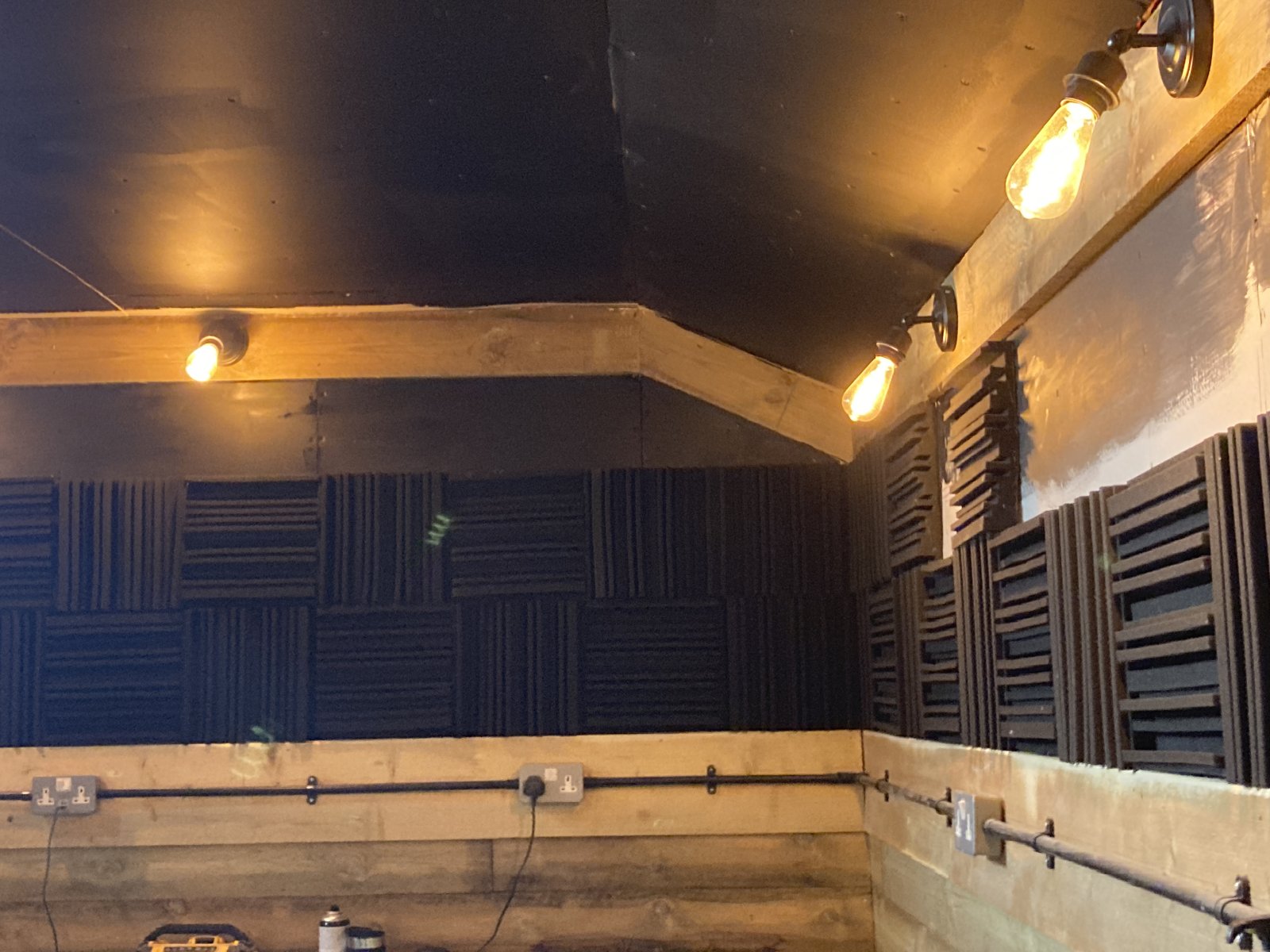

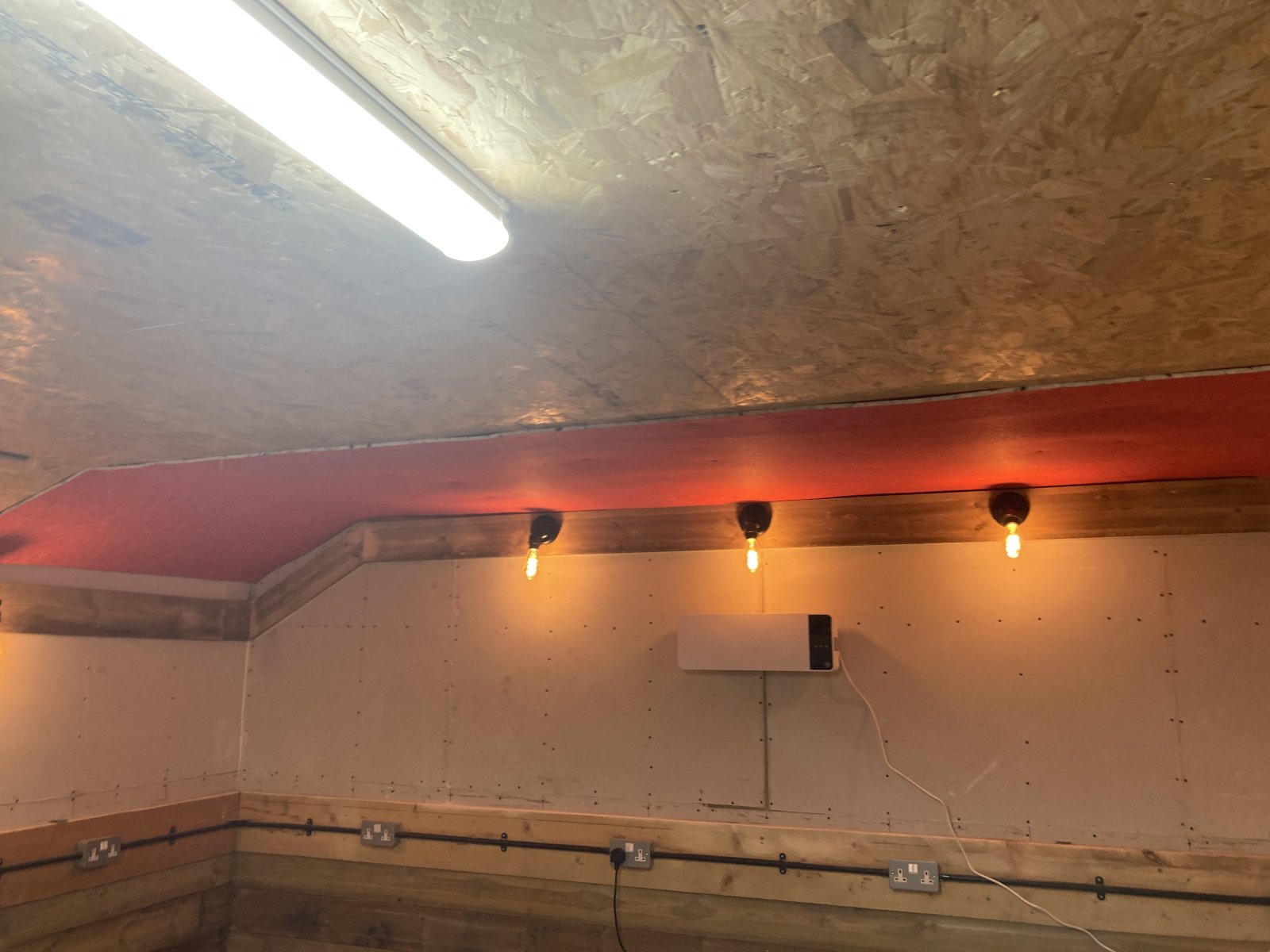

Ceiling



KISSMYAURA

Well-Known Member

• Nov 28, 2024

• #145

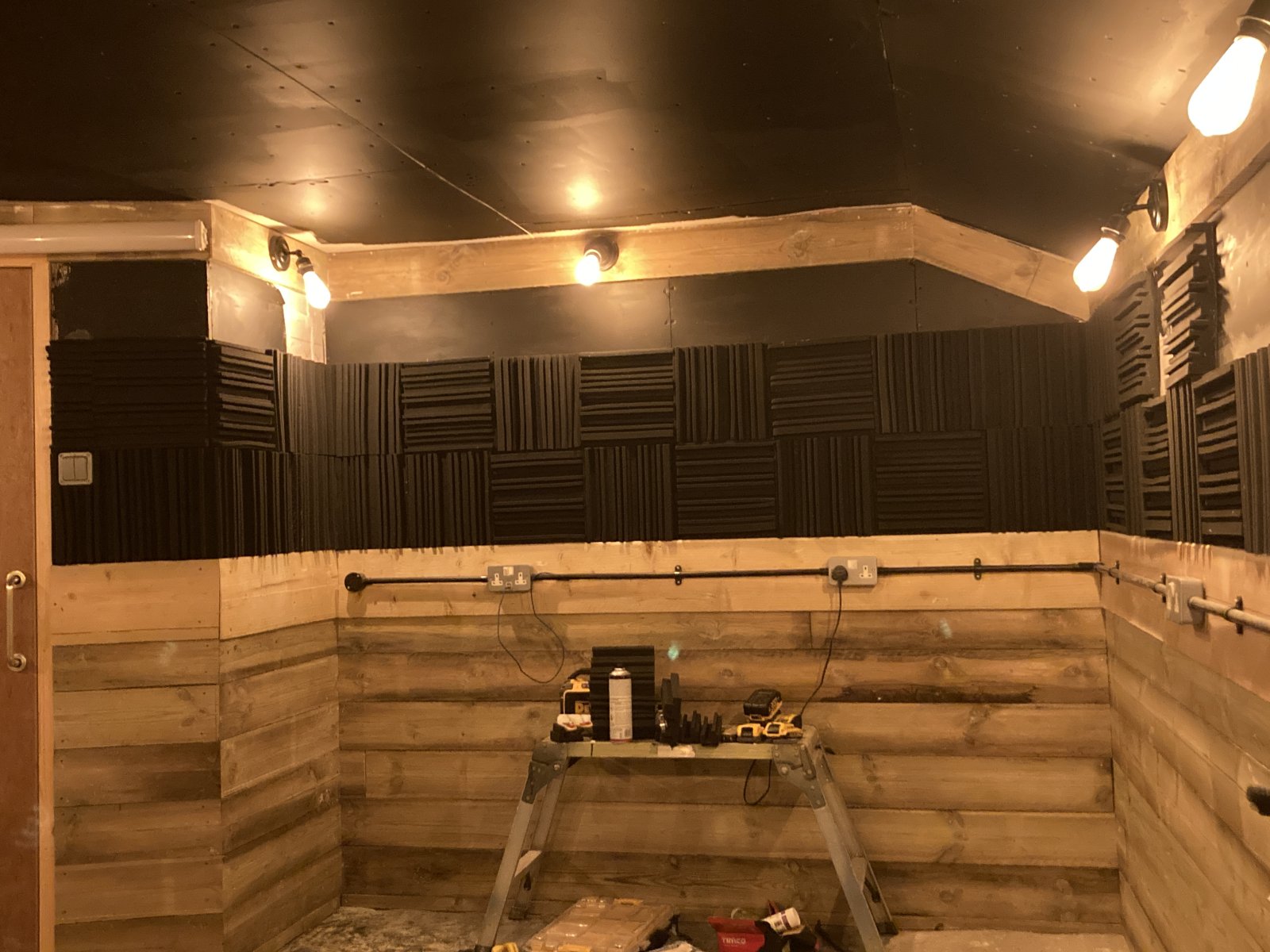

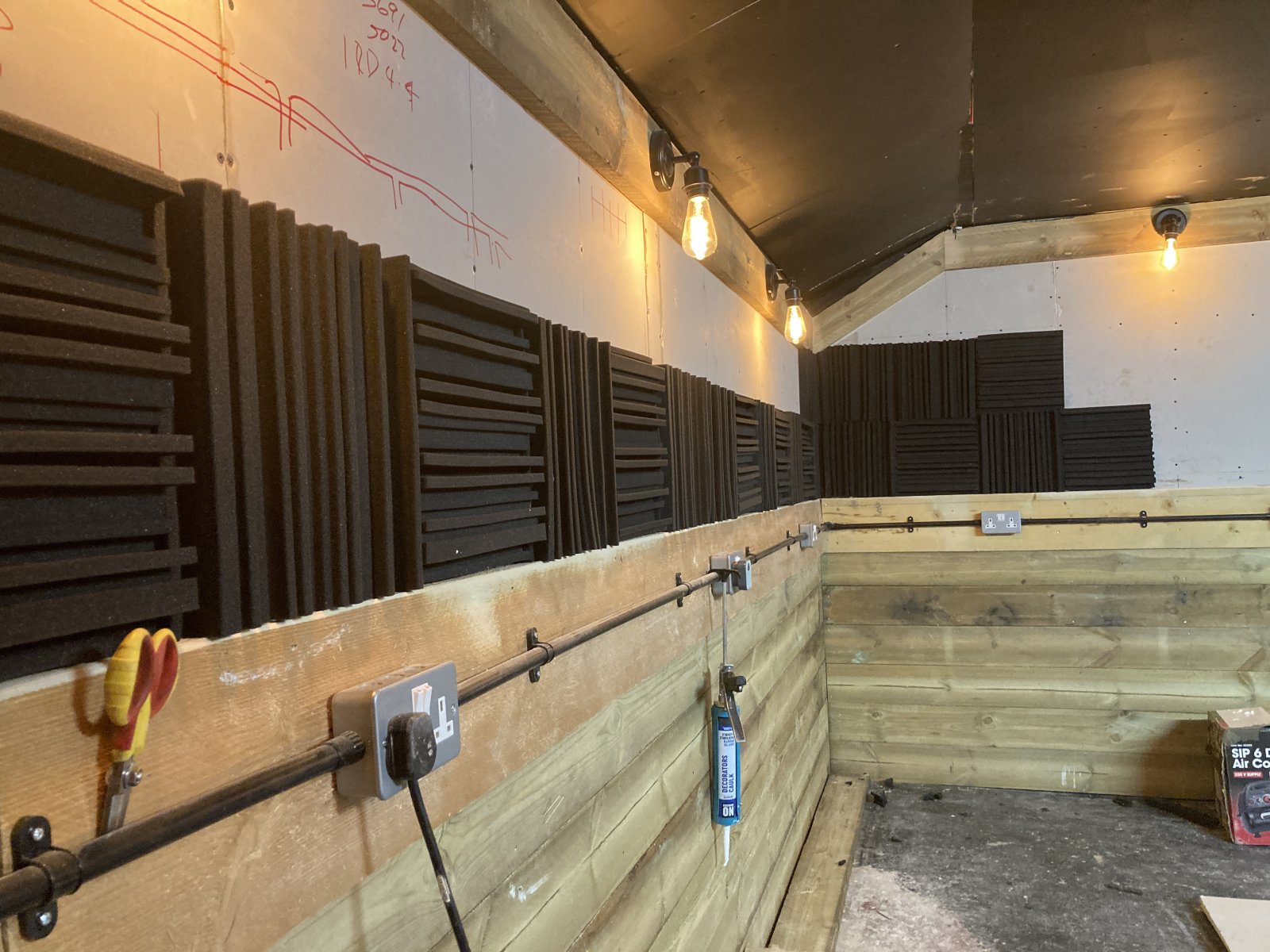

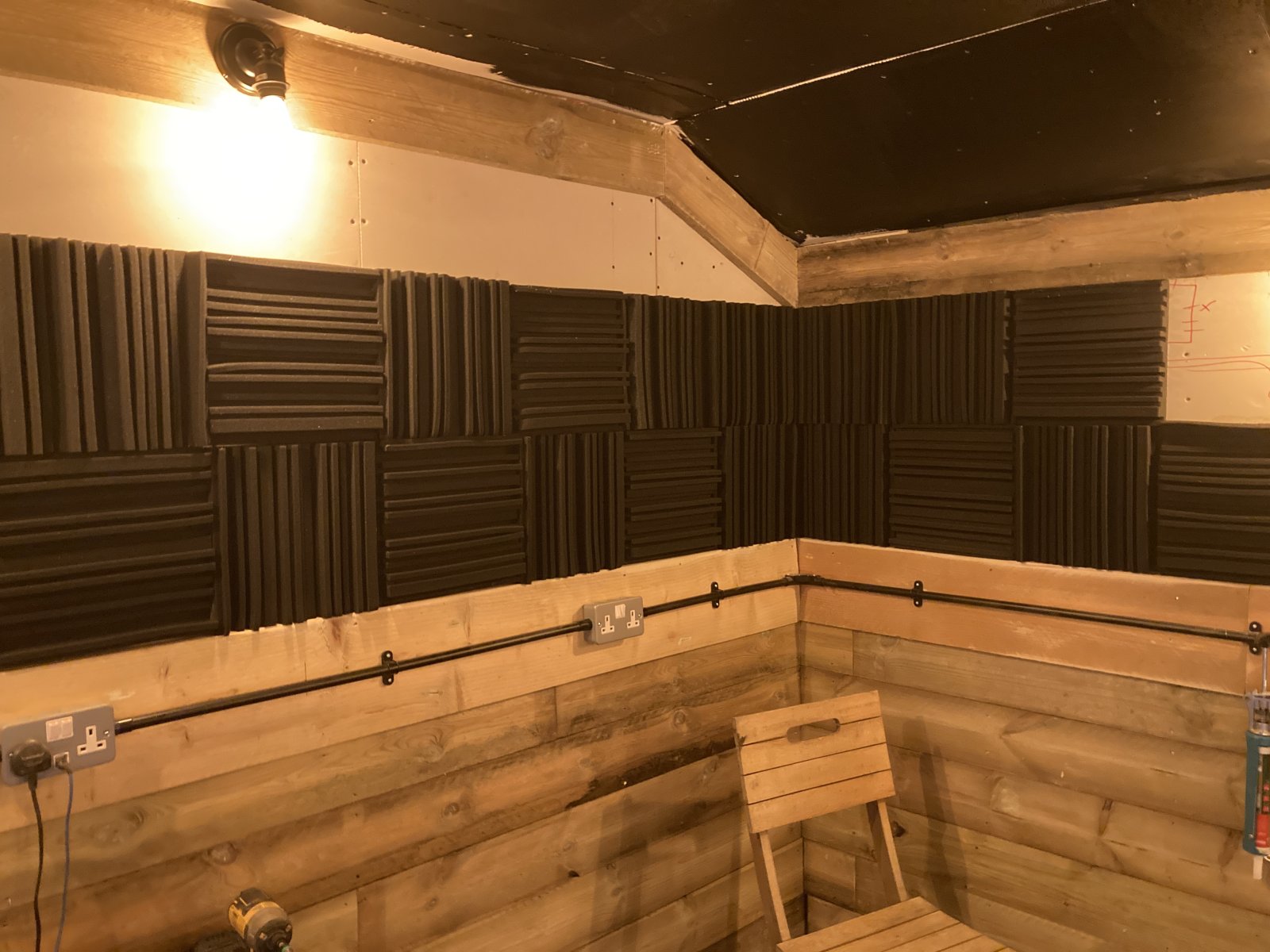

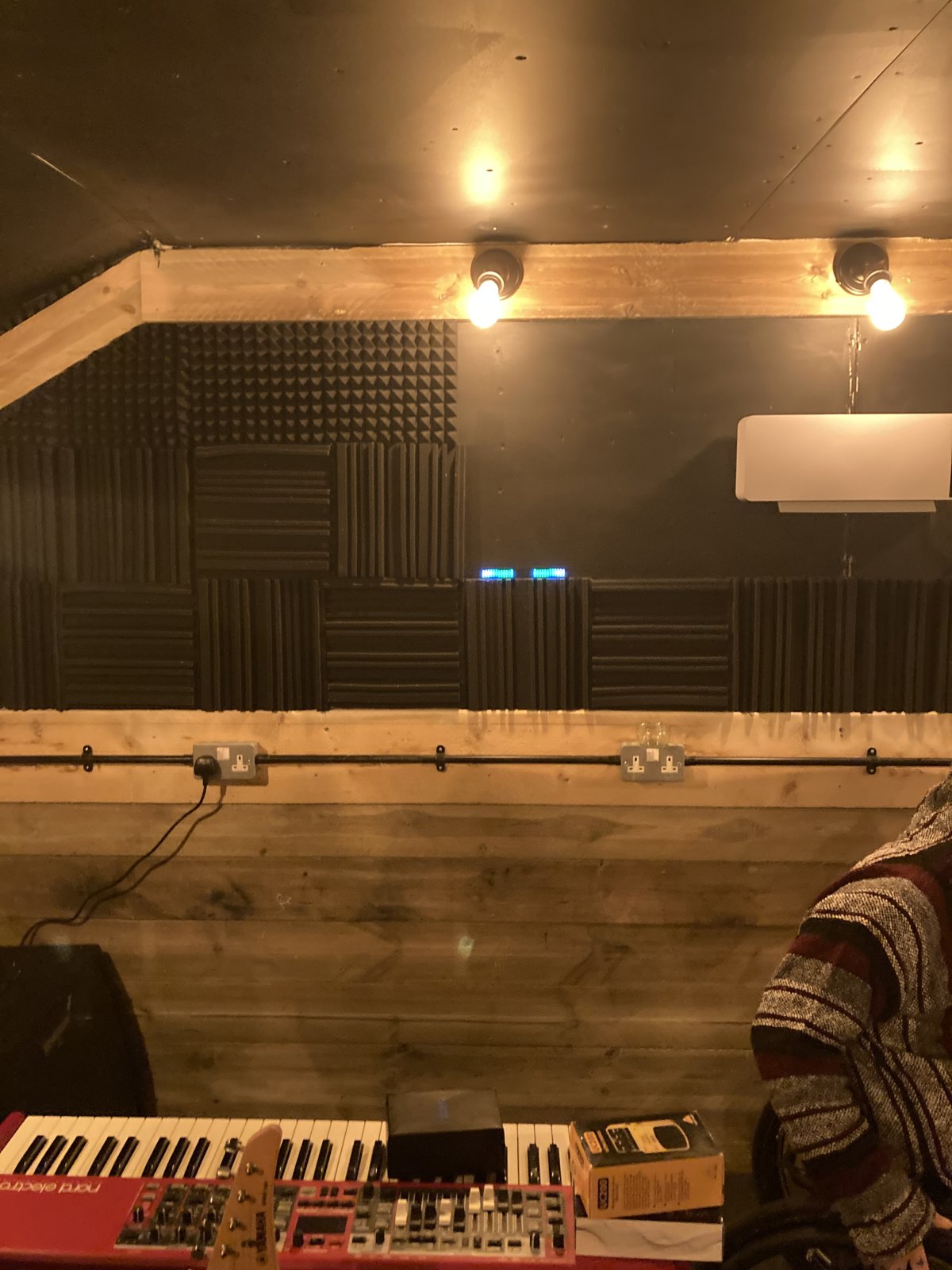

Progress



KISSMYAURA

Well-Known Member

• Nov 28, 2024

• #146

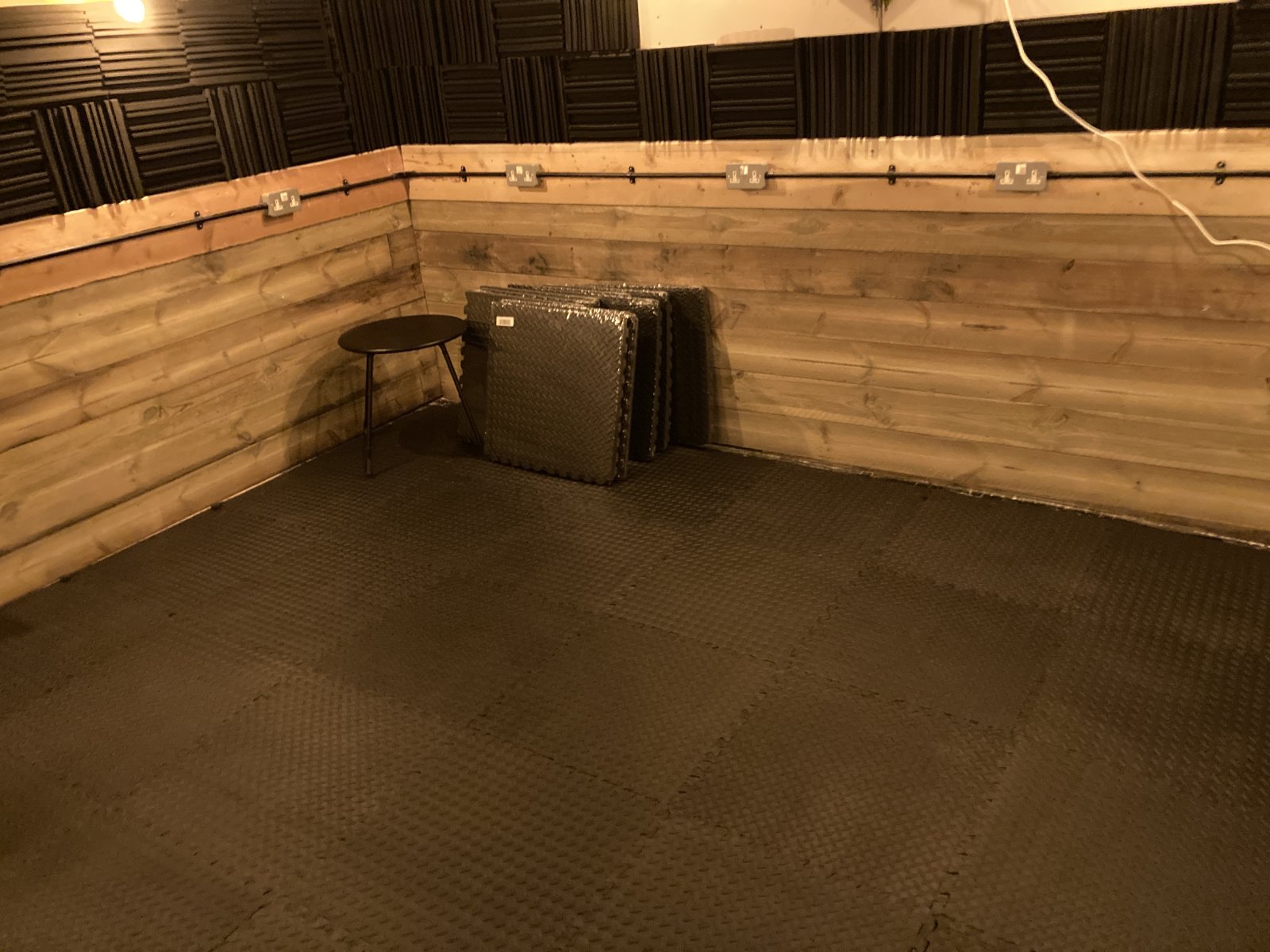

Floor - Done and Done



KISSMYAURA

Well-Known Member

• Nov 28, 2024

• #147

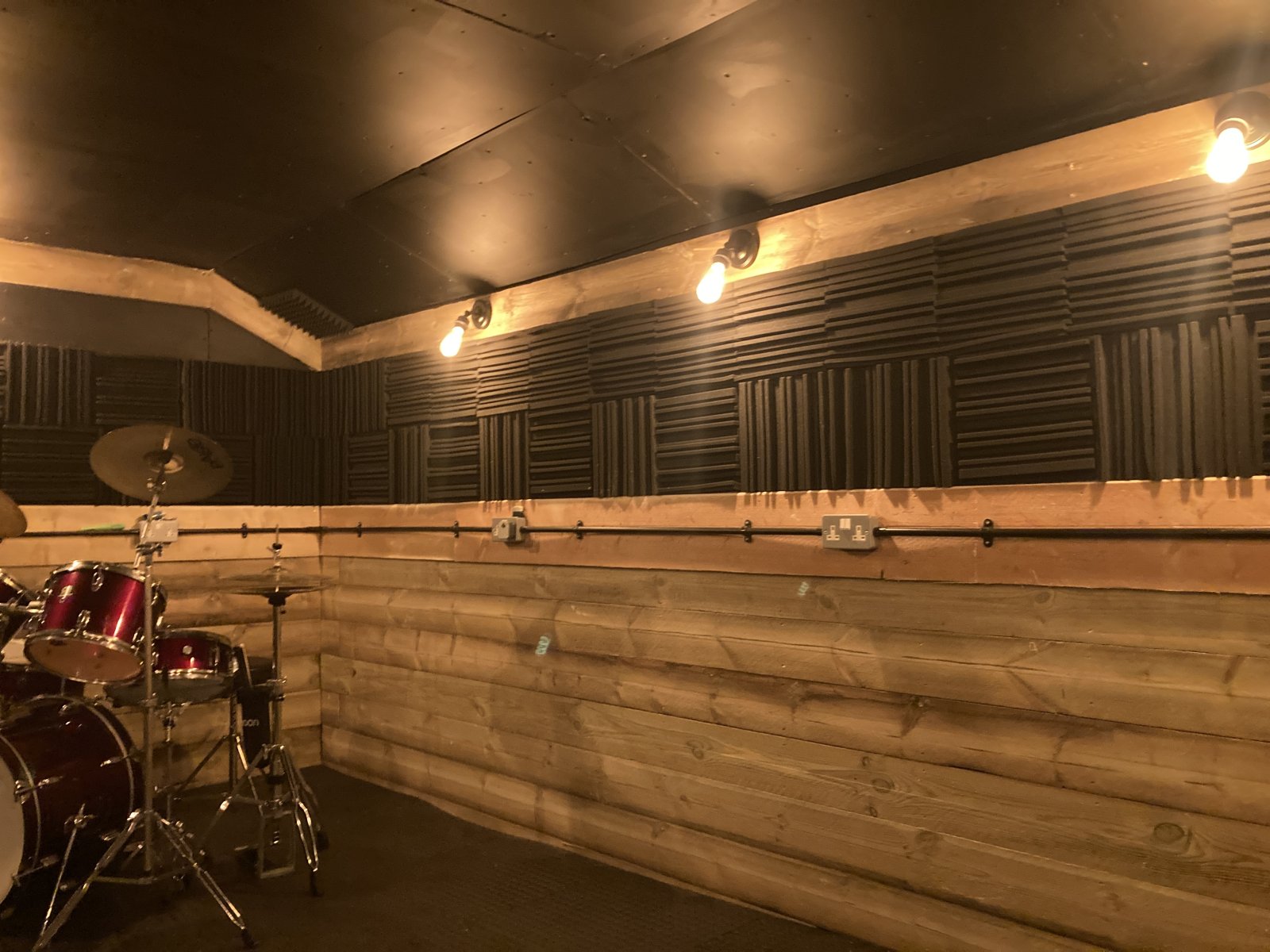

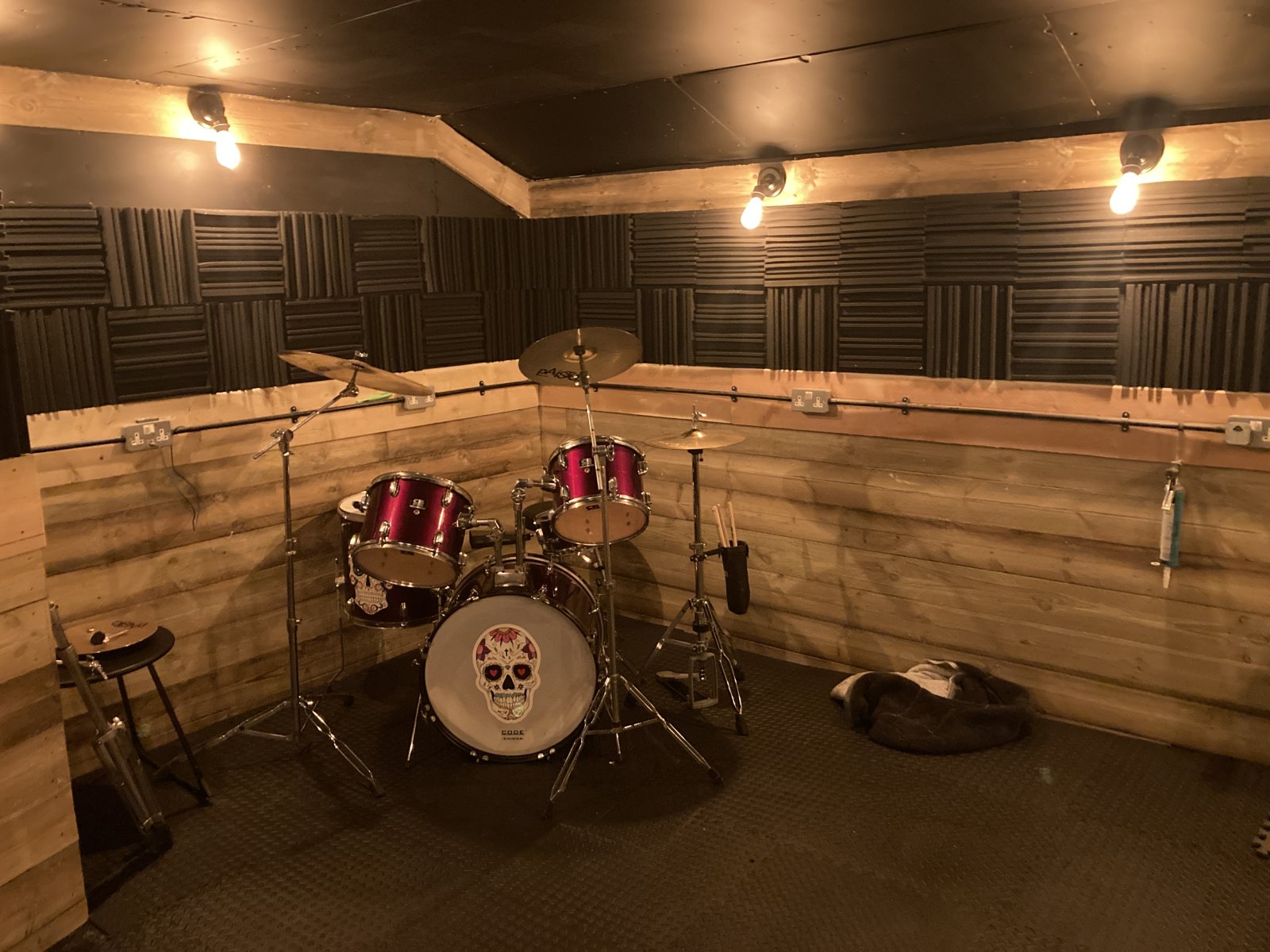

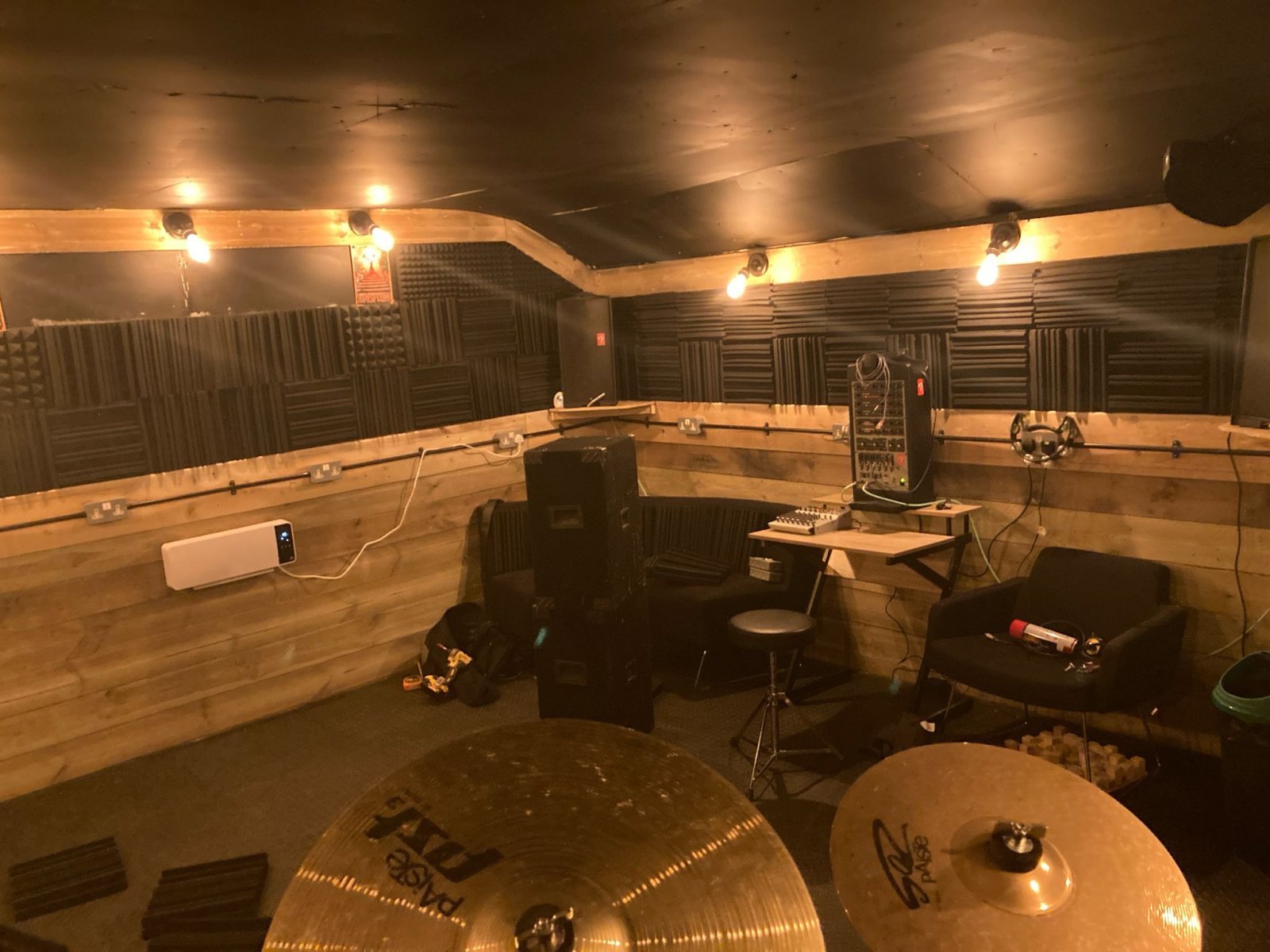

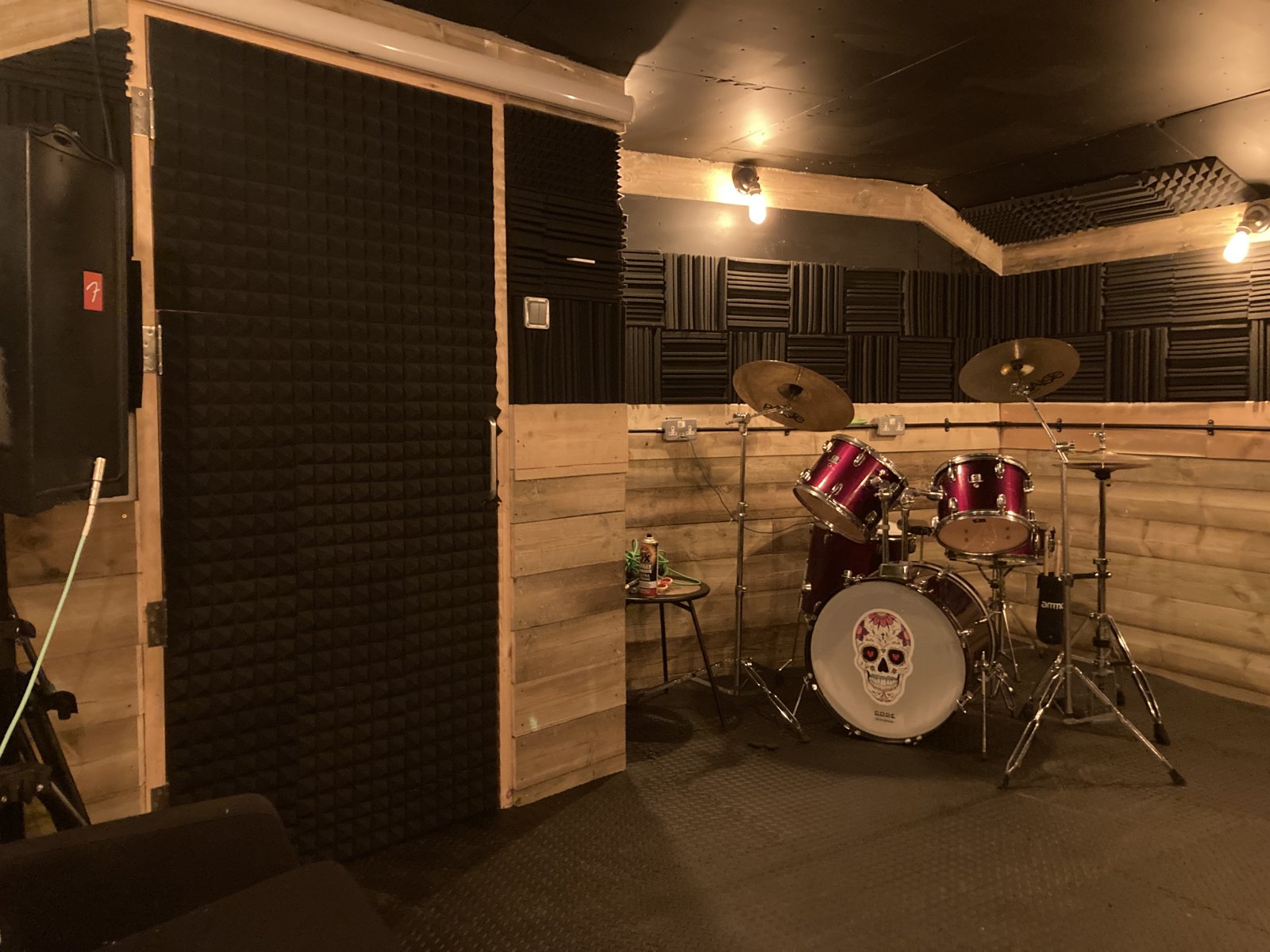

All in cost me around £4K in materials its really three builds......room within a room within a timber barn with 50mm air gap between each ( russian doll etc) Sound check with drums and PA at full chat...... 4 feet away sounds like stereo in a car, not loud just next to you at the lights, 10 feet away nothing at all.
So my design worked! very happy.....very luck to have mates who helped.
Cost me around 3 cows in milk,
One small sugar plantation,
and Gutamala's annual coffee yield for the year.



KISSMYAURA

Well-Known Member

• Dec 15, 2024

• #148

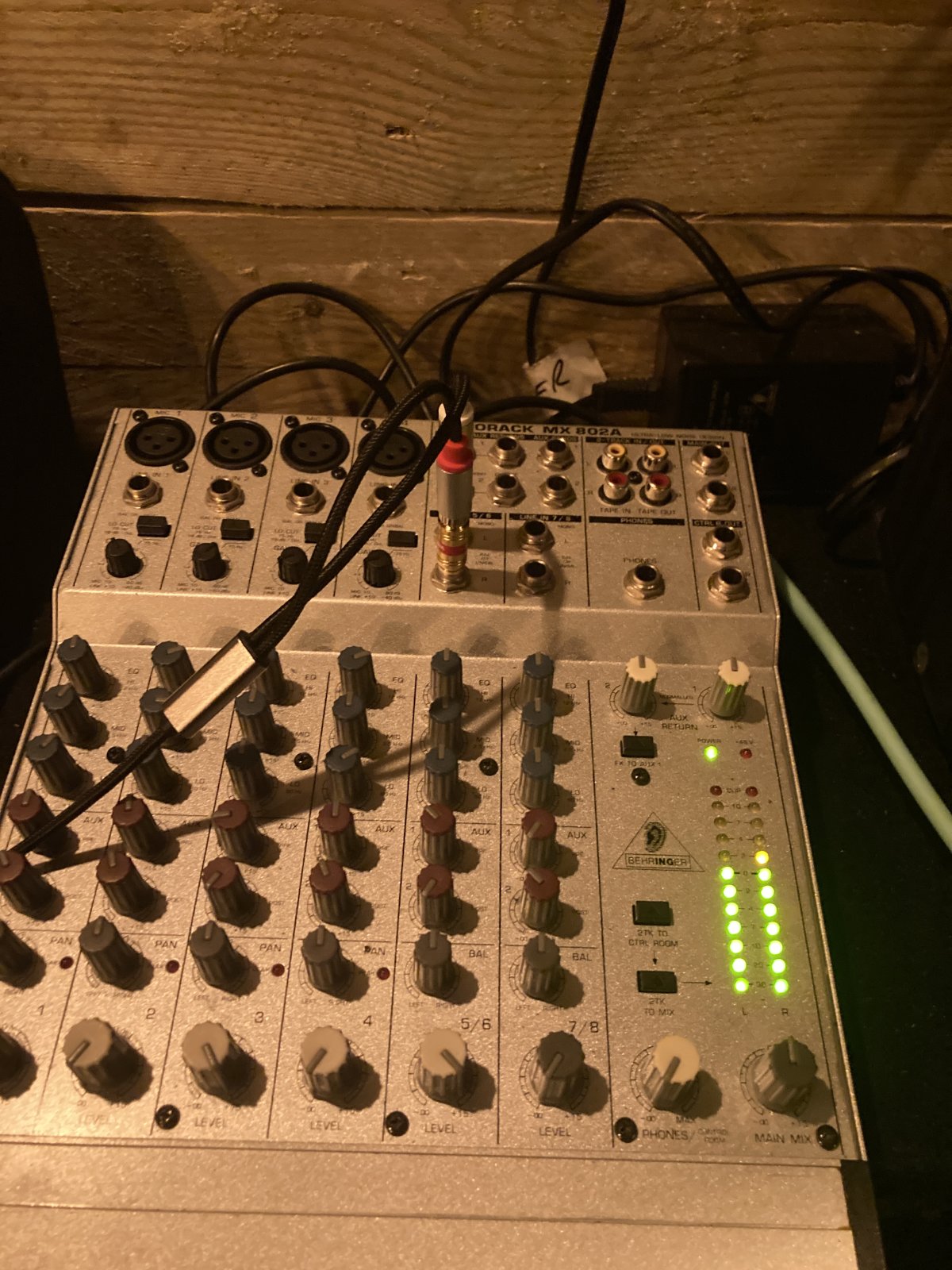

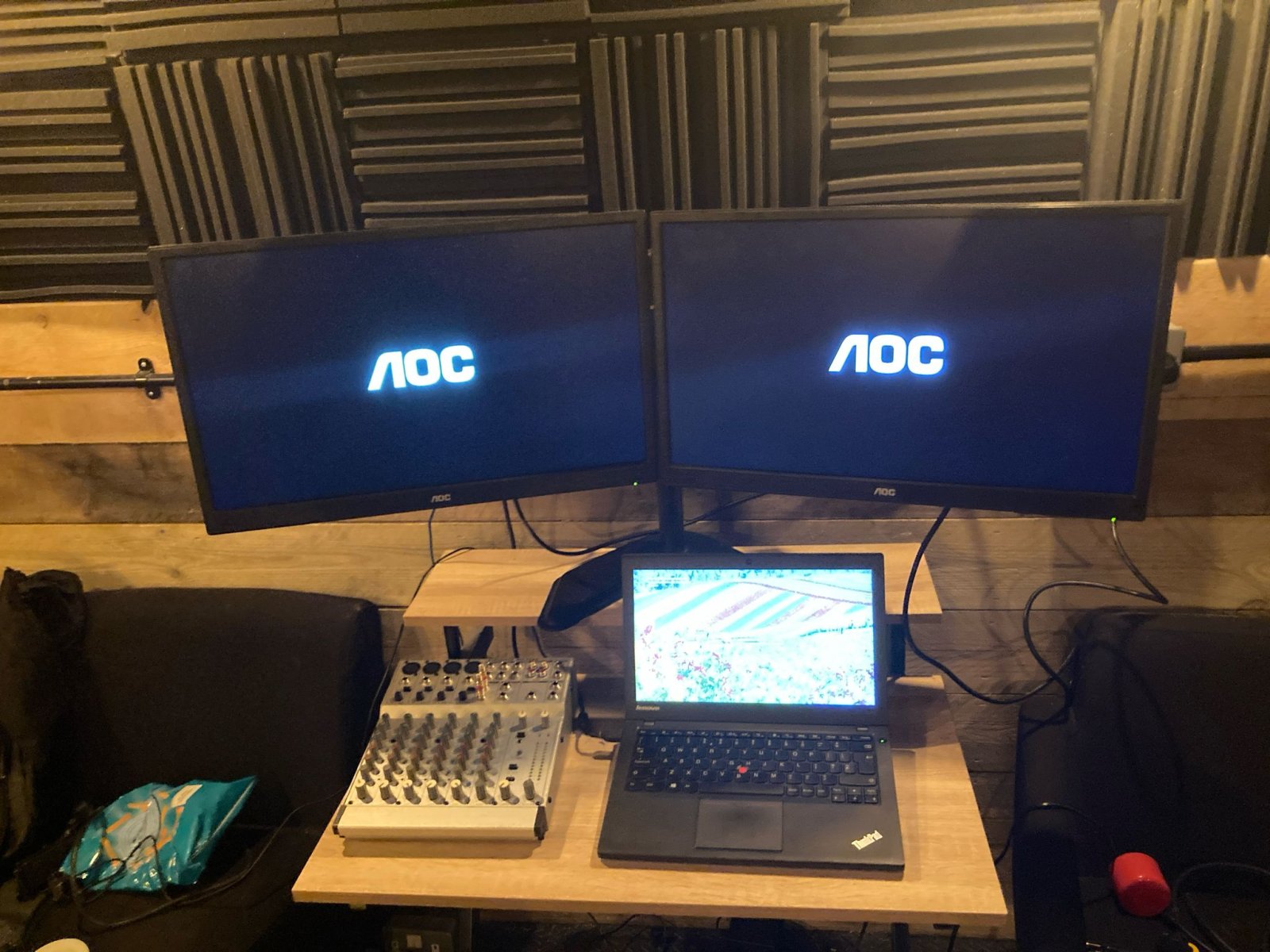

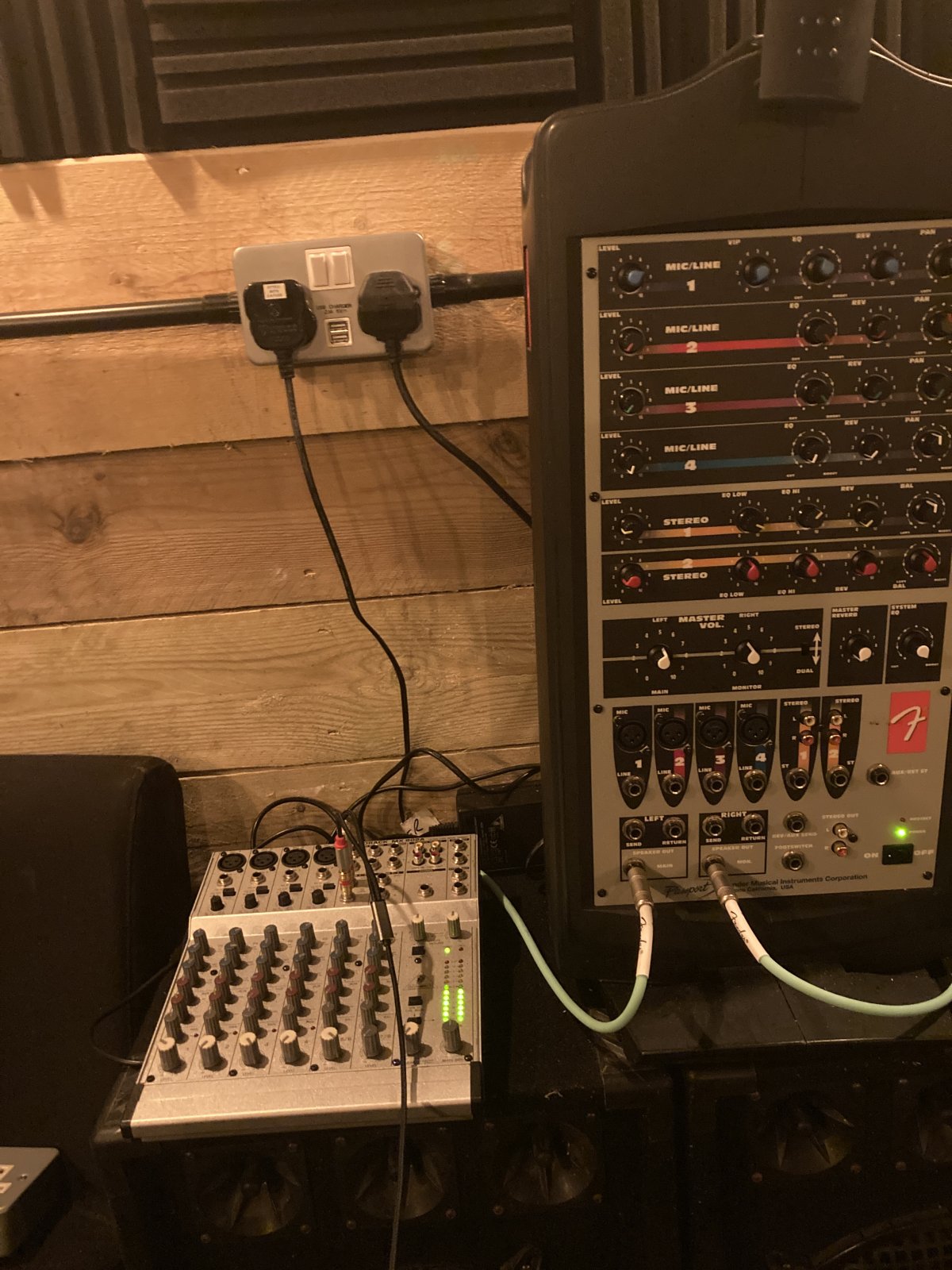

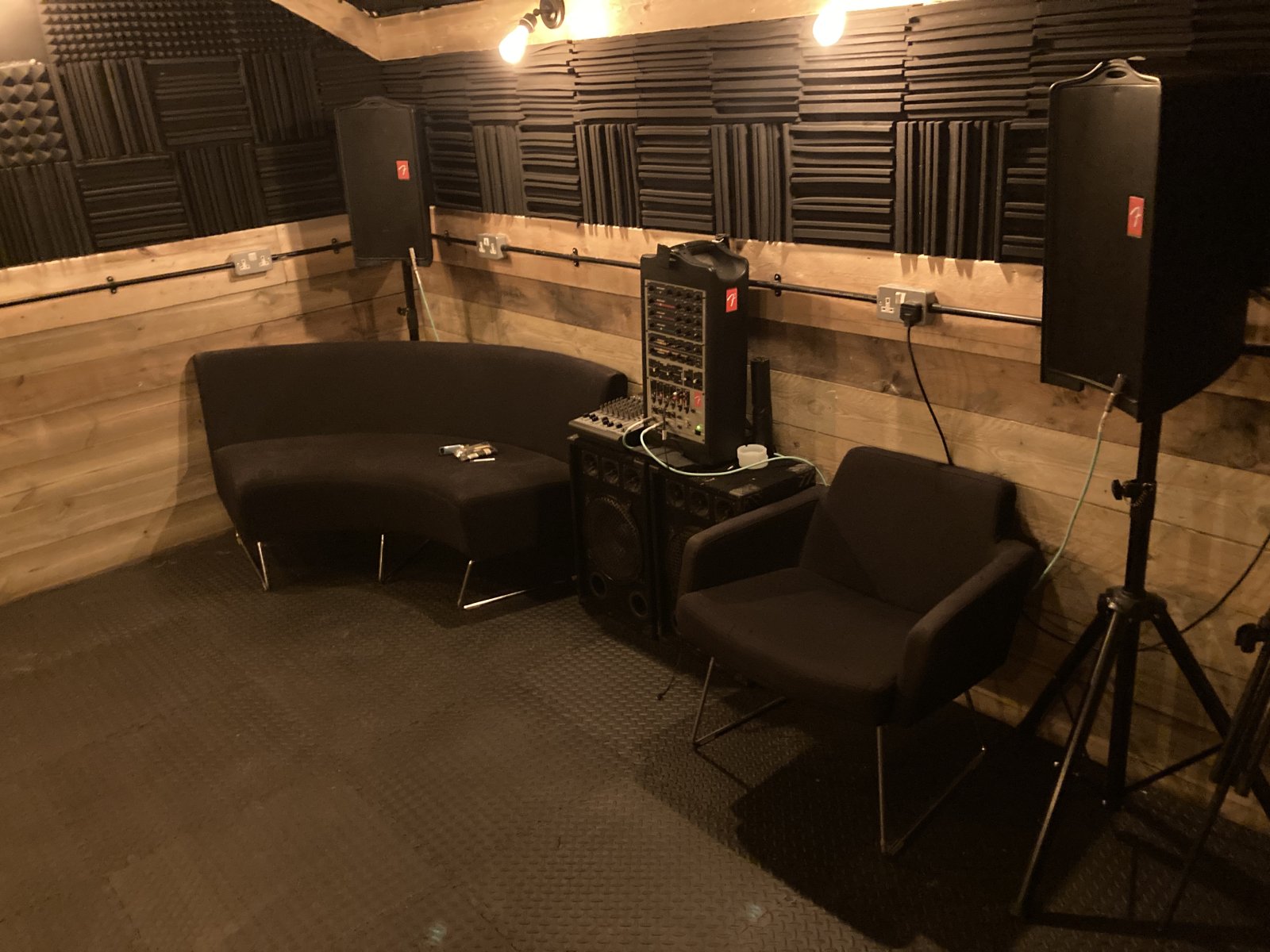

Blowing the dust of old Behringer mixer and Fender PA, all good now saving for a Zoom 20 track digital mixer / recorder.
