L

landychimp

New Member

• Apr 24, 2015

• #1

looking for some inspiration here, the pillar that the door striker attaches to on the driver door is loose at the top.
Not dramatically, but enough that the door needs a good slam to close it. With the door open a good hard push on the pillar and I can see it flex away from the upper part of the body a few milimeters.

Can't see any obvious damage or corrosion, any ideas on how to stop this flexing?

Hopefully the description makes sense



L

landychimp

New Member

• Apr 24, 2015

• #2

Sorry forgot to mention, the door seal is split where the pillar moves but I had assumed that the seal isn't what would normally stop it from moving

Or is that assumption wrong?



Pikey

Dummy Ejection Facilitator..

• Apr 24, 2015

• #3

There isn't a pillar so I think you need some more details i:e what vehicle it is might help??



L

landychimp

New Member

• Apr 24, 2015

• #4

Defender 90, sorry i'm not sure exactly the name of the panel or pillar.

its the panel that the door striker attaches to and the movement is at the top where the lower part of the body meets the upper part or the body.

Does that help?



Pikey

Dummy Ejection Facilitator..

• Apr 24, 2015

• #5

landychimp said:

Defender 90, sorry i'm not sure exactly the name of the panel or pillar.

its the panel that the door striker attaches to and the movement is at the top where the lower part of the body meets the upper part or the body.

Does that help?

Click to expand...

Its the body tub. their is a stiffener plate their. check that it hasn't been removed or is loose.



L

landychimp

New Member

• Apr 24, 2015

• #6

Hi Pikey, is that the plate behind the panel and attaches to the rear tub?

Thats definitely there and seems secure but can't be sure its not been off and not reatached properly at some point



bluedog333

Well-Known Member

• Apr 25, 2015

• #7

I think you need to post a photo of the loose part.



Marmaduke

Well-Known Member

• Apr 25, 2015

• #8

Is this of any use?



L

landychimp

New Member

• Apr 25, 2015

• #9

Cheers for the replies, I'll try and get a photo tomorrow which might explain it better.

Marmaduke - yeah that's the panel and all parts seem to be present and correct including the bracket support.



Al2O3

Well-Known Member

Full Member

• Apr 26, 2015

• #10

I can't see how that can be very loose. It's spot welded together. My support brackets are off at the moment and the strike plate is still very firm and doesn't move very much.
The pictures will be useful.



L

landychimp

New Member

• Apr 26, 2015

• #11

Hi chaps,

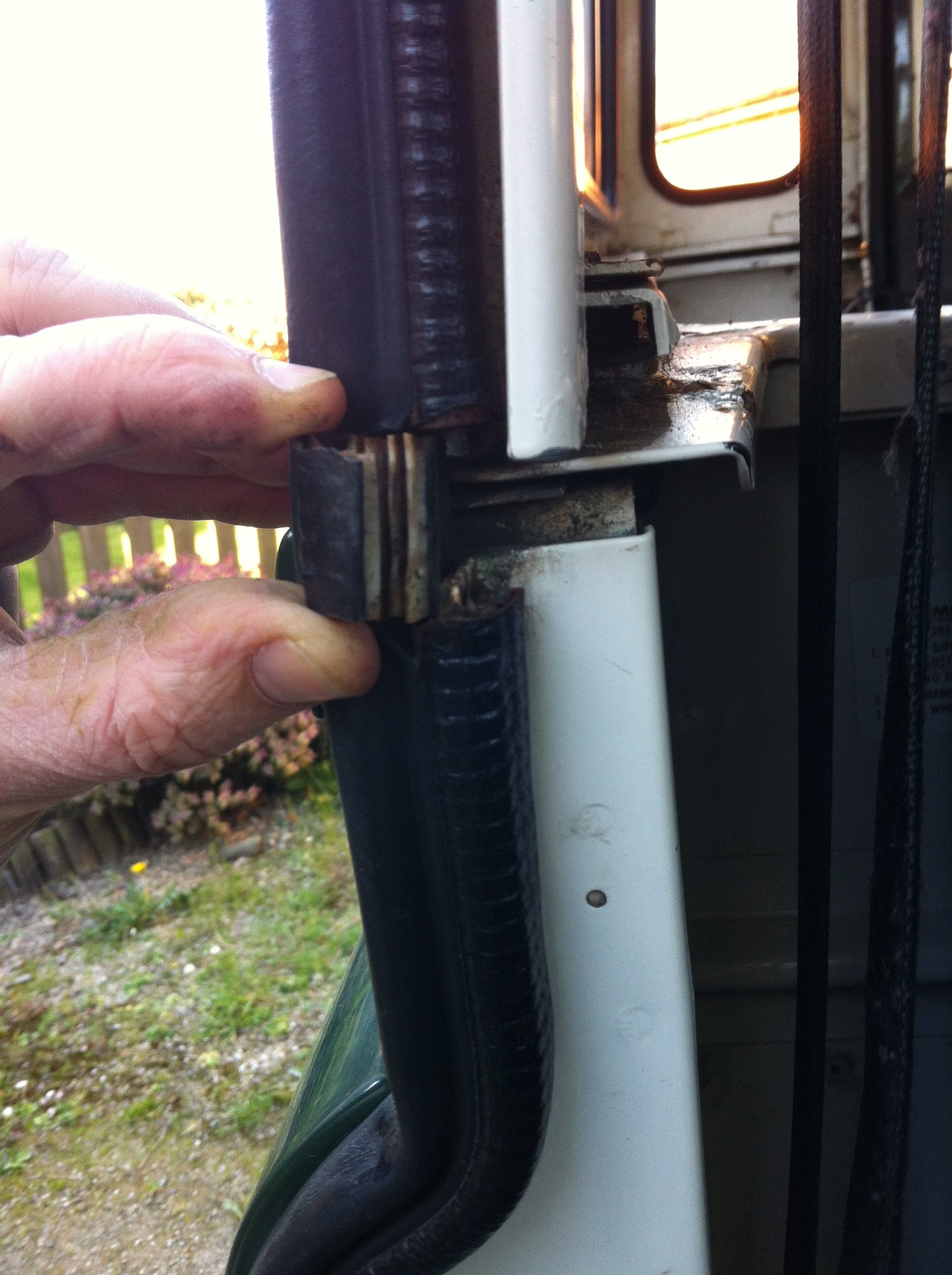

hopefully the photo makes more sense, where my hand is the door seal is split so i know that needs replacing. Its split where the bottom half of the body meets the upper part of the body (hope this is the correct description). If i push on the panel just below the split the panel moves slightly inward towards the drivers seat.

So basically when the drivers door is shut the panel will bounce slightly.

does that make anymore sense?

its rock solid on the other side but that doesn't have a split seal, surely its not just the door seal stopping it....



Attachments

•

  590 KB · Views: 151

Al2O3

Well-Known Member

Full Member

• Apr 26, 2015

• #12

No it's not the door seal that holds it in place. I would pull the bottom section of the door seal off and check the spot welds it covers.



Pikey

Dummy Ejection Facilitator..

• Apr 26, 2015

• #13

the side and the tub are 2 seperate panels check that the bolts holding them together are secure. and that the tub capping isn't rotted thru.
