sergiy

Member
i have discovery 5, i need someone who can help me with 5 error codes, u2300-55, u0046-81, u2300-62, u3001-46, b1412-96 if someone could help me i will be glad

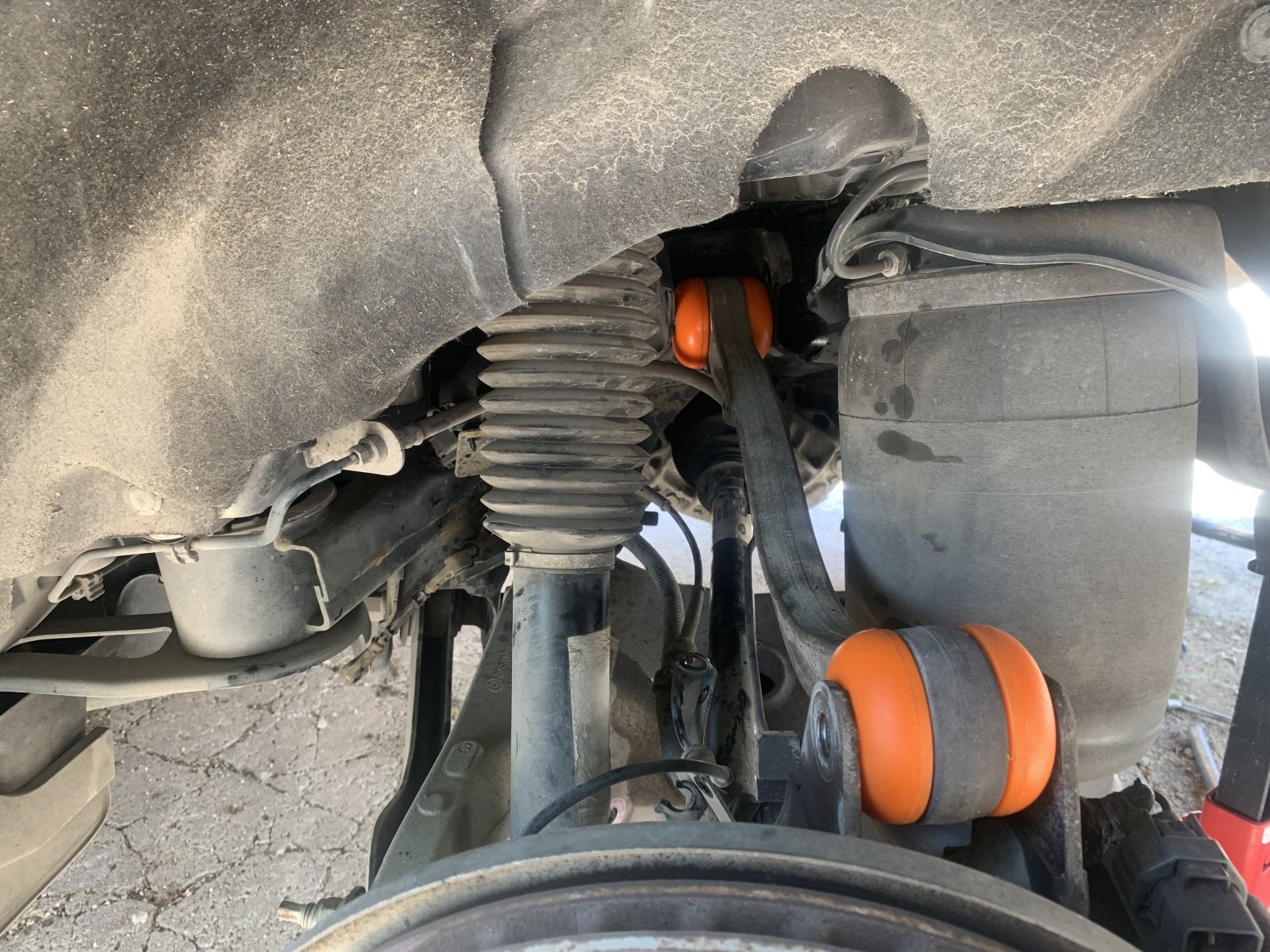

i have discovery 5 i found some error codes after changing the piece in the photo without using the lift but the jack by each wheel. i need someone who can help me with 5 error codes, u2300-55, u0046-81, u2300-62, u3001-46, b1412-96 if someone know how to read and solve this problem please respond

Well the first thing is 'what the hell have you done there? and why?'
You need to be specific about which systems are reporting the 'U' codes, the B141296 is easy, that's the Quiescent control module, it's a grey box in the right rear quarter behind the trim with some fuses in it - looks like an auxiliary fuse box. - the other codes may be related to loss of communication with it, until you tell us more detail it's impossible to say.

Something was niggling me about B141296 -

Reference SSM72286
Models Discovery Sport / L550
LR2 / L359
Range Rover / L405
Range Rover Evoque / L538
Title B1412-96 Flagged in the Gateway Module
Category Electrical
Last modified 01-Jun-2015 00:00:00
Symptom 203000 Basic Electrical
Content L405 - 13MY Onwards
L359 - 14MY Onwards
L538 - 14MY Onwards
L550 - 15MY Onwards
Issue
B1412-96 being flagged in the Gateway Module
Cause
Under Investigation.
Action
False log of DTC 1412-96 in the Gateway Module and will not clear due to internal software issues. This will not affect the vehicle
performance and is not visible to the customer.
If DTC 1412-96 is identified:
1. Do not replaced the Gateway Module for this DTC.
2. Do not replace the Quiescent Relay Box for this DTC.

I've a feeling there was a software update which just prevented the DTC being set - as the SSM states, there is no loss of function. So just ignore and move on....

Not always - U230055 indicates an unconfigured (or misconfigured, if someone has been 'playing') module, U230062 indicates a configuration mismatch (most likely CCF) Both can lead to the vehicle being unusable.
The key to deciding if they're critical errors is finding out which module they're flagged in and which module (if loss of communication / missing message) they refer to.

As I said clear them and see if they come back if not forget about it and don't worry. If they come back investigate further.
From a more qualified person than me from a more newer landrover based product forum than here


Report post
U codes are meaningless and should be disregarded sir... If you start your car with a battery in 90% health then you will start getting U codes as the voltage drops when the starter motor is working... P codes are the important codes sir
Thumbs Up

I would love to know where this myth about 'U codes' started, certainly all the training I've done across PSA, Volvo, JLR, Ford, VWG, Mercedes & others - most to MT / Diag. tech level, none have ever said 'U codes? naaa, don't worry about them...'

If that quote is from a certain bodger in Gloucestershire, (with no 'qualifications' as such) then take it with a large pinch of salt, he started out as a 'detailer' and lost the run of himself... If he said it was raining, I'd look out of the window to check.

Let's see if the op comes back to us with an answer. I seriously doubt it but let's see I don't mind being proved wrong unlike others people on here ;)

So, according to your source, these are to be ignored?

U0046-81 Definition: Vehicle Communication Bus C - Invalid serial data received Cause:
NOTE:
  • Circuit reference - HS CAN H (CH) -
  • Circuit reference - HS CAN L (CH) -
  • Invalid data received from another control module through the high speed CAN bus (chassis)
Diagnosis:
  • Using the Jaguar Land Rover approved diagnostic equipment, check the snapshot data to determine the invalid data source control module. Check the relevant control module for related Diagnostic Trouble Code(s) and refer to the relevant DTC index
  • CAUTION: This procedure requires a minimum of Pathfinder 277 loaded or later

Code: U2300-55 Definition: Central Configuration - Not configured Cause:
NOTE: When the ignition is switched on, if the warning indicator flashes for 75 seconds then remains illuminated a system fault is present
  • Car configuration file mismatch with vehicle specification
Diagnosis:
NOTE: After updating the car configuration file, set the ignition to on and wait 30 seconds before clearing the DTCs
  • Using the Jaguar Land Rover approved diagnostic equipment, re-configure the central junction box with the latest level software
TOPix - SSM72877 - The BCM shows four Critical mismatches in the CCF Page I of I
Reference
Models
Title
Category
Last modified
Symptom
Content
SSM72877
Range Rover/ L405
Range Rover Evoque / L538
Range Rover Sport/ L494
The BCM shows four Critical mismatches in the CCF
Diagnostic Software Hardware
21-Jul-2016 00:00:00
000101 Diagnostic Concerns
After completing any modification to the Car Configuration File (CCF) on the vehicles
mentioned in this SSM either of the two issues below can occur:
• The Diagnostic Trouble Codes (DTCs) U2300-62 or U2300-54 is stored in the Body
Control Module (BCM).
• The CCF loaded into the BCM contains four critical mismatches related to the CCF
assemblies for different modules.


Code: U3001-46 Definition: Control Module Improper Shutdown - Calibration/parameter memory failure Cause:
  • Event information
  • Driver/passenger seat module power has been disconnected whilst in manufacturing mode
Diagnosis:
NOTE: Do NOT replace the module to repair this DTC
  • Using the Jaguar Land Rover approved diagnostic equipment, check the snapshot data (0x4237) to identify the lost calibration axes
  • If the front seat axes have lost calibration, using the Jaguar Land Rover approved diagnostic equipment, perform routine - Calibration Run (0x205F). Clear the Diagnostic Trouble Code(s) and retest
  • If the rear seat axes have lost calibration, using the Jaguar Land Rover approved diagnostic equipment, perform routine - Calibration Run (0x2055). Clear the Diagnostic Trouble Code(s) and retest.

All (IMO) point to valid issues and would be treated as confirmed concerns for warranty purposes, with corrective action taken and charged out. Certainly not 'clear & ignore' at least two point to loss of functionality, one would qualify for 'further investigation.

So, according to your source, these are to be ignored?



All (IMO) point to valid issues and would be treated as confirmed concerns for warranty purposes, with corrective action taken and charged out. Certainly not 'clear & ignore' at least two point to loss of functionality, one would qualify for 'further investigation.
Crist your boring

Well the first thing is 'what the hell have you done there? and why?'
You need to be specific about which systems are reporting the 'U' codes, the B141296 is easy, that's the Quiescent control module, it's a grey box in the right rear quarter behind the trim with some fuses in it - looks like an auxiliary fuse box. - the other codes may be related to loss of communication with it, until you tell us more detail it's impossible to say.

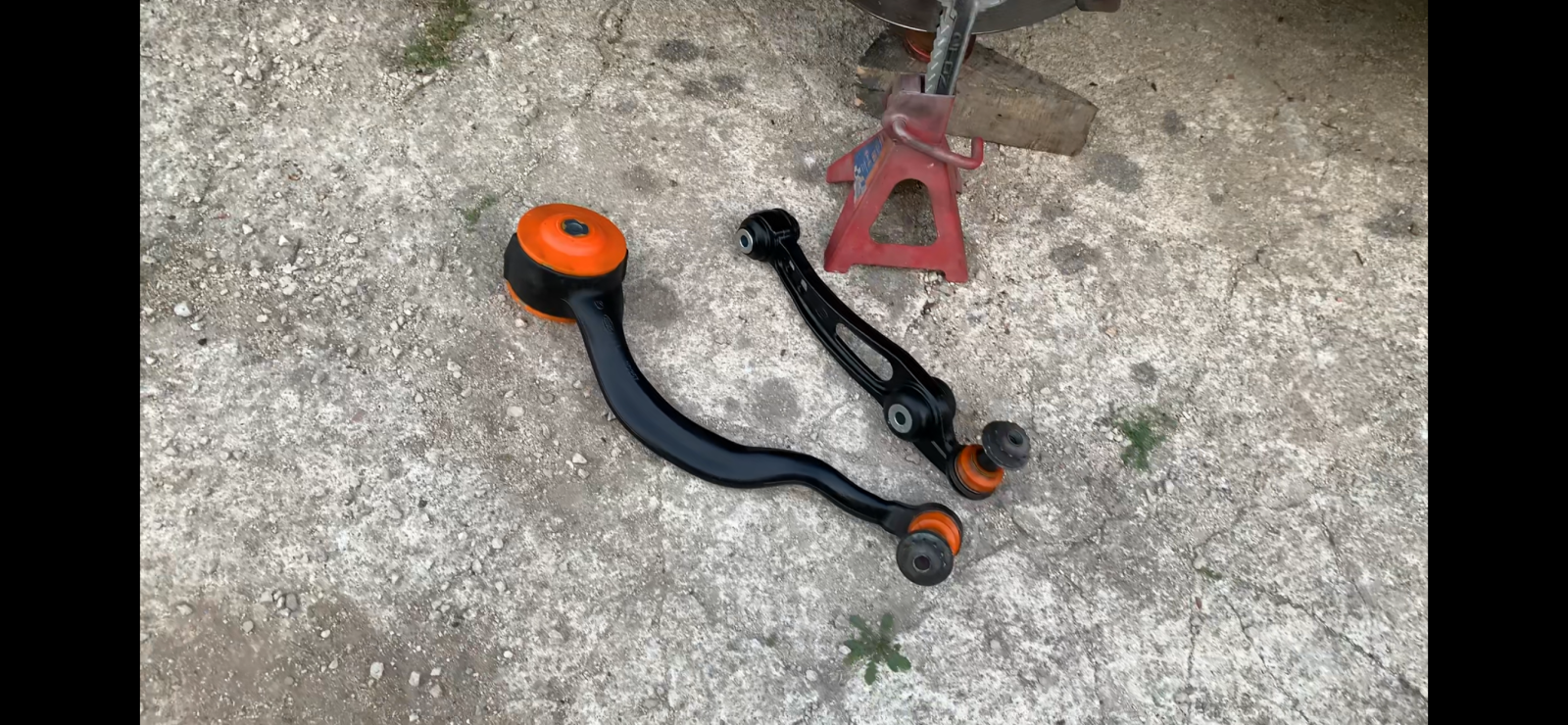

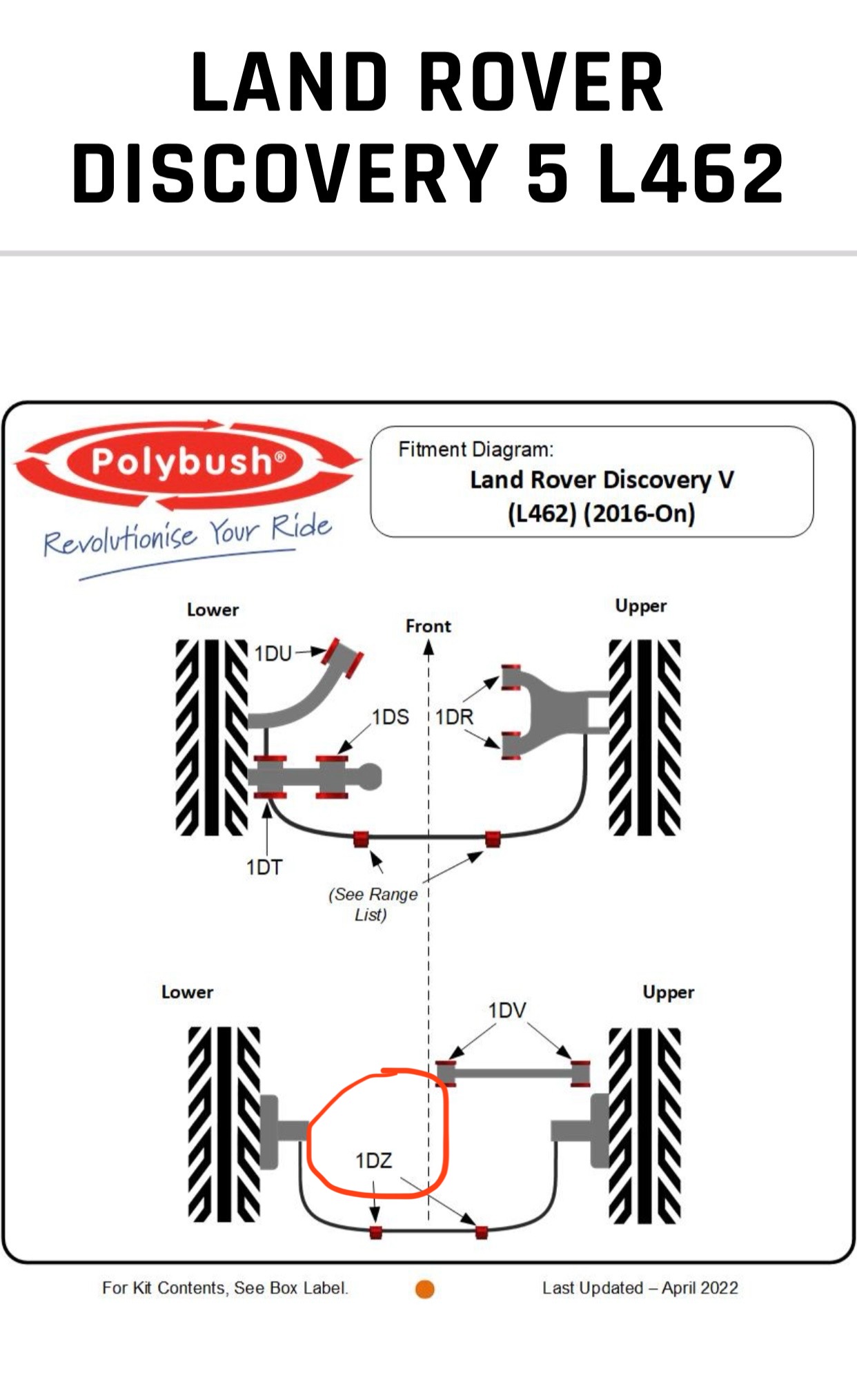

in first place I started buying the kit contents polybush for landrover discovery 5 L462 and replacing it with the rubber parts in orange as seen in the photo. i changed the rubber part in the upper swingarm and there was a suspension sensor for the regulation of the hight that i removed and placed it back right because i couldnt work without removing it (maybe i did something wrong by touching the sensor is that right?). after that i saw the error after the diagnosis as i writed in the first thread and i saw in the display that the hight was only available in normal and the driving was terrible. the car was moving like in a ship and the level of the suspension was in the normal hight. the display also showed a sign fault and below it, it says, only normal hight is available. is that enough information for you to understand? i hope yes.

in first place I started buying the kit contents polybush for landrover discovery 5 L462 and replacing it with the rubber parts in orange as seen in the photo. i changed the rubber part in the upper swingarm and there was a suspension sensor for the regulation of the hight that i removed and placed it back right because i couldnt work without removing it (maybe i did something wrong by touching the sensor is that right?). after that i saw the error after the diagnosis as i writed in the first thread and i saw in the display that the hight was only available in normal and the driving was terrible. the car was moving like in a ship and the level of the suspension was in the normal hight. the display also showed a sign fault and below it, it says, only normal hight is available. is that enough information for you to understand? i hope yes.View attachment 322725View attachment 322726View attachment 322727
there was an issue on discovery three and four with fitting poly bushes they were too stiff and had too much stiction caused various suspension codes to come to light.
In some cases the actual arms themselves sheared as the bushes would not flex enough.

None of the DTC's explain the 'normal height only' in isolation - which modules are reporting which DTC?
I would check all height sensors are in the correct orientation, have a look on the 4x4i screen, it should show you which height sensor (if any) is causing height reference issues.

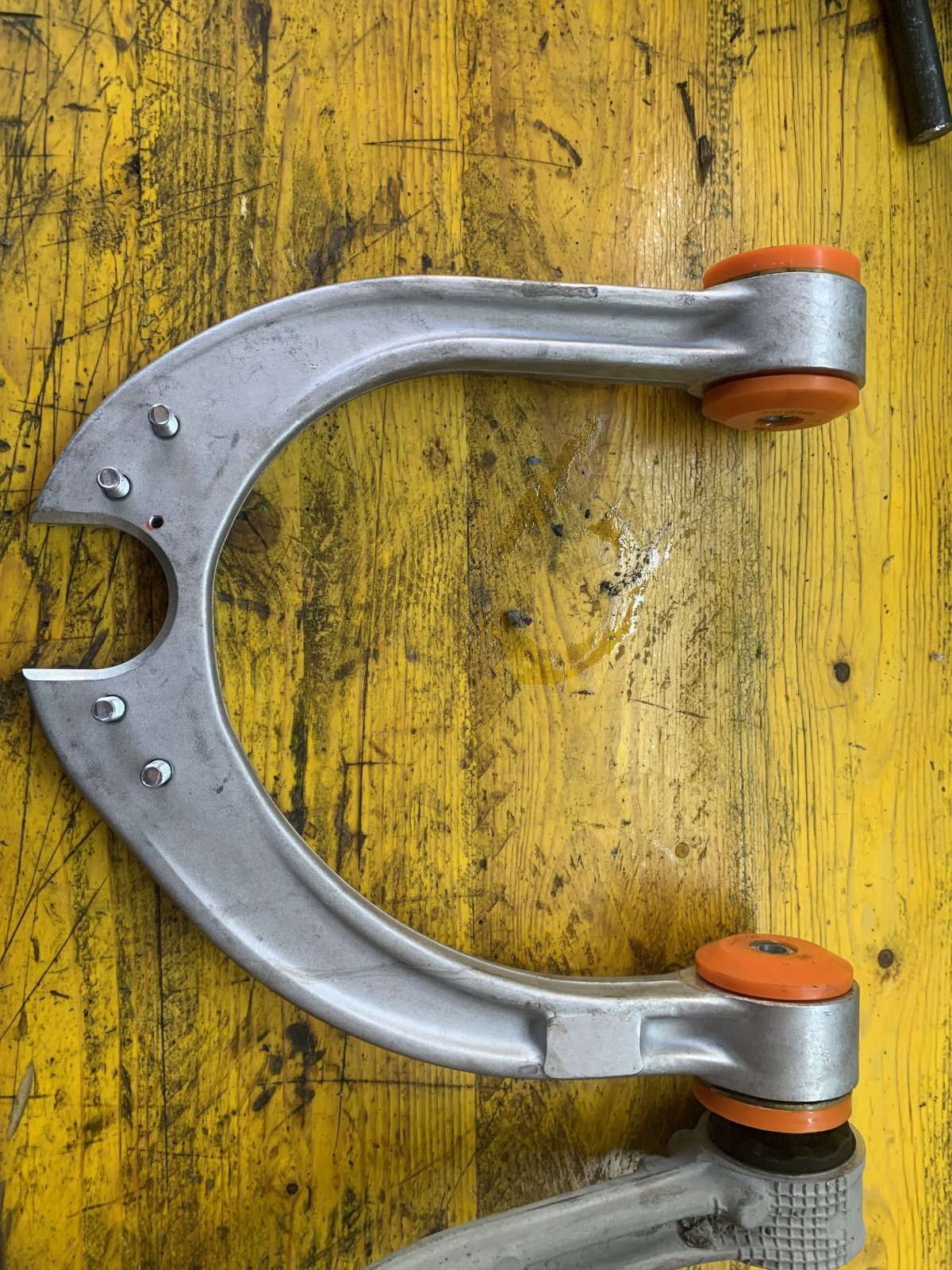

Personally, I think that polybushes destroy the ride quality (and as mentioned above, the suspension arms too) I note that you've also fitted adjustable upper wishbones, these may be sitting at a different reference height compared to the standard upper wishbones and be part of the problem.

What about someone who likes to tell everyone how qualified he is how many training courses he has done, how dare anyone have a different opinion to him because he was/is main dealer this, main dealer that.
They trained monkeys to fly space craft with enuff training.

Anyone can copy and paste and post it up it's not very useful. Then to slag someone's else's post off regarding U codes is just out of order but it seems its getting the norm here.
And did the op get back to us ?? Like so many who find them selves in trouble and desperation they hop onto a forum for some help and support and never come back.

Harsh.....no.
