03 plate disco 2 facelift keeps blowing fuse 3 (i think from memory) for the dash / switches lights.
ive unplugged every thing in turn that i can think of but still the fuse blows, BUT its intermittent.it might be ok for days then all of a sudden it will go dead short to earth, i dont want to start pulling wiring out if its a known fault, has anyone got any ideas ?
thanks.

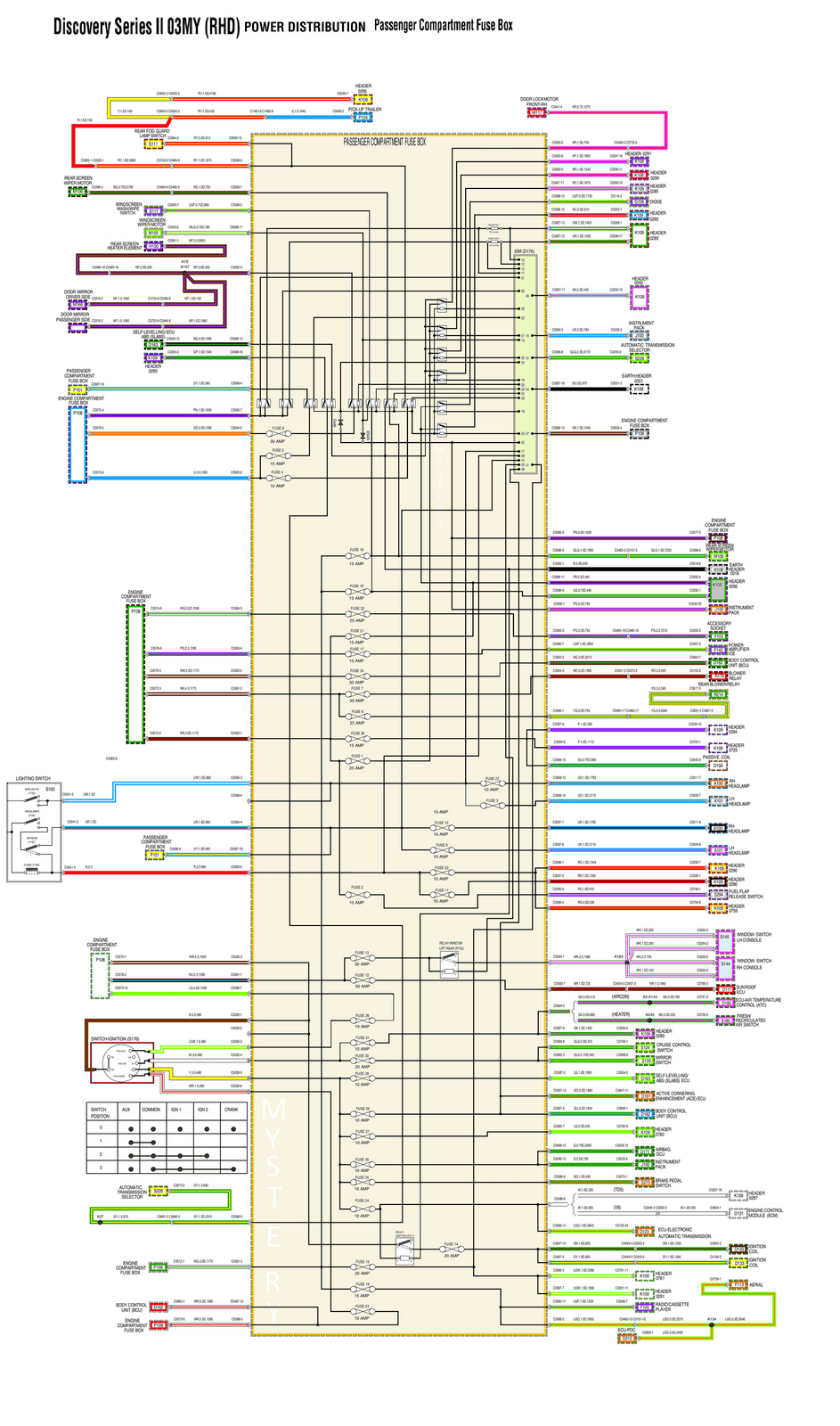

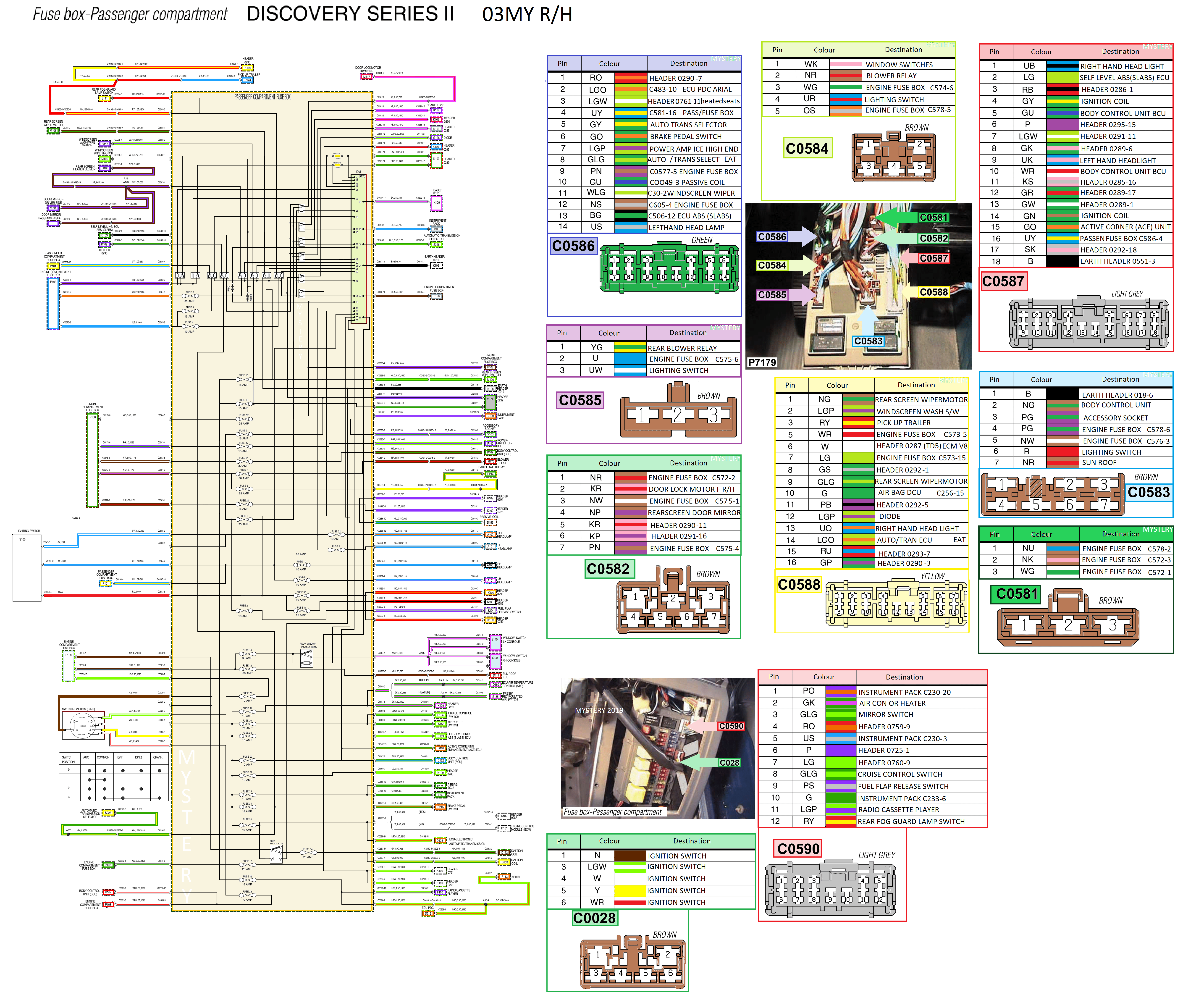

MYSTERY POWER DISTRIBUTION DISCOVERY SERIES 11 03MY.png

tyetye said:
need help..
03 plate disco 2 facelift keeps blowing fuse 3 (i think from memory) for the dash / switches lights.
ive unplugged every thing in turn that i can think of but still the fuse blows, BUT its intermittent.it might be ok for days then all of a sudden it will go dead short to earth, i dont want to start pulling wiring out if its a known fault, has anyone got any ideas ?
thanks.
Click to expand...

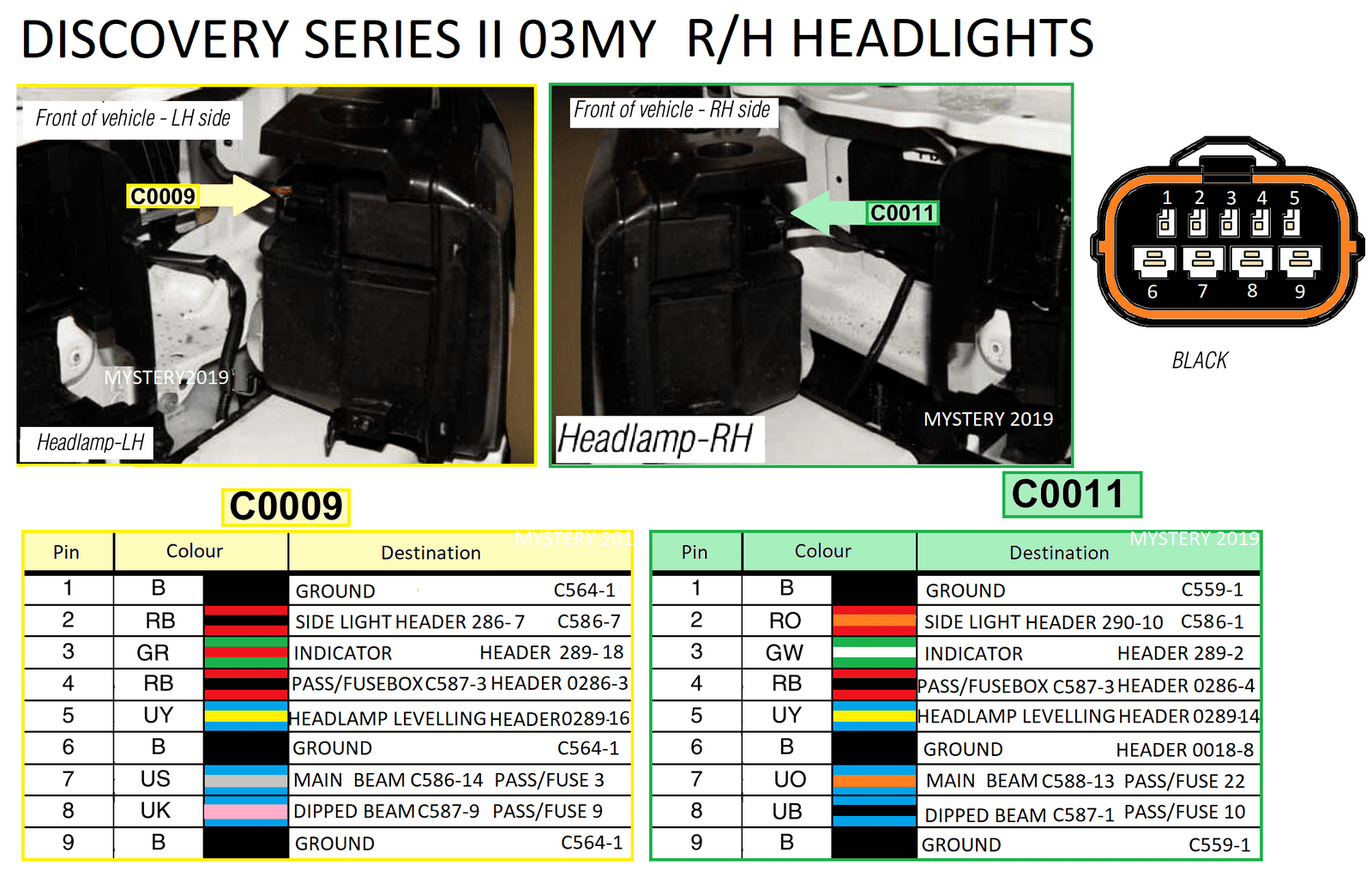

Well according to the diagram above, the load from fuse 3 is the left hand headlamp so that should simplify the area to locate of the short, starting with the unplugging of C0009-7 and therefore isolating the headlamp electrically.

anitarc another for your collection


Attachments

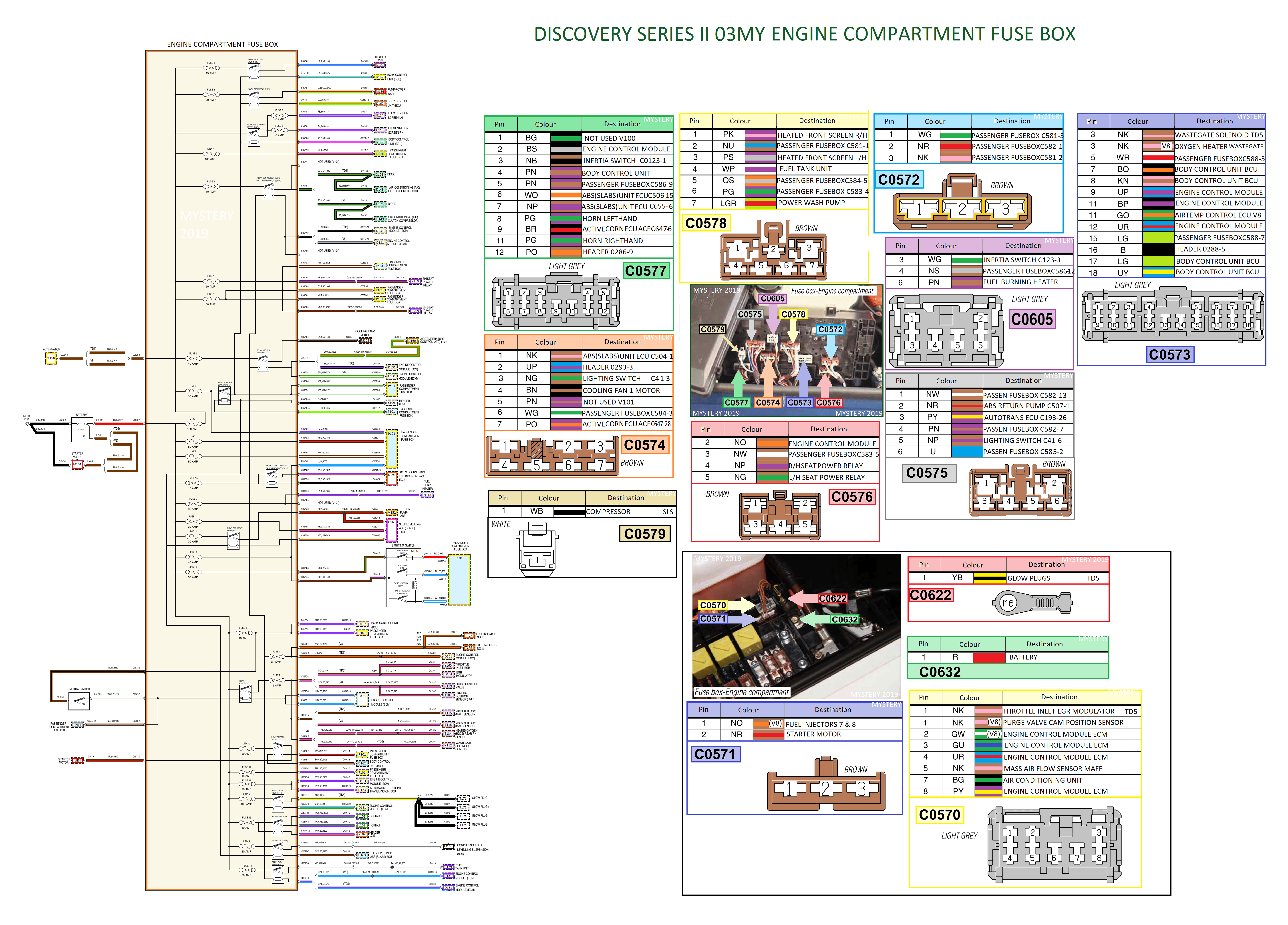

  • MYSTERY ENGINE FUSE BOX CONNECTIONS.png
    3.3 MB · Views: 187

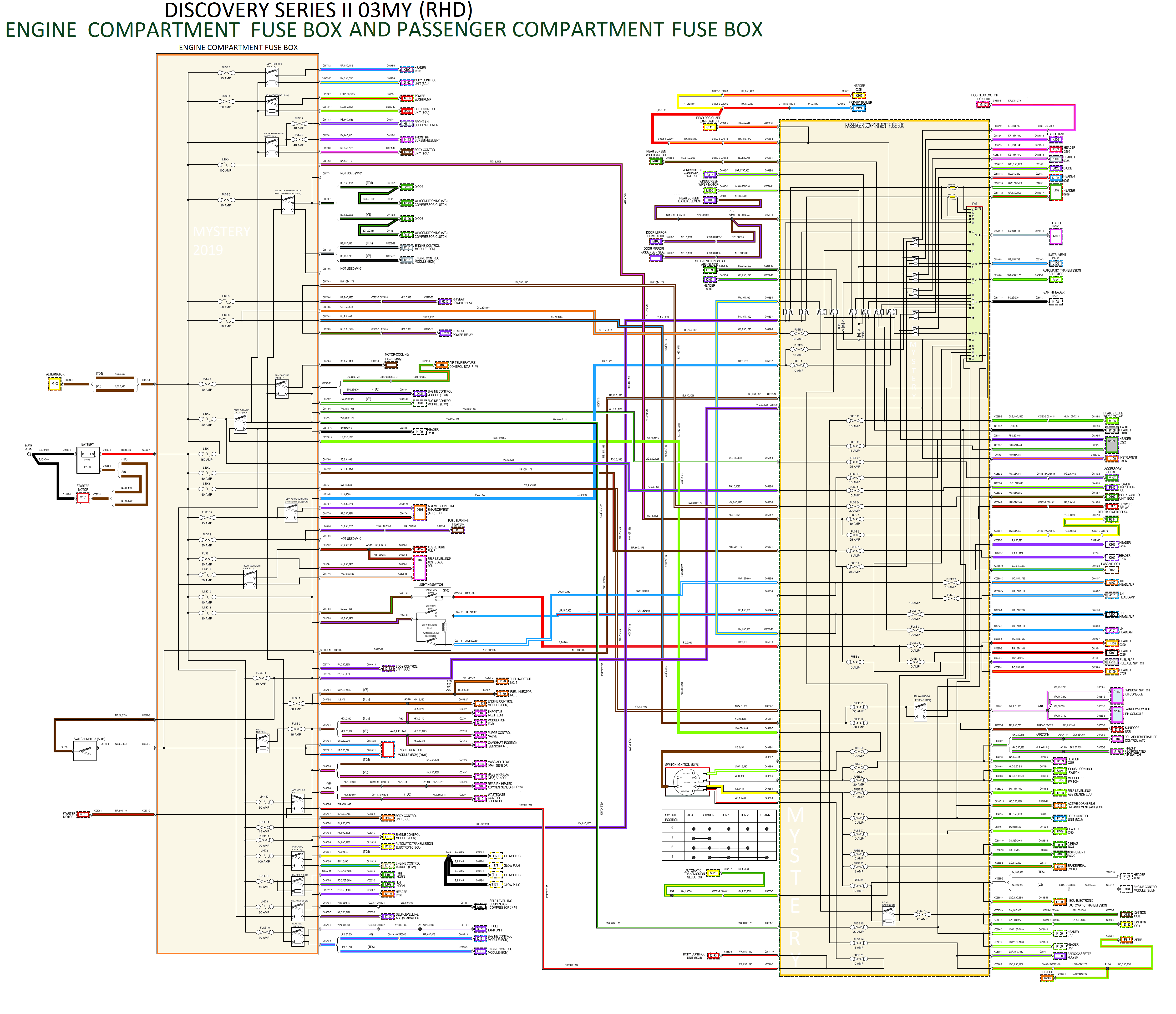

  • MYSTERY POWER DISTRIBUTION FUSE BOX'S.png
    1.9 MB · Views: 113
