L

Leonv

Member

• Jan 21, 2019

• #1

Hi I’d like to fit a 7 pin plug but the previous owner has cut the plug and crimped the previous trailer harness. (The old 7 pin plug is no longer fitted) could someone supply a diagram to crimp a new plug to the vehicle



sierrafery

Well-Known Member

• Jan 21, 2019

• #2



L

Leonv

Member

• Jan 21, 2019

• #3

I need the other end of that, so the standard plug behind the os lamp asembily has been cut out so everything needs crimping in. I’ve tried figuring it out with a multimeter with no joy



sierrafery

Well-Known Member

• Jan 21, 2019

• #4



L

Leonv

Member

• Jan 21, 2019

• #5

sierrafery said:

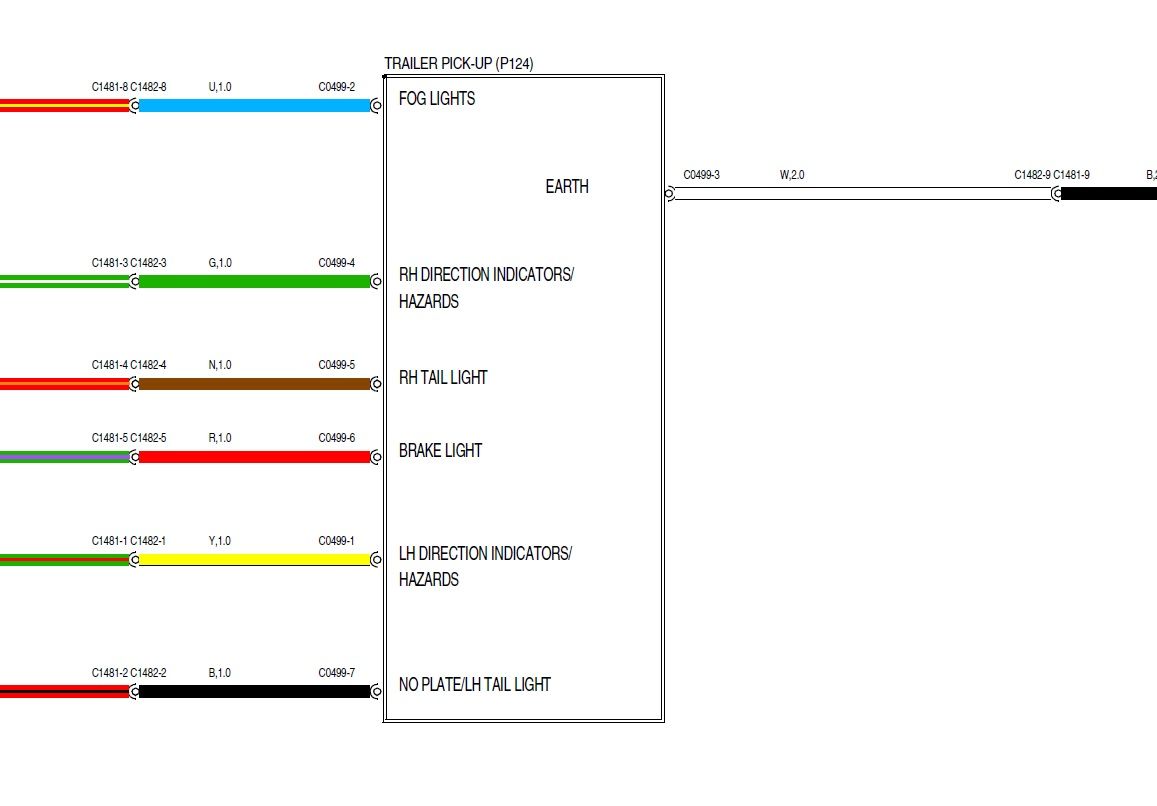

View attachment 167963

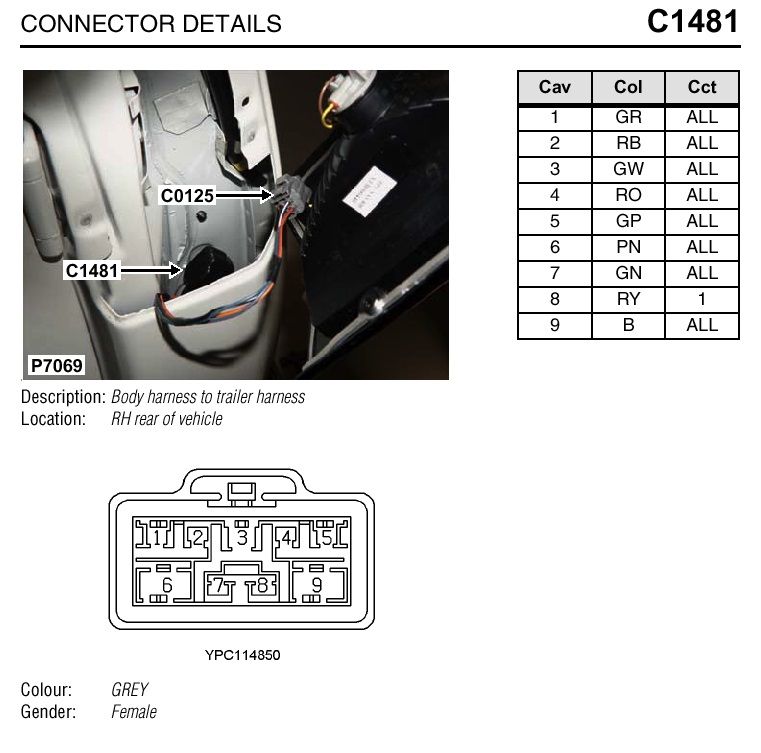

View attachment 167964

Click to expand...

That’s the kiddy I checked topix but it only had it for the side and brake lights



L

Leonv

Member

• Jan 21, 2019

• #6

Forgot to say thanks
