sierrafery

Well-Known Member

• Jan 27, 2022

• #21

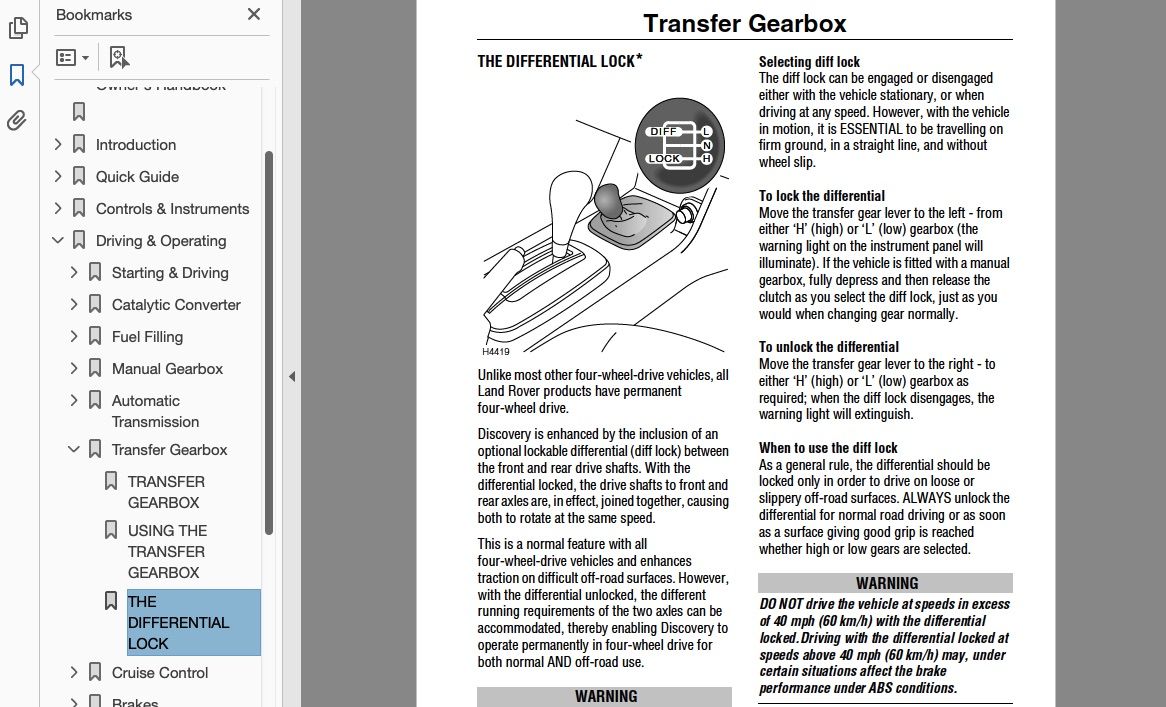

In the PDF owner's handbook 2002 publication LRL 0545ENG it's in the "Driving and operating" chapter at the "transfer gearbox" -



Henry.adams

Active Member

• Jan 27, 2022

• #22

So a may 01 is unlikely to have the cdl bolt on the transfer box ?



Andy Warren

Well-Known Member

Full Member

• Jan 27, 2022

• #23

Henry.adams said:

So a may 01 is unlikely to have the cdl bolt on the transfer box ?

Click to expand...

Is that the date of registration ? As it could depend on when it was built @sierrafery says all up to & inc. MY2000 & @Pawl says at least to March 01. The only way to check for sure is to see if at the very least it has that 6mm thread sticking out the the top of the TB, see link.
Genuine Front Ouput Shaft For Land Rover Discovery 2 1998 - 2004 Classic | Jaguar Land Rover Classic Parts



Henry.adams

Active Member

• Jan 27, 2022

• #24

Andy Warren said:

Is that the date of registration ? As it could depend on when it was built @sierrafery says all up to & inc. MY2000 & @Pawl says at least to March 01. The only way to check for sure is to see if at the very least it has that 6mm thread sticking out the the top of the TB, see link.
Genuine Front Ouput Shaft For Land Rover Discovery 2 1998 - 2004 Classic | Jaguar Land Rover Classic Parts

Click to expand...

That’s when it’s registered yeah



Andy Warren

Well-Known Member

Full Member

• Jan 27, 2022

• #25

This link implies if the TB starts with 41D or 42D it should have the internals (mine starts 41D & was reg Sept 2001)
DA1178 - Disco 2 Diff Lock Lever Kit for 41D and 42D Transfer Boxes (johncraddockltd.co.uk)



MJI

Well-Known Member

• Jan 27, 2022

• #26

No idea which mine is but the receipt lists diff lock and that I paid 1/5 of the new price for it



Henry.adams

Active Member

• Jan 27, 2022

• #27

Well I’m Going to see this one tomorrow fingers crossed it has a cdl transfer case



JUKE179r

Well-Known Member

• Jan 28, 2022

• #28

Andy Warren said:

The only way to check for sure is to see if at the very least it has that 6mm thread sticking out the the top of the TB,

Click to expand...

Best known as the "nipple".



Si Click

Well-Known Member

• Jan 29, 2022

• #29

I can see the CDL inclusion in the Owners Handbook for the 03 model, which makes sense as it was an option for the later models. But I can see nothing in the handbooks for earlier models. Not sure why this would be if it was an option for 99-01 models.
