A lot happened since the last update so without further delay herewith the detail.

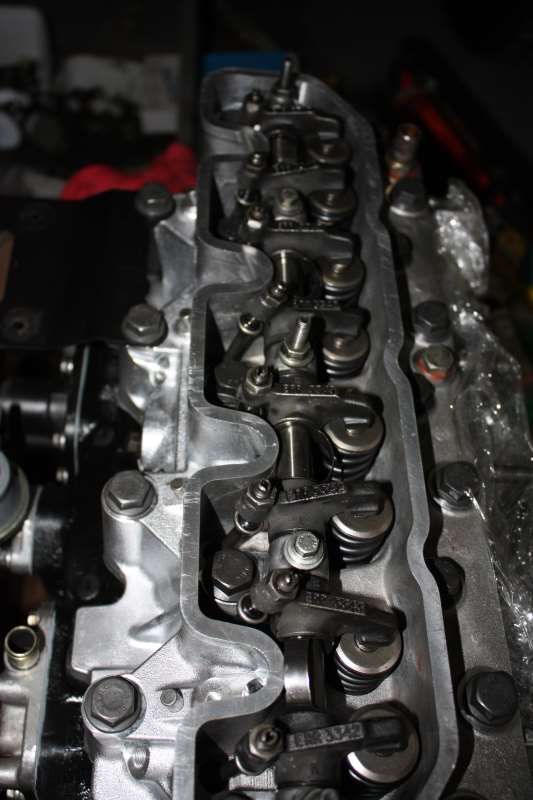

The head was all torqued up and the time arrived to fit the rocker shaft.

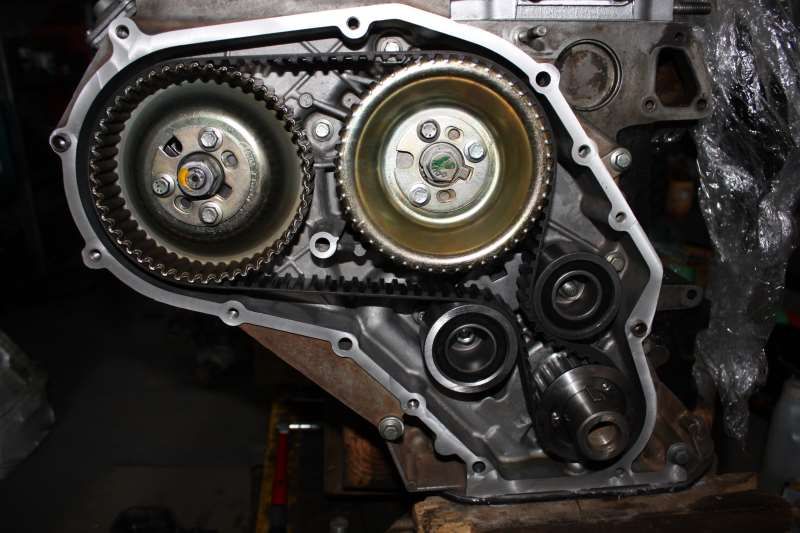

Before any adjustments could be made to the tappets I had to fit the injection pump, pulleys and timing belt
This allowed the tappets to be set correctly so the tapped cover could be fitted.
When the time came to install the injectors and glow plugs I realised that I was missing an injector stud, One snapped in two during an injector washer replacement procedure shortly after I bought the vehicle. At the time I could not locate a second hand one and a new one was just so expensive that I decided to use a short length of 8mm threaded rod and a nut to lock it in place. This was okay pre-rebuild but it needed a proper injector stud to be fitted and I was not about to pay silly money to the dealers for a new stud thus I made my own.

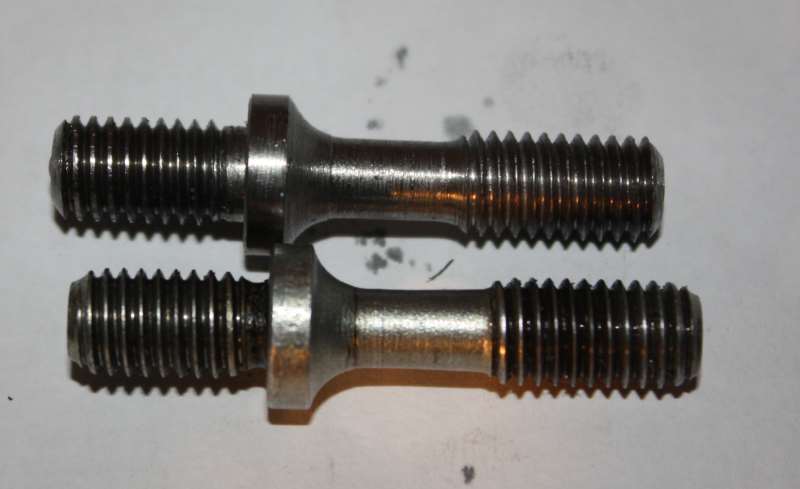

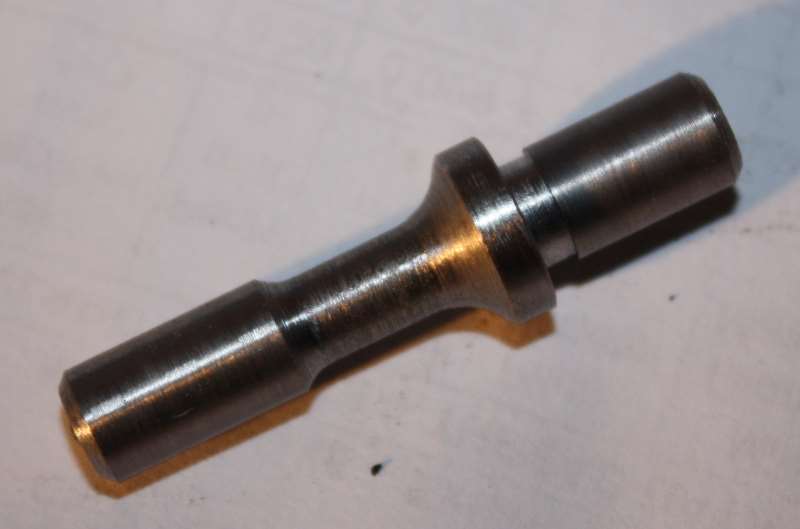

I turned a piece of 12mm machine steel to the correct profile and tapped the ends.
The factory stud is the bottom one. Looking carefully at the original it does seem a bit stretched, notice the slight taper on the non threaded bit. I made a few extra just in case.

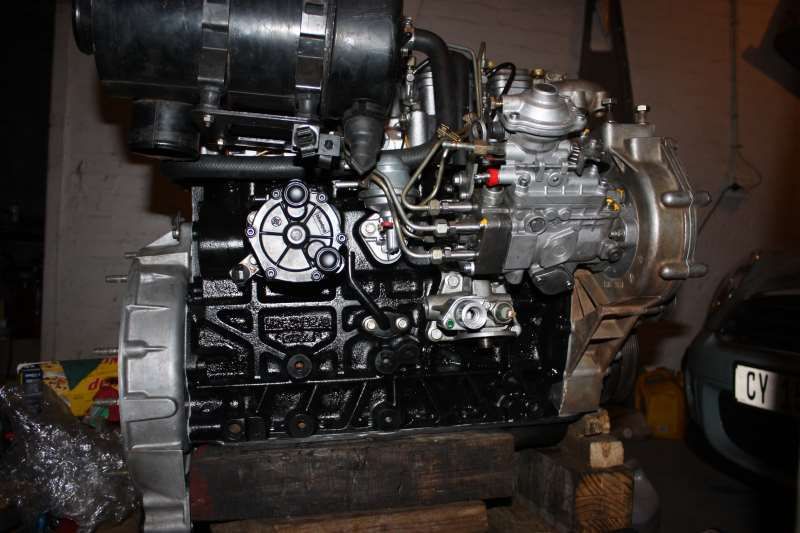

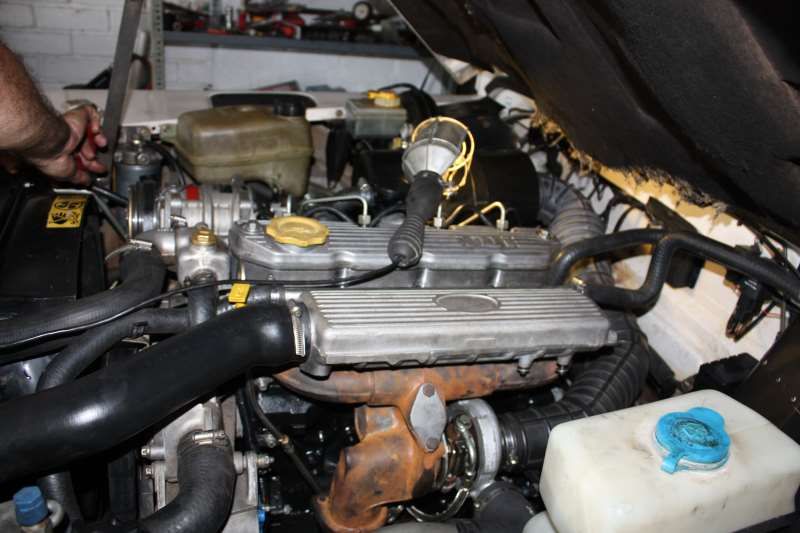

Next up was the vacuum pump, fuel lift pump and oil filter adaptor, air cleaner injector pipes,

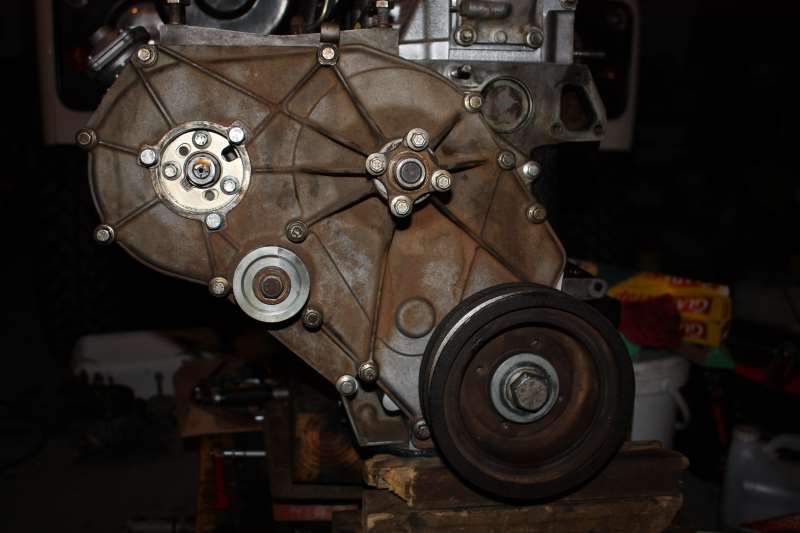

Cyclonic breather, hoses, flywheel housing, front timing cover and crank pulley.

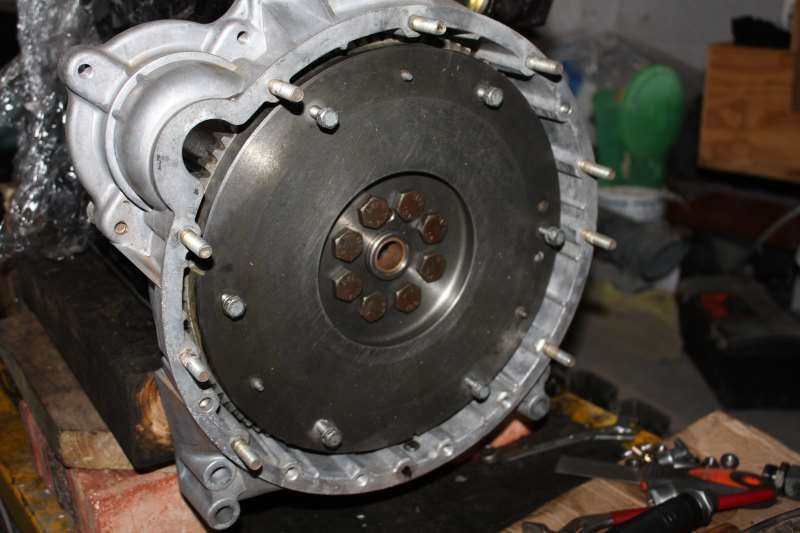

which got me to a point where I could install the rear main oil seal and flywheel

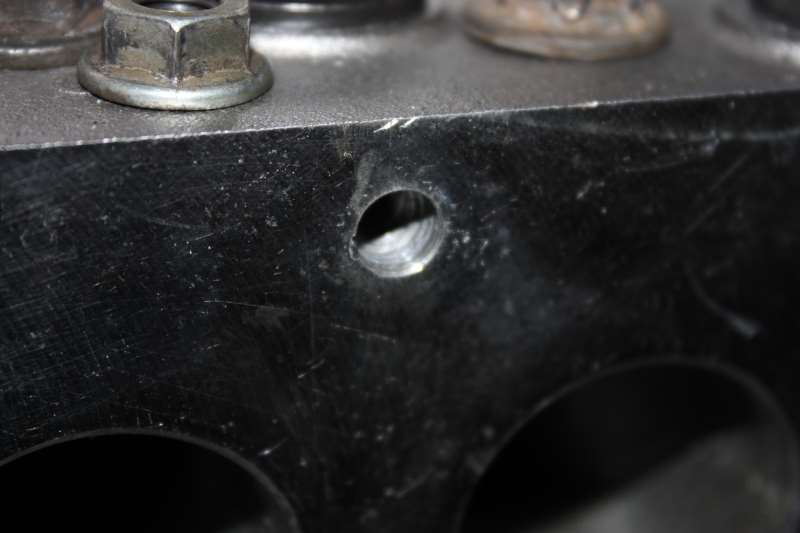

Next up was the exhaust and inlet manifolds but the inlet manifold had a nasty surprise install for me. I only noticed after the fact that one of the bolts securing the inlet manifold to the head was 5mm shorter than the other, obviously not the correct bolt for the application and as it started taking up the torque (25nm being the target) the thread gave way. This destroyed the first 5mm of thread, by simply replacing the bolt for the proper one would only cause more problems in the long run. I had to find a solution

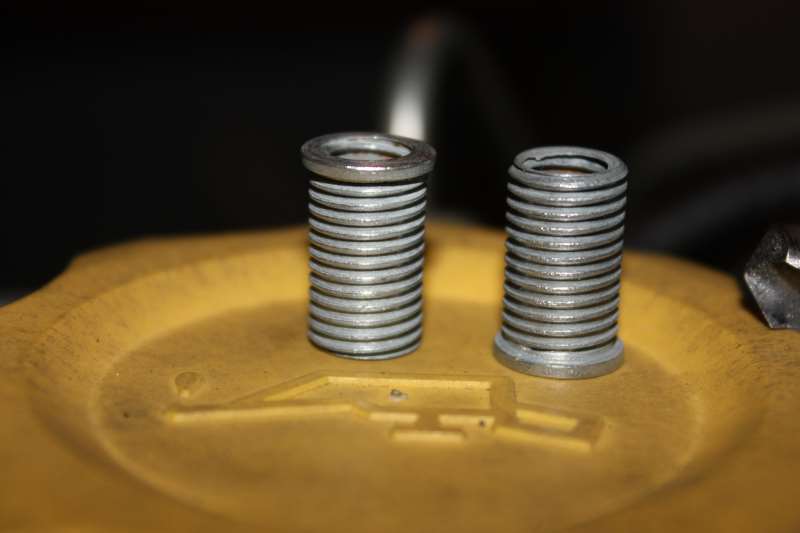

A long search ensued.....I wanted to find something that I will be happy with, something that I know will last and will not unscrew itself when I remove the inlet manifold for whatever reason. I had my old head to play with so I tried a couple of options. Allow me to say that there are some inserts out there not worth the money or time, perhaps they are good for applications in plastic, others are so expensive I'm not even sure how they manage to sell the stuff. I came up with a plan (based on a picture I saw) and set out making my own flanged insert:

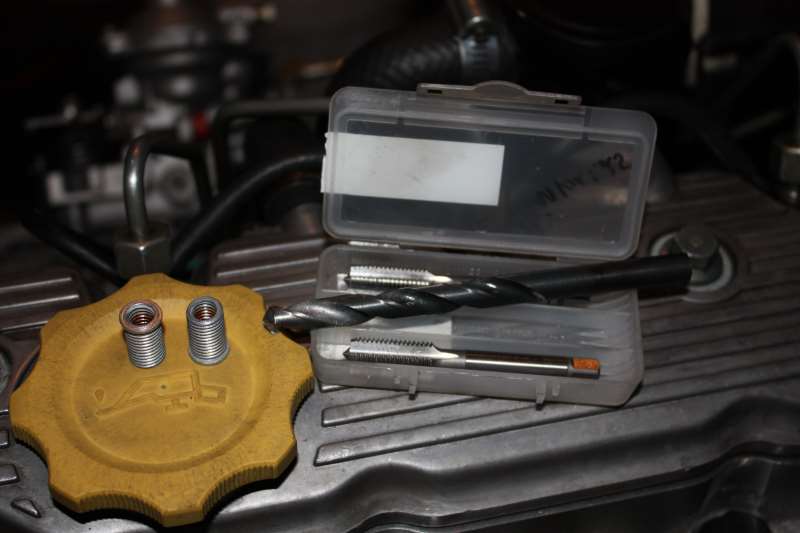

I even went as far as zinc plating these. I did this at home and for some reason the inside thread did not plate but that would be okay I suppose. I had to purchase a set of taps to fit them and also build a tool produce a decent recess for the flange the flange

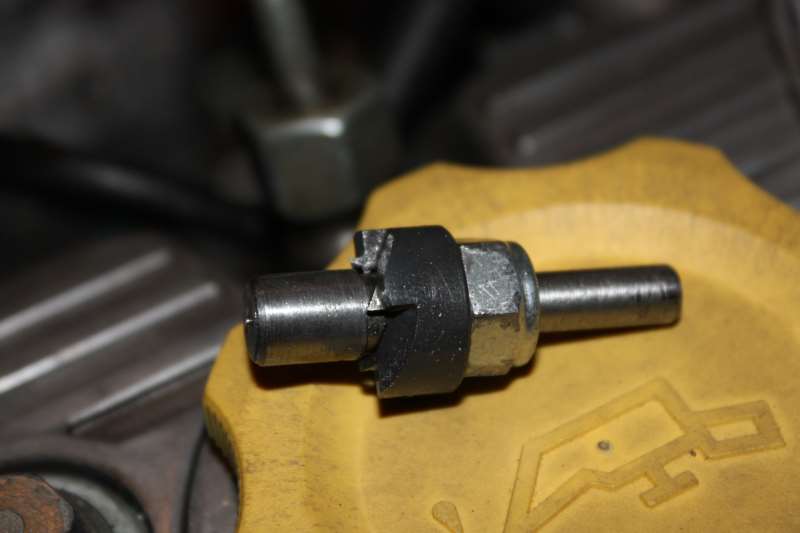

I sourced a bit of tool steel and manufactured a cutter suitable to create a recess in the head for the flange so the insert would sit flush.

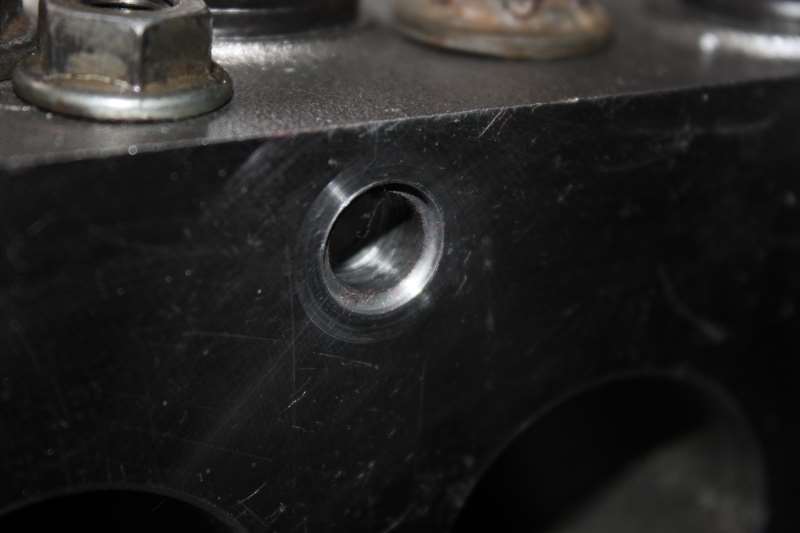

I hardened and tempered the cutter which produced good results

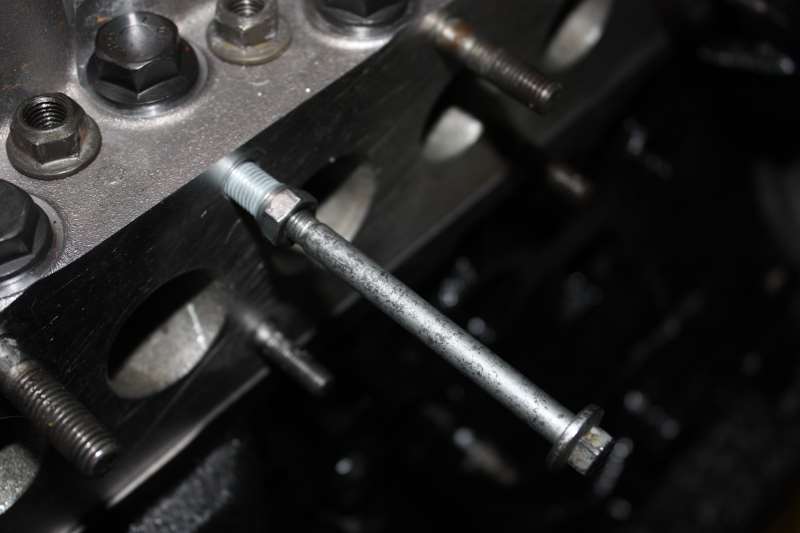

The hole was tapped, the insert was screwed onto a bolt
and screwed into the head

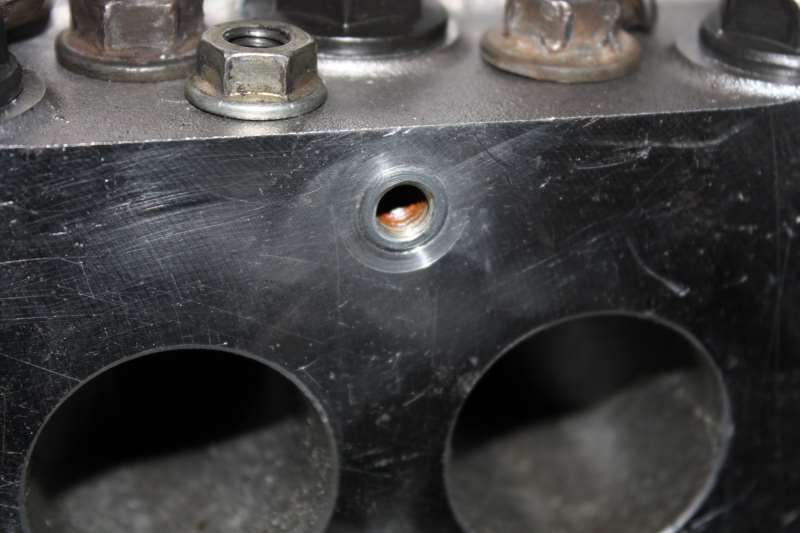

It was tightened up a bit against the flange and the result was better than what I expected

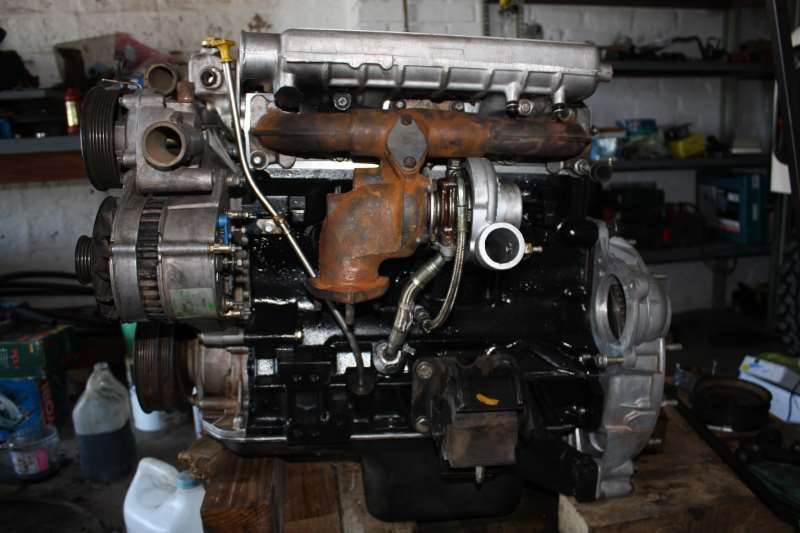

So the exhaust and inlet manifolds went on
The insert worked like a charm and handles the required torque of 25nm rather well. I tried breaking it on the old head and was impressed with the performance. The insert will not pull out of the aluminium, the thread inside the insert will give way first.
Almost time for the engine to go back into the car......yeah!
A lot happened since the last update so without further delay herewith the detail.
The head was all torqued up and the time arrived to fit the rocker shaft.
Before any adjustments could be made to the tappets I had to fit the injection pump, pulleys and timing belt
This allowed the tappets to be set correctly so the tapped cover could be fitted.
When the time came to install the injectors and glow plugs I realised that I was missing an injector stud, One snapped in two during an injector washer replacement procedure shortly after I bought the vehicle. At the time I could not locate a second hand one and a new one was just so expensive that I decided to use a short length of 8mm threaded rod and a nut to lock it in place. This was okay pre-rebuild but it needed a proper injector stud to be fitted and I was not about to pay silly money to the dealers for a new stud thus I made my own.
I turned a piece of 12mm machine steel to the correct profile and tapped the ends.
The factory stud is the bottom one. Looking carefully at the original it does seem a bit stretched, notice the slight taper on the non threaded bit. I made a few extra just in case.
Next up was the vacuum pump, fuel lift pump and oil filter adaptor, air cleaner injector pipes,
Cyclonic breather, hoses, flywheel housing, front timing cover and crank pulley.
which got me to a point where I could install the rear main oil seal and flywheel
Next up was the exhaust and inlet manifolds but the inlet manifold had a nasty surprise install for me. I only noticed after the fact that one of the bolts securing the inlet manifold to the head was 5mm shorter than the other, obviously not the correct bolt for the application and as it started taking up the torque (25nm being the target) the thread gave way. This destroyed the first 5mm of thread, by simply replacing the bolt for the proper one would only cause more problems in the long run. I had to find a solution
A long search ensued.....I wanted to find something that I will be happy with, something that I know will last and will not unscrew itself when I remove the inlet manifold for whatever reason. I had my old head to play with so I tried a couple of options. Allow me to say that there are some inserts out there not worth the money or time, perhaps they are good for applications in plastic, others are so expensive I'm not even sure how they manage to sell the stuff. I came up with a plan (based on a picture I saw) and set out making my own flanged insert:
I even went as far as zinc plating these. I did this at home and for some reason the inside thread did not plate but that would be okay I suppose. I had to purchase a set of taps to fit them and also build a tool produce a decent recess for the flange the flange
I sourced a bit of tool steel and manufactured a cutter suitable to create a recess in the head for the flange so the insert would sit flush.
I hardened and tempered the cutter which produced good results
The hole was tapped, the insert was screwed onto a bolt
and screwed into the head
It was tightened up a bit against the flange and the result was better than what I expected
So the exhaust and inlet manifolds went on
The insert worked like a charm and handles the required torque of 25nm rather well. I tried breaking it on the old head and was impressed with the performance. The insert will not pull out of the aluminium, the thread inside the insert will give way first.
Almost time for the engine to go back into the car......yeah!
markomate2
Well-Known Member
Hi
Anymore updates? Im checking your thread again now as Im toying around with getting a 300TDi Disco as a project for my step-son to use/fix up!
Nice work on problem solving the manifold studs. You mentioned the inside on your parts didnt plate, if I recall right, plating will only take on the areas that the anode can "see", so if the anode didnt have line of sight on an area of the part to be plated it wouldnt have plated it.
I use the battery charger, bucket of slightly salty water, trick to clean up old corroded metal fittings, sort of reverse plating, works a treat but not on the inside of fittings, .
Anyway hope its all going well, mine is up and running finally!
Happy New Year from Estonia!
Mark
Anymore updates? Im checking your thread again now as Im toying around with getting a 300TDi Disco as a project for my step-son to use/fix up!
Nice work on problem solving the manifold studs. You mentioned the inside on your parts didnt plate, if I recall right, plating will only take on the areas that the anode can "see", so if the anode didnt have line of sight on an area of the part to be plated it wouldnt have plated it.
I use the battery charger, bucket of slightly salty water, trick to clean up old corroded metal fittings, sort of reverse plating, works a treat but not on the inside of fittings, .
Anyway hope its all going well, mine is up and running finally!
Happy New Year from Estonia!
Mark
wvanzyl
Member
Hi Guys.
This will probably be the final update for this rebuild thread.
Mark, What you said about the plating makes perfect sense. I will test it out when I have a few moments, also glad to hear that your Td5 is running again.
The 300tdi is a great engine, you are lucky that in the UK you are spoilt for choice and spares are readily available.
So herewith the final snippet...

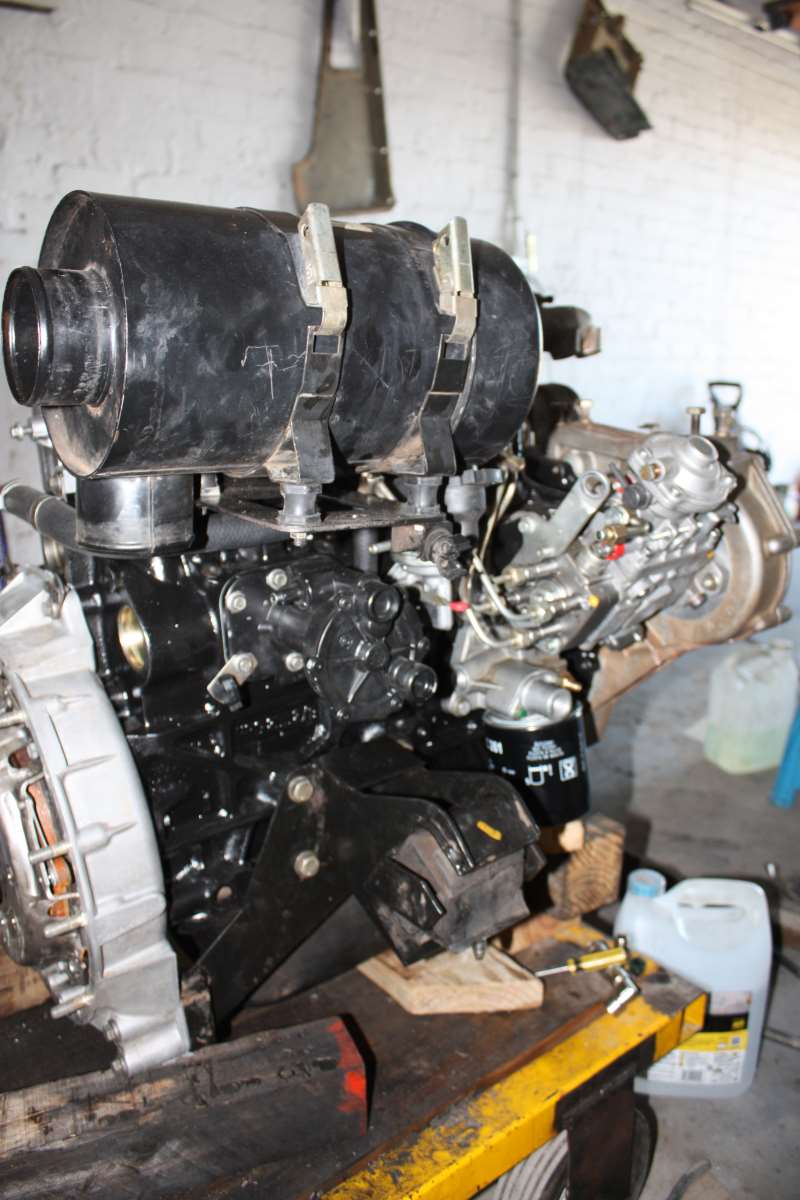

Alternator, water pump and engine mounting fitted
Right side engine mounting and oil filter back in place
Clutch and pressure plate in place

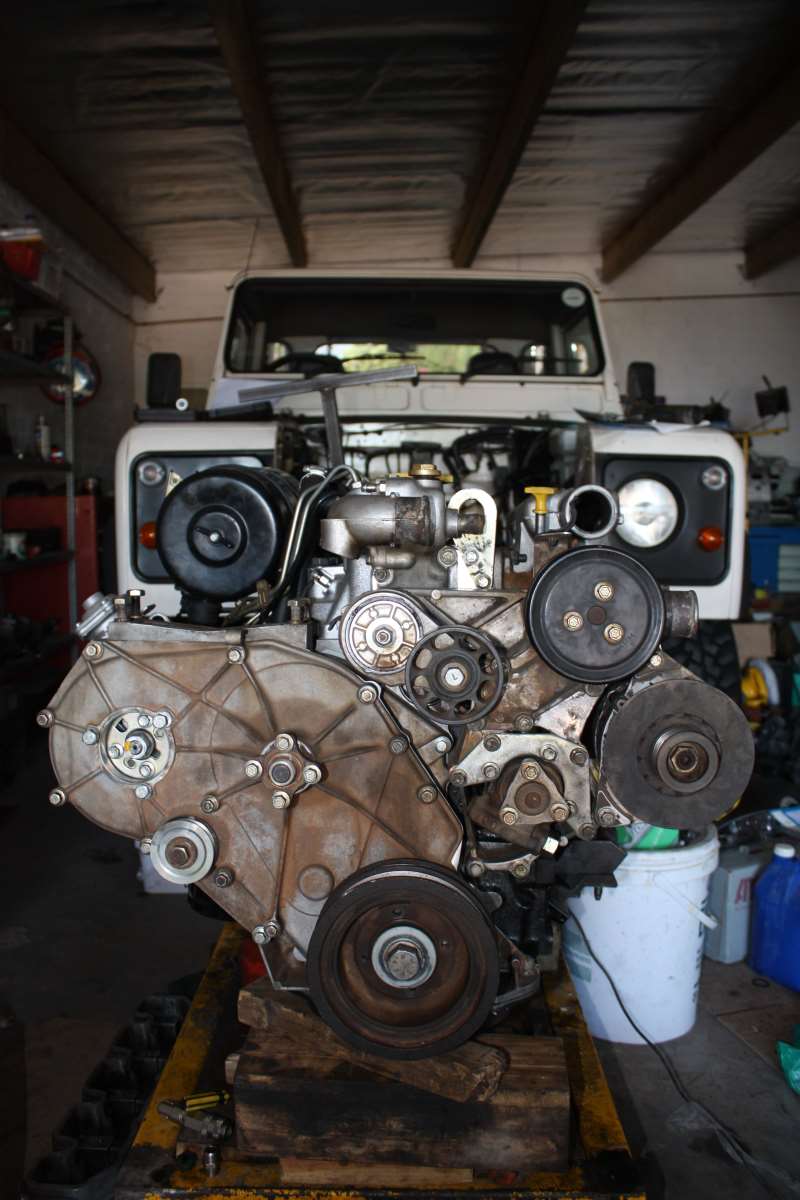

Engine ready to go back into the Landy

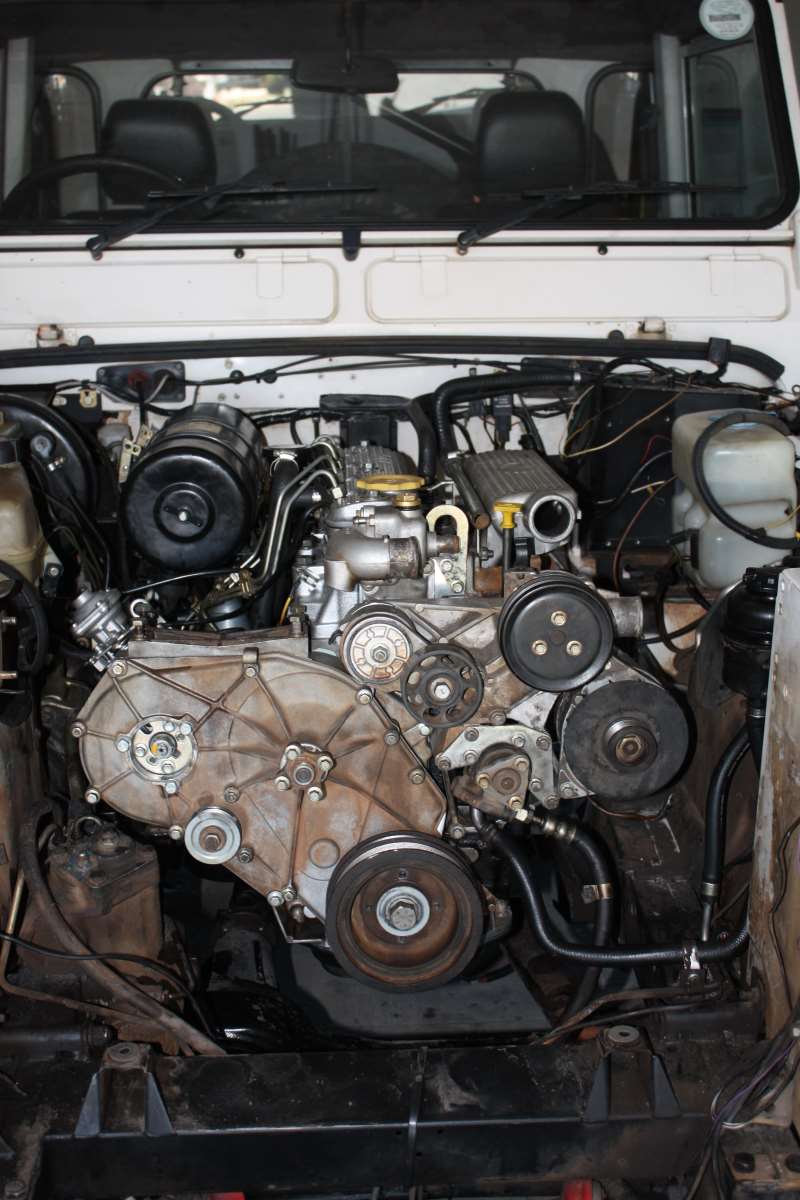

And a while later it was back in the Landy

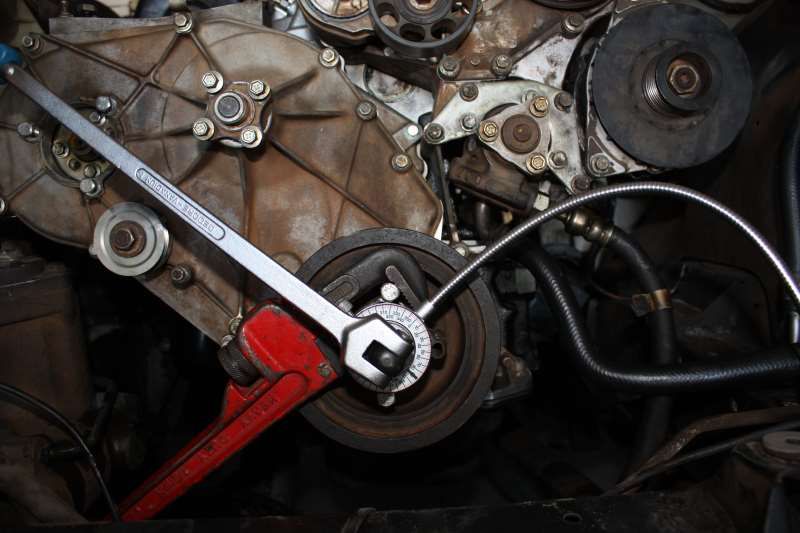

I made sure to properly tighten the crank pulley bolt according to the manual
