Hicap phill
Well-Known Member
Ok.
Have you got the grey cover this bolts onto that black bracket?
Have you got the grey cover this bolts onto that black bracket?
border
Well-Known Member

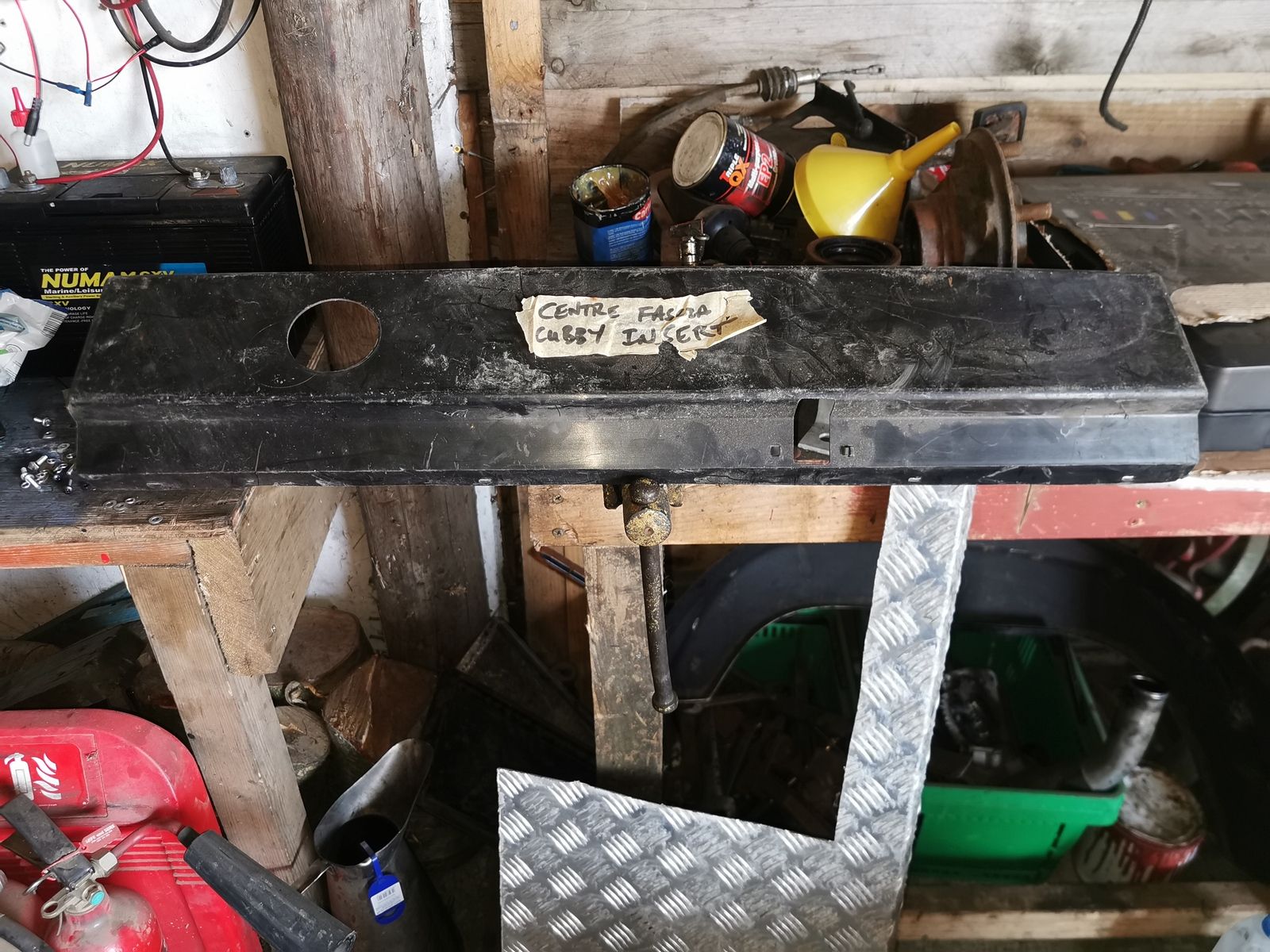

This one Mate ? its just propped in place there.
Attachments
Hicap phill
Well-Known Member
It’s just I have a spare if it was needed.
Hicap phill
Well-Known Member
Try this part number for a td5.
https://www.lrworkshop.com/parts/AHP710180
@jamesmartin may know if there are many differences.
https://www.lrworkshop.com/parts/AHP710180
@jamesmartin may know if there are many differences.
border
Well-Known Member
Very Nice of you mate Thank You for the offer, would you believe it I actually have 2 of the bloody things.
border
Well-Known Member
At that price Id rather sit the bloody Binnacle on my knee when driving around.
Out of work at the MO with the Crisis, everyone's going through hard times but hopefully we will all come through it.
Hicap phill
Well-Known Member
Never looked at the price
What about a series 3 one?
What about a series 3 one?
jamesmartin
Well-Known Member
fits in the dash ie where you throw the stuff
Hicap phill
Well-Known Member
It covers the wires. Goes in before the grey vents
border
Well-Known Member
Hicap phill
Well-Known Member
Mad question but would/could yrm have 1?No reply from Breakers, don't think anyones got one of these things, must be rare , Trust me to be missing something like this
You need it to attach the flap closures to
border
Well-Known Member
I contacted them today they don't do them.He said he did have one but gave it away couple of months ago or I could of had it. Just my Luck. Seems a nice bloke, only half hour drive from me to.
border
Well-Known Member

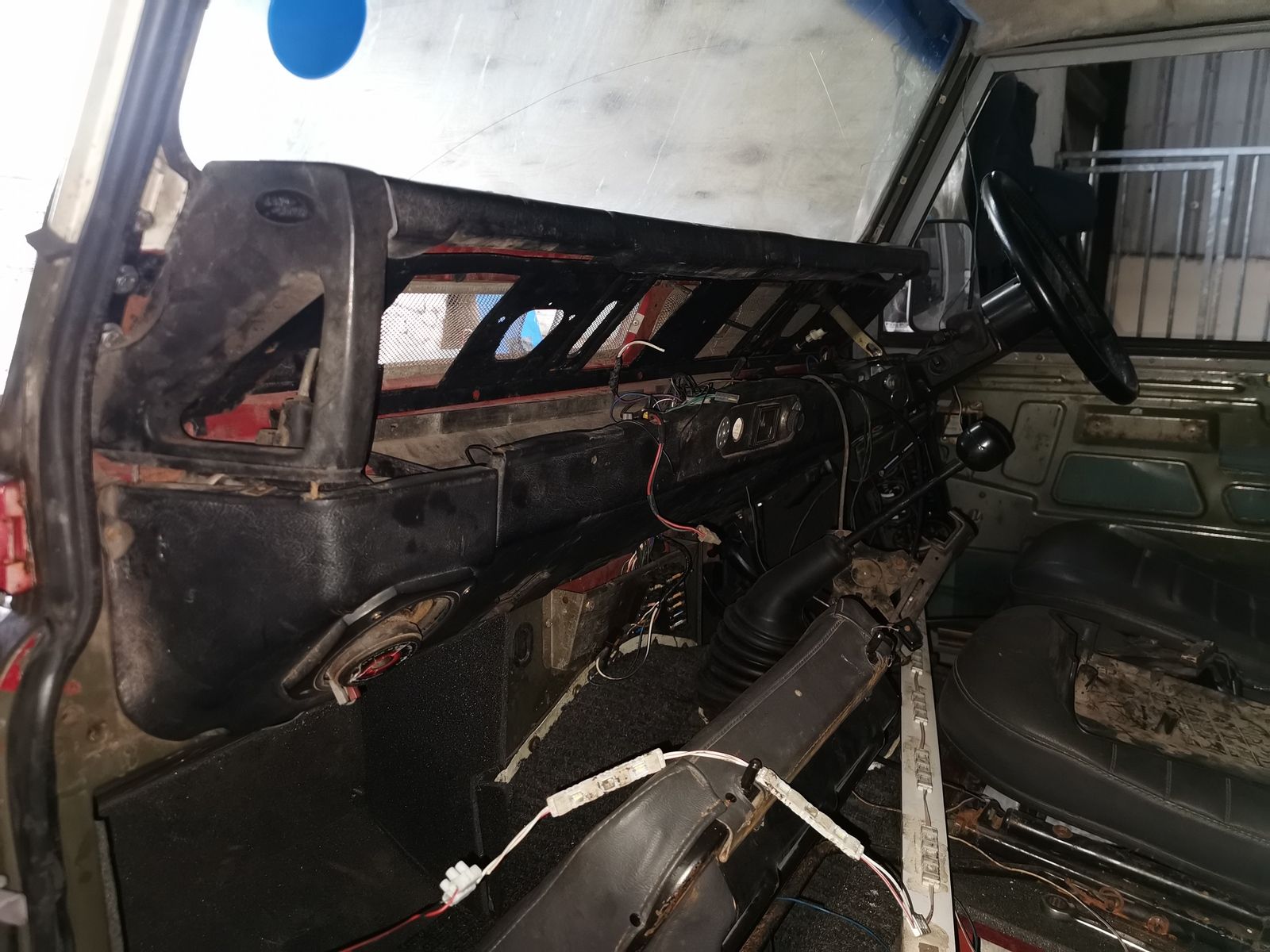

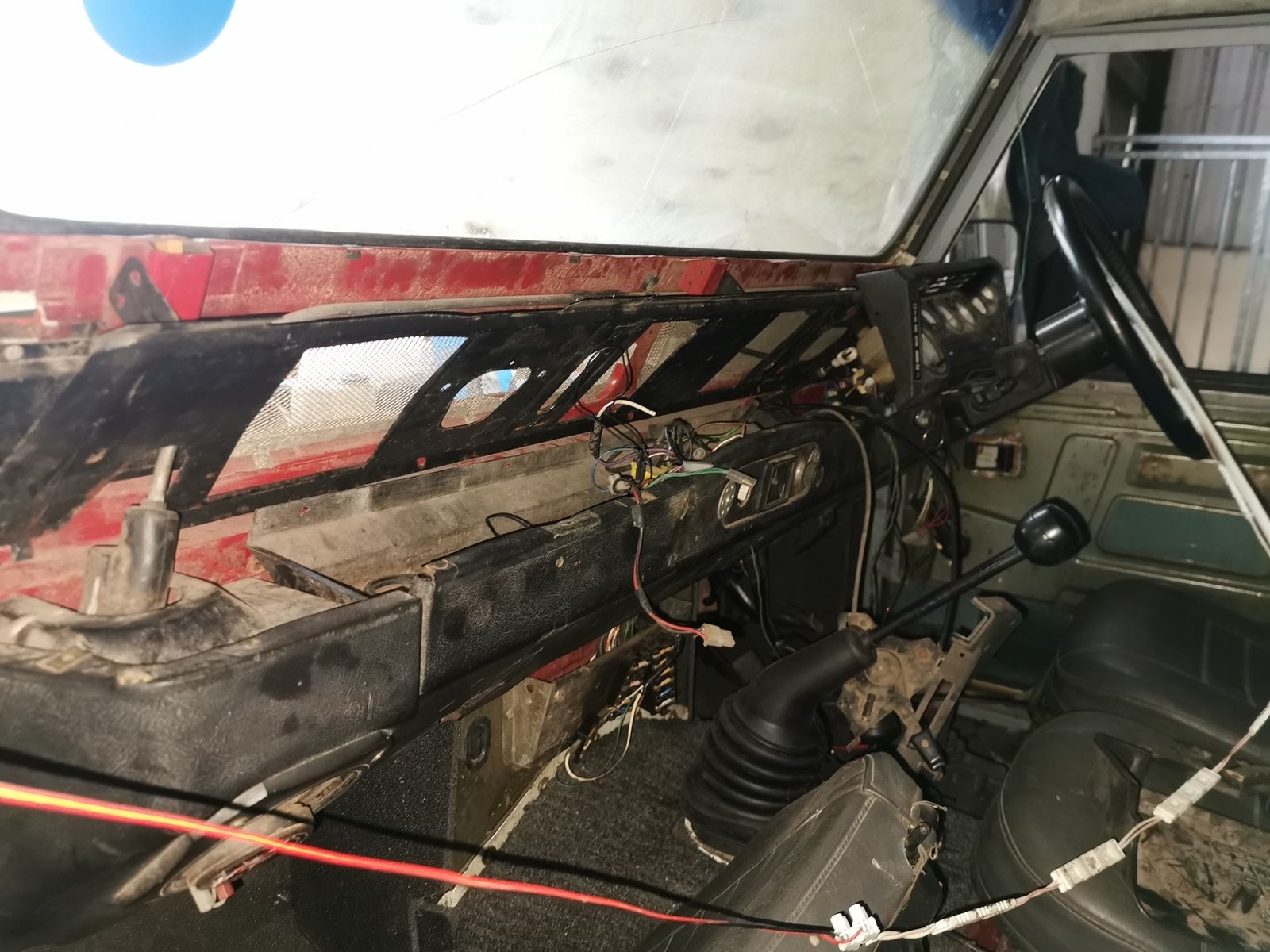

Finally got part number mxc8574. Just Mocked in place in pics no bolts in yet. Not sure what to fit first, I tried the grey panel and it would not go in, with that in. All the holes line up in this plate.

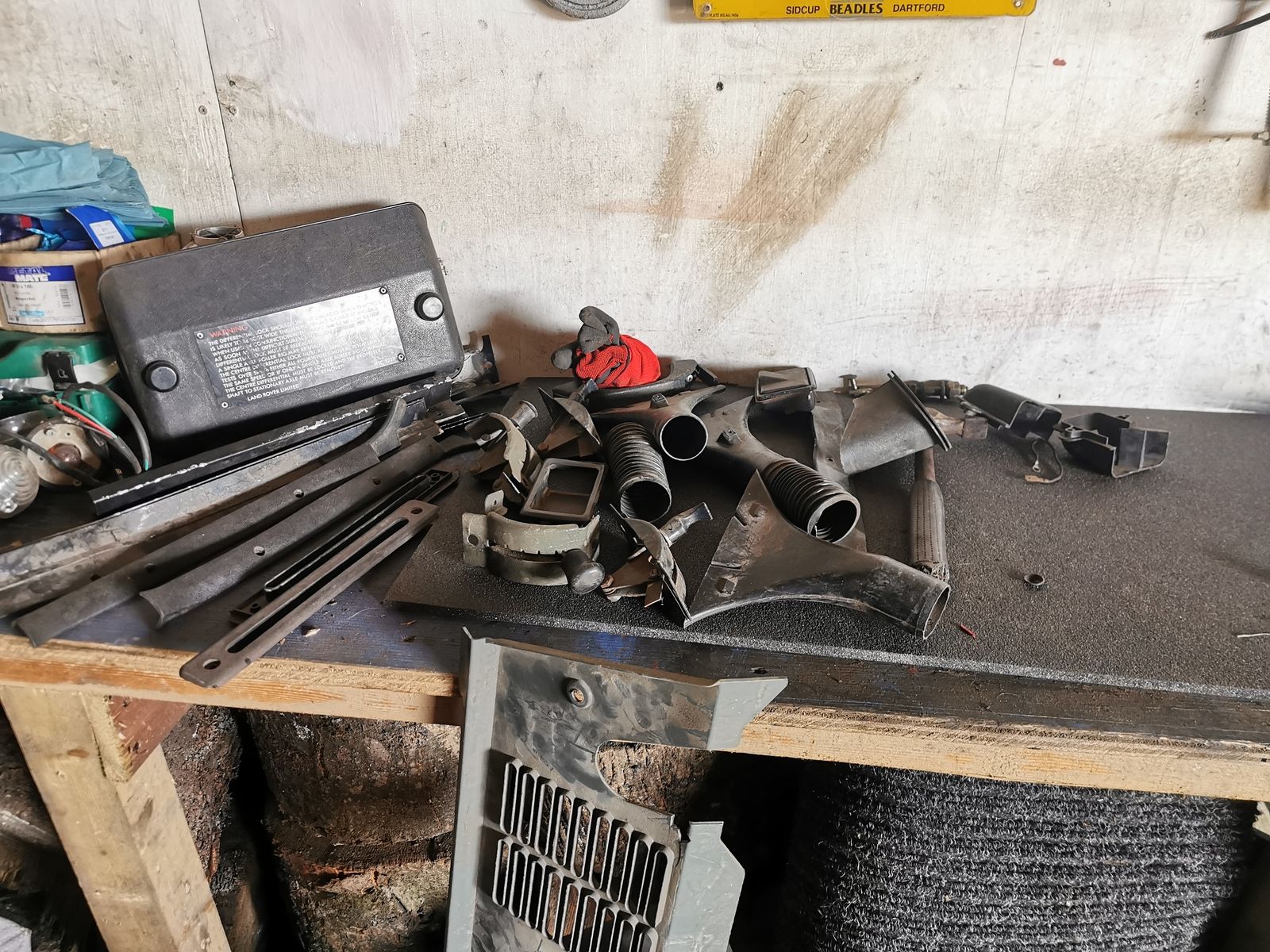

So what goes first, I have 4 of those hoover attachment looking thingys, can only see place for 2. I also have the heater control things too. Want to get it right so I don't have to take it all out again in case I've missed something.
So what goes first, I have 4 of those hoover attachment looking thingys, can only see place for 2. I also have the heater control things too. Want to get it right so I don't have to take it all out again in case I've missed something.
Attachments
Hicap phill
Well-Known Member
Your new panel goes in first.
Then dash pod & heater controls
Black grommets for the air vents x2
Now cable tie the pipes to these x2
Put the black cable tray in
Now connect the top of the vents(cable tie again)
Now the grey cover
if you need photos I can take some
Then dash pod & heater controls
Black grommets for the air vents x2
Now cable tie the pipes to these
x2Put the black cable tray in
Now connect the top of the vents(cable tie again)
Now the grey cover
if you need photos I can take some
border
Well-Known Member
Would like pics in stages if anyone's done this. Im sure I've got all the bits you mentioned above. its just how they go, as said I didn't take it apart so just guessing how things go back.Your new panel goes in first.
Then dash pod & heater controls
Black grommets for the air vents x2
Now cable tie the pipes to these
Put the black cable tray in
Now connect the top of the vents(cable tie again)
Now the grey cover
if you need photos I can take some
Hicap phill
Well-Known Member
not got photos of the stages. Don’t put the grey cover on until you have installed vents.
Dash top goes on last.
This is an RDX extension for the heater controls
Dash top goes on last.
This is an RDX extension for the heater controls
border
Well-Known Member
Thanks Mate, got a better Idea now , I have the heater controls, need to know where the cables thread through. Glad you told me the top goes last.
Does the Grey cover and the first plate use the same screws to go through both if you know what I mean.
Hicap phill
Well-Known Member
Heater cables run under the dash pod To the right & left. These are covered by that black tray.
use the same screws through the grey & tray
There is a little piece of plastic trim from the wiper motor to the clock pod. Put on last after the plastic tray. There is a lip which the trim hold down.
use the same screws through the grey & tray
There is a little piece of plastic trim from the wiper motor to the clock pod. Put on last after the plastic tray. There is a lip which the trim hold down.
