DEFENDER90-DAZ
New Member
Well still thinking its the head due to the white smoke from the exhaust but i'll check the rad first...
The Ferkin BoB
Banned
ill put 3 still wrapped cough sweets and glass of orange juice its the bit of gasket at the back piston by the baulkhead....
DEFENDER90-DAZ
New Member
Would that make the oil and water mix - as it has??
I'll put some pics on when i take the head off.................
I'll put some pics on when i take the head off.................
DEFENDER90-DAZ
New Member

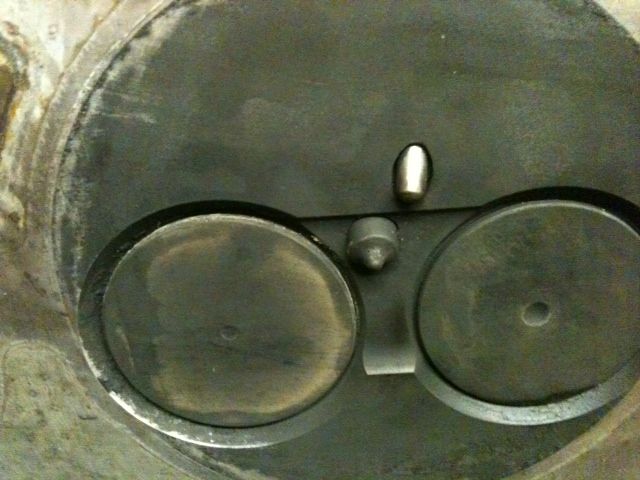

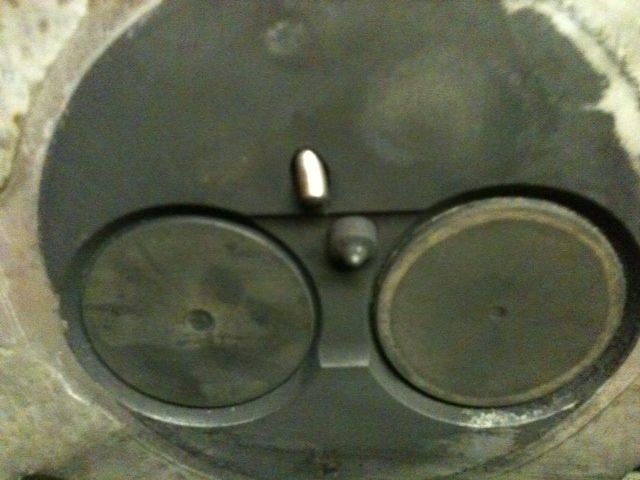

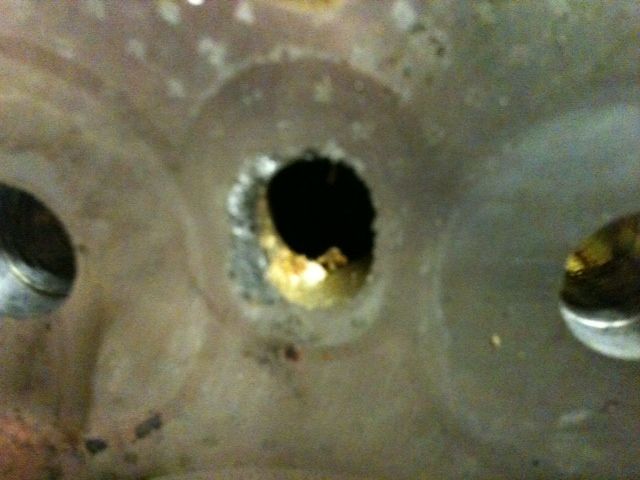

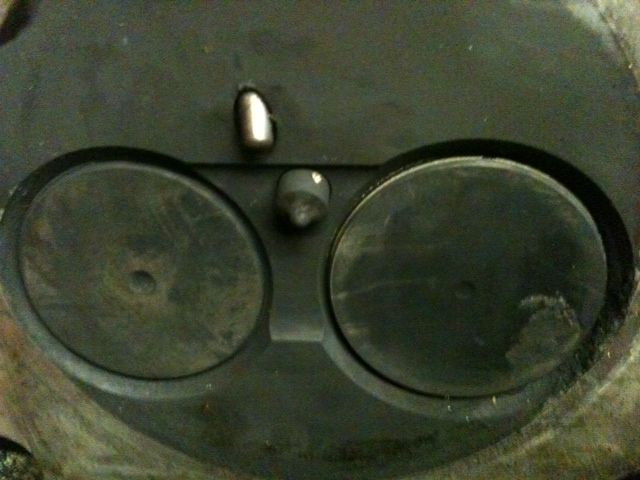

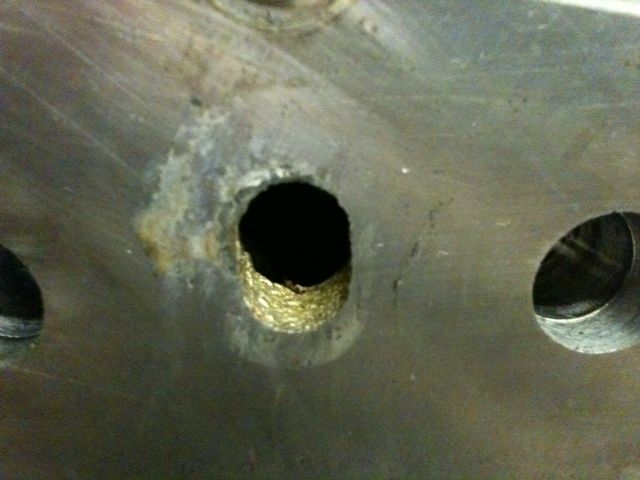

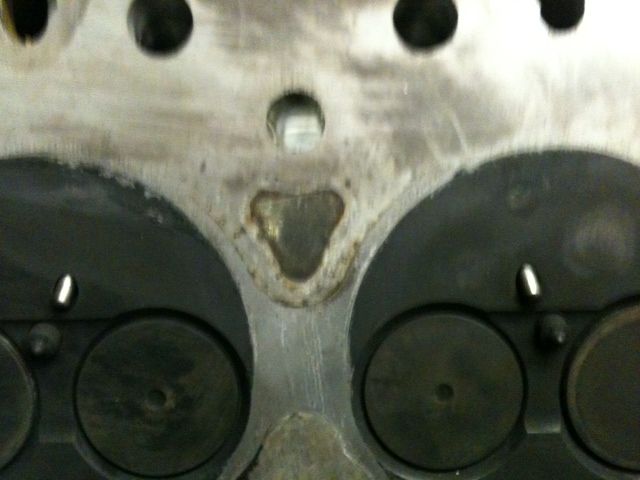

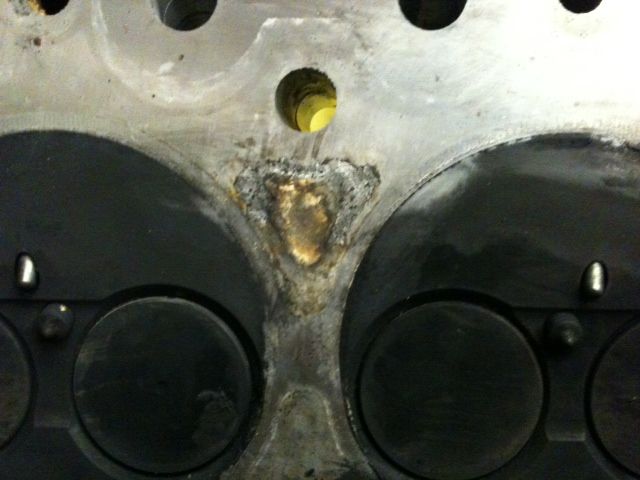

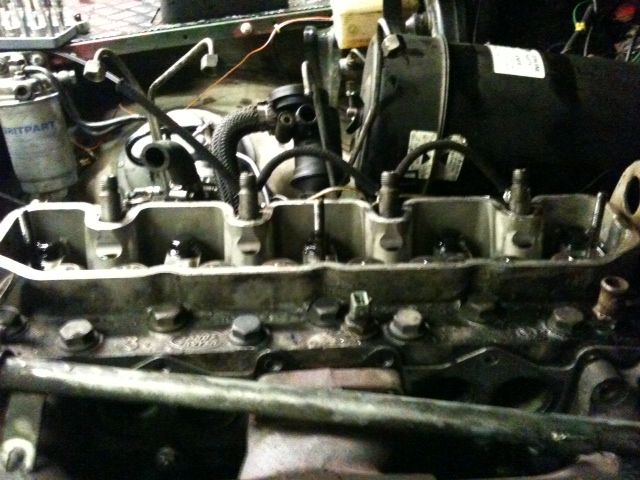

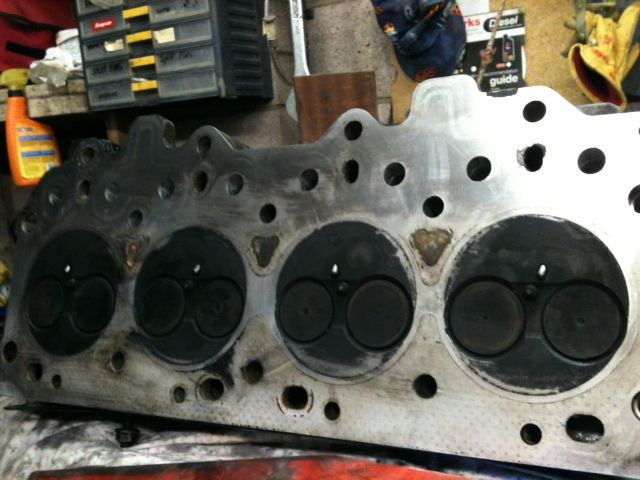

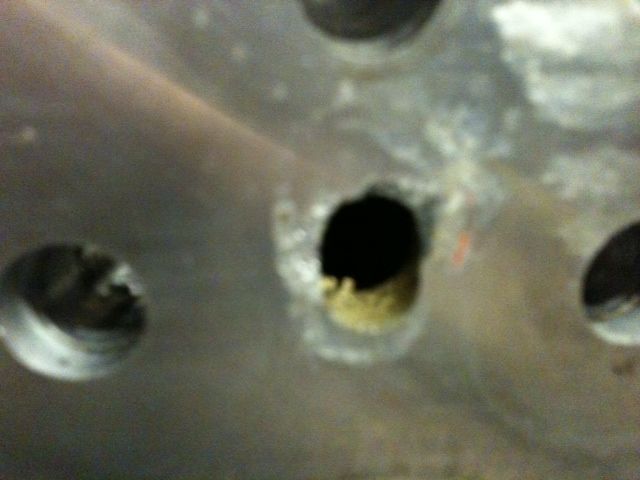

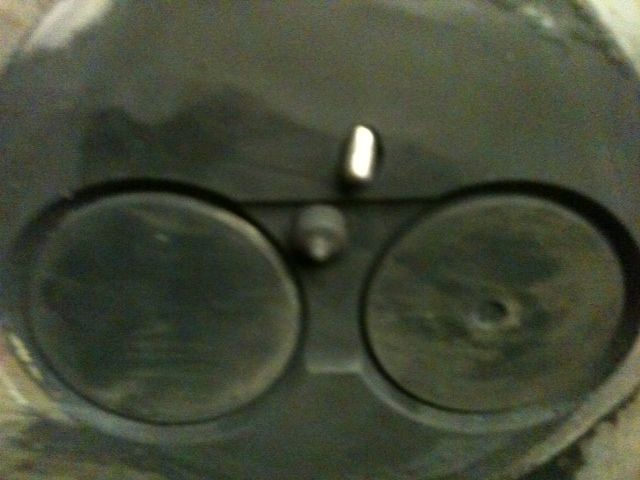

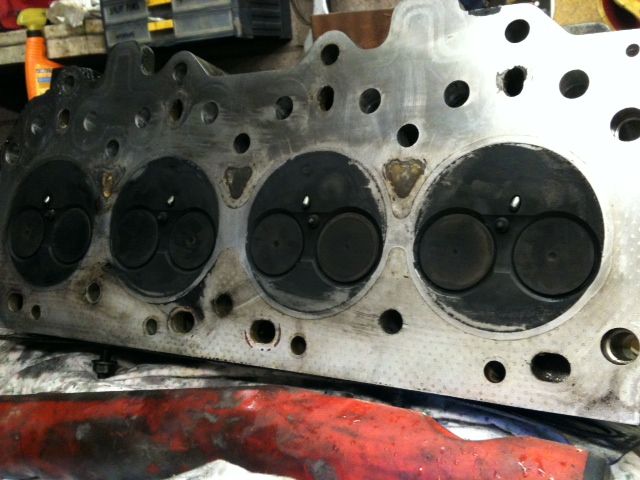

Well.................. thats everything drained and the head is off in an hour - so not too bad - looks like i caught it very early on, oil in the coolant but not lots and some water in the sump with the oil but again not lots and no white gunk. Took some pics and i'll put em up later - did notice some pitting round the water galleries on the head - but it looks like the head hasn't been skimmed before - so i'll try and get it to the engineering place tomorrow if they are open.....................
DEFENDER90-DAZ
New Member
jamesmartin
Well-Known Member
no pics of the gasket
DEFENDER90-DAZ
New Member
Erm no didn't think to take any pics of the gasket.................... anything jumping out at you from the head pics james??
jamesmartin
Well-Known Member
was going to look at staining on the gasket ,looks like it was weeping between the cylinders on 2 at least but youve cleaned it
Last edited:
DEFENDER90-DAZ
New Member
The gasket it round at my mates place where i took the head off - i'll try and get some pics up of the gasket in the next few days....
DEFENDER90-DAZ
New Member
David_Cooper
Active Member
Is the oil feed/ drain anywhere near a waterway on these heads? Looks like the antifreeze hasn't been changed much.. is that pitting shallow enough to be removed with a skim?
jamesmartin
Well-Known Member
no they can crack but its not that common
DEFENDER90-DAZ
New Member
Not sure - will find out when i get the head to the engineering place.....
The Ferkin BoB
Banned
gosh ive seen far worse,the alfa heads i used to work on were far more damaged than that lol....:behindsofa:
that will be ok,i would refit the head as its off and be done.stem seals etc....i had to reface a valve as it was a bit out...
after that its good for another 100kmiles...
its worth checking the pistons too,i found a cracked 1 when i took the head off mine...
DEFENDER90-DAZ
New Member
Yep i'll be replacing the valve stem oil seals and valve caps while the heads off - had a look at the pistons and they are in very good condition with cross hatch honing very visible in the bores. There aren't any wear ridges in the bores either - so it all looks good. The pitting looks to be bad but the head hasn't been skimmed before so i'm hoping that the head skim will remove it. Might give the valves a quick lap too when i remove the springs to change the seals. If it does turn out that the head is scrap i've still got the engine that it had in before so i could use the head off that - but won't know until its been tested.................
The Ferkin BoB
Banned
DEFENDER90-DAZ
New Member
No idea mate - need to strip the head/turbo/injection pump off it but i am open to offers.................
