dvb668w

Active Member

• Oct 10, 2014

• #1

Hi,

Silly question but if you have a capstan winch that's driven from the G'box can you also have a overdrive or do they both need to connect at the same place on the G'box

What's the aprox cost of a capstan winch for a ser 3 these days?

thanks Andy



H

honolulujoe

Well-Known Member

• Oct 10, 2014

• #2

afaik if its a front capstan you are talking about it connects to where the starting handle goes on the engine and the overdrive would go on the back of the gearbox.

if its a rear capstan you want, it might be different.

winch prices vary greatly depending on condition and whether all the bits are there e.g. the drive dog.

I sold mine a few months ago for £750 but it was in excellent condition



N

nickjaxe

Well-Known Member

• Oct 10, 2014

• #3

Fairy did a front mounted drum winch that was driven from the box...as stated...and as far as I know...capstans drive from the front of the crank.



Blackburn

Well-Known Member

• Oct 10, 2014

• #4

One on ebay at present
Fairey Capstan Winch Land Rover Series 1 2A 3 | eBay



H

honolulujoe

Well-Known Member

• Oct 10, 2014

• #5

mine was just like that but in much cleaner condition, be interesting to see what that finishes at.

the locking pin and chain for the handle seems to be missing and some of the bolts maybe



Last edited: Oct 10, 2014

N

nickjaxe

Well-Known Member

• Oct 10, 2014

• #6

Same as the one I had...2 mounting plate for the drive shaft look to be missing.



H

honolulujoe

Well-Known Member

• Oct 10, 2014

• #7

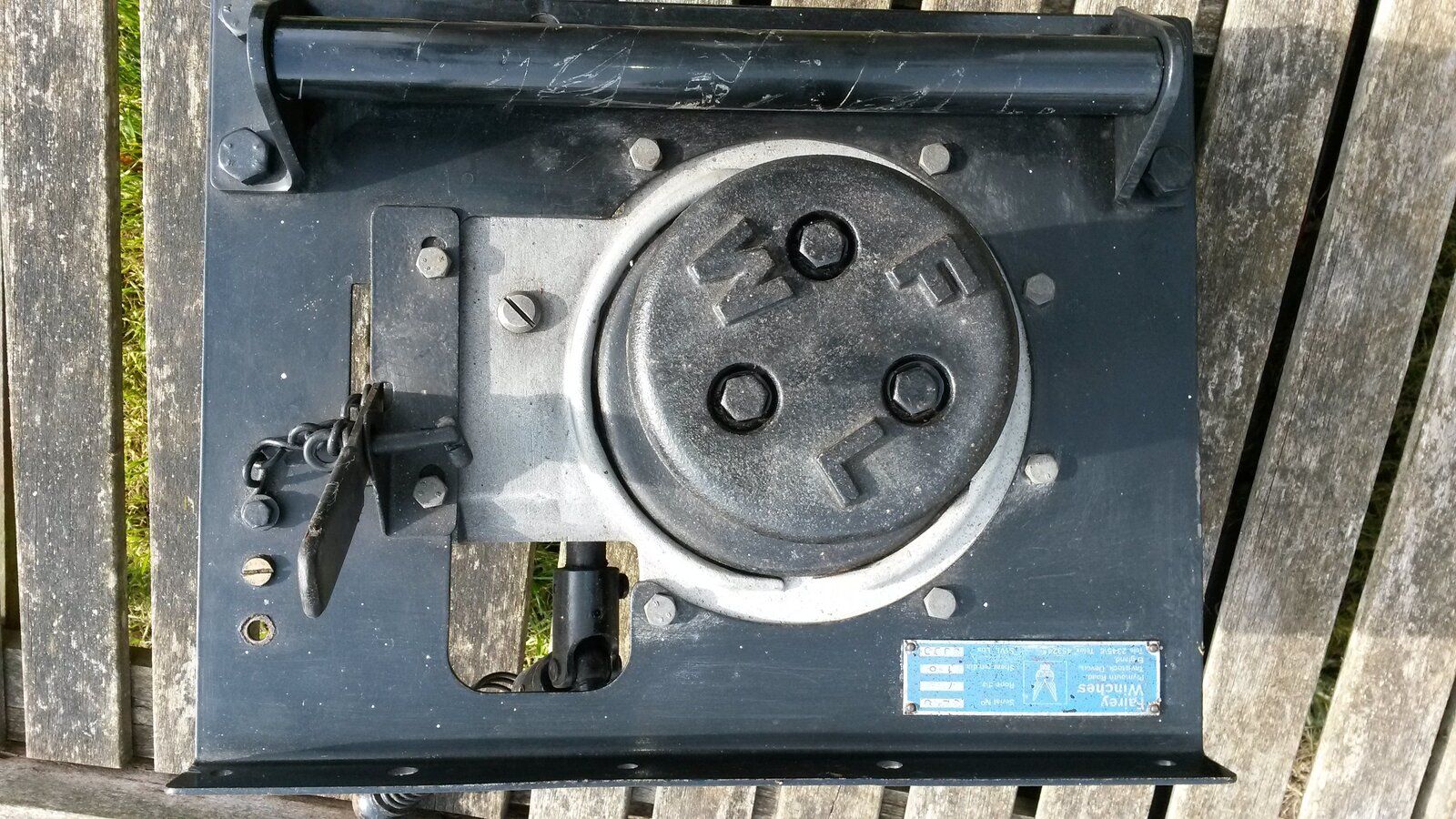

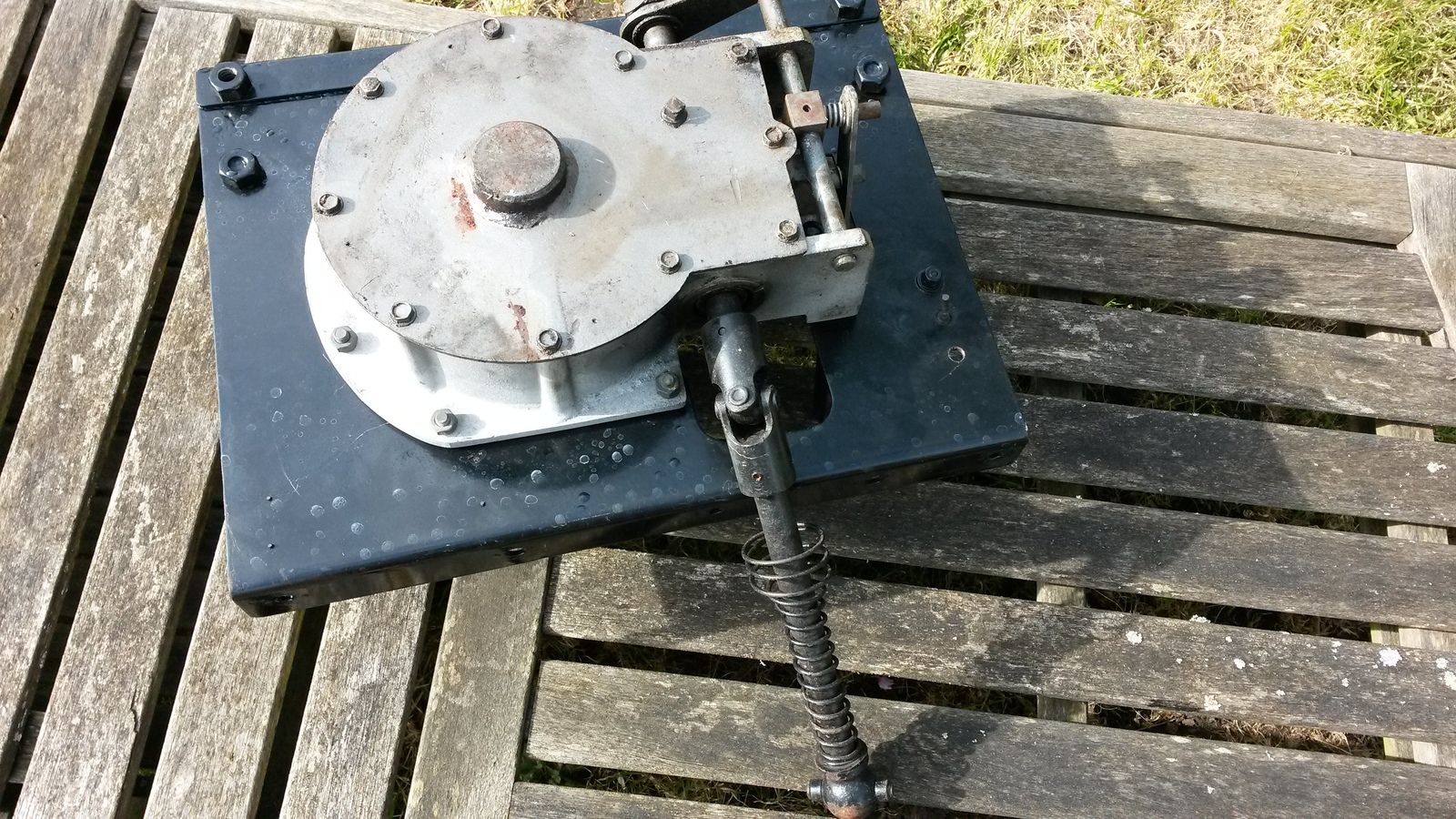

some pics of my old one for comparison



Attachments

•

  360.3 KB · Views: 1,778
•

  376.1 KB · Views: 1,403

ronsealdeath

Sagging Member

• Oct 10, 2014

• #8

dvb668w said:

Hi,

Silly question but if you have a capstan winch that's driven from the G'box can you also have a overdrive or do they both need to connect at the same place on the G'box

What's the aprox cost of a capstan winch for a ser 3 these days?

thanks Andy

Click to expand...

Only one pto device at a time! O/d or pto winch not both.



series 3 sweet 16

Active Member

• Oct 17, 2014

• #9

was there not an engineer in one of the mags a year or two back who had made an isolator so he could run the winch but retain an overdrive?

I may be wrong (SOMETIMES AM) but i'm sure I saw or heard something on it?

if not then I copyright the idea, so bug off LOL



Blackburn

Well-Known Member

• Oct 17, 2014

• #10

that ebay one I linked to went for £337.
Think I paid £160 for mine and had to manufacture the drive shaft inner end and make new disengage slider block that goes around that portion of shaft.
But I use it quite regularly and it works really well.
