Thanks guys, Thats the thing I was wondering about originally! My homemade canvas seal seems ok, it sits against the bulkhead fine and when I get some seals for under the bonnet all should be well! Hopefully.......

Its a kind of temporary thing to see if it works or not if it does am thinking of making a rubber un ......and the bulk heeds been well painted last year

How is the water getting past the clutch pedal box? Unless that drain channel is missing large chucks or missing completely, I can't see that being at fault.

WoodyO said:
How is the water getting past the clutch pedal box? Unless that drain channel is missing large chucks or missing completely, I can't see that being at fault.
Click to expand...

I cant get it either. Seems the channel directs water onto the clutch pedal box, its a LHD, and the clutch box was renewed last year with a new gasket. Ive poured water right onto the back of the pedal box where the slave cylinder is and it pours through somehow☹️ Inside is sound, no holes or rust etc round the pedal so I have two options either stop it hitting the pedal box or take out the brake servo etc and maybe the wing to somehow seal round the clutch pedal box.

Right, progress. Wing off to get acces to clutch box. Gasket fine and tight all round the sides apart from the wee H bit in the middle. Load of sealant over it, all good, leak gone ! Handy getting the wing off can nip up the steering box at the same time

Fatrover said:

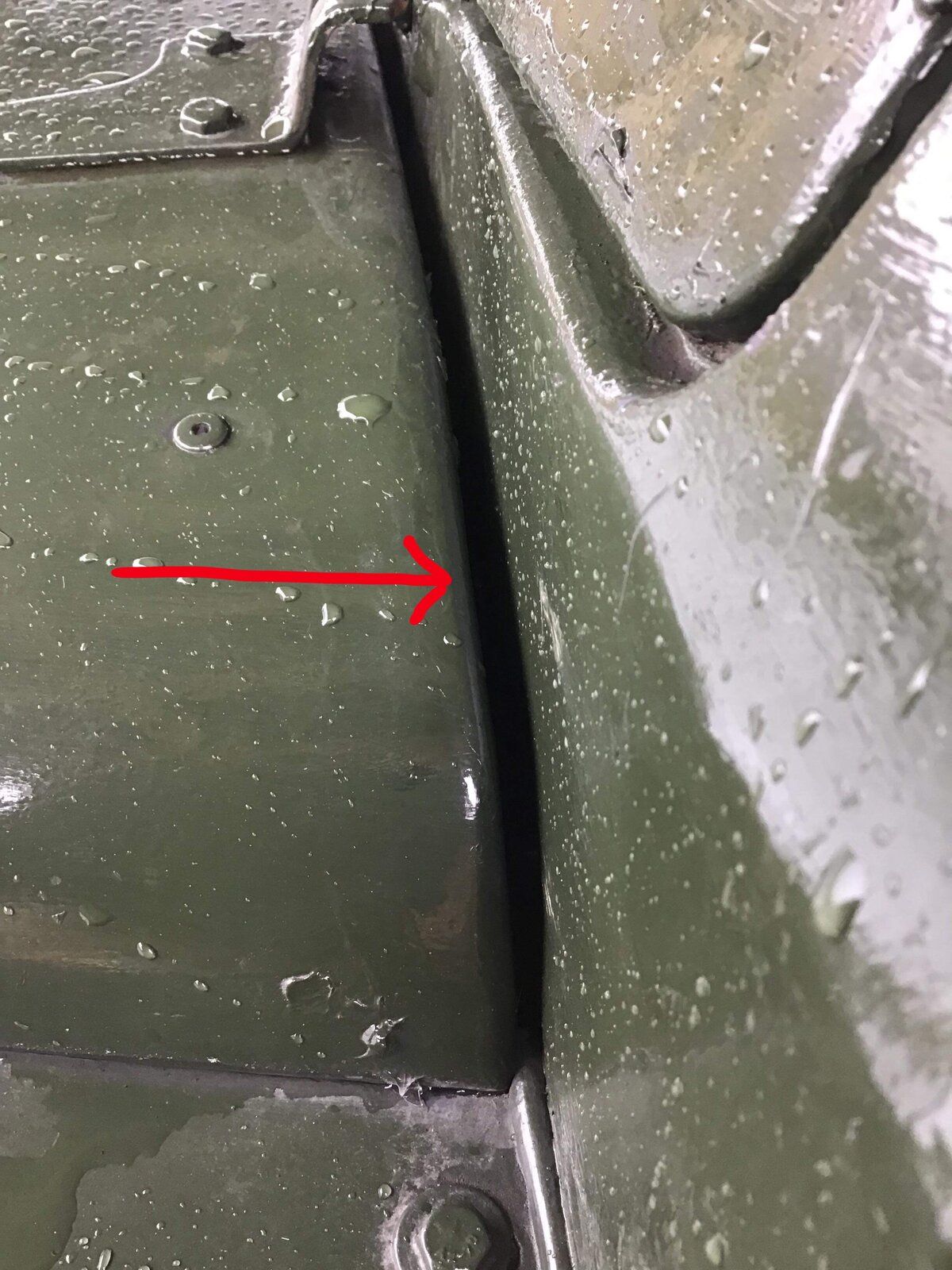

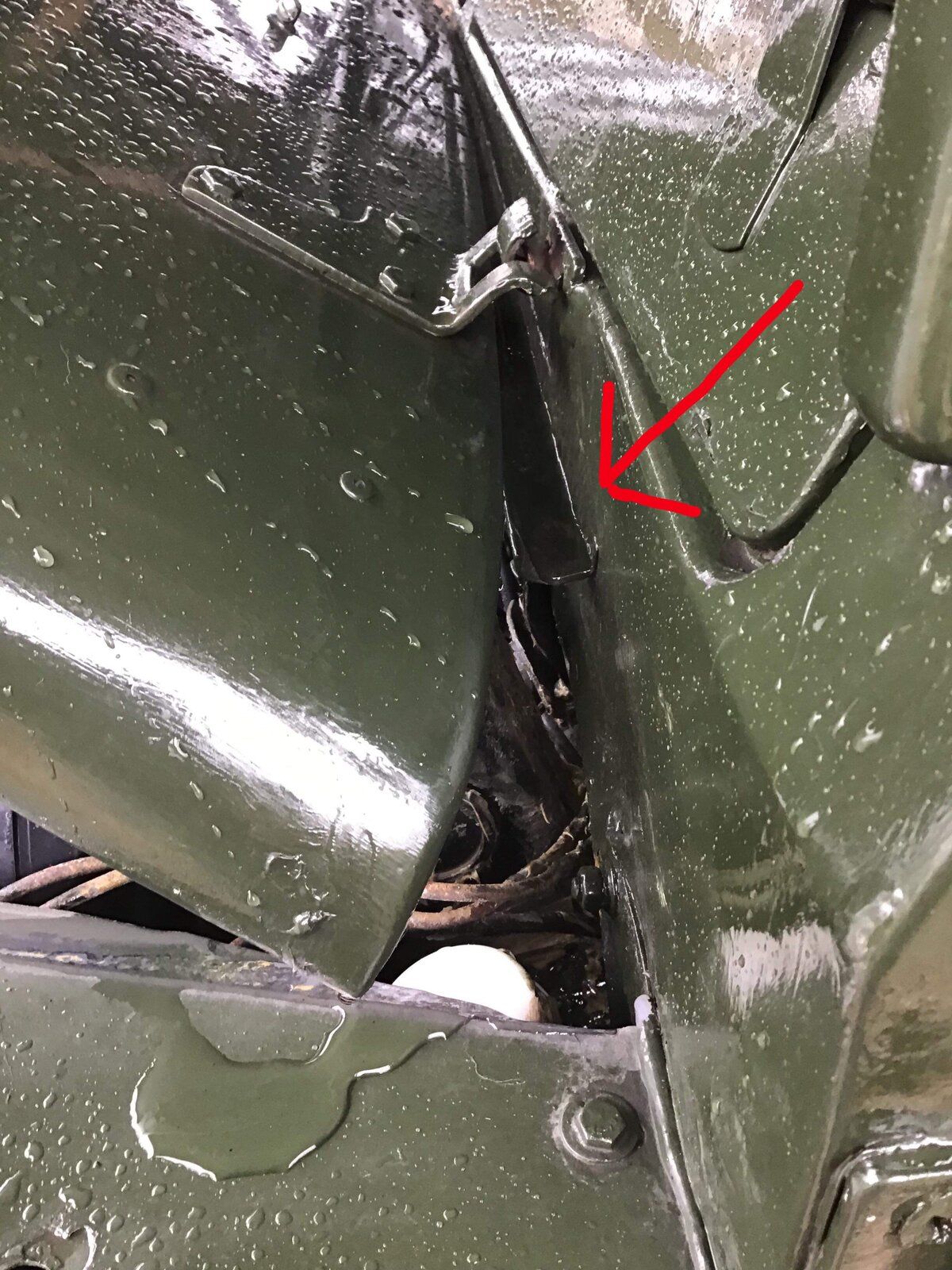

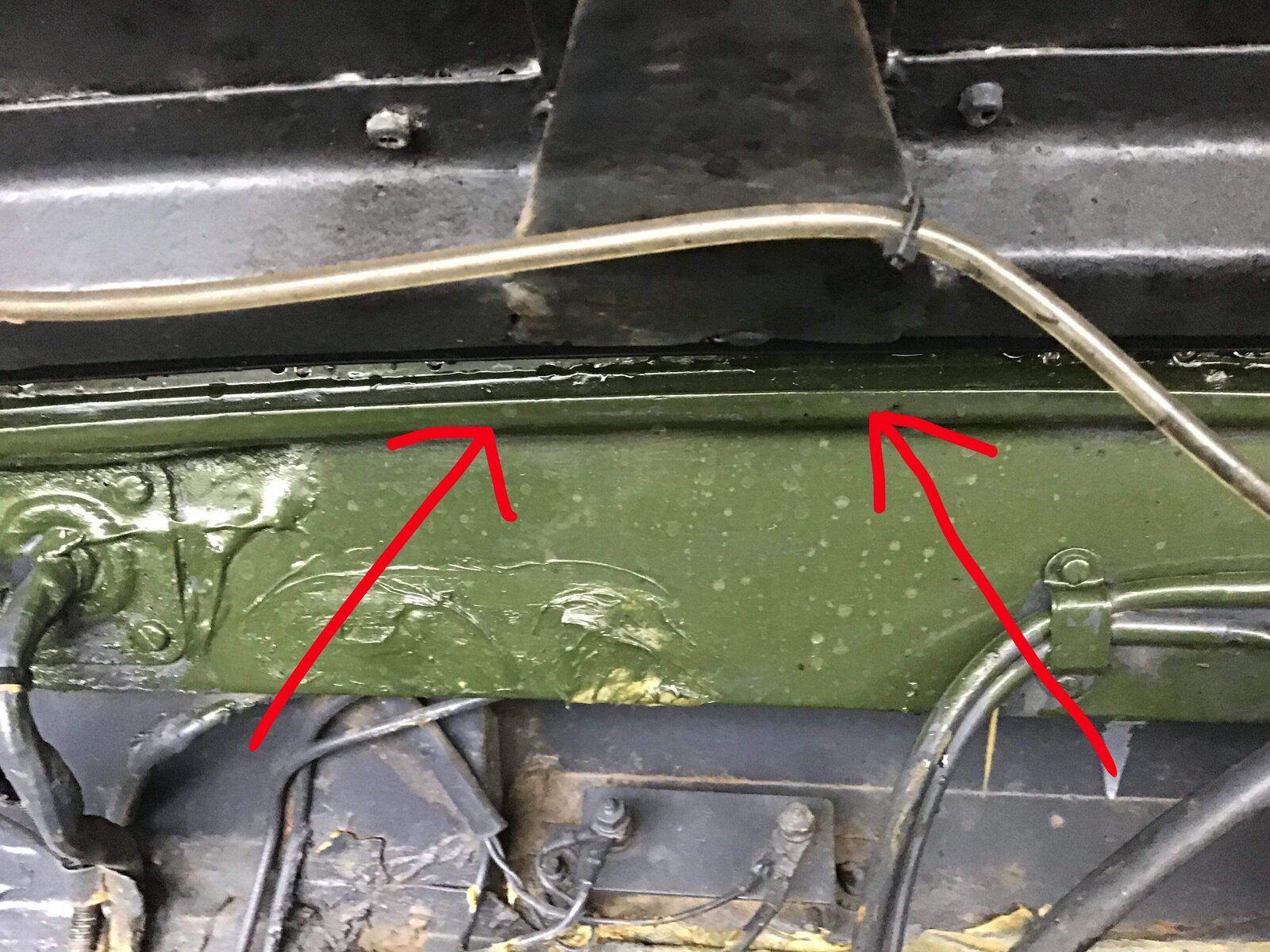

hi folks, in the joys of pouring rain and howling winds that constitute ‘summer’ in Argyll, I’m having to use the Series as a daily driver as my other cars in the garage☹️ Have discovered an annoying leak through the clutch pedal (its an LHD) and I was wondering if there should be some sort of seal between the bonnet and bulkhead, I’ve attached pics of mine which looks a bit naked! I never thought of this before as we lived in the Canaries where rain was vanishingly rare....Thanks all View attachment 266937View attachment 266938View attachment 266939
Click to expand...

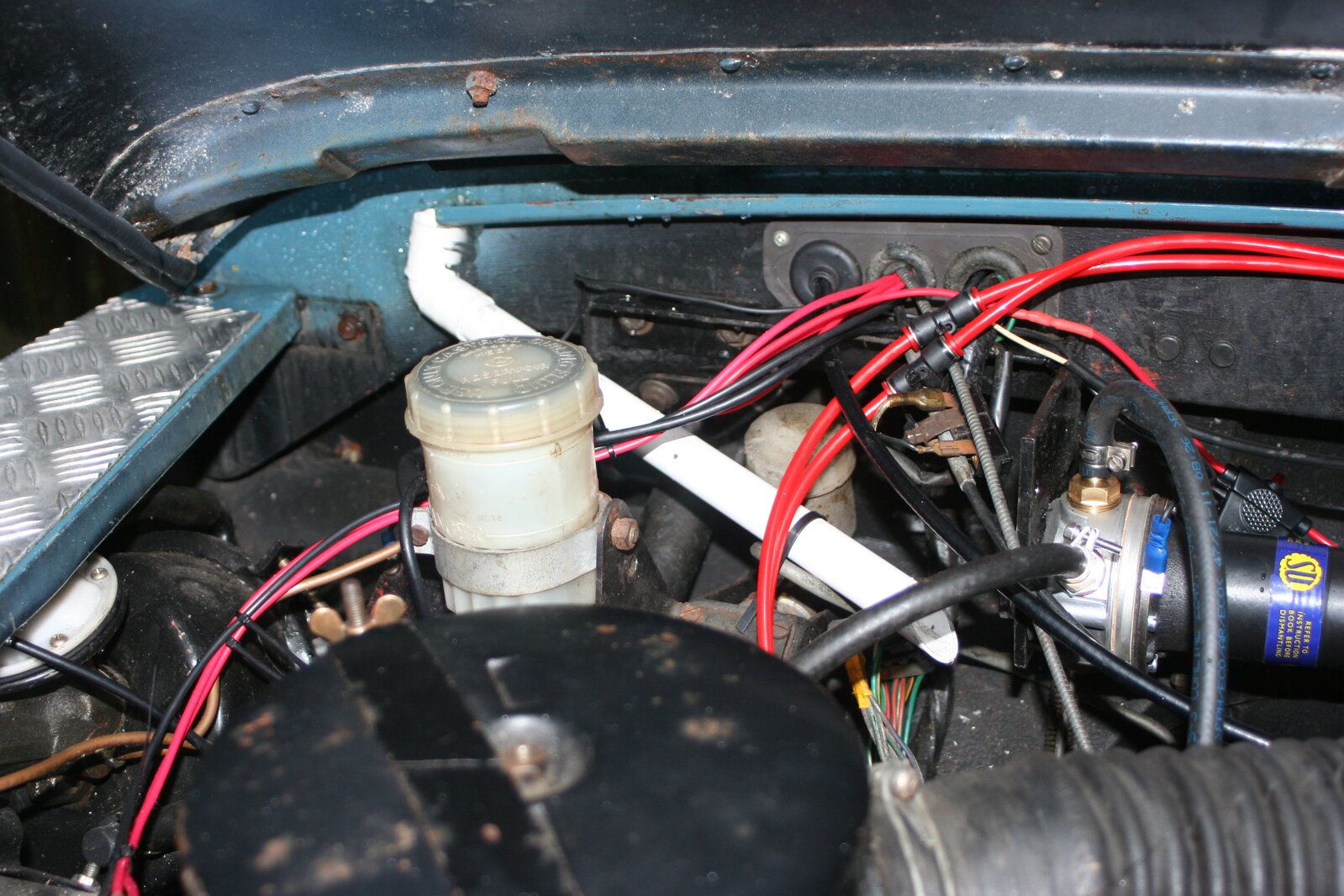

A bit late in the day I know but just a way of diverting the water


Attachments

  • IMG_6717.JPG
    262.6 KB · Views: 95
  • IMG_6716.JPG
    281 KB · Views: 81
