tottot said:

Its the LWB set up Lynall, both shoes have their own adjuster.

Click to expand...

You sure, ops pic looks like std 10 inch set up! exclamation mark for Kurts benefit.



border

Well-Known Member

• Jun 12, 2021

• #22

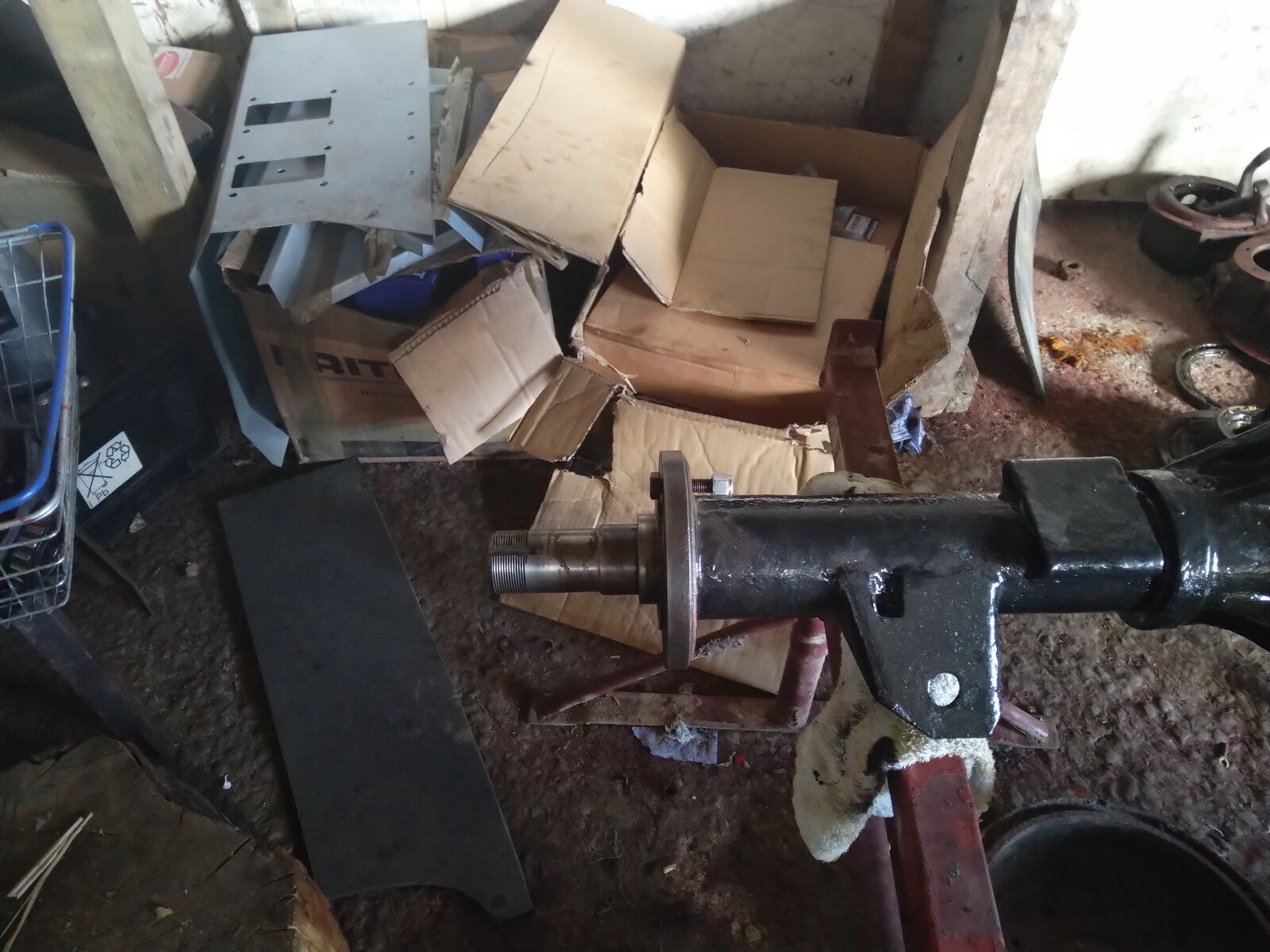

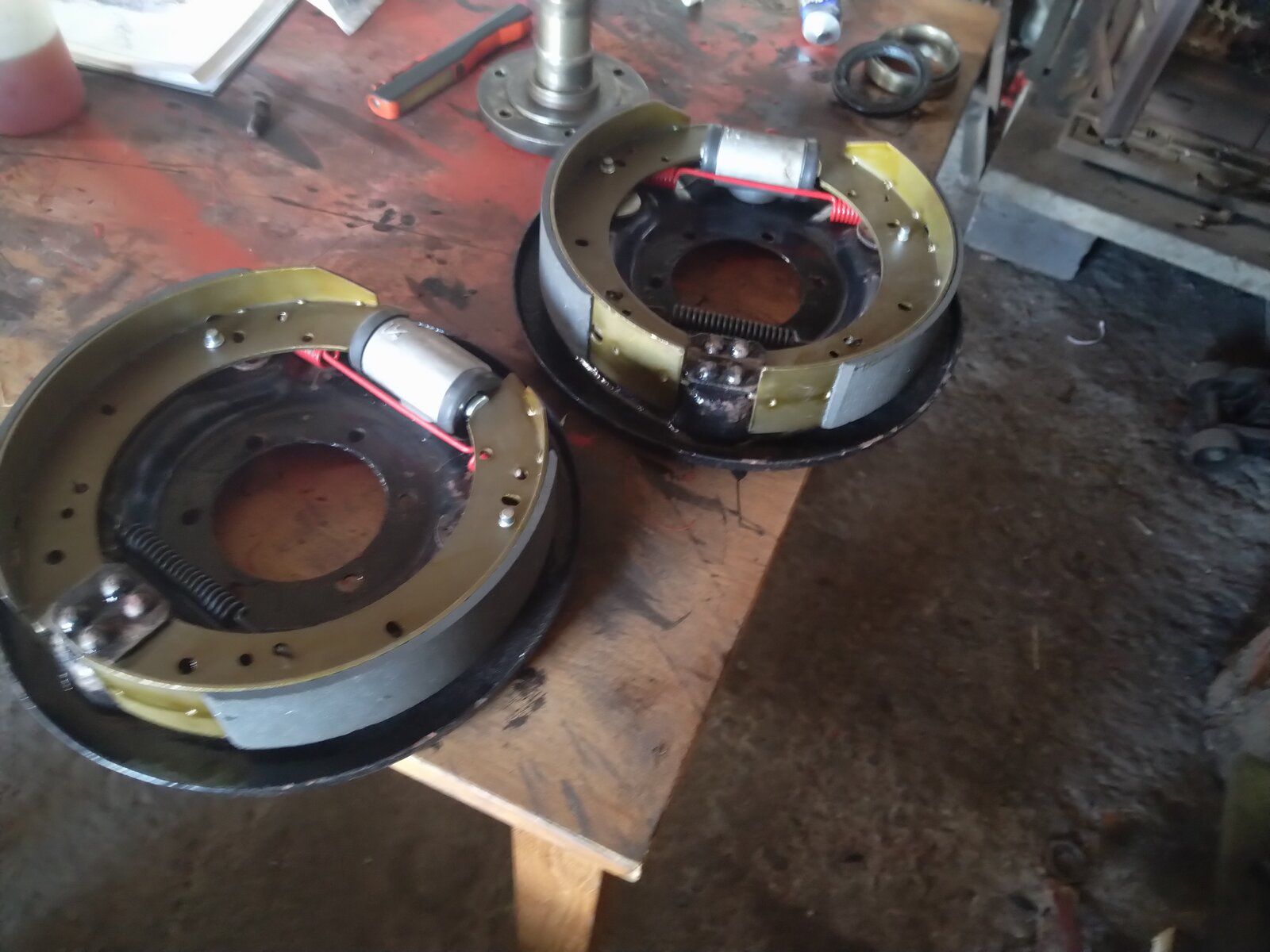

Got the dam things on right way as in leading edge ect but still not right,. Just gonna leave them as is for now and start getting axle built by back up. Anyone know what torque setting for bolts that go through backing plates and stub axle on to main axle ?? On with it now so might be more questions if yous don't mind.



Attachments

•

  177.3 KB · Views: 61
•

  229.6 KB · Views: 54

tottot

Well-Known Member

• Jun 12, 2021

• #23

Dippypud said:

There was someone on here who's Landy previous owner had one side back to front and it always drove 'funny' ...

Click to expand...

That was me Col, It was a while before I found the front axle had left hand back plates both sides !



tottot

Well-Known Member

• Jun 12, 2021

• #24

lynall said:

You sure, ops pic looks like std 10 inch set up! exclamation mark for Kurts benefit.

Click to expand...

Two adjusters, not the normal just one on leading shoe.



border

Well-Known Member

• Jun 12, 2021

• #25

Well took the bas!!!d things off so I could get on with rebuilding the rest of axle, But what a Nightmare Im having now. Gonna post another thread soon.
Thanks everyone so far



L

lynall

Well-Known Member

Full Member

• Jun 12, 2021

• #26

tottot said:

Two adjusters, not the normal just one on leading shoe.

Click to expand...

I must be missing soemthing then as the ops pic is standard 10 brake set up with one cylinder for both shoes?



border

Well-Known Member

• Jun 12, 2021

• #27

lynall said:

I must be missing soemthing then as the ops pic is standard 10 brake set up with one cylinder for both shoes?

Click to expand...

Rears have 1 cylinder each side fronts have 2 each side.



tottot

Well-Known Member

• Jun 12, 2021

• #28

If you look at OP's first pic You can see there is no ring fixing at the bottom and that there is an adjuster for each shoe.



L

lynall

Well-Known Member

Full Member

• Jun 13, 2021

• #29

border said:

Rears have 1 cylinder each side fronts have 2 each side.

Click to expand...

Tottot explains it better in his post above.
