One with a remote wireless display on the dash would be good
Datatek
Well-Known Member
I have not checked but I think that the controller relies on the potential difference between the source (solar panel or car) and the battery to be charged. So if the battery attached to the controller is down at 12.2 volts for example and the car battery at switch off is 12.8 or more, it may continue to charge. Easy enough to check.
The one I use is cheap and simple with just LED's to indicate what is going on. Displays may not like extreme cold. I have seven of them, so price was important.
Datatek
Well-Known Member
Which would use more power.
Agreed but if it's running off a 900amp battery it should be neglidgable.
The spec from the one I have looks like trigger voltages are adjustable
12V voltage system (if it is a 24V voltage system, data x2):
Float charge: 13.7V (default, adjustable)
Discharge stop:10.7V (default, adjustable)
Discharge reconnect:12.6V (default, adjustable)
There's a remote display with bluetooth app that draws 1mA
Datatek
Well-Known Member
That sounds good for your application.
Discharge stop:10.7V (default, adjustable) I would set that to 12 volts if you do not want to knacker the battery PDQ
Sound like a plan, need to rig it up to test what happens before the install.
Any idea if 16awg will do 20amp please? looking on web says 15amp but ready made cables come with a 15 and 20 amp fuse.
Cheers
Cheers

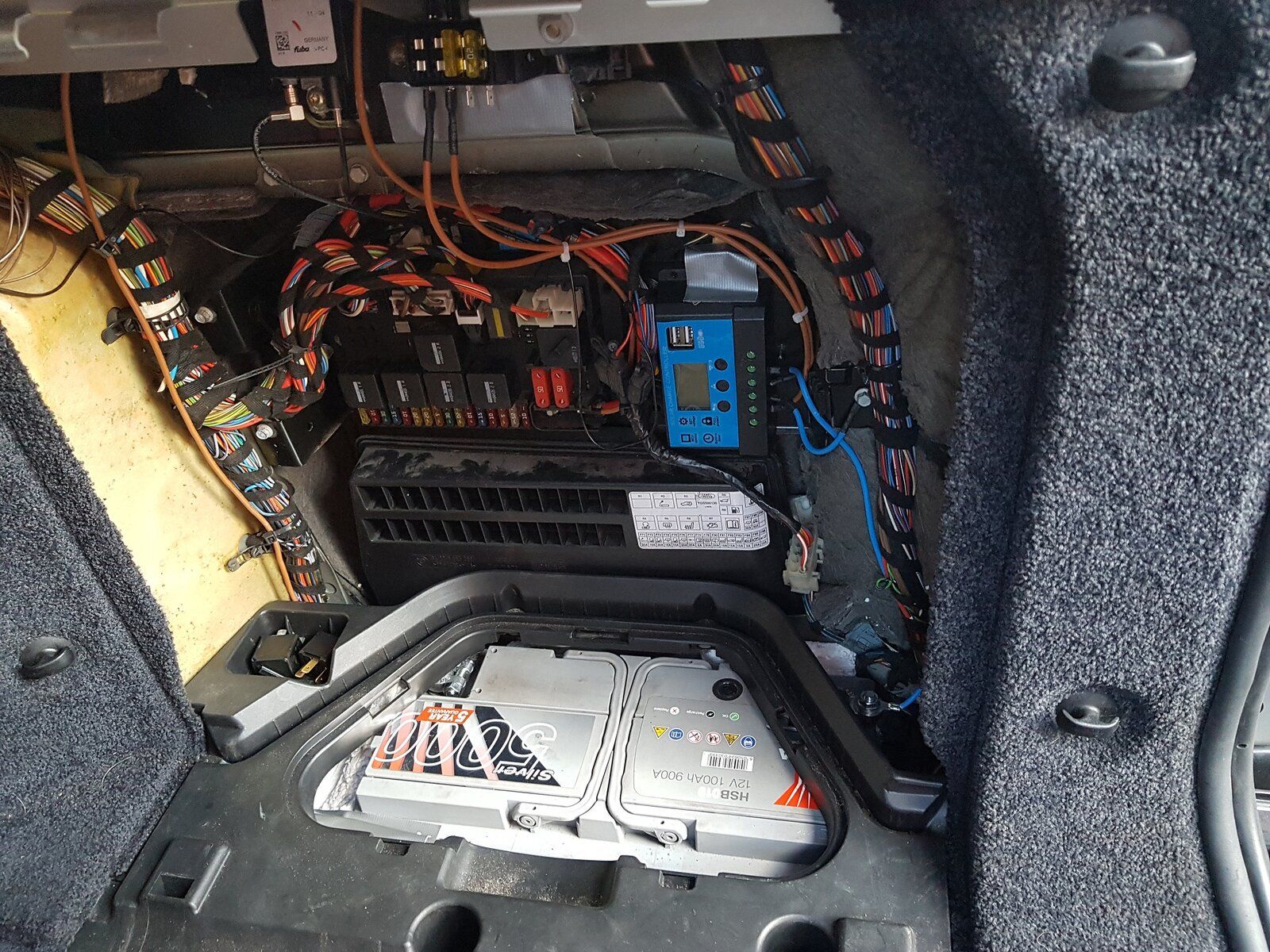

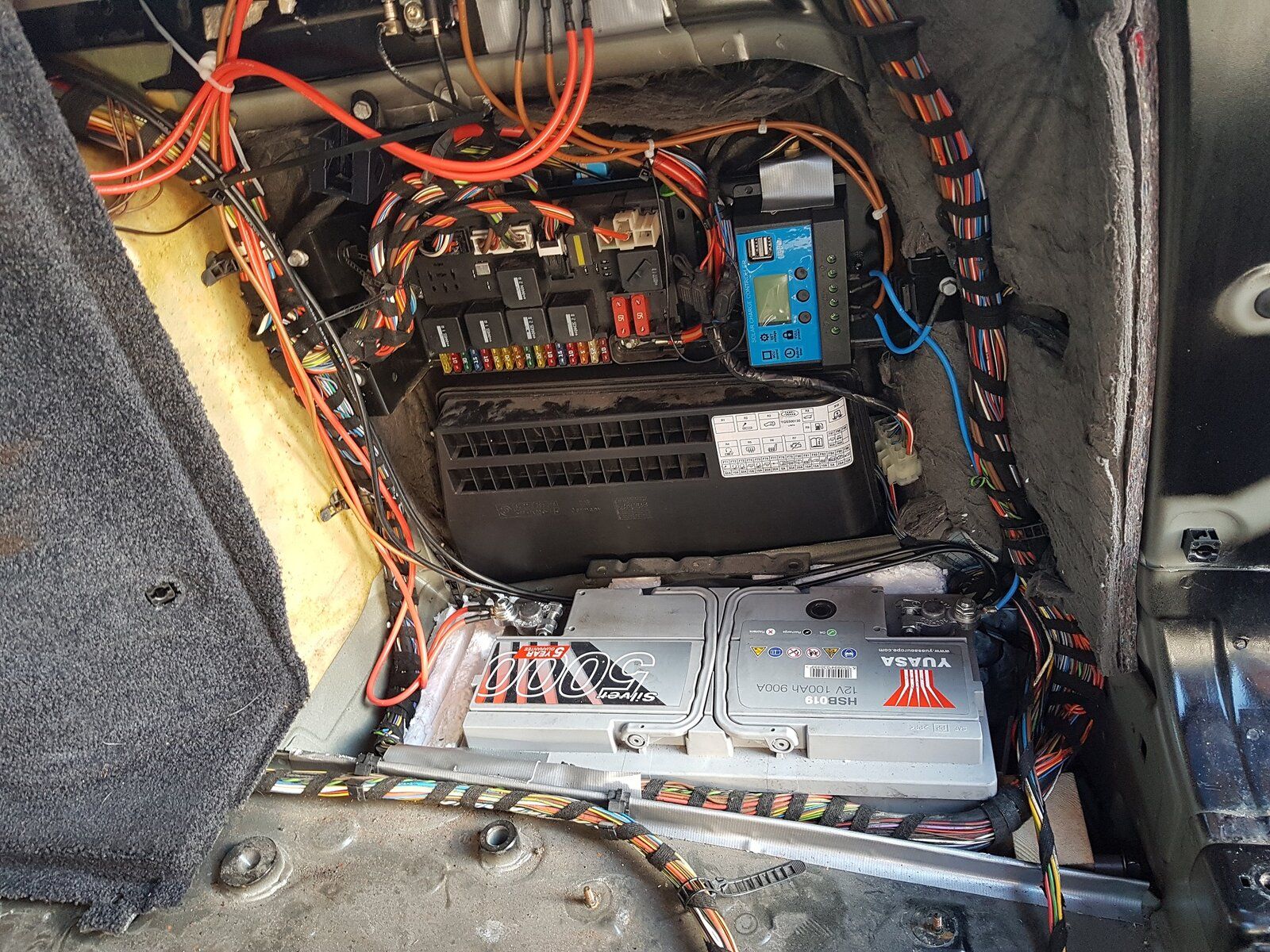

Took longer than expected but dual battery conversion now complete'ish

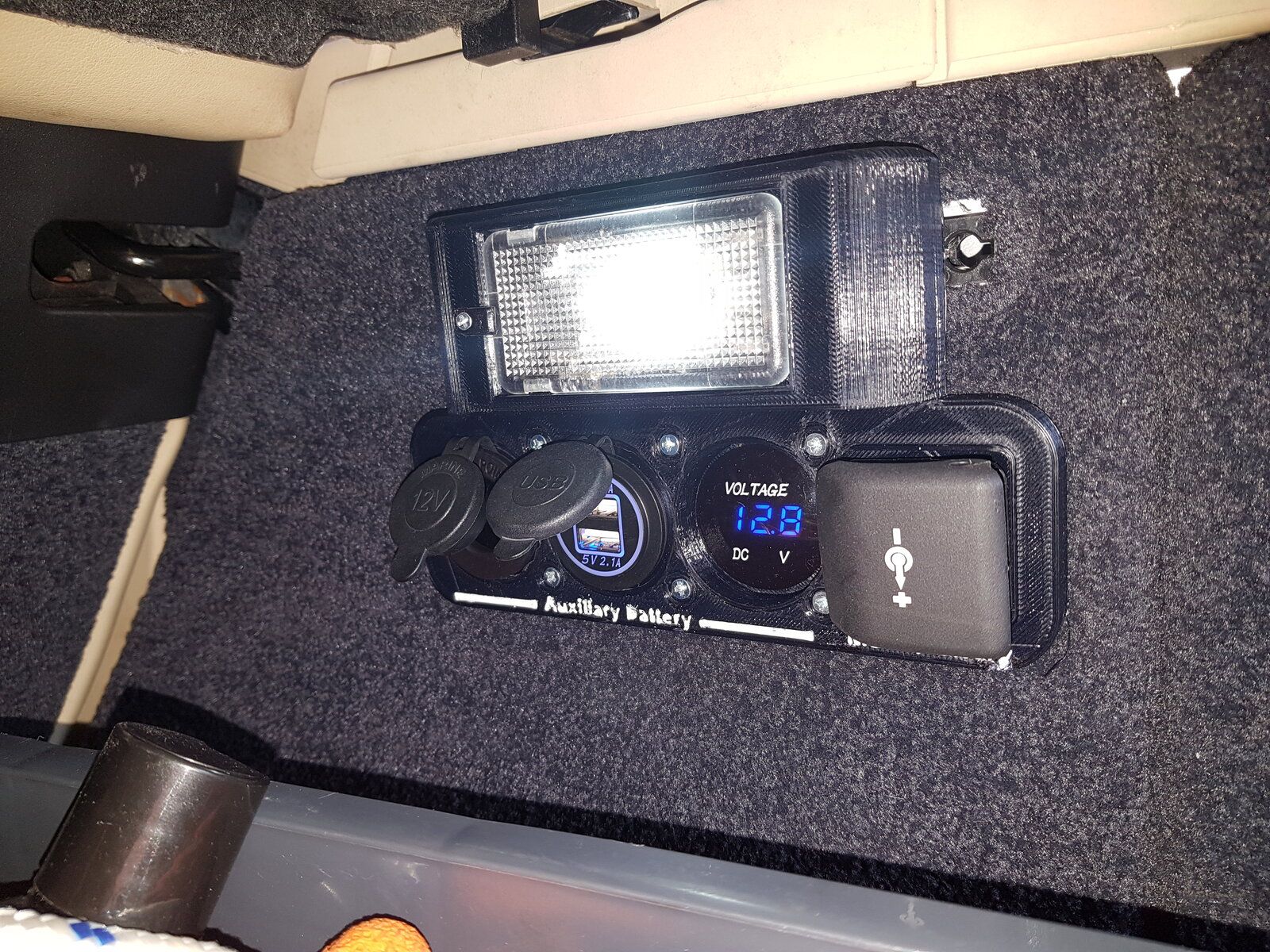

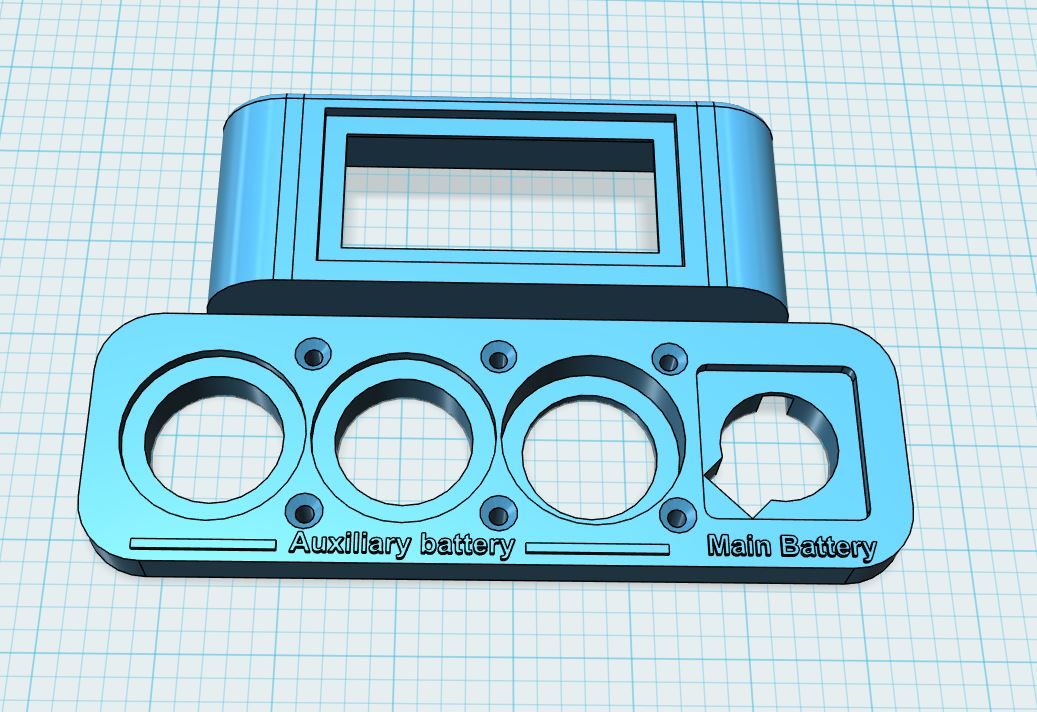

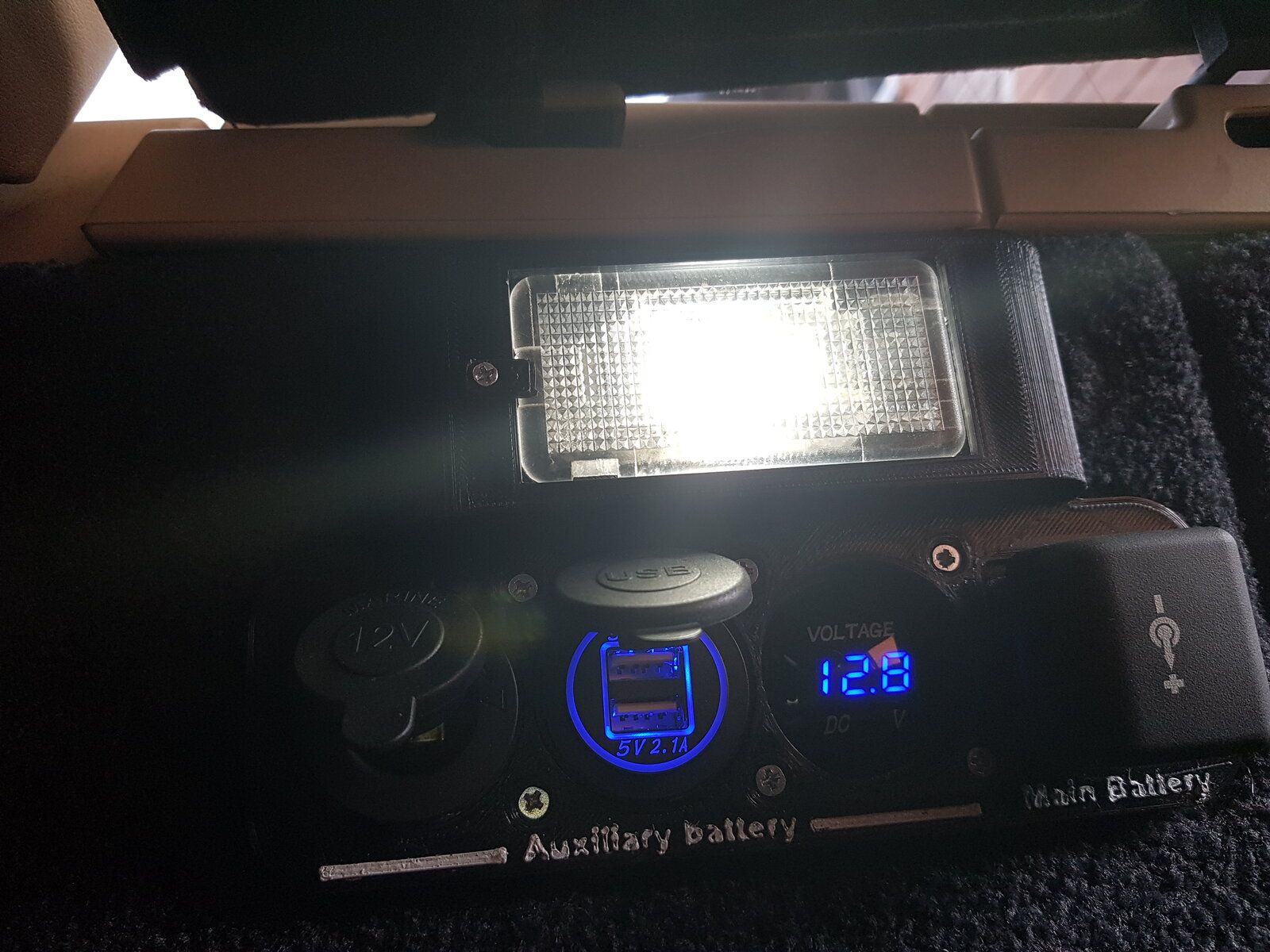

3D printed a new housing so I could move the light and use the existing cut out.
3D printed a new housing so I could move the light and use the existing cut out.
RangeRoller dt
Well-Sprung Member
the white lettering
RangeRoller dt
Well-Sprung Member
Is a nice touch
Is a nice touch
I saw something on another thread about putting a label on the main battery to say about the dual battery conversion so thought it would be good to put something here as well.
RangeRoller dt
Well-Sprung Member
Nevermind
elfreetutu will get it
elfreetutu will get it
Nevermind
elfreetutu will get it
Sorry you've lost me ?
brianp38dse
Well-Known Member
Mi thirst elfreetutu
nope, still don't get it
Your starter for 10 @backinblack , my first.
my first L322 ? I'll sleep on it
Datatek
Well-Known Member
Nice job
