pardec
Active Member
My td4 has twin outlets?? so does Epicusers from the pics
Last edited:
My td4 has twin outlets?? so does Epicusers from the pics
SES88
Well-Known Member
Is the fitment to the mid section the same though and is the mid section the same? That's all that really matters for cross compatibility really
Nodge68
Well-Known Member
The centre section is a different shape, but I suspect the where the back box meets the centre section could well be the same. I've also seen some Td4's with twin outlets, I assumed they had been fitted as replacements as opposed to factory fitment.
If this is the case, then ether box will fit TD4 or V6 and maybe even the L series? The 1.8 has a different pipe diameter though.

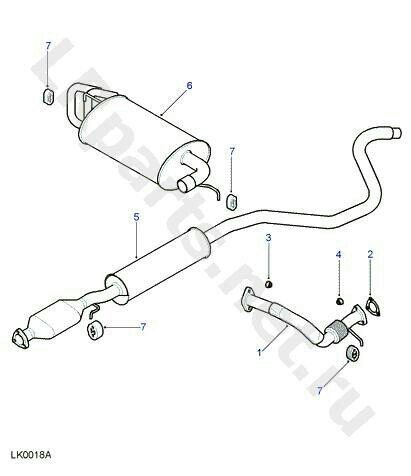

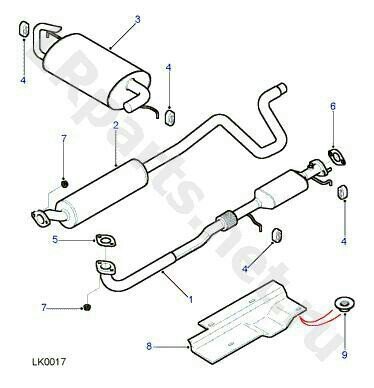

Maybe someone could check the part number on there box?
Nodge68
Well-Known Member
Nodge68
Well-Known Member
Interesting. I'm going to see if my V6 still has the part number on it. It's possible that the factory fitted what they had to the TD4. I've seen single and twin outlets on the TD4 but only ever seen twin outlets on the V6.
Hippo
Lord Hippo
I assume the potential air flow on the v6 is greater than the td4. The v6 has 3 cats. 1 in the middle and 2 at the front, 1 for each bank of 3 cylinders.
Peeps have said in the past LR used the larger v6 bear barrel on the td4 when they ran out of the smaller one. It was discussed a while ago on another fred.
Peeps have said in the past LR used the larger v6 bear barrel on the td4 when they ran out of the smaller one. It was discussed a while ago on another fred.
Epicuser
Ex Freelander Owner
myotherworld
Active Member
SES88
Well-Known Member
Suppose I now need to know if the connection to the mid pipe is the same... Although the speculation that LR simply used whatever box they had would suggest that the connection is the same, the middle section is the same, its just the downpipes from the manifolds which are different...
disco_mikey
Active Member
Rear silencers are all interchangable
Nodge68
Well-Known Member
Rear silencers are all interchangable
With the exception of the 1.8 petrol. They use a smaller diameter pipe.
TD4_4x4
Active Member
Images of how poor the ground clearance is on the 2004-2006 MK1 Freelander TD4 'Sport' (using the standard backbox),and why I think Simon's (SES88) custom compact back boxes are a good idea, for those undecided.

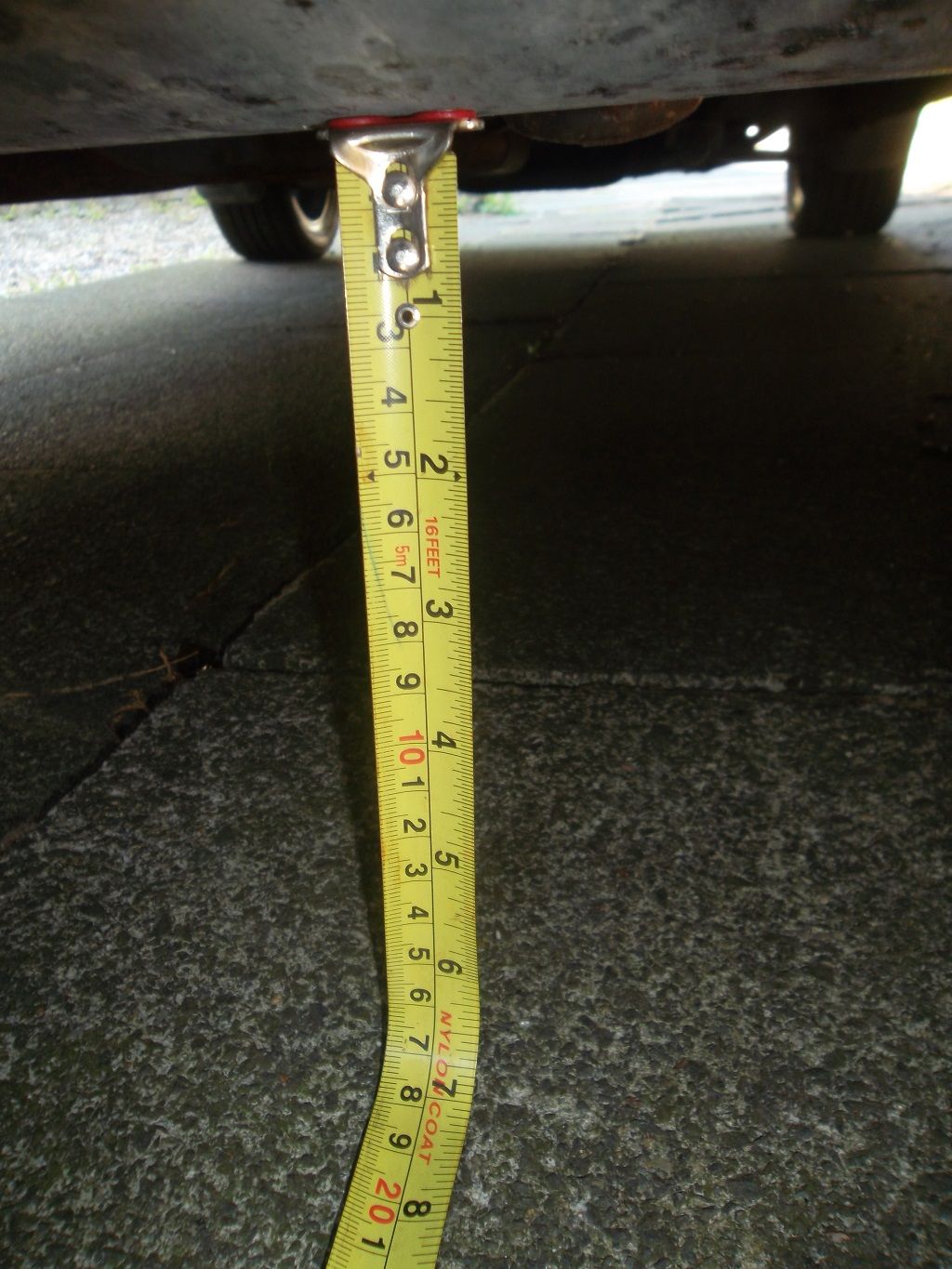

Vehicle ground clearance dimensions:
Approx 10 inches from sill to floor at center of car (nb: center prop-shaft is lower than floor of car).
Approx 6.5 inch at rear of vehicle from bottom of factory back box to floor (too little).

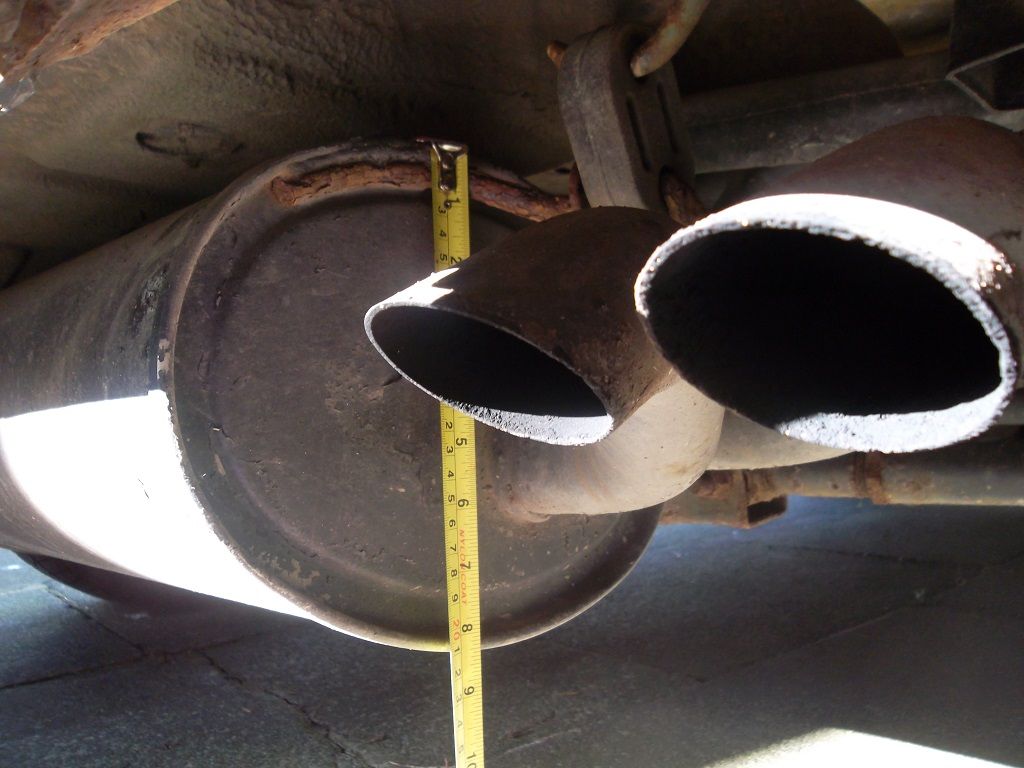

Factory TD4 exhaust dimension.
Approx 8.25 inch factory back box height (too tall).
So fitting a compact back box would certainly gain valuable ground clearance if going off-road.
Vehicle ground clearance dimensions:
Approx 10 inches from sill to floor at center of car (nb: center prop-shaft is lower than floor of car).
Approx 6.5 inch at rear of vehicle from bottom of factory back box to floor (too little).
Factory TD4 exhaust dimension.
Approx 8.25 inch factory back box height (too tall).
So fitting a compact back box would certainly gain valuable ground clearance if going off-road.
Attachments
Last edited:
Epicuser
Ex Freelander Owner
:lol:
I remember when mine was that low.
I have an extra 100mm now more than the Sport, with the lift kit and tyres combined, but the rear box is still too low and far back.
I need steps to get in mine
SES88
Well-Known Member
I find the tow bar hits the ground long before the rear box does
Depends what you drop off really
I'll sort out PM's with payment details for the list I have later on today, need to decide how many extra I'll make, definitely one, maybe two.
