S

steve911

New Member

• Mar 14, 2012

• #1

does any one know what the black cylinder that the air lines pass through is for. the main intake seems to come from the rear and pass through this cylinder then to the compressor.

also do all compressore s have an exhuast vavle as mine has not got one.



sierrafery

Well-Known Member

• Mar 14, 2012

• #2

that "keg" is a kind of a damper

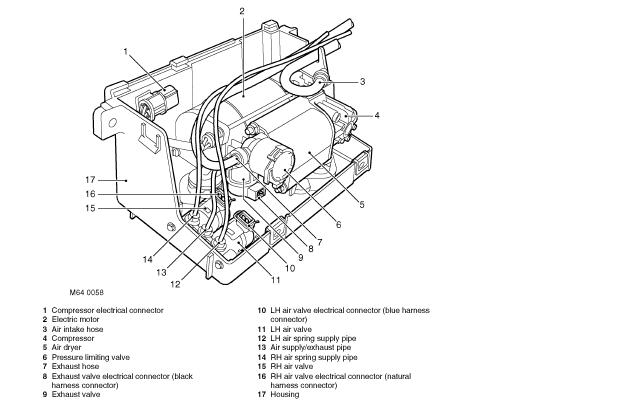

they all must have an electric(solenoid) exhaust valve(nr.9) cos that's what releases the air to lower the vehicle commanded by the ECU...there is a pressure limiting(mechanic) valve(nr.6) there which might be bypassed ... and it's there to protect the bags from blowing in case of overinflation caused by bad management



Attachments

•
  Compressor assy.JPG

  34.4 KB · Views: 681

S

steve911

New Member

• Mar 14, 2012

• #3

cheers. the reason i wanted to know is my disco has been converted to springs and i wanted to reove the damper now I know i can. as for the compressor i was going to sell it but noticed the exhaust solinoide missing. so i will have to mention this when selling.



G

g7jtk

Member

• Mar 15, 2012

• #4

If this is the cylinder just behind the compressor. It is a silencer.



S

steve911

New Member

• Mar 16, 2012

• #5

great so i can remove it. does any one know were the intake pipe comes from. it goes to each rear wing then up behind it



G

g7jtk

Member

• Mar 17, 2012

• #6

steve911 said:

great so i can remove it. does any one know were the intake pipe comes from. it goes to each rear wing then up behind it

Click to expand...

The filter for the compressor intake it behing the rear near side tail light.



S

steve911

New Member

• Mar 18, 2012

• #7

cheers will have a look this week
