RangeRoller dt
Well-Sprung Member
They do have tantrums, usually electrical associated.
If you battery’s dead then that needs doing before you start diagnosing. Can cause GB fault etc
If you battery’s dead then that needs doing before you start diagnosing. Can cause GB fault etc
RangeRoller dt
Well-Sprung Member
MF-31 1000cca 120Ah is best battery for all P38s.
brianp38dse
Well-Known Member
If it only runs connected to charger i would be looking at the alternator not putting any power out.
I prefer the Platinum 642X but each to their own.
Have you got the RF drain issue? That will kill batteries quick. Check which receiver you have. Marty has a fix for £70 and Brian for £7.
Alternator output has to be above 14.2V with calcium batteries. If you have an old alternator the set point might be 13.8V which will slowly kill a calcium battery. You can get replacement gubbins to change the set point to 14.5V for under £20 delivered.
Which fuse was it that blew? The one that does the EAS and starter motor? Could be a worn EAS pump jamming, although I think that might be a 30A fuse now I think about it.
Fuse boxes do burn out occasionally. Have a good sniff in there.
It might be in my eBay history but it'll have to wait until I am next on my PC. It was the one @tomcat59alan posted a link to. @brianp38dse might know. Same one is used in VW.
brianp38dse
Well-Known Member
This is the regulator for the diesel alternator to up grade it to 14.7 volts
https://www.ebay.co.uk/itm/12V-Alte...221561?hash=item2843ebd7f9:g:JqAAAOSwMuZbyfHf
https://www.ebay.co.uk/itm/12V-Alte...221561?hash=item2843ebd7f9:g:JqAAAOSwMuZbyfHf
Datatek
Well-Known Member
That regulator can be found for as little a £8.50
brianp38dse
Well-Known Member
That regulator can be found for as little a £8.50
i just had a quick look on fleebay, were is that cheep from?
Datatek
Well-Known Member
Ebay, mine came from Poland but they only come up occasionally.
Datatek
Well-Known Member
For certainty you need to take the cover off to look at the PCB, reputedly there are different coloured stickers to denote the different versions but it's not a reliable way of telling.
brianp38dse
Well-Known Member

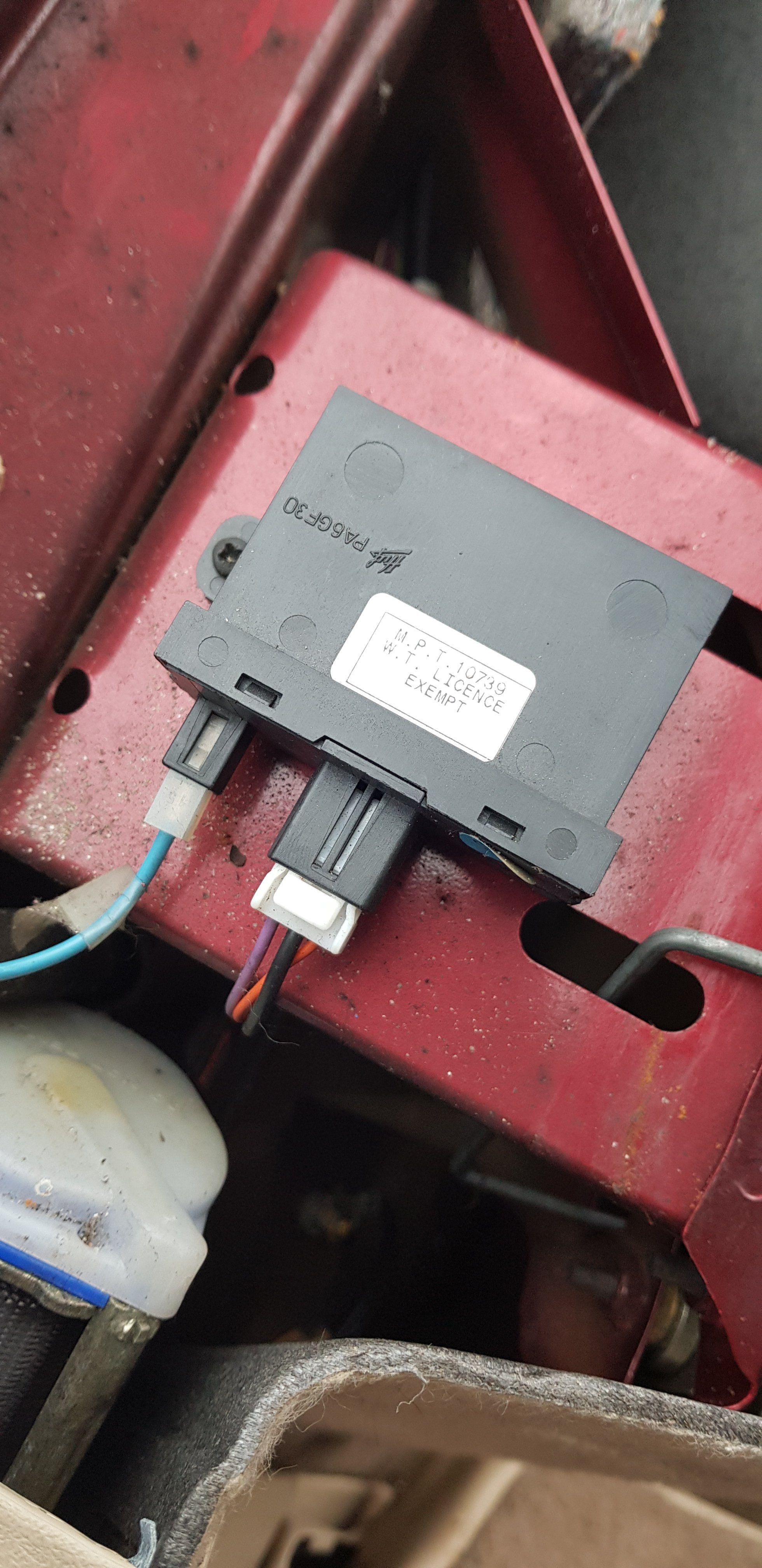

These are the three JLR ones
brianp38dse
Well-Known Member

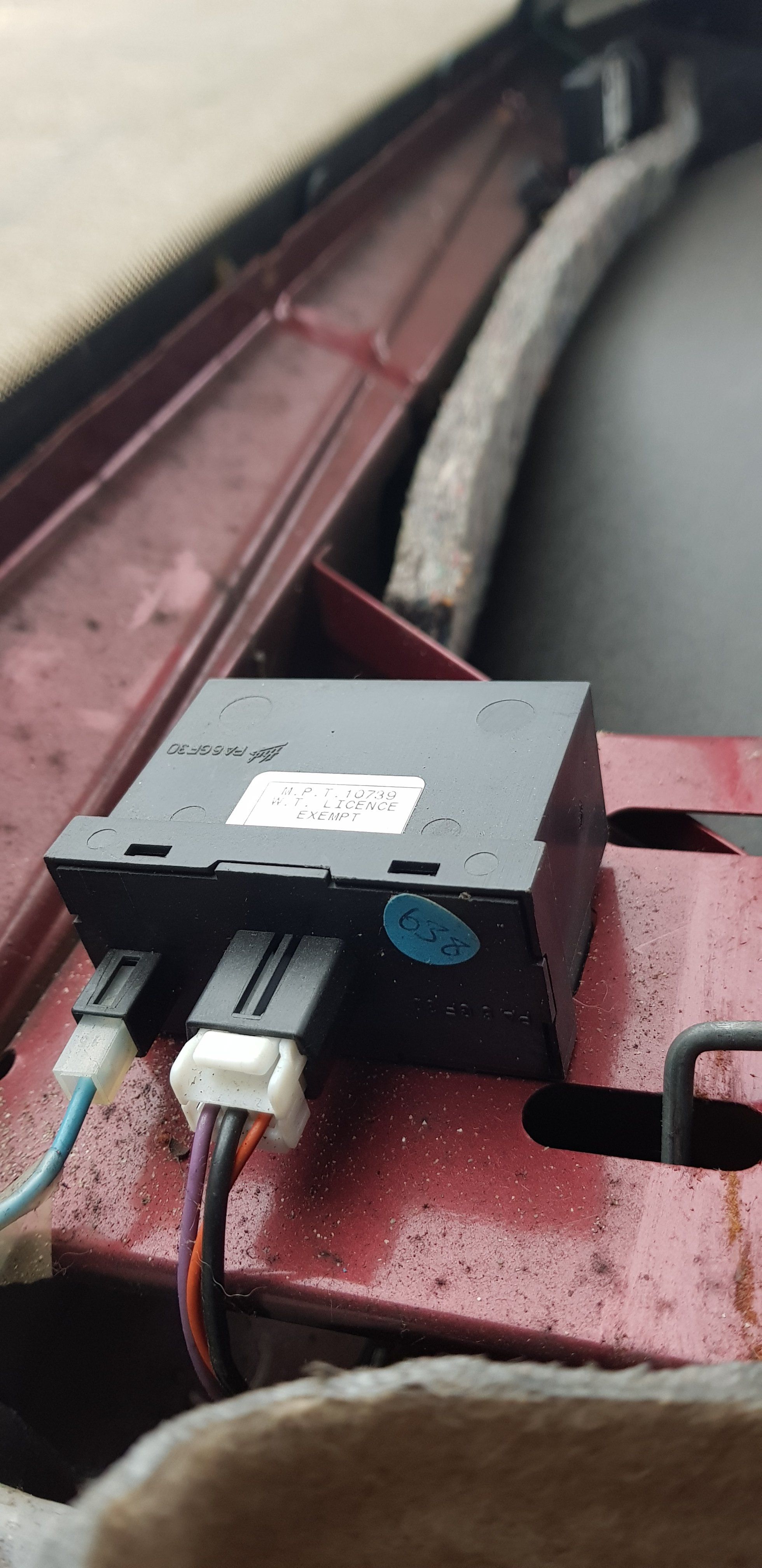

A better picture of the good Rf receiver
Yes, blue was original. Then it went yellow, tgen green. However, as Data implied, some sellers flog blue ones but put a green dot on so check the serial number. Better off just buying @martyuk 's fix though. Someone here will know the link. Dan?
I seem recall Marty said the newest gen 3 receivers had gone back to a single board so best check the part number.
RangeRoller dt
Well-Sprung Member
What’s this £7 fix @brianp38dse?
I just have mine unplugged (1995 blue dot),
it still works so long as you are close to the vehicle and causes no issues. Later models are bit different I think because of the passive coil
I just have mine unplugged (1995 blue dot),
it still works so long as you are close to the vehicle and causes no issues. Later models are bit different I think because of the passive coil
brianp38dse
Well-Known Member
Here you go @RangeRoller dt or anyone else.
https://www.landyzone.co.uk/land-rover/rf-reciever-work-round.258096/
https://www.landyzone.co.uk/land-rover/rf-reciever-work-round.258096/
