border
Well-Known Member

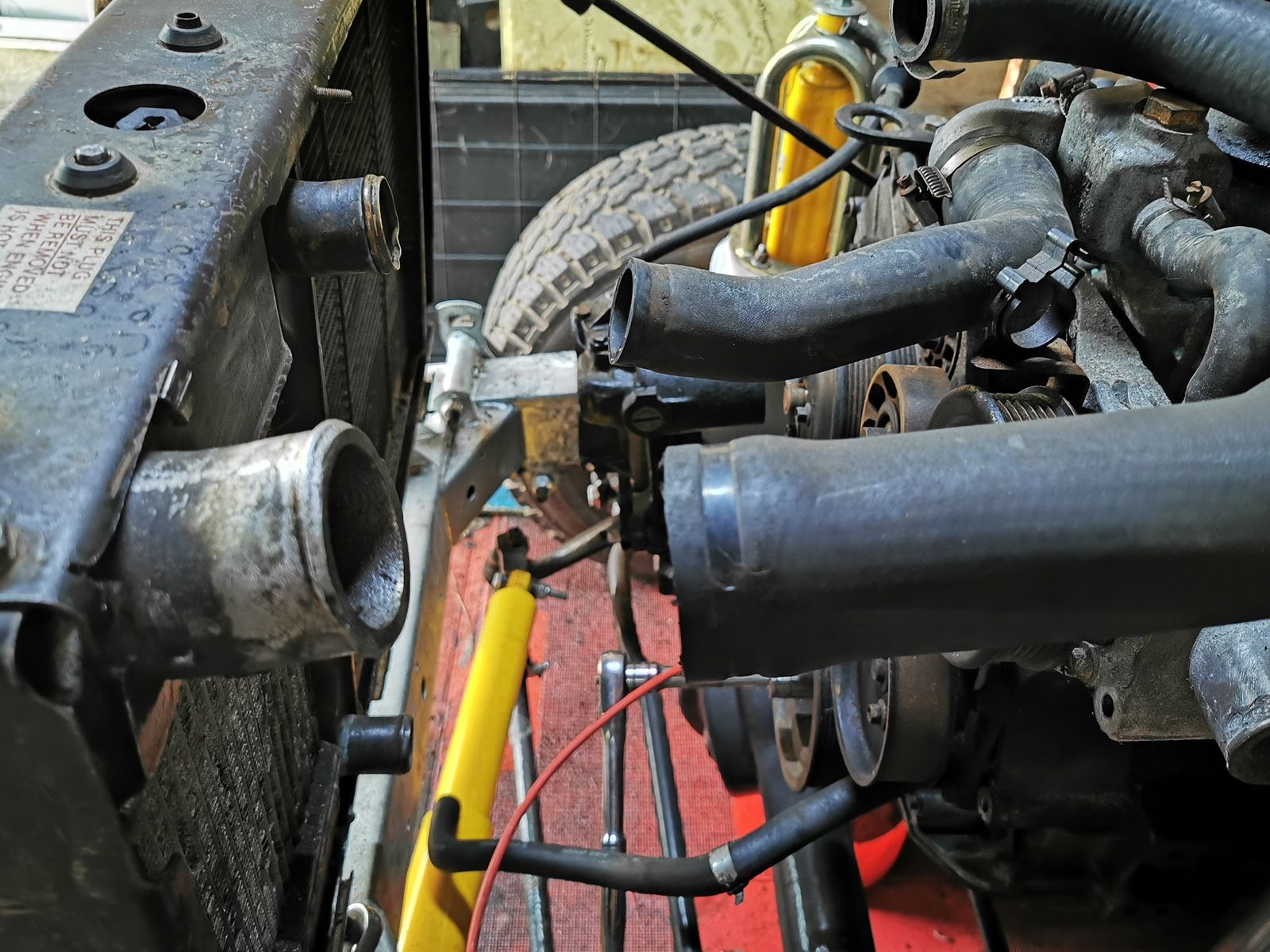

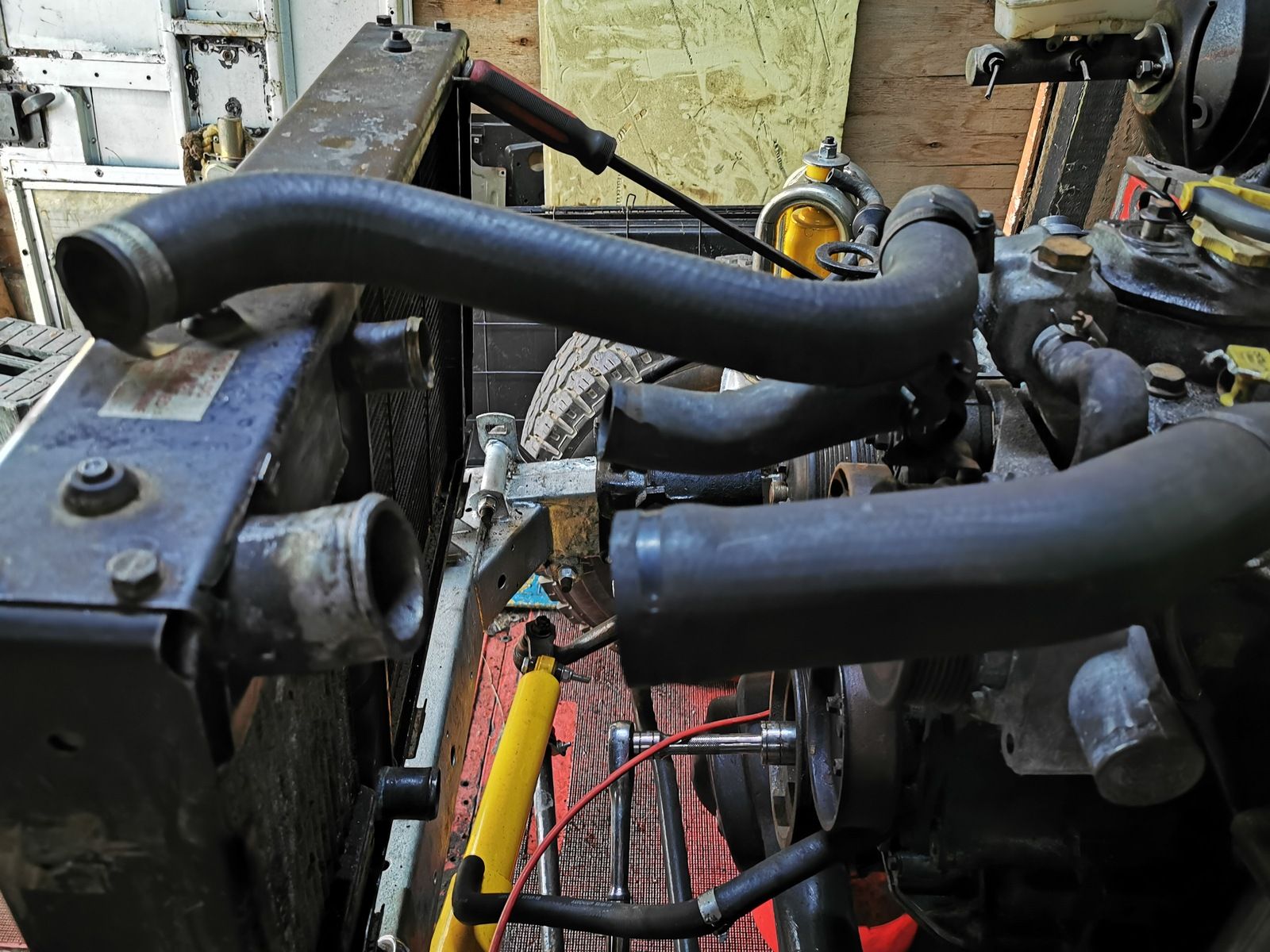

In pic I have arrowed is that your pipe going from bottom of Intercooler to Turbo ?. think I might have a piece of pipe to make that one up, and some people have said that the original bottom Rad pipe fits ok, is it this one https://www.paddockspares.com/esr3296-bottom-hose-300tdi.html
Thanks
Attachments
Rougharse Racing
Well-Known Member
Yes, the standard 300tdi Defender / Discovery bottom radiator pipe has enough free play to fit easily, even though the engine is 6" further back than standard.
The section of the lower intercooler pipe you have arrowed is where I added an extra section.
The section of the lower intercooler pipe you have arrowed is where I added an extra section.
border
Well-Known Member
Yes got the clamp. Ive read somewhere that the bottom cooer pipe fits, and that a 2.5na top fits without extending, not sure if its true.
Cheers Mate
border
Well-Known Member
Rougharse Racing
Well-Known Member

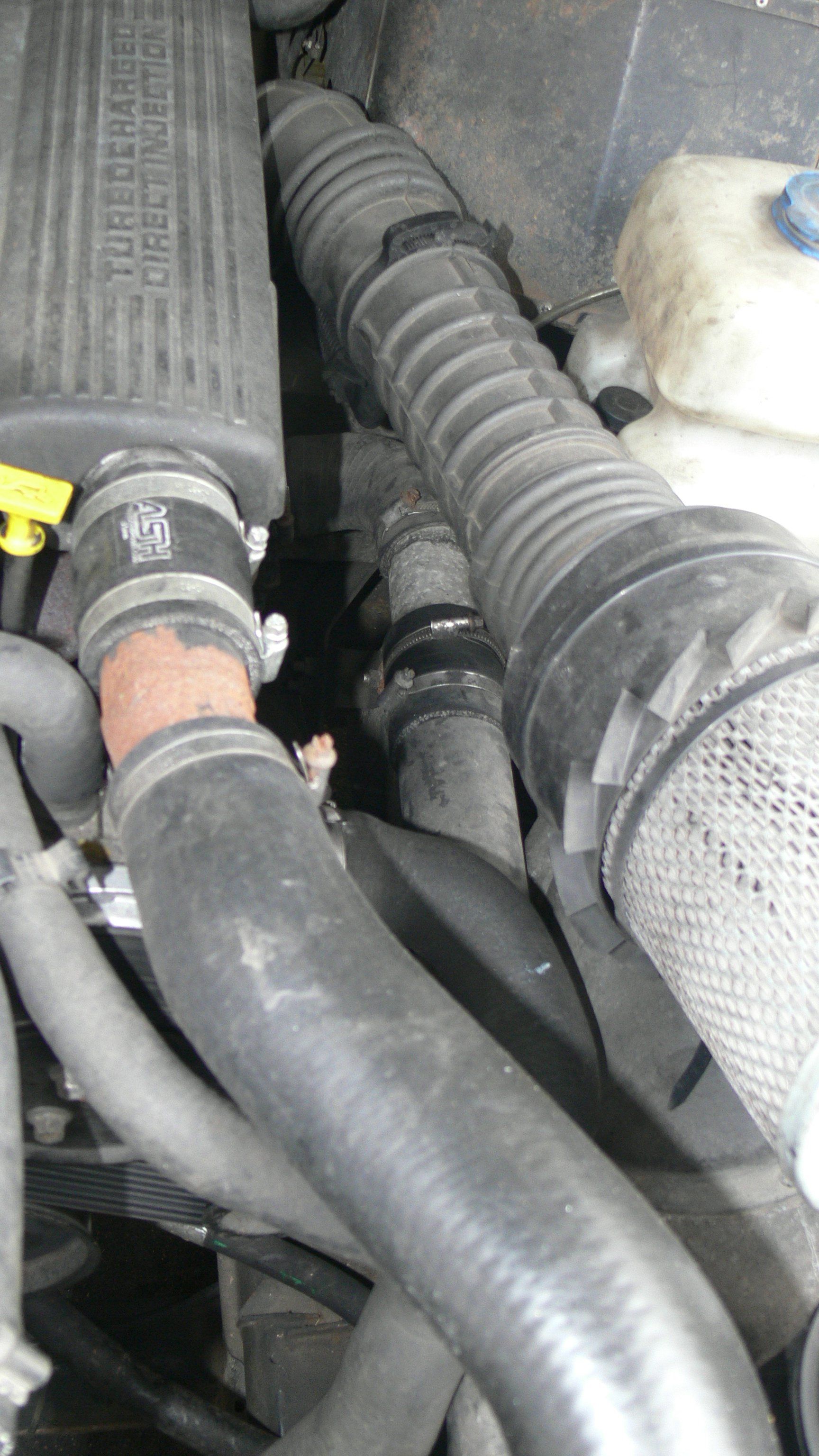

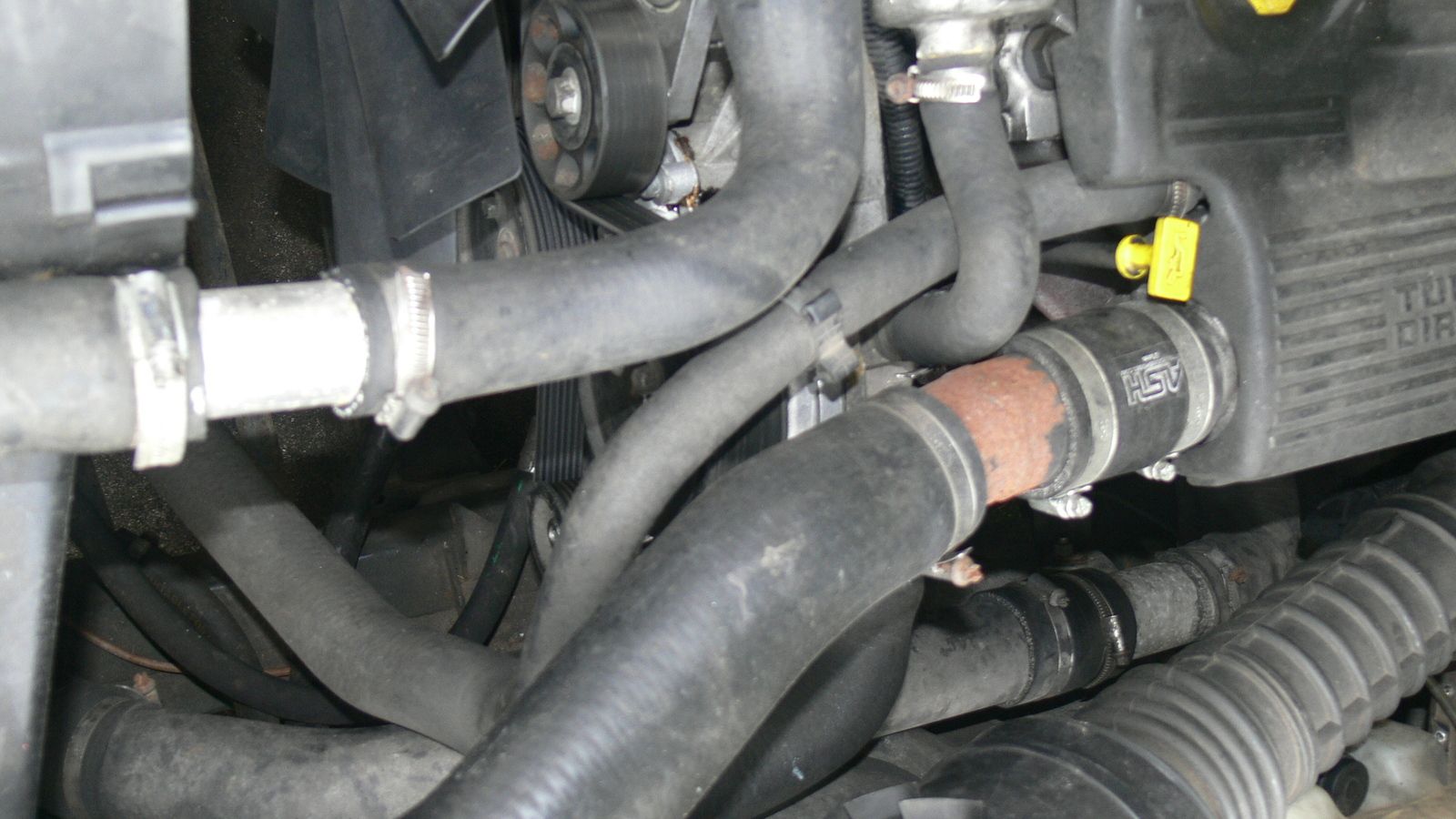

The first pic are where the the oil cooler pipes go, not sure what the hole in the second pic is, but it is next to the oil pressure sender / sensor/ switch. Is it possible that an oil pressure gauge has been fitted in the past and the pipe plumbed in the small hole.
border
Well-Known Member
Just googled defender 300tdi oil pressure gauge and it looks like they go in the same hole that the sender goes in to, Im sure that this spare hole on mine is threaded and oil was coming out, will have to take a closer look tomorrow, or has anyone else got the same hole ??
border
Well-Known Member

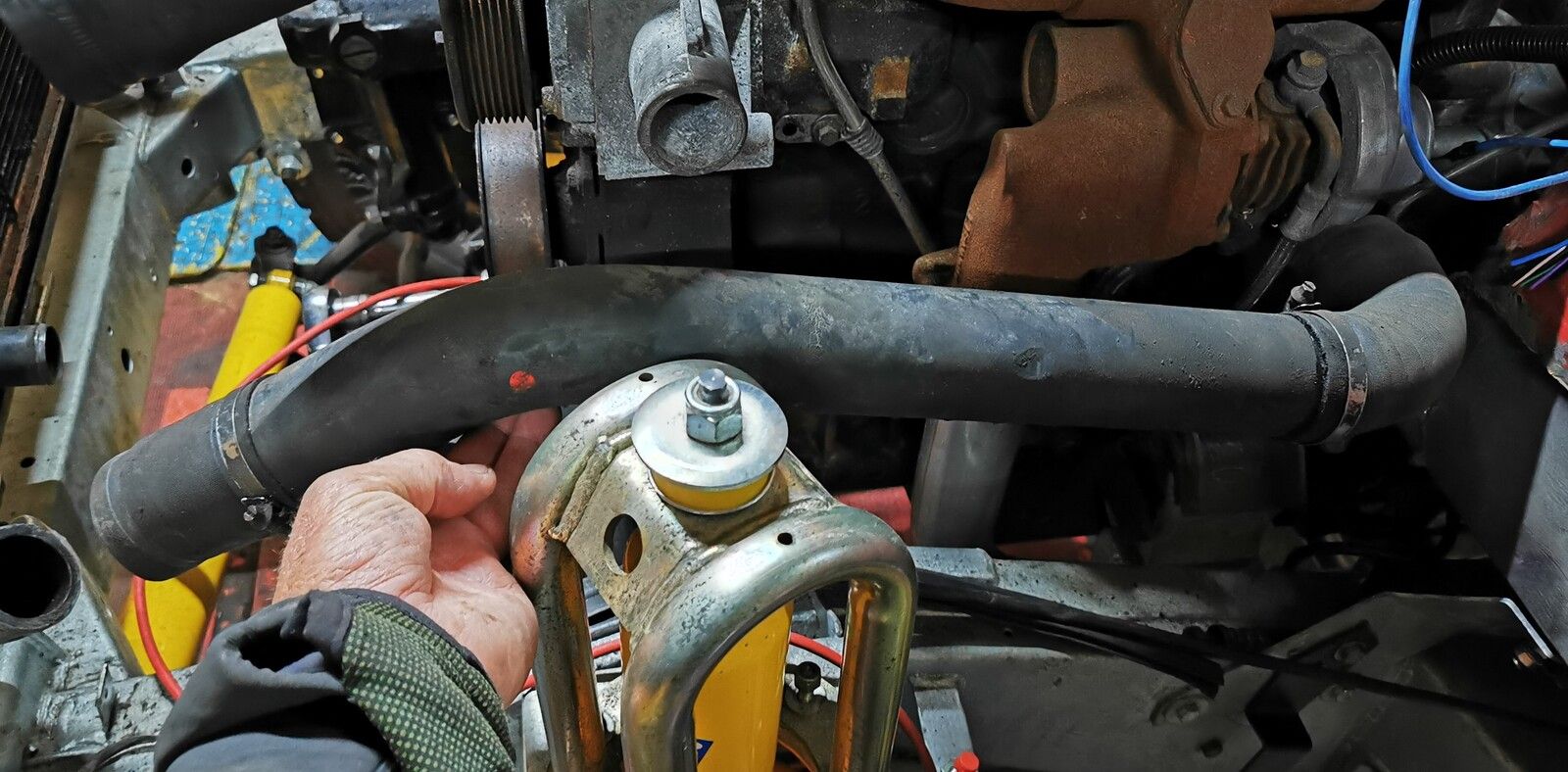

think Ive got all the hoses sorted, got new bottom hose and will fit easily, Found this today in my shed of parts in first pic it looks like the original pipe, just needs a bit of longer rubber at cooler end, also found a pipe to fit top rad too.
