Hi Everyone - long time since I last posted (apologies)...also apologies for posting this in the wrong section on first try!

Wondering if you knowledgable people know what material people use to make their own turbo oil feed pipe?

Referring to the one that bolts on to the side of the turbo - mine is currently covered in metal braid. Can find replacement for 100 quid but seen that they can be made. Not sure what material though as silicon wont take the heat/oil and metal wouldnt flex enough (would it)?

Thanks in advance!



Discokids

Well-Known Member

• Oct 11, 2016

• #2

Considering its use, location and consequences I'd be very tempted to stump up. Or see if anything else fits (19j, 300tdi)



M

mattlumley

Active Member

• Oct 11, 2016

• #3

Discokids said:

Considering its use, location and consequences I'd be very tempted to stump up. Or see if anything else fits (19j, 300tdi)

Click to expand...

Thanks Discokids - will keep that in mind as a back up!

I know they can be made but just dont now what material! 100quid for a short run of pipe seems excessive!



L

lynall

Well-Known Member

Full Member

• Oct 12, 2016

• #4

If its the return pipe I would have thought any hight temp hose would be just fine, quite a few trucks run this very set up, but they do have an initial steel pipe approx 8 inches long.
For feed pipe Im sure any hydraulic place could fit a flex pipe to your existing ends after all hydraulic oil gets very hot.



L

lynall

Well-Known Member

Full Member

• Oct 12, 2016

• #5

Good point by discokid
19j oil feed ETC7207 and ERR3495
200tdi oil feed ERR333 up to Jan 93, ERR3495 Jan 93 onwards
Is this the one?

http://www.ebay.co.uk/itm/Brand-new...208627?hash=item43f4a42bb3:g:frYAAOSwOdpXz-cx



M

mattlumley

Active Member

• Oct 12, 2016

• #6

Thanks all! Will take a look to see if the 19J one would work.

Will look in to the two other pipe suggestions above.

Thanks



M

mattlumley

Active Member

• Oct 13, 2016

• #7

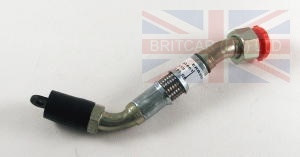

Just done a little more research...the below picture is the same as the pipe im looking to replace but cant seem to find it anywhere...any ideas?



Attachments

•

  10.4 KB · Views: 296

Discokids

Well-Known Member

• Oct 13, 2016

• #8

LRSeries? I've often looked there because they often put a picture of the actual item you're looking at.



L

lynall

Well-Known Member

Full Member

• Oct 13, 2016

• #9

Thats the return pipe so basically cut off the flex section, get some decent silicone hose two jubilee clips and done.
