S

satchmolips

Active Member

• Dec 1, 2017

• #1

Ok can anyone please give me the definitive number and sizes of water pump bolts I need please, particularly the ones that go all the way through into the block. Better still a diagram of which goes where, and somewhere I can buy a set please!



zeaphod

Well-Known Member

• Dec 1, 2017

• #2

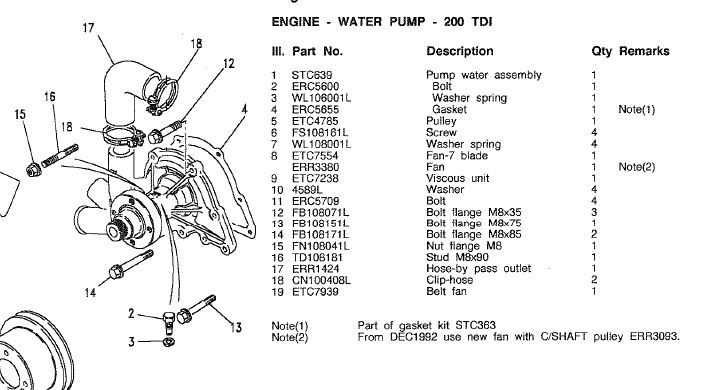

bolts are items 12-14



S

satchmolips

Active Member

• Dec 1, 2017

• #3

Thanks for that, but still not entirely clear to me. I am concerned about the three water galley bolts. (Bottom right corner) Looks like 1x75mm, but what are the others? They are the ones which go right through



Retroanaconda

Well-Known Member

• Dec 2, 2017

• #4

Bolts should be available from any dealer or aftermarket parts supplier

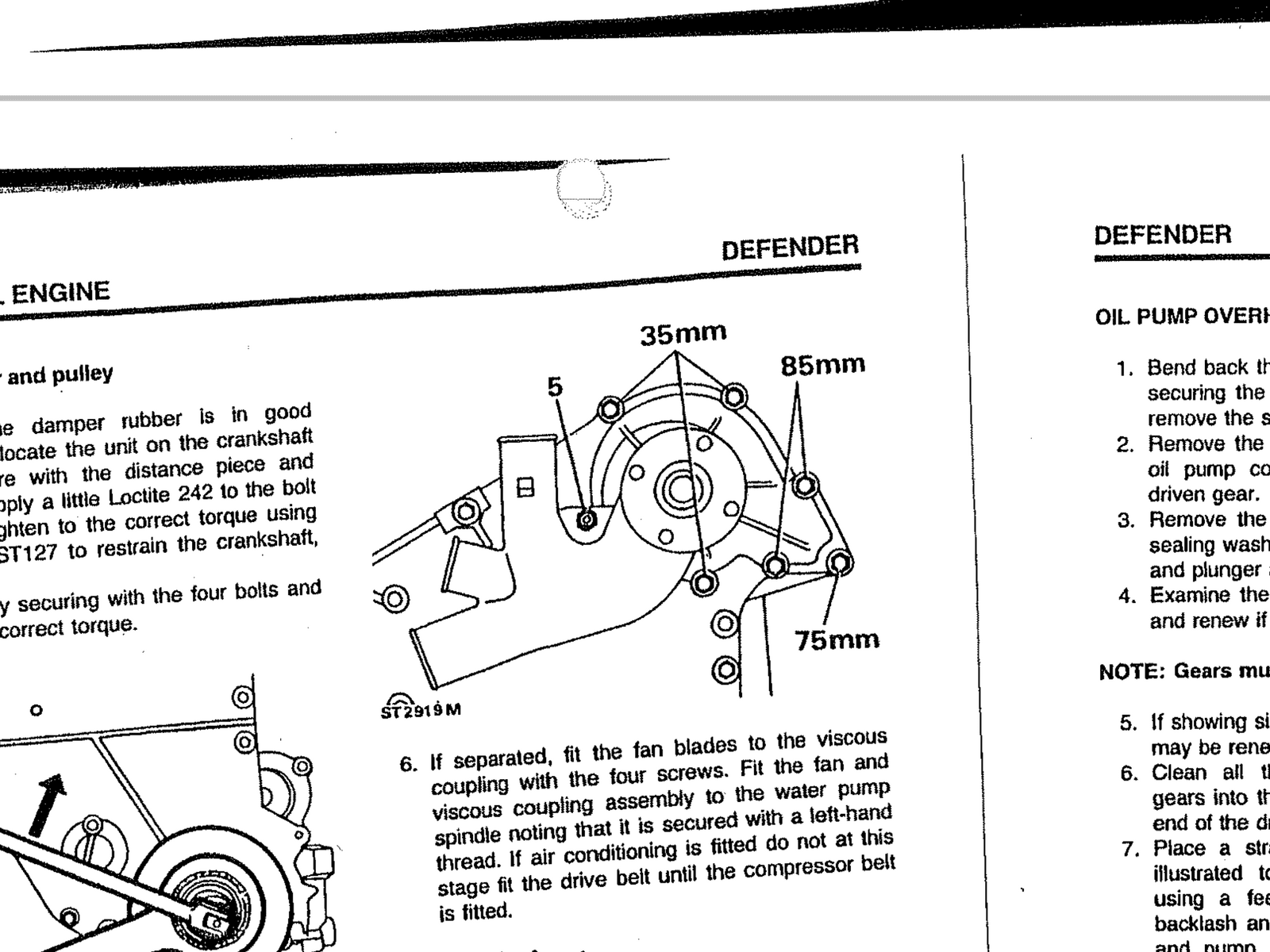

From the workshop manual:



Discokids

Well-Known Member

• Dec 2, 2017

• #5

If you type the part numbers into google, at least one of the suppliers lists the size so you can pop down your local Bolt supplier and get them if in a rush. Make sure you coat them in copper slip or similar when you put it all together.



S

satchmolips

Active Member

• Dec 2, 2017

• #6

That's great, thanks Guys



bluedog333

Well-Known Member

• Dec 2, 2017

• #7

I recently bought a set from Dingocroft, they’ll get all the necessary sizes together for you as a set.
