tony109 · Jun 22, 2021

Ok, I've got 2.25 diesel, 5 bearing engine, and after working on the CAV pump, the injection timing seems heavily retarded. There is a bronze bush that supports the underside of the injection pump, that the scew gears runs through. Is this the same part and arrangement as on the old 2.25 3 bearing engine? Can't find the part number of any info on this. Any help would be much welcomed.. Tony

Blackburn · Jun 22, 2021

tony109 said:
Ok, I've got 2.25 diesel, 5 bearing engine, and after working on the CAV pump, the injection timing seems heavily retarded. There is a bronze bush that supports the underside of the injection pump, that the scew gears runs through. Is this the same part and arrangement as on the old 2.25 3 bearing engine? Can't find the part number of any info on this. Any help would be much welcomed.. Tony

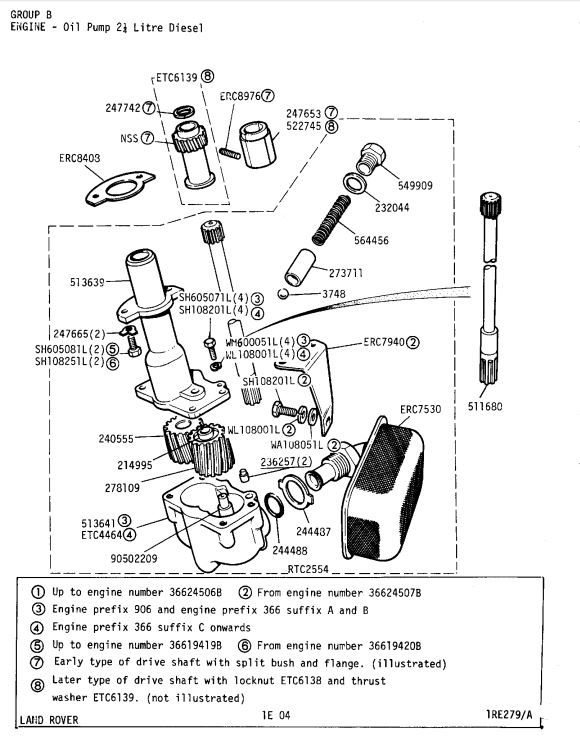

Is this any help Tony see comment 7 and 8 at bottom of page
Later item
https://www.turnerengineering.co.uk/etc-6139-gear-drive-shaft-c2x28747044
Doug aka Serious series from Cumbria Classics believe I may have met you a few times with Pete Stevens and others

adrian hogg · Jun 23, 2021

Working on the pump will not change the split bush or worm gear. If it ran ok before then it's the pump needs looking at.
