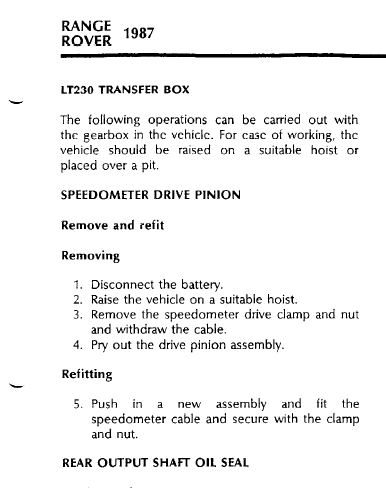

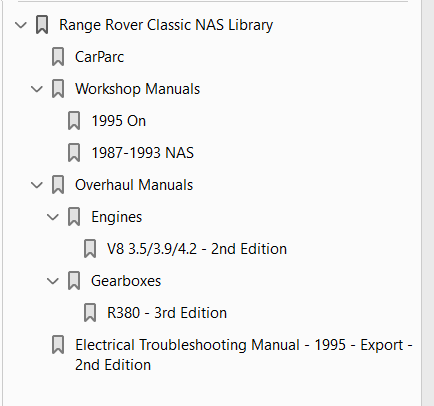

I have this version of RAVE. It has workshop sections for 1995 onwards, and 1987-1993 NAS. The NAS transfer box section incldes details of speedo cable rather than transducer.

Electrical section is 1995 onwards, so only mentions the sensor version.


Check the drive cable from the transfer box to the transducer & the drive cable from the transducer to the speedo drive on the back of the speedometer inside the binnacle.
Check that the inner cables (square ends) aren't broken - I suspect that's what happened.
Thought small drive cable went to transducer,this generates a pulse which is sent to the speedo head via electric cables.
(Been ages since I have had RRC)

Depending on the model year... my 3.5 RR 1987MY had a direct drive.
Then the 1990MY 3.9 with the Borg T box was around. so if Land Rover now decided to fit a a transducer which there are two versions (like the disco 3.9) either a short direct drive from the T box to an inline transducer mounted on the chassis and onwards with an electrical connection to the dash, later versions the transducer is bolted directly to T box so no short direct drive.

The EFI ECU also receives pauses from the transducer so any issues with that I assume that the EFI would also be affected.

Last edited:
Depending on the model year... my 3.5 RR 1987MY had a direct drive.
Then the 1990MY 3.9 with the Borg T box was around. so if Land Rover now decided to fit a a transducer which there are two versions (like the disco 3.9) either a short direct drive from the T box to an inline transducer mounted on the chassis and onwards with an electrical connection to the dash, later versions the transducer is bolted directly to T box so no short direct drive.

The EFI ECU also receives pauses from the transducer so any issues with that I assume that the EFI would also be affected.

Depending on the model year... my 3.5 RR 1987MY had a direct drive.
Then the 1990MY 3.9 with the Borg T box was around. so if Land Rover now decided to fit a a transducer which there are two versions (like the disco 3.9) either a short direct drive from the T box to an inline transducer mounted on the chassis and onwards with an electrical connection to the dash, later versions the transducer is bolted directly to T box so no short direct drive.

The EFI ECU also receives pauses from the transducer so any issues with that I assume that the EFI would also be affected.
I think You've just solved the problem ! I checked the short drive from the trans to the transducer which is ok... I did notice the motor cut out a few times at low revs ? So maybe I changed a bad transducer for another bad one ????
