jwrrc
Well-Known Member
It's been acting up a lot more since I bought it a V8 brother!The car's getting it's own back after having the diesel transplant
jwrrc
Well-Known Member

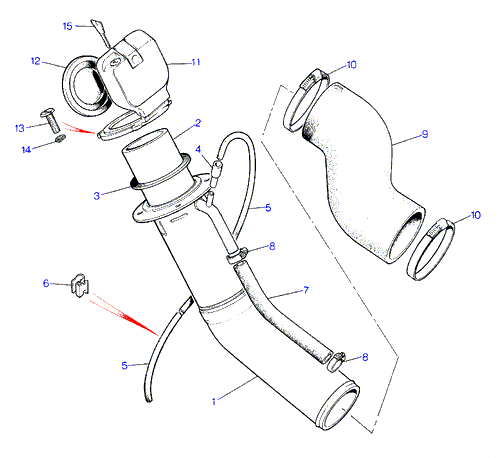

Thanks very much Kev, I'd found that diagram with a Google image search, but no explanation of the numbers, so the 5 is potentially invaluable!
jwrrc
Well-Known Member
It does indeed, time to get the lines blown through tomorrow in hopes of avoiding another trip to the garage!
All this was in an effort to avoid spilling diesel on the drive changing the old leaky tank and lines. It'd have been easier to spill a whole tank of diesel and clean it off with a toothbrush in hindsight!
jwrrc
Well-Known Member
Next update:
Runs fine with no fuel filler cap on
Runs fine if I split the join in the breather where the garage has joined the new hose (tank to join) to the old hose (join to up near the top of the filler neck).
So, the old breather hose is blocked above the point where they've connected it to the new hose.
Why are some garages such bloody cowboys?
Runs fine with no fuel filler cap on
Runs fine if I split the join in the breather where the garage has joined the new hose (tank to join) to the old hose (join to up near the top of the filler neck).
So, the old breather hose is blocked above the point where they've connected it to the new hose.
Why are some garages such bloody cowboys?
tomcat59alan
Well-Known Member
Cos they're working on injuns. Sorry I'll get my coat.Next update:
Runs fine with no fuel filler cap on
Runs fine if I split the join in the breather where the garage has joined the new hose (tank to join) to the old hose (join to up near the top of the filler neck).
So, the old breather hose is blocked above the point where they've connected it to the new hose.
Why are some garages such bloody cowboys?
Datatek
Well-Known Member
I've edited that for youNext update:
Runs fine with no fuel filler cap on
Runs fine if I split the join in the breather where the garage has joined the new hose (tank to join) to the old hose (join to up near the top of the filler neck).
So, the old breather hose is blocked above the point where they've connected it to the new hose.
Why are most garages such bloody cowboys?
jwrrc
Well-Known Member
So today, I split the breather at the point where they'd joined the new hose to the old, found that the hose was a little too large for the nozzle I had so I couldn't blow it through with my small compressor, so with it disconnected I pushed some cable through from the top. **** came out into the waiting bowl I had out. Car now runs fine. No vacuum in the tank.
The garage that did the tank said they thought the breather was fine, so the tank might need to be modified with an additional breather. Essentially, anything to charge more money rather than finish the job they half-arsed.
The garage that did the tank said they thought the breather was fine, so the tank might need to be modified with an additional breather. Essentially, anything to charge more money rather than finish the job they half-arsed.
jwrrc
Well-Known Member
Today's update:
Took it on a longer run today, and there is a vacuum building in the tank. It's much weaker than before, so cleaning out the breather has helped, but not totally resolved it.
So either, the breather isn't completely clear, or the tank isn't capable of breathing enough for a 200TDI. It's a new EFI tank, so that's a vague possibility.
Planned next step is to try to breather a bit cleaner, in the hopes of avoiding modification to the tank.
Bugger.
Took it on a longer run today, and there is a vacuum building in the tank. It's much weaker than before, so cleaning out the breather has helped, but not totally resolved it.
So either, the breather isn't completely clear, or the tank isn't capable of breathing enough for a 200TDI. It's a new EFI tank, so that's a vague possibility.
Planned next step is to try to breather a bit cleaner, in the hopes of avoiding modification to the tank.
Bugger.
tomcat59alan
Well-Known Member
Is the "joint"a one way valve?
jwrrc
Well-Known Member
Sadly not, just a piece of plastic that the two hoses are clamped on to
tomcat59alan
Well-Known Member
I'm know for sure. My 89 VM had a breather as I posted earlier
frog hopper
Well-Known Member
Do you have a sedimenter fitted ? if you have it would be well worth cleaning it out just in case, and only a five min job to check.
jwrrc
Well-Known Member
No sedimenter, but a good shout if it had one, thanks
jwrrc
Well-Known Member
Today's update (now the snow is gone and I'm back to grovelling under the car!) Now with pictures.

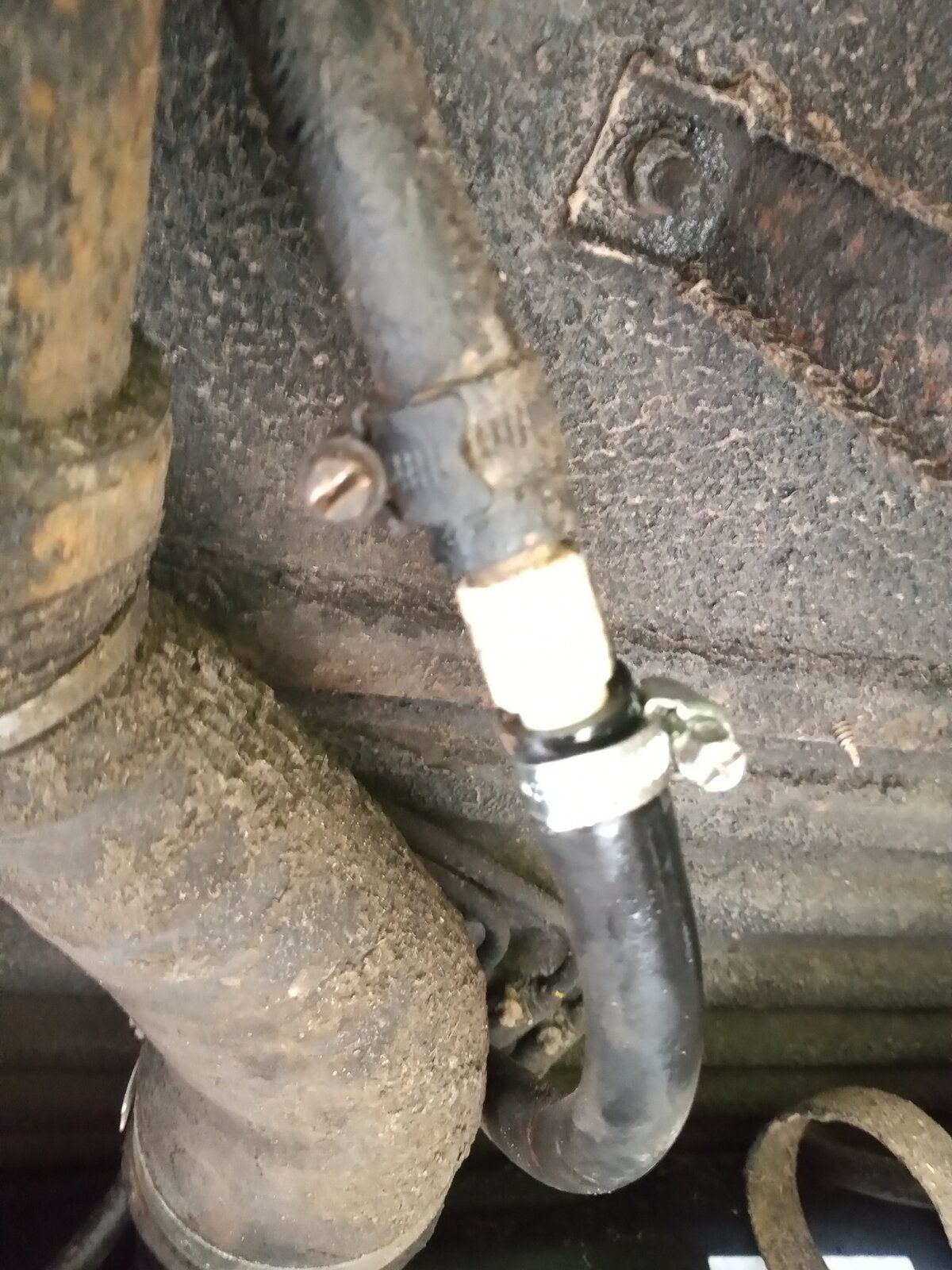

Here's the old and new hose joined by a cowboy and the join:

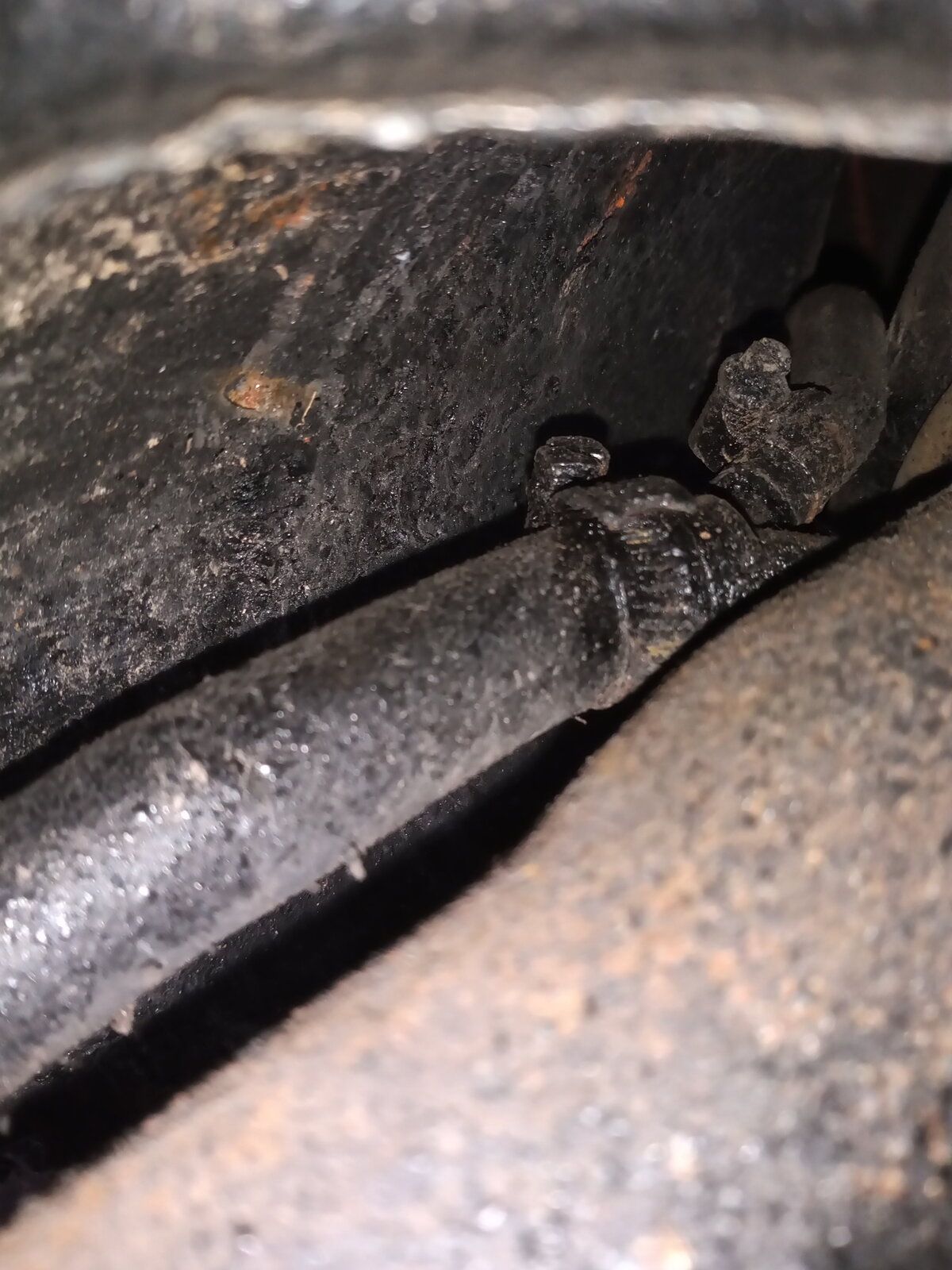

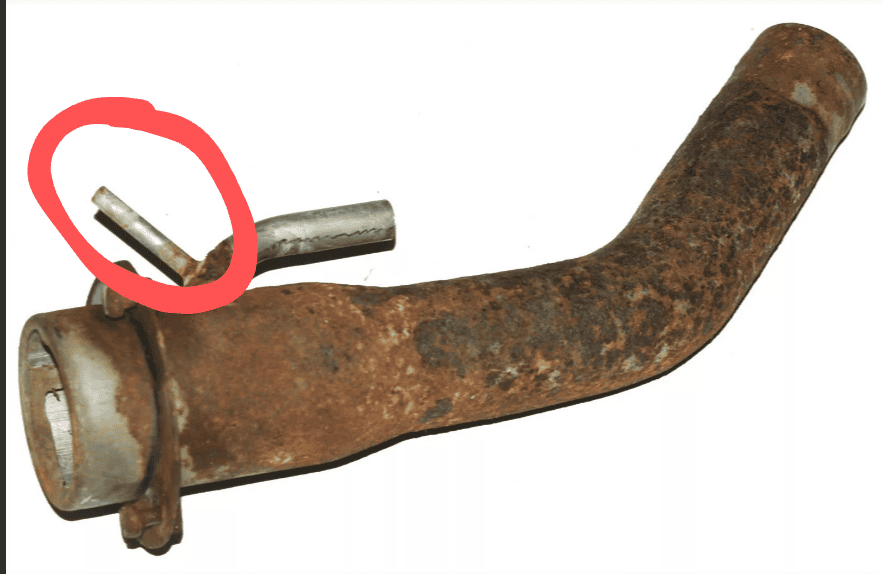

I've run a pipe cleaner through the old section of breather, and it's clear between the filler neck and the join. To my mind, that just leaves the bit of pipe that sticks up over the filler neck with a hose on, which I can't seem to get to:
I'm now weighing up whether to remove the whole filler neck and see if I can clean it properly off the vehicle, or buying a new one.
Any thoughts or advice welcome as ever!
Here's the old and new hose joined by a cowboy and the join:
I've run a pipe cleaner through the old section of breather, and it's clear between the filler neck and the join. To my mind, that just leaves the bit of pipe that sticks up over the filler neck with a hose on, which I can't seem to get to:
I'm now weighing up whether to remove the whole filler neck and see if I can clean it properly off the vehicle, or buying a new one.
Any thoughts or advice welcome as ever!
Hicap phill
Well-Known Member
Could you put an air line on that pipe & blow out?
Push up some welding wire/coat hanger?
them screws sometimes seize & are a pain to get out to remove that neck.
Can’t remember if there is a panel on the inner rear wing to make life easier(could be the TDI high neck models)
Hicap phill
Well-Known Member
Just had a thought….
If them 2 pipes are linked,both go into the tank so even if the small 1 was blocked it should still allow air via the larger pipe.(or does that small pipe go to the out side)
could your fuel cap breather be blocked then?
If them 2 pipes are linked,both go into the tank so even if the small 1 was blocked it should still allow air via the larger pipe.(or does that small pipe go to the out side)
could your fuel cap breather be blocked then?
