v8250

Well-Known Member

• Sep 22, 2021

• #1

Dear All,

I'm wanting to install a rear ARB for my 1987 Ninety. Have tracked down correct components and weld on YRM mounting brackets. Could I ask you kind boys and girls if you could take/post some pics for me, plus the following dimensions

• lh/rh axle mounting points [inner and outer bracket edges to rear axle end]
• lh/rh ARB clamp points

Thank you,
v8250



Britcyclerider

Well-Known Member

• Sep 23, 2021

• #2

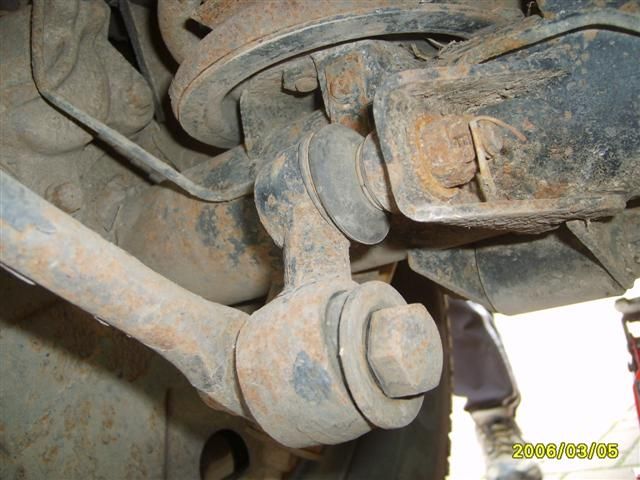

These may help.....found on the web. Do you have a front fitted already? I would be interested to know how you get on.



Attachments

•

  52.4 KB · Views: 87

Britcyclerider

Well-Known Member

• Sep 23, 2021

• #3

Rear bracket replaces the bracket fitted to the tow bar anchor brackets, but I reckon you could add a plate to what is already fitted.
