robbie8922 · Feb 21, 2011

Did a bit more on the landy tonight.

Started cutting out the passenger foot well. The rot went a lot higher than i though so will need to fabricate some sheet to repair what ive cut out.

At least all the rot is out now so when they shot blast it on wednesday it will be ready to weld to.

Ill post some pics tomorrow. Didnt take the camera round tonight.

TheKeymeister · Feb 22, 2011

With regards to your hazard switch, it's not mandatory to have one as it wouldn't have come with one as standard. Up to you if you want to try wiring one in though, might have a crack when I do mine but I'm making a complete new loom from scratch for that

As for your headlights 2a's had them in either depending on year so either way could be 'original' to yours, people seem to prefer the look of lights-in-grille though.

TheKeymeister · Feb 22, 2011

From what I can find headlights moved from grille to wings in Feb 1969 so it really could be either way unless you know the exact build date!

robbie8922 · Feb 23, 2011

Thanks for finding that out.

The previous owner filled the front swivel's with one shot grease.

Is this a bit of a bodge to stop a leaking seal or is it normal?

Also shall i remove the top cover and check how full they are?

Thanks
Rob

robbie8922 · Feb 23, 2011

Also,

Dropped the chassis and bulk head off to A1 Powder coating to be blasted today.

Hoping to get it back tomorrow and then start the welding on the weekend. Ill post some pics when its back.

Has any one here had there bulk head galvanized (dipped). The guy at A1 thinks that it will distort a lot and that i would be better having it hot zinc sprayed.

Only problem i can see with this is that you cant spray any return or inside sections with the metal spraying.

I was thinking about having it galvanized (dipped) and bolting a pice of angle iron between the bottom of the door posts and then between both footwells so when its dipped it wont warp as much.

Any advice would be appreciated.

Thanks
Rob

robbie8922 · Feb 25, 2011

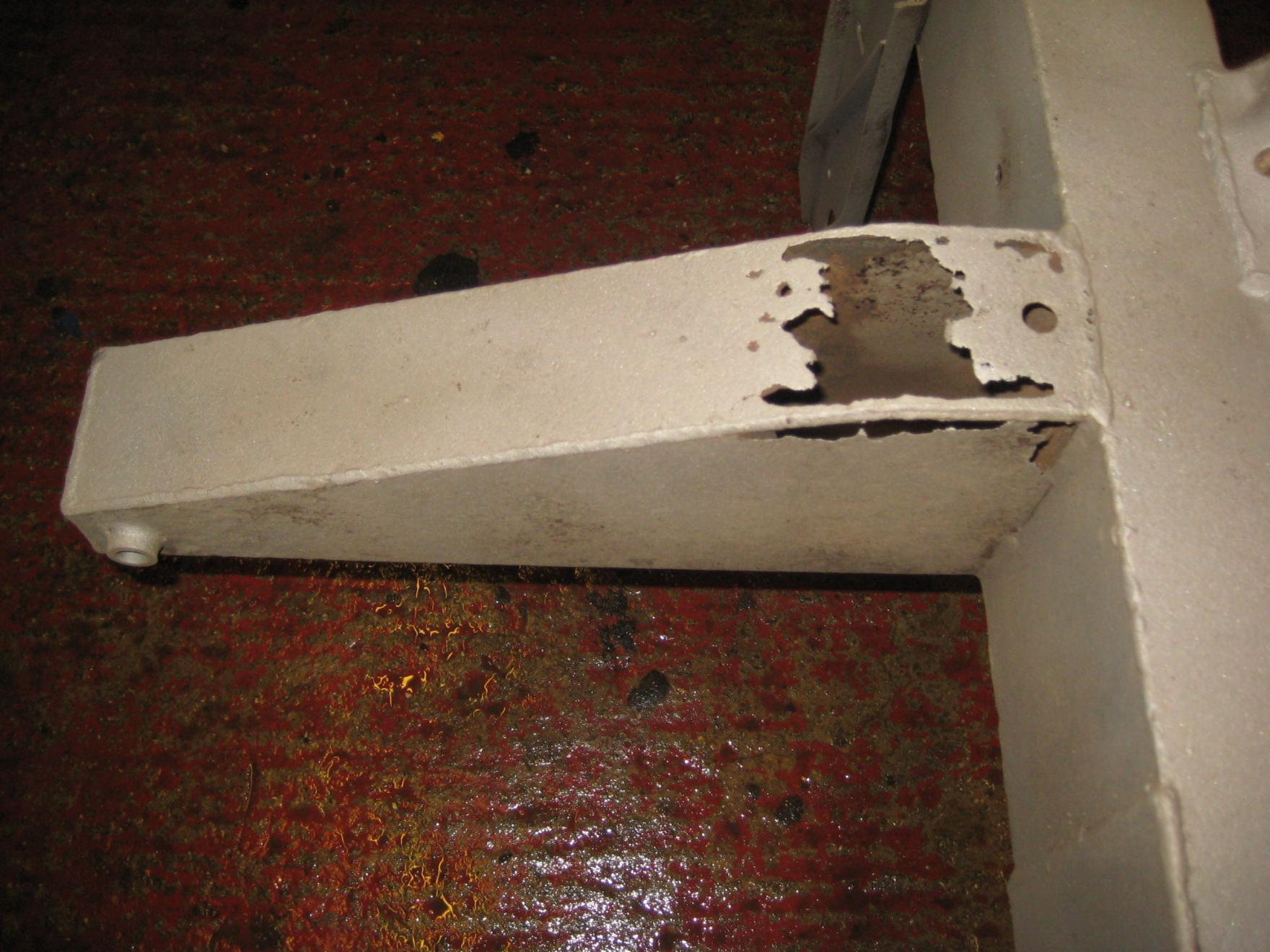

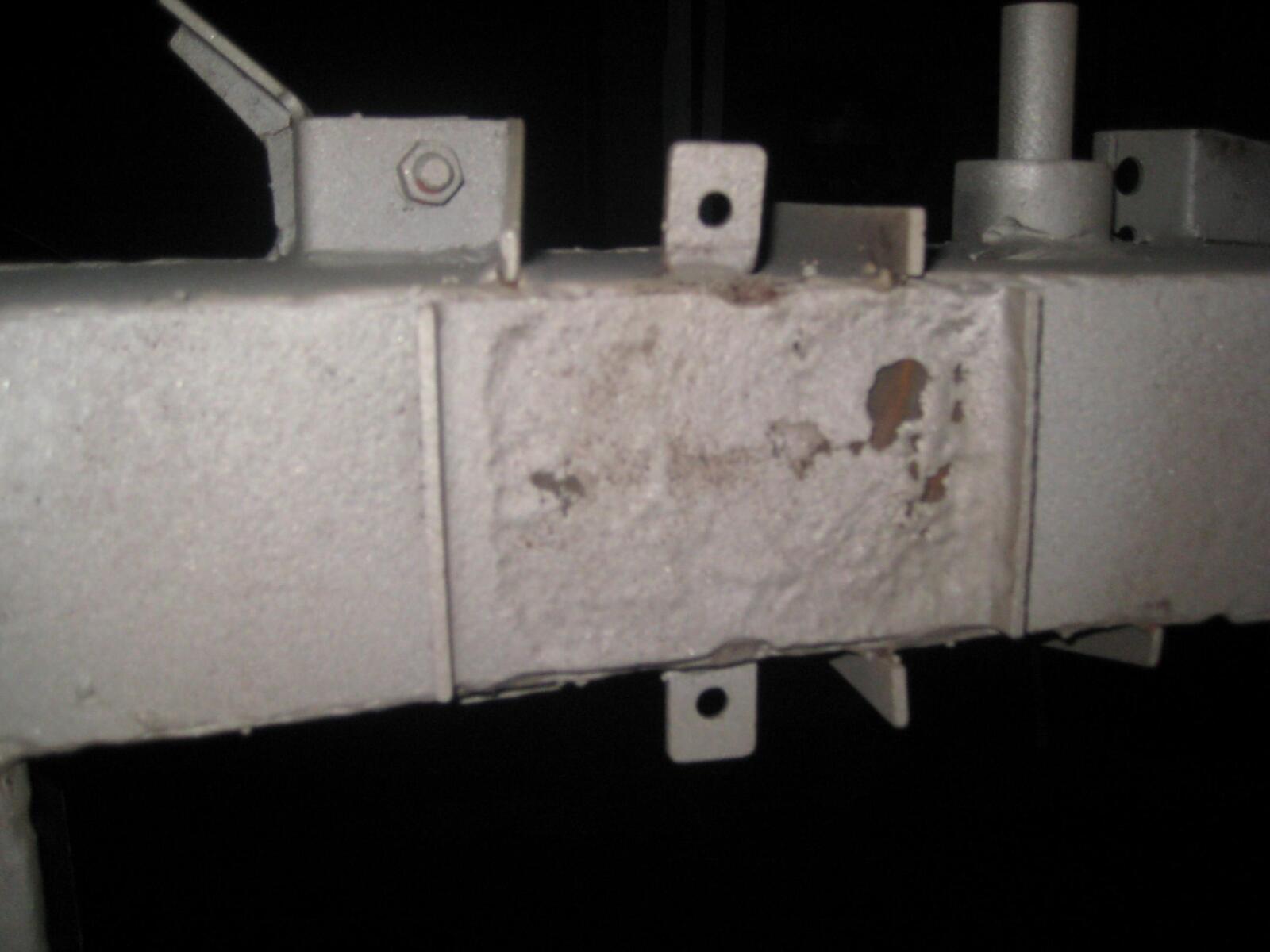

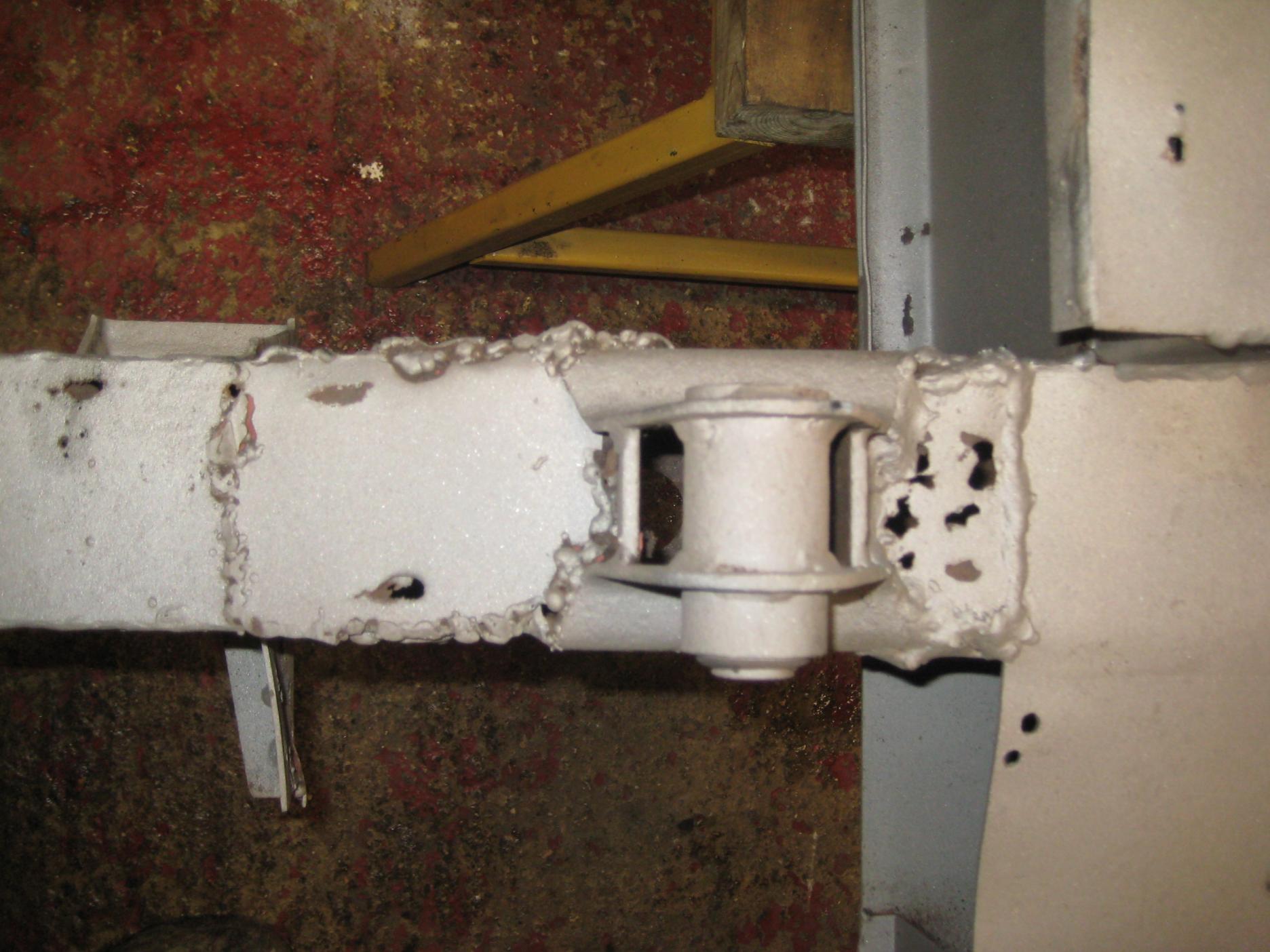

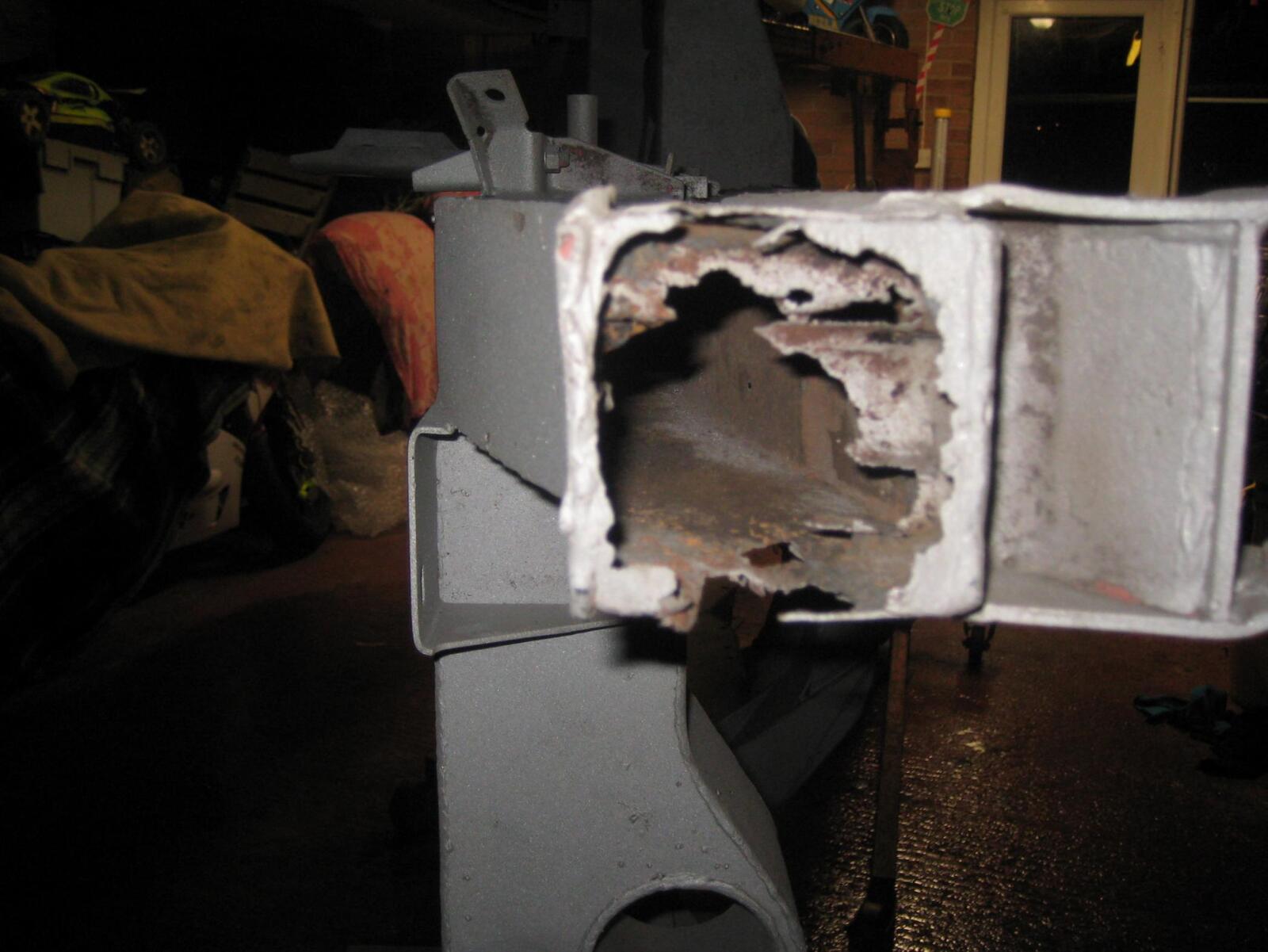

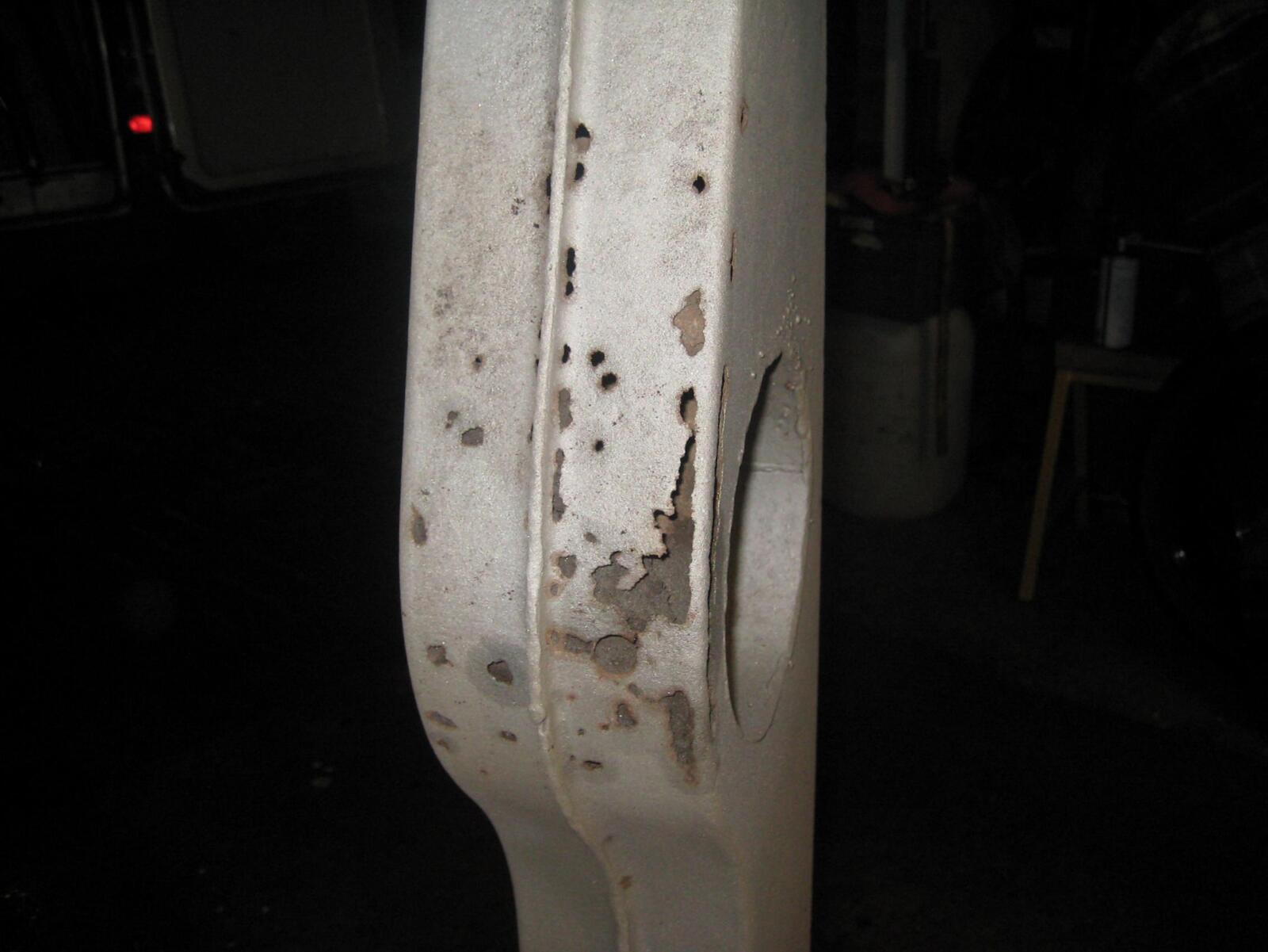

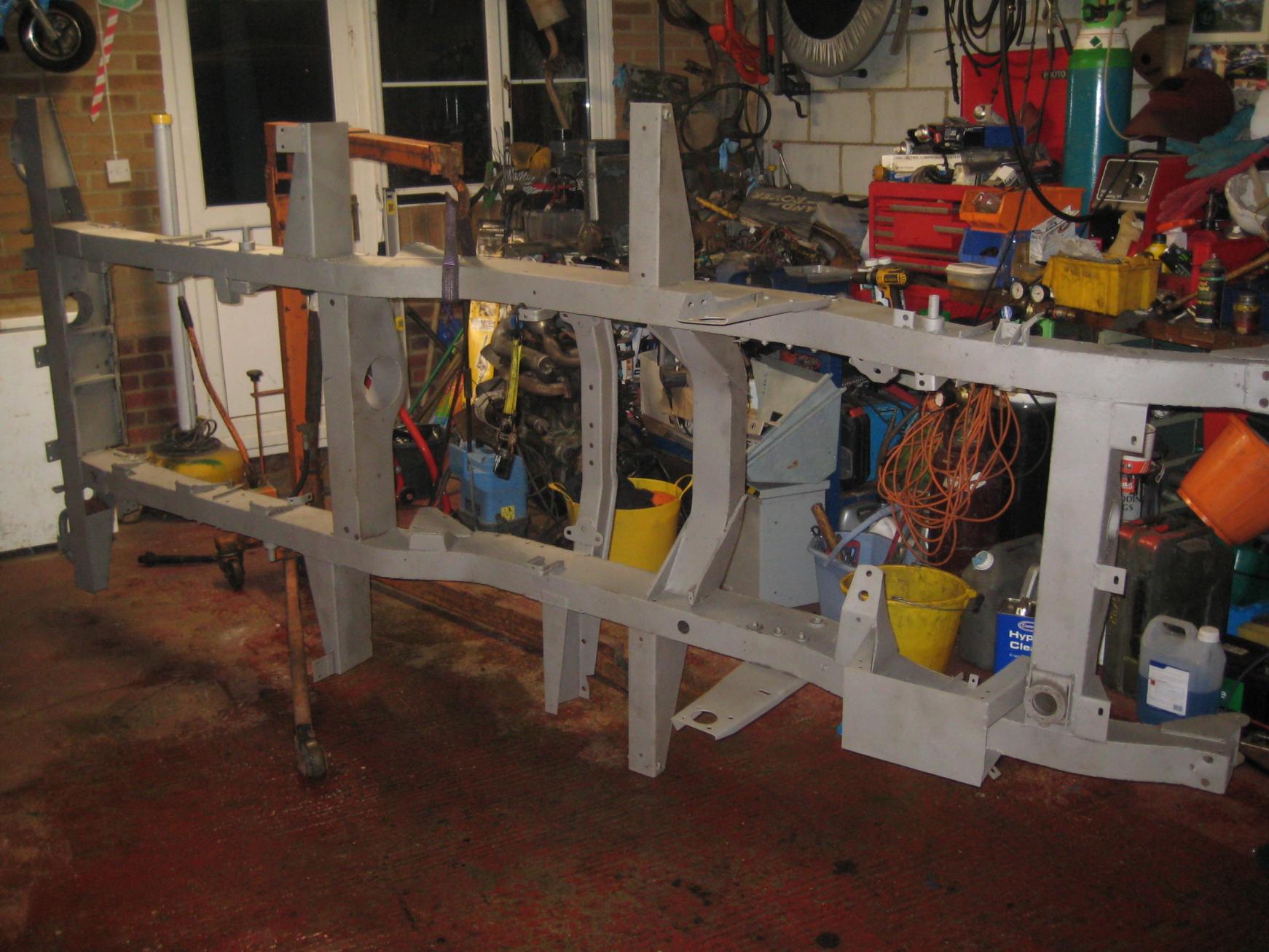

A few pics of what is left of the chassie after shot blasting.

robbie8922 · Feb 25, 2011

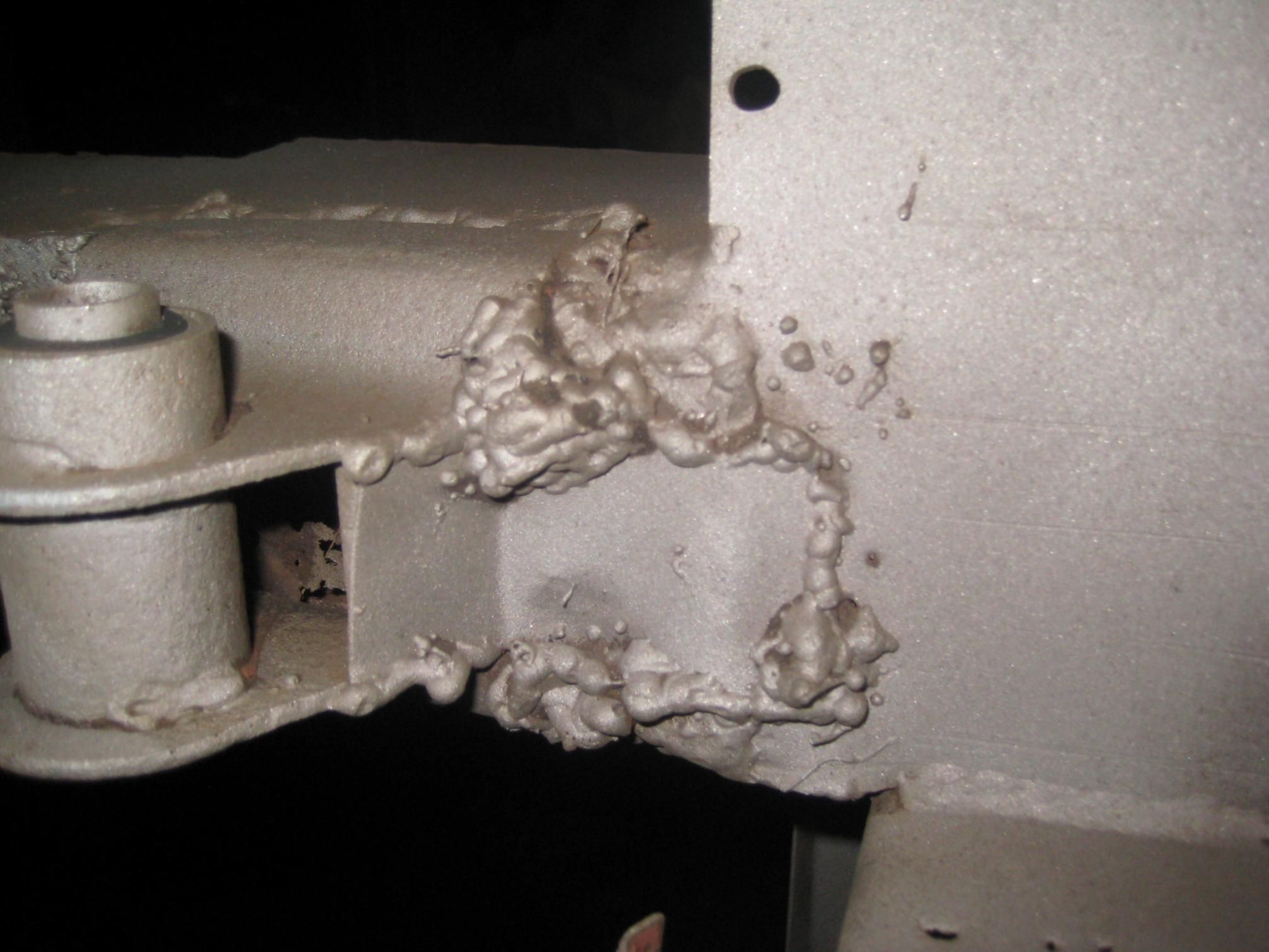

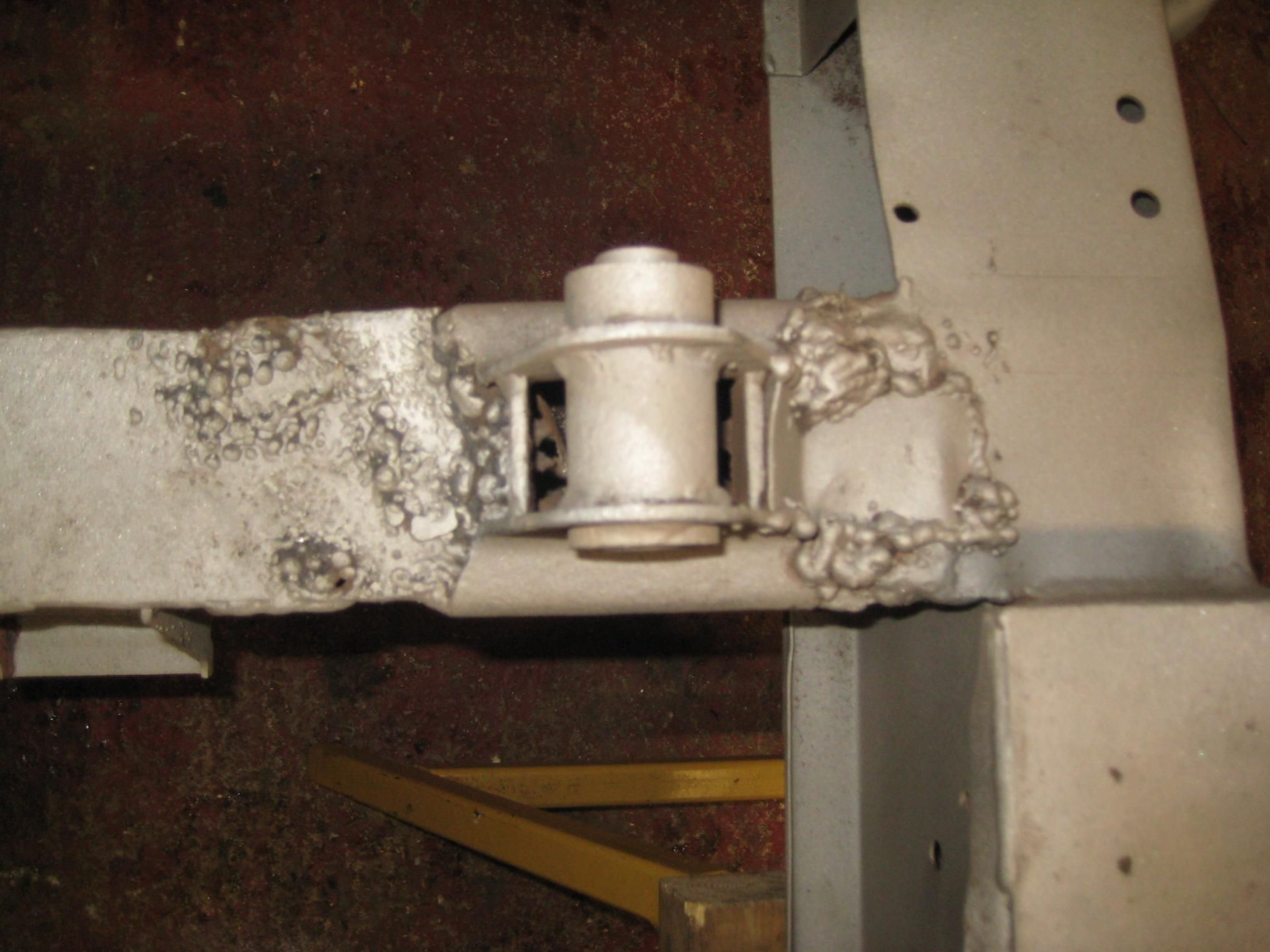

And the award for the worst bit of welding ive ever seen goes to.............

It was hard to tell what was under all the paint. Didn't expect to find this.

robbie8922 · Feb 25, 2011

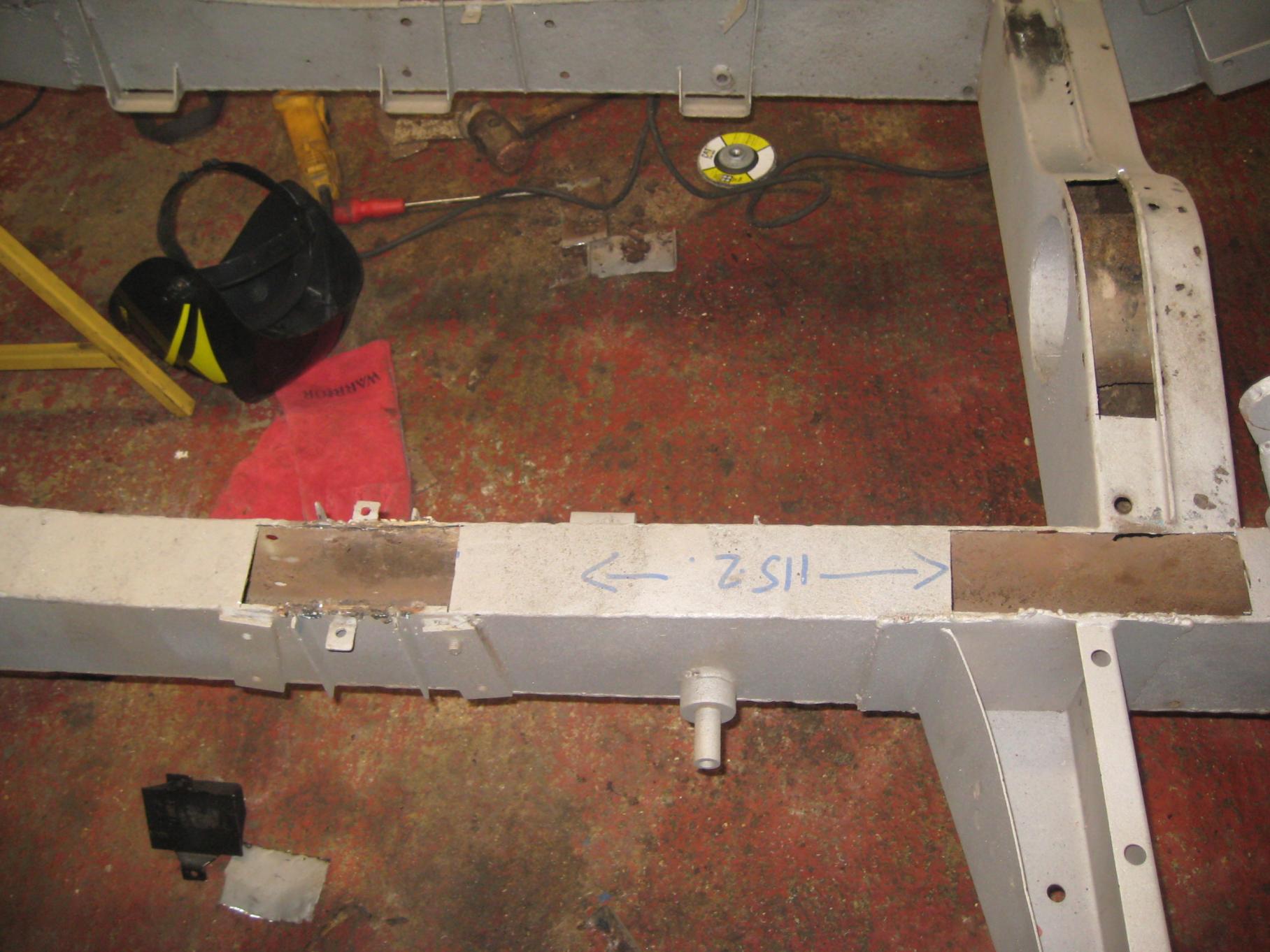

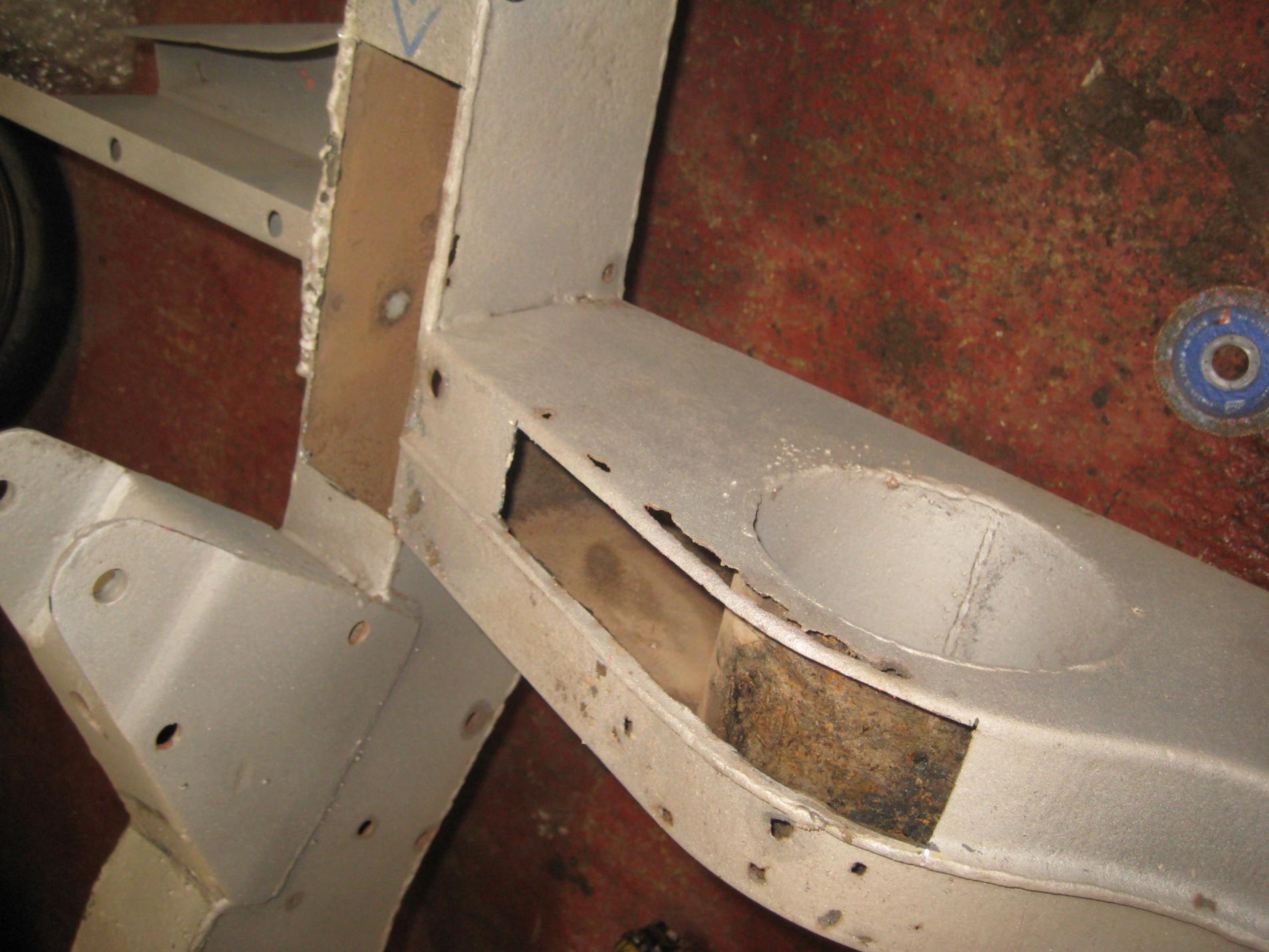

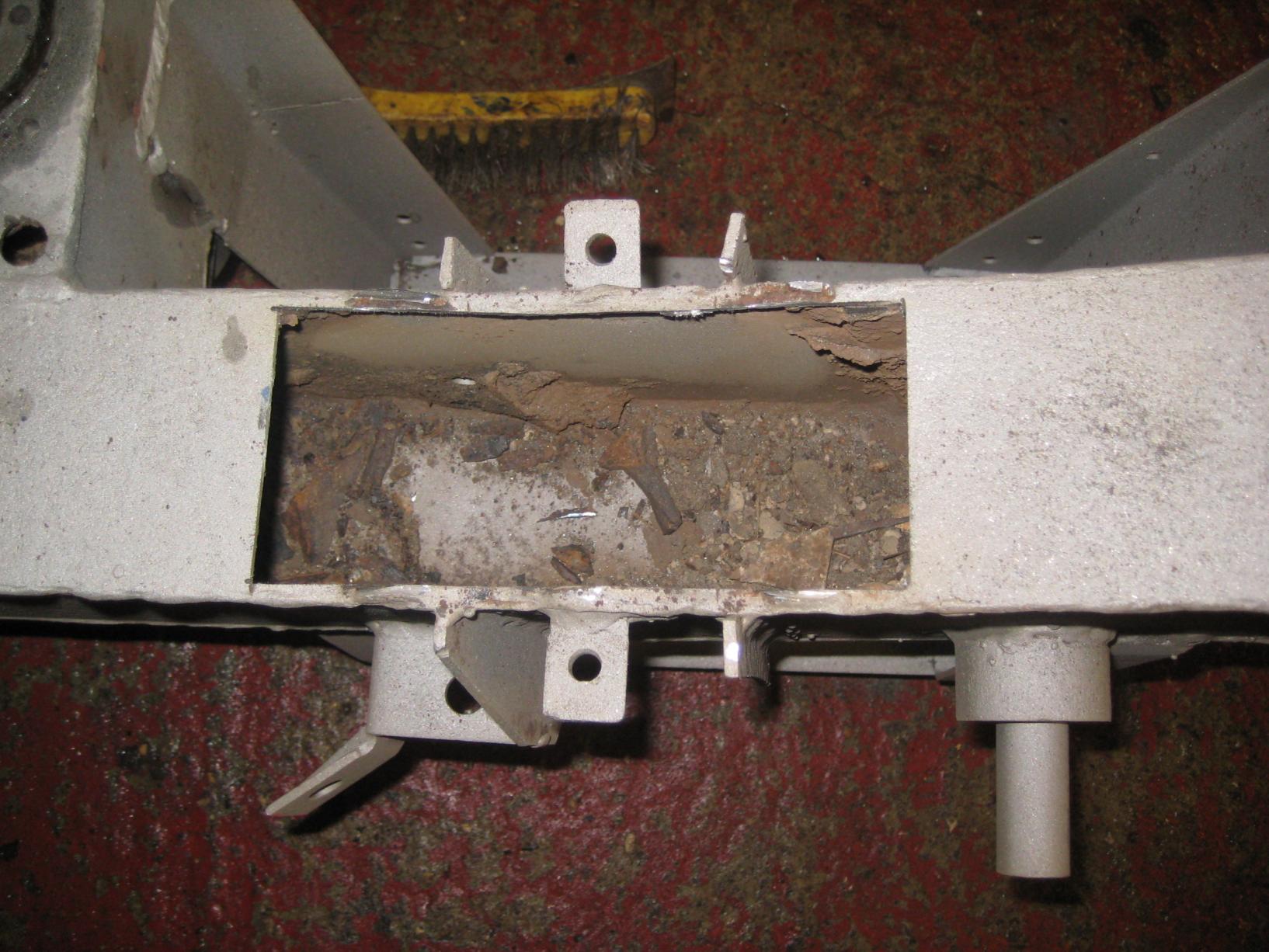

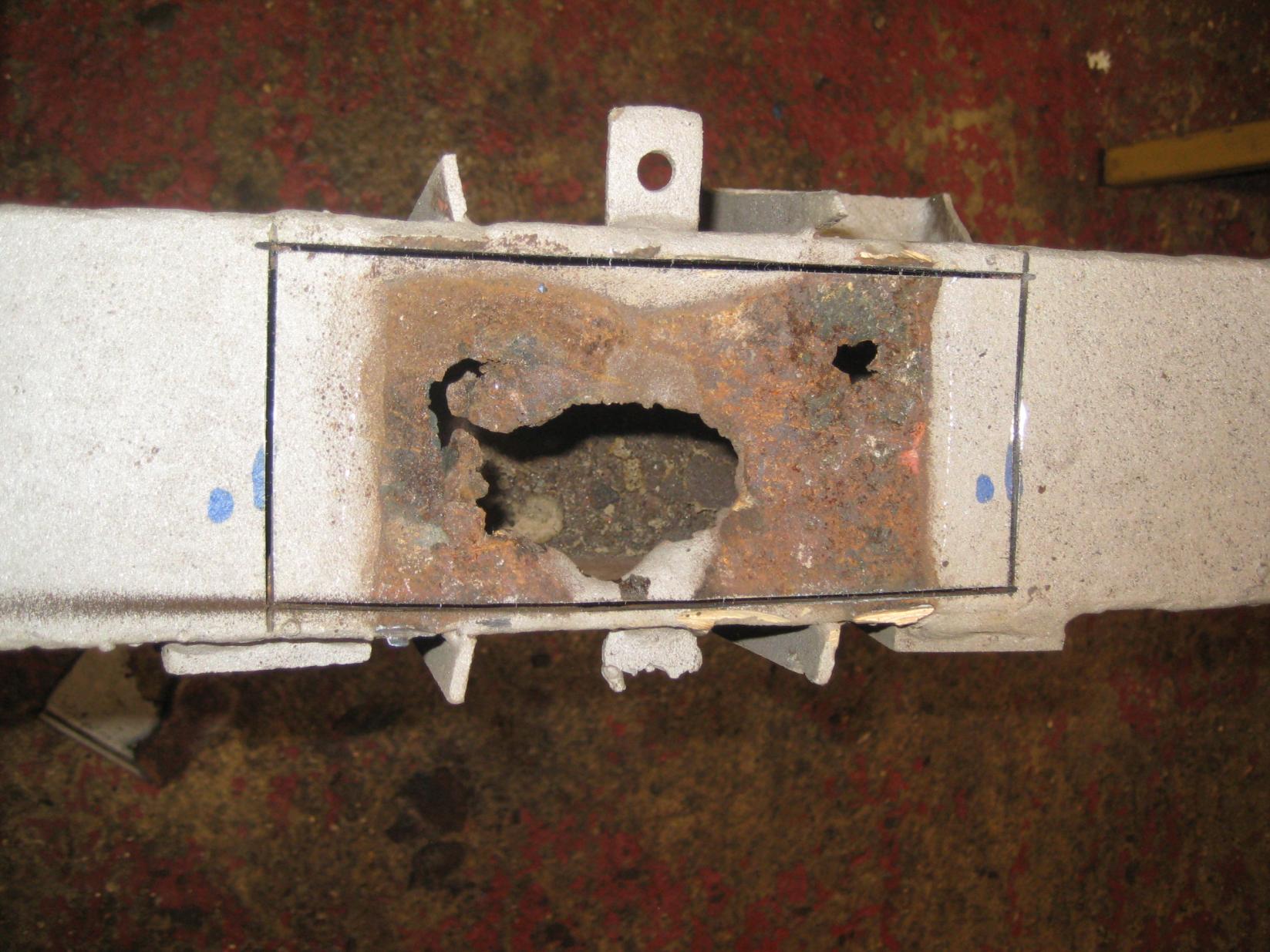

Wasnt sure where to start so got the grinder out and started cutting!!!

robbie8922 · Feb 25, 2011

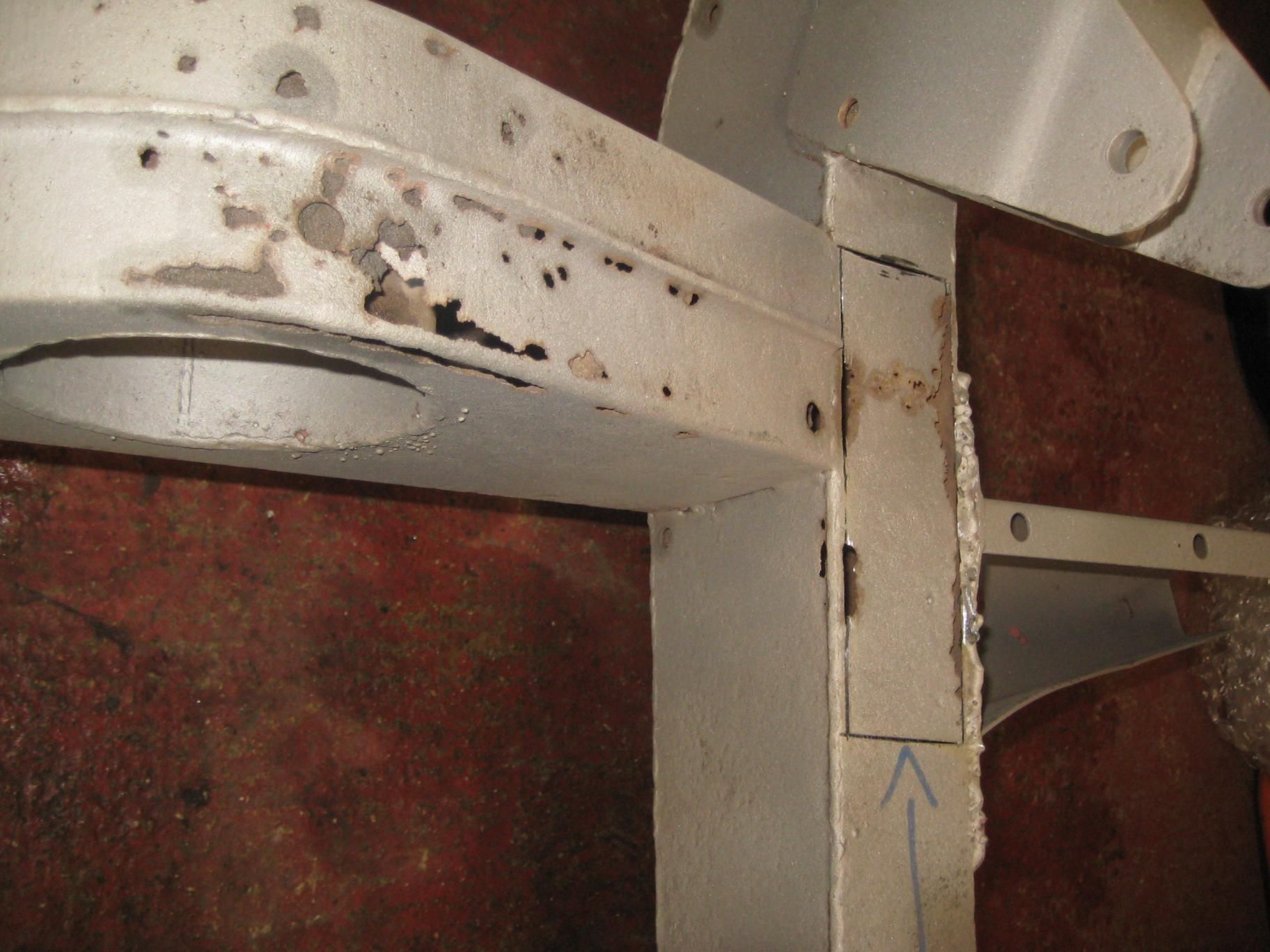

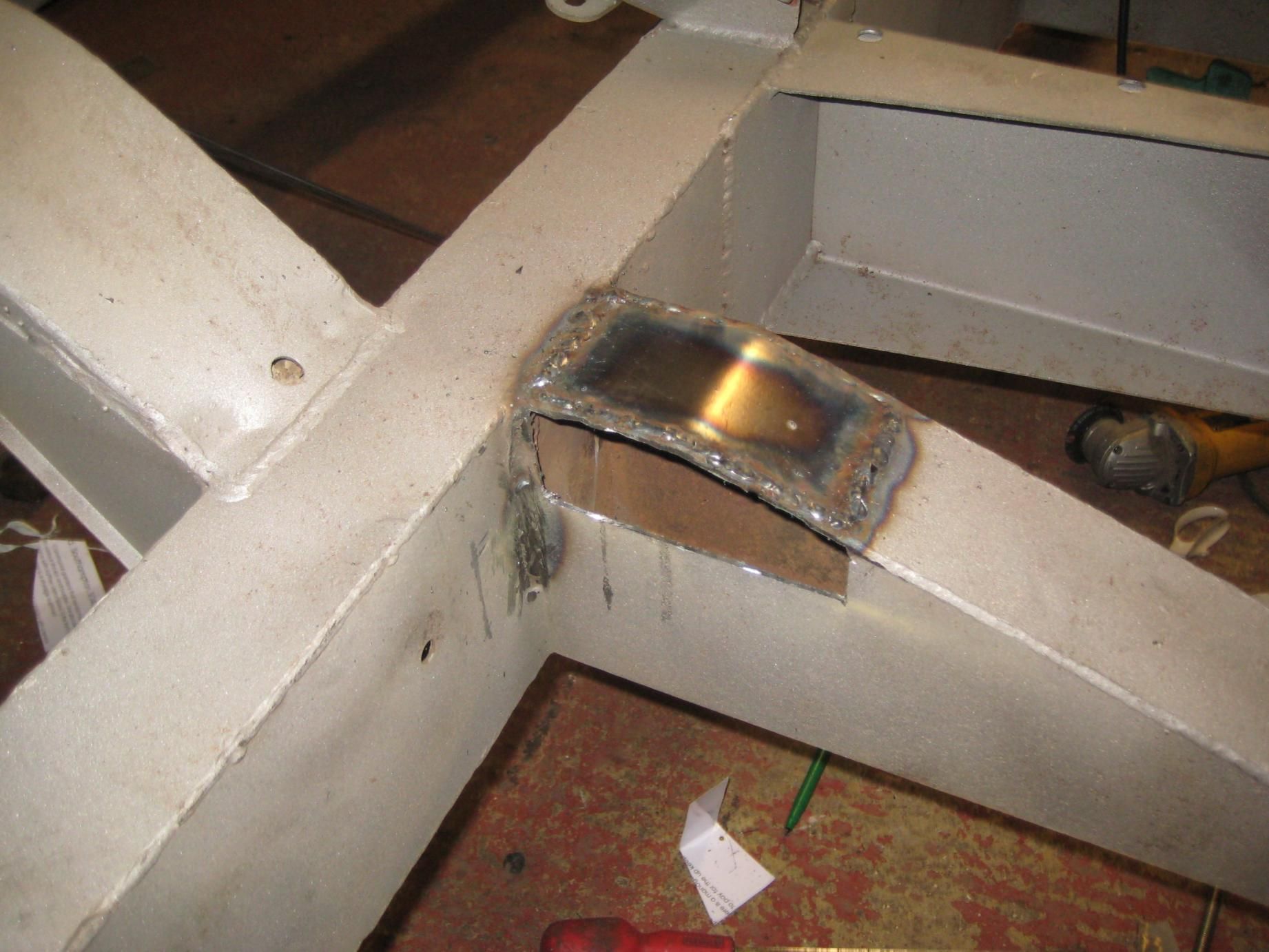

Went to metal super market and had some plate cut to the right width's then all i had to do was cut it to length.

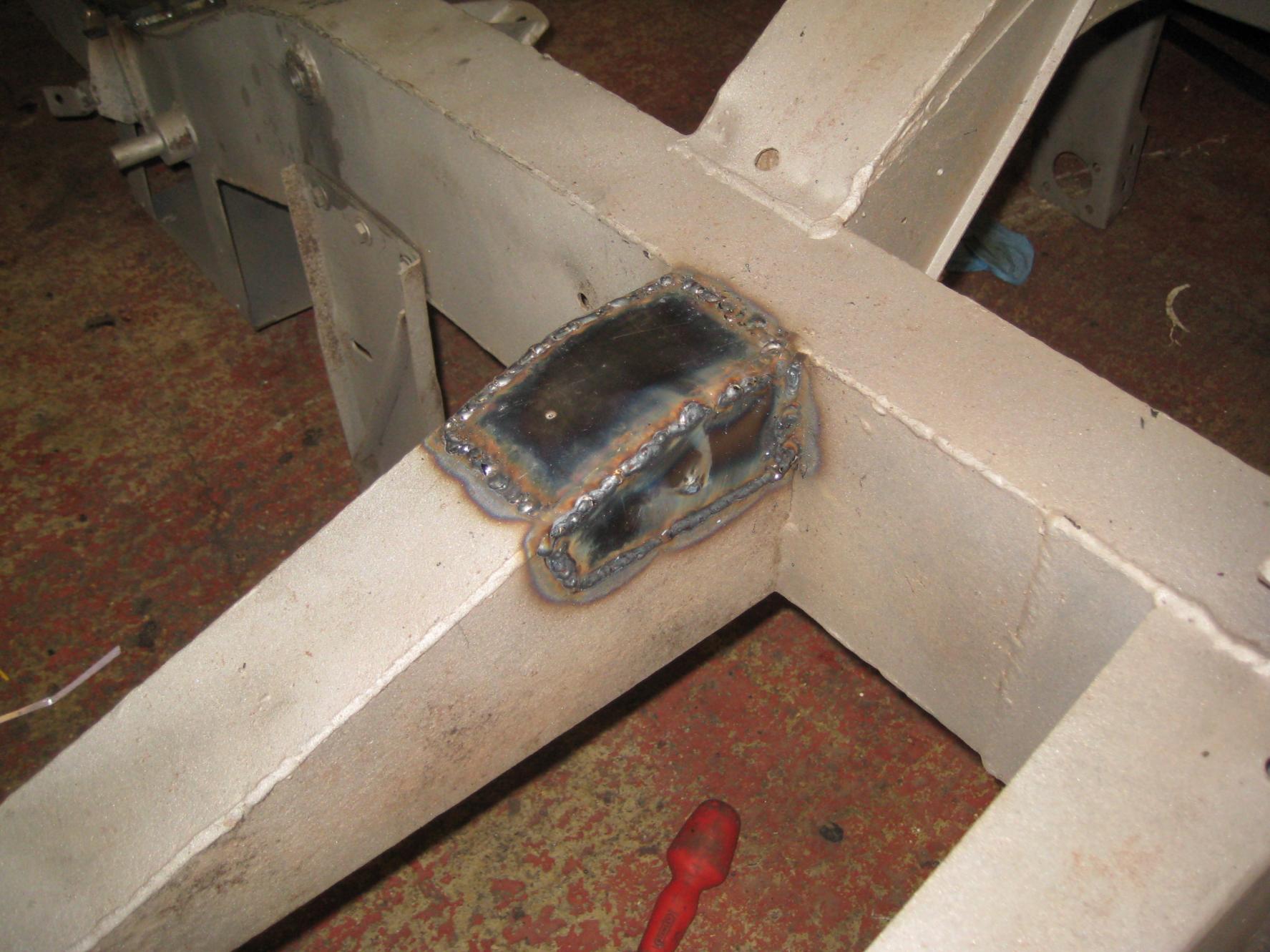

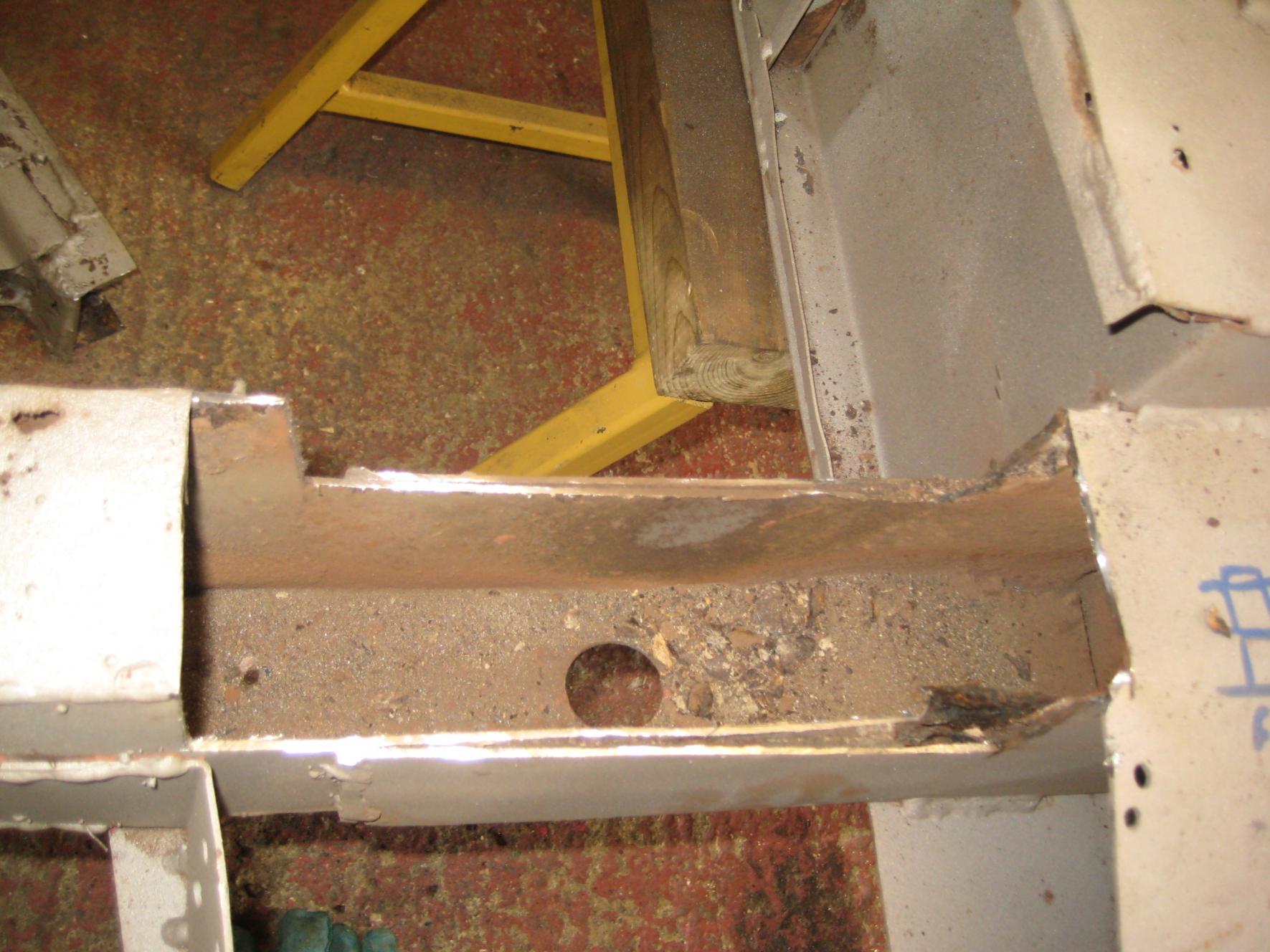

For the bump stops,

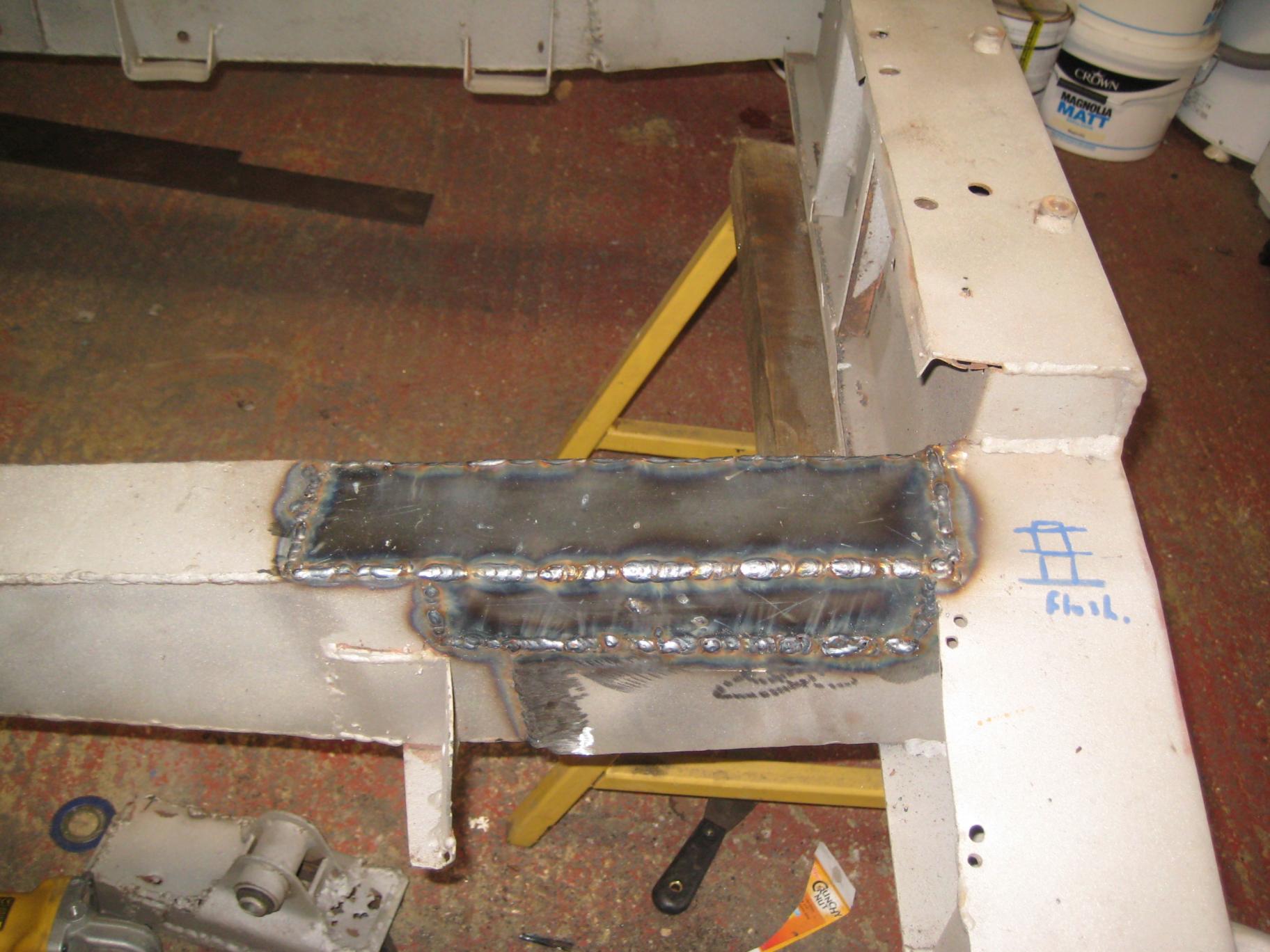

Cut out the rot, cut the plate to size, welded in place then ground back weld.

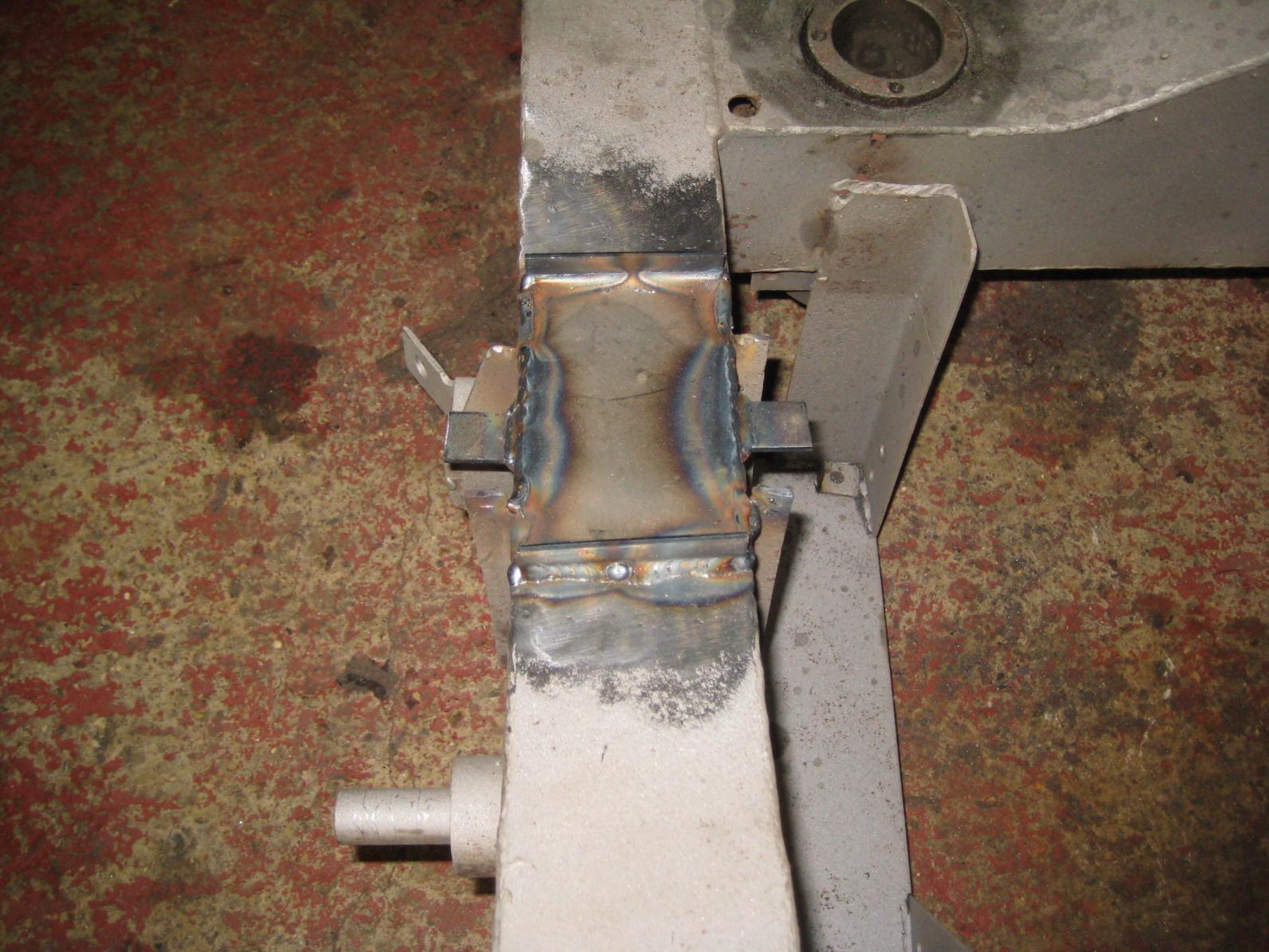

Had some 3mm plate cut to size for the backing plates for bump stops.

Ive only welded this one on in a few places as that was all that the old ones were on with but think im going to run a solid line of weld round it tomorrow.

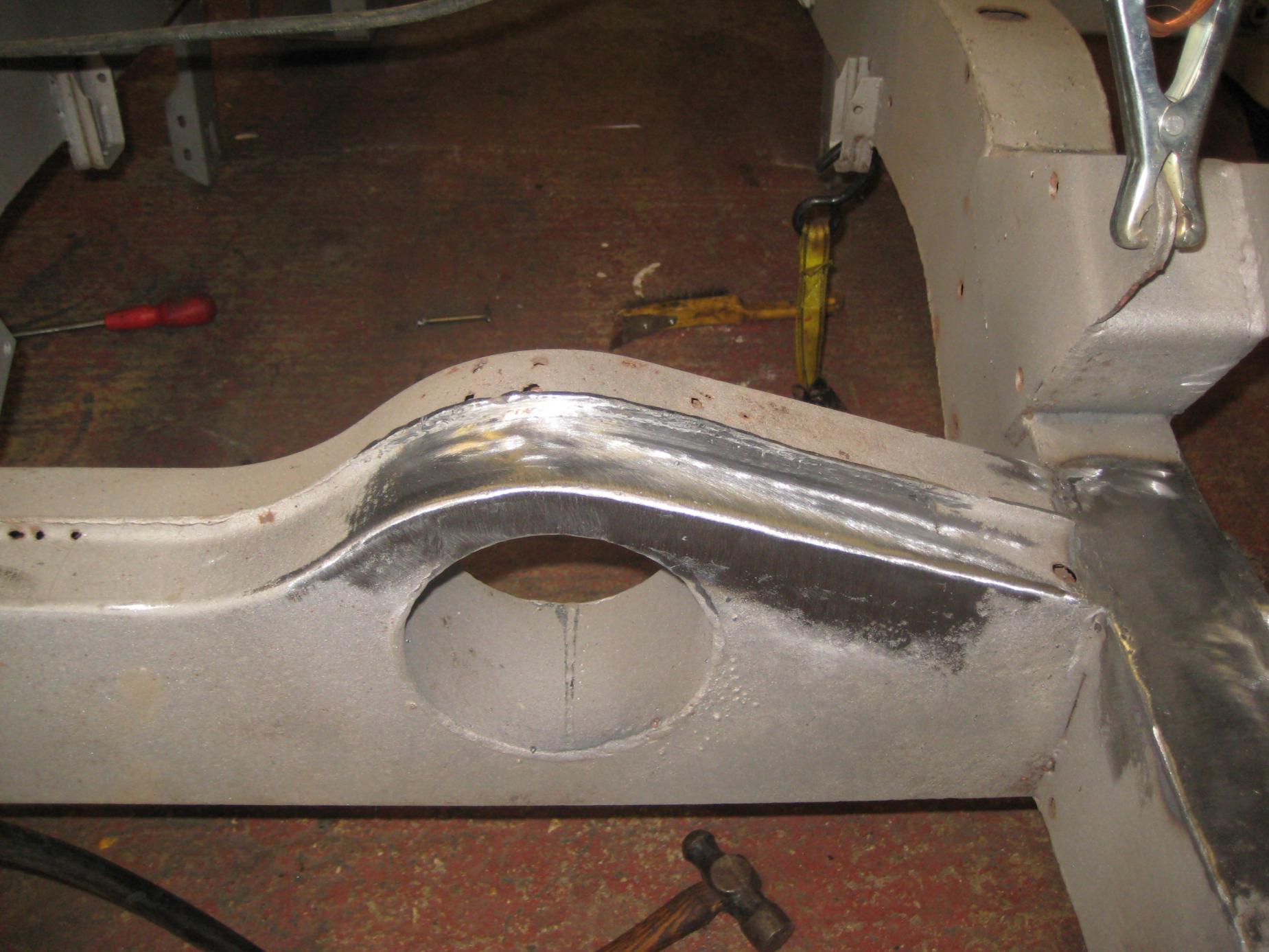

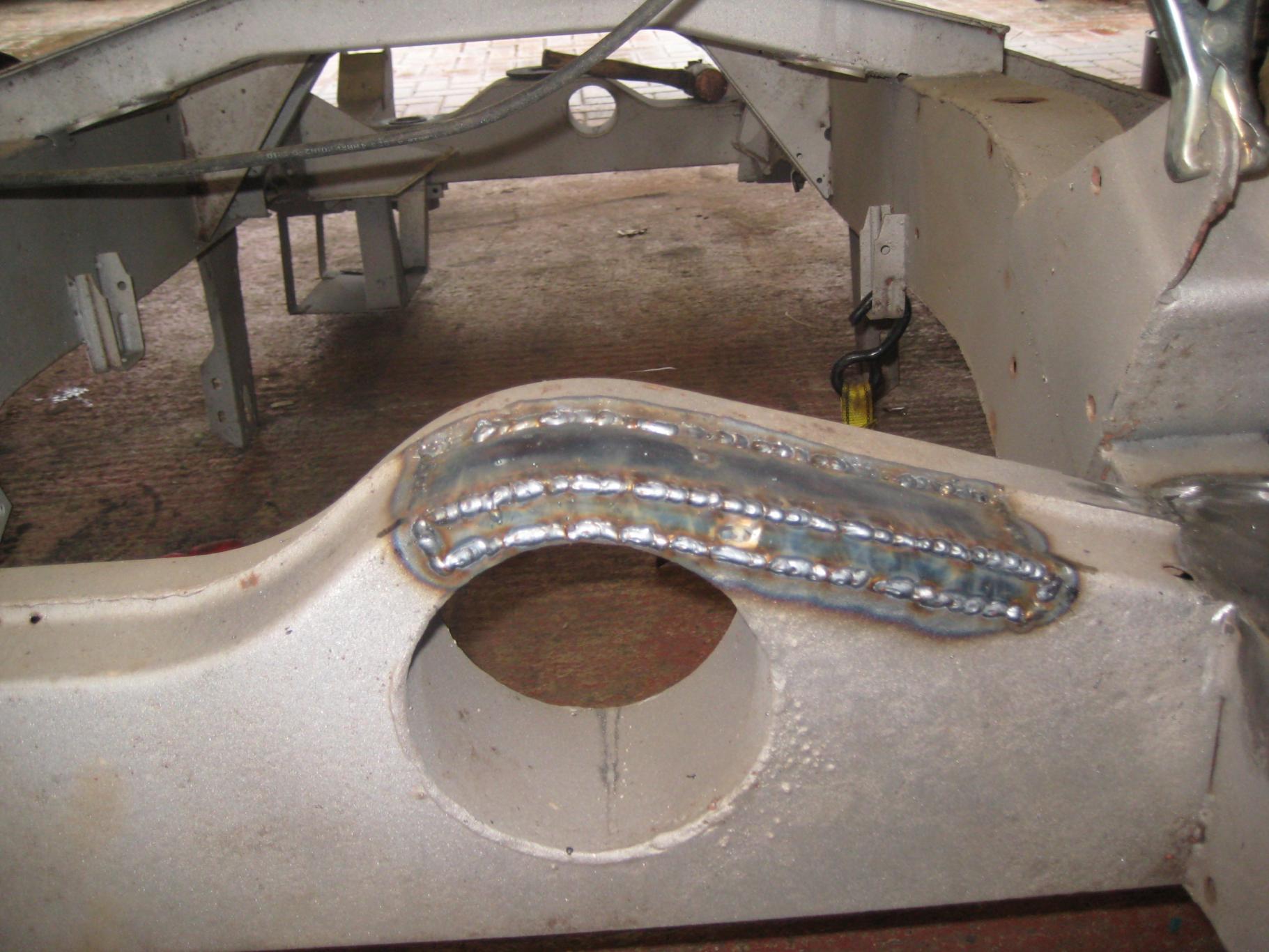

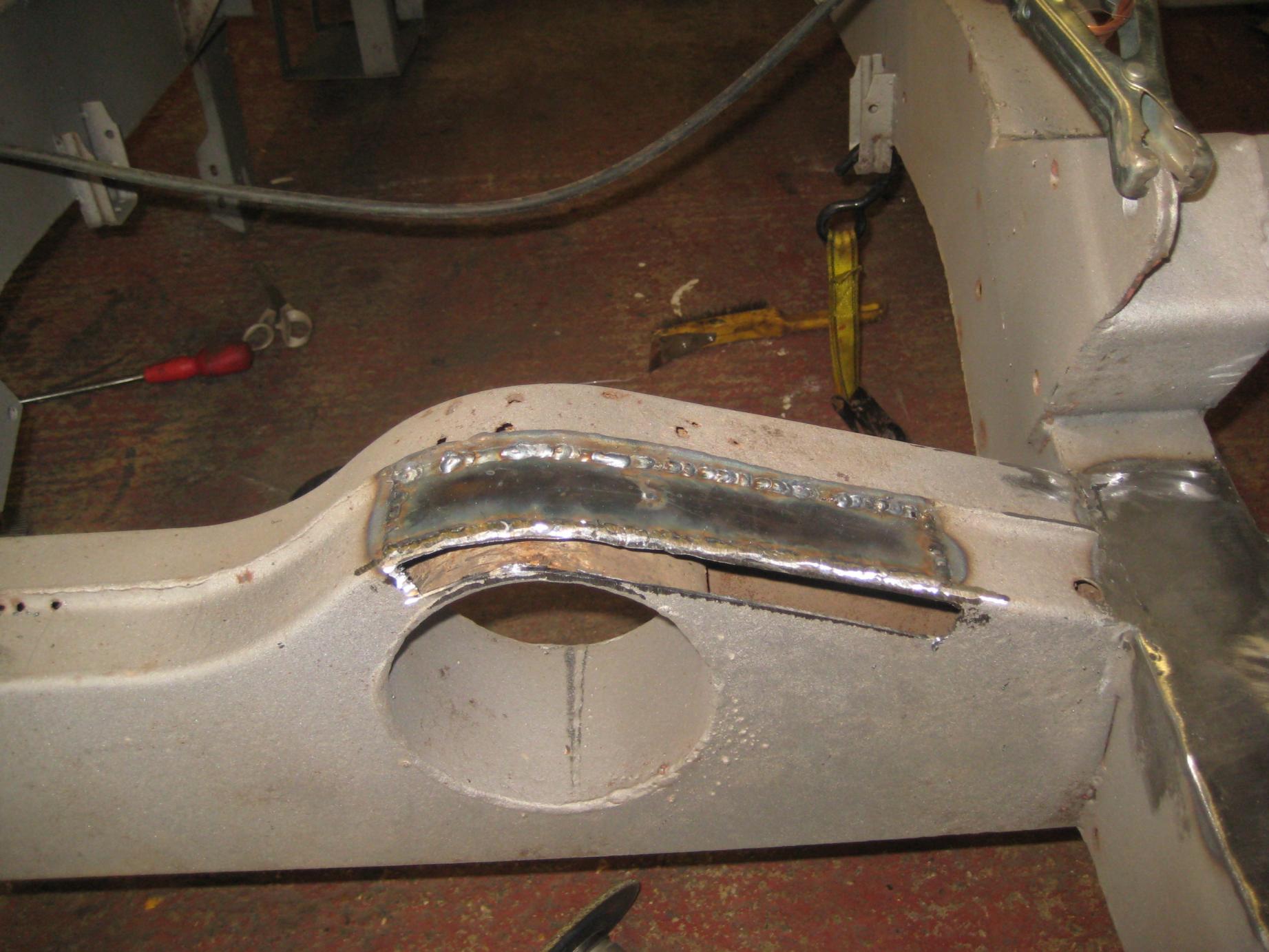

The front ones were a bit more fun as the chassie has a curve in it.

Put the plate in the vice and bent it to the rough shape then tacked it starting at the front and moulded it to shape with a hammer tacking it in place as i worked my way along.

Wont let me add any more photos. Ill try again tomorrow.

Rob

treeman · Feb 25, 2011

robbie8922 said:
Also,

Dropped the chassis and bulk head off to A1 Powder coating to be blasted today.

Hoping to get it back tomorrow and then start the welding on the weekend. Ill post some pics when its back.

Has any one here had there bulk head galvanized (dipped). The guy at A1 thinks that it will distort a lot and that i would be better having it hot zinc sprayed.

Only problem i can see with this is that you cant spray any return or inside sections with the metal spraying.

I was thinking about having it galvanized (dipped) and bolting a pice of angle iron between the bottom of the door posts and then between both footwells so when its dipped it wont warp as much.

Any advice would be appreciated.

Thanks
Rob

Quite a few years ago my brother-in-law galvanised his bulkhead and from what I can remember he made a jig up for it before it was diped and then removed it after minermising distortion

robbie8922 · Feb 26, 2011

I phoned up wessex galvanising and spoke to someone about it. He said wether i make a jig or not putting metal in 450'c it will natrally move/distort a bit. He said you can never know how it will react but that they dip bulk heads and it should be fine.

Still think it a brace wouldn't do any harm.

robbie8922 · Feb 26, 2011

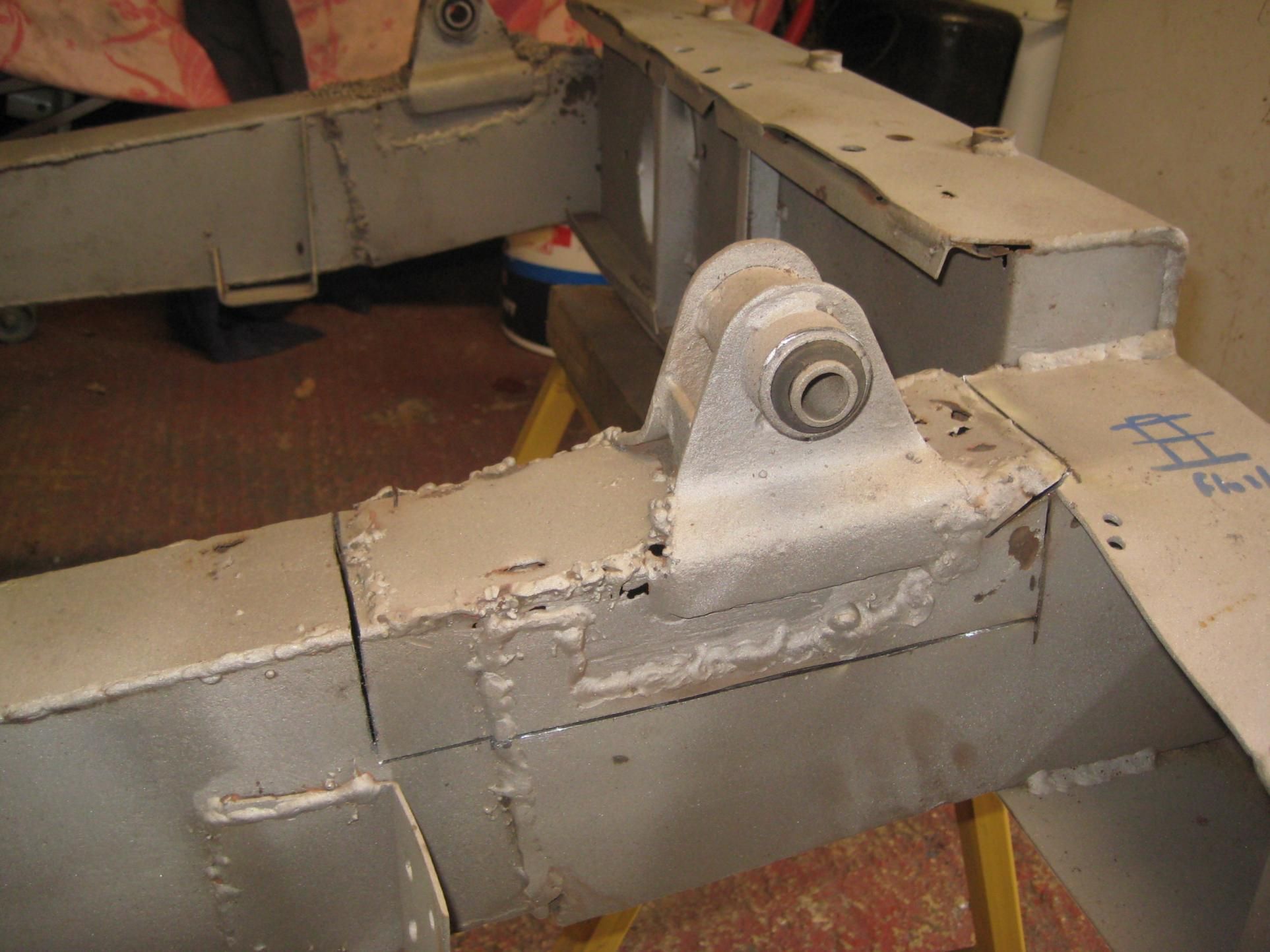

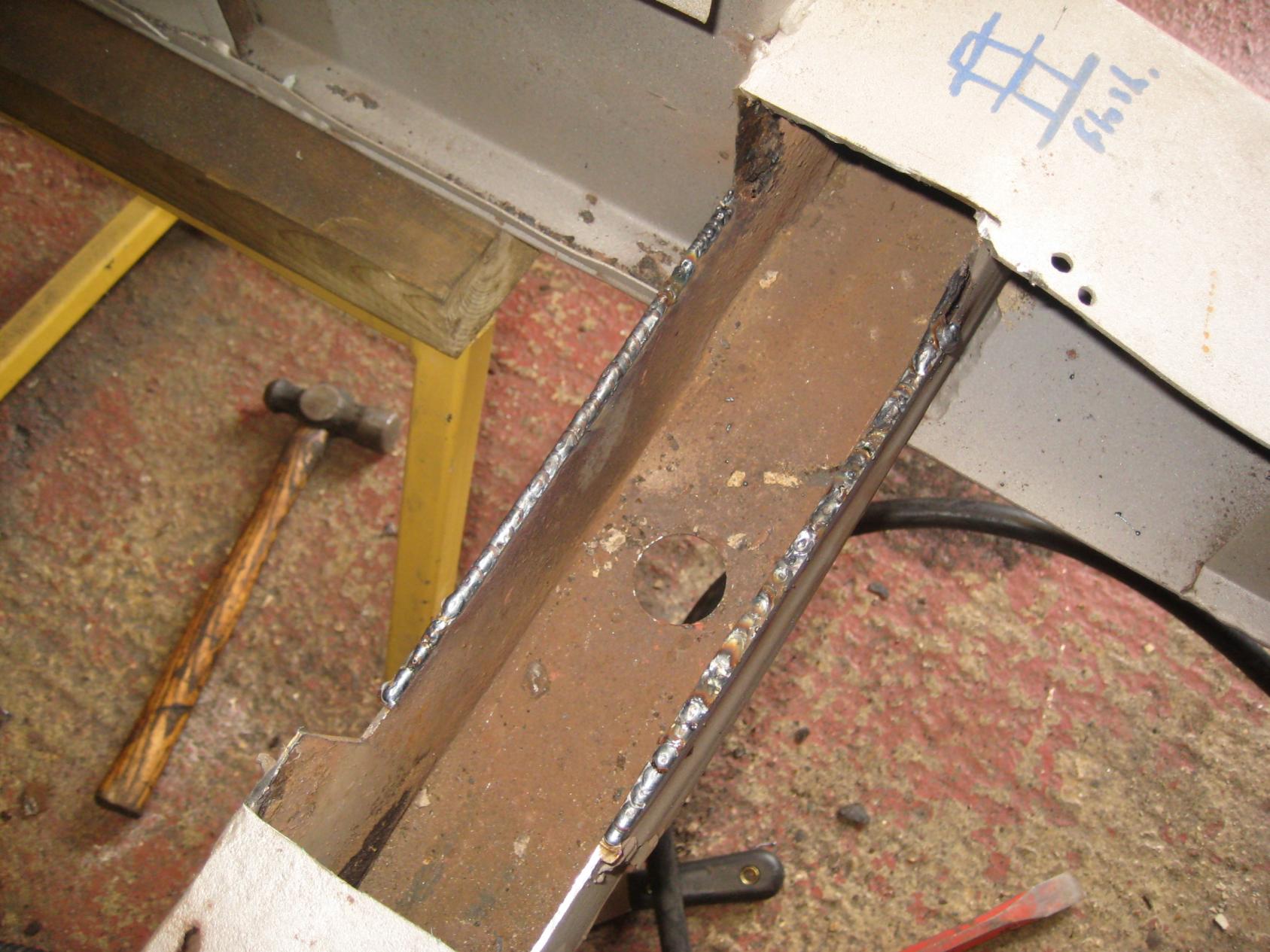

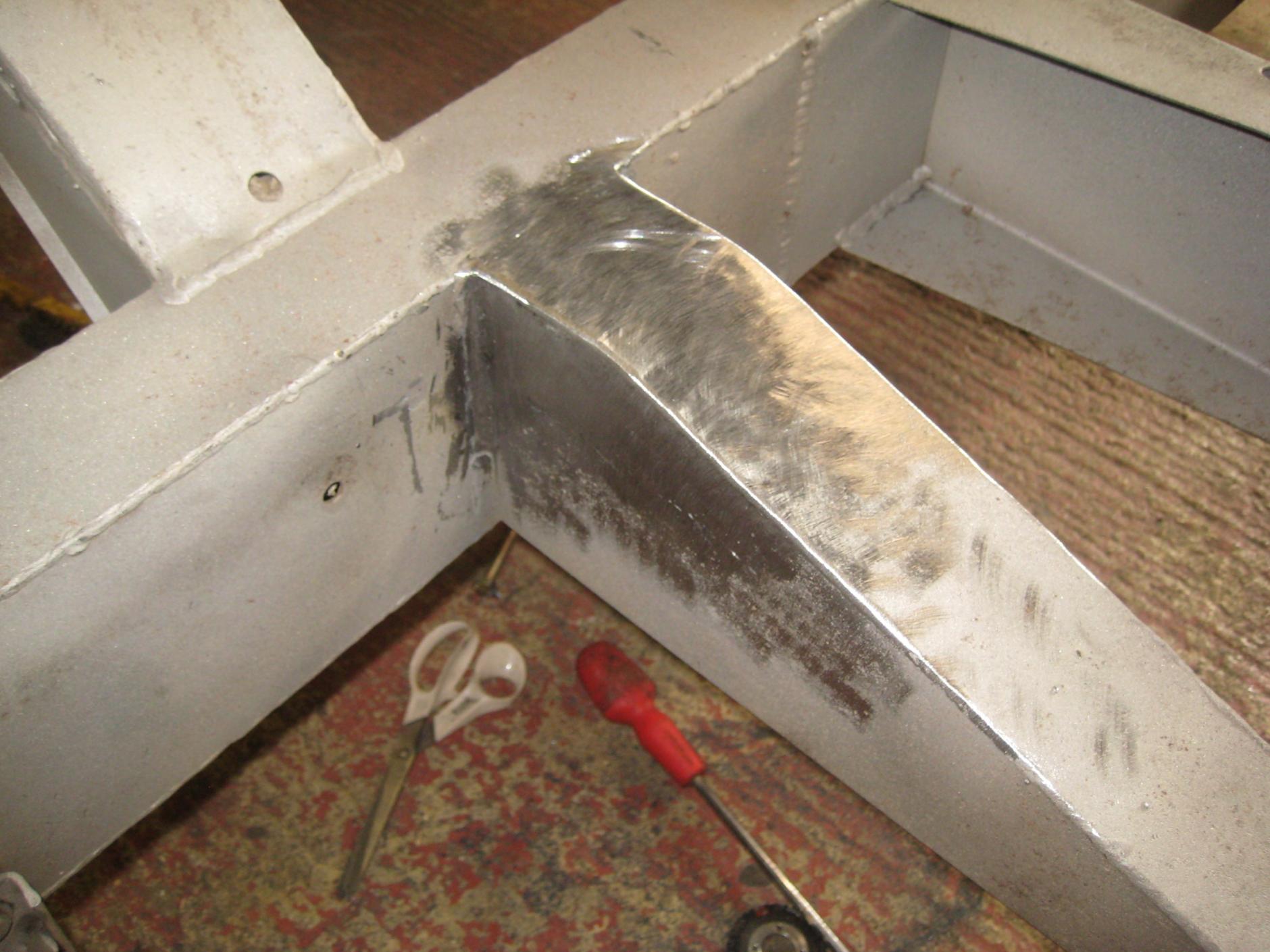

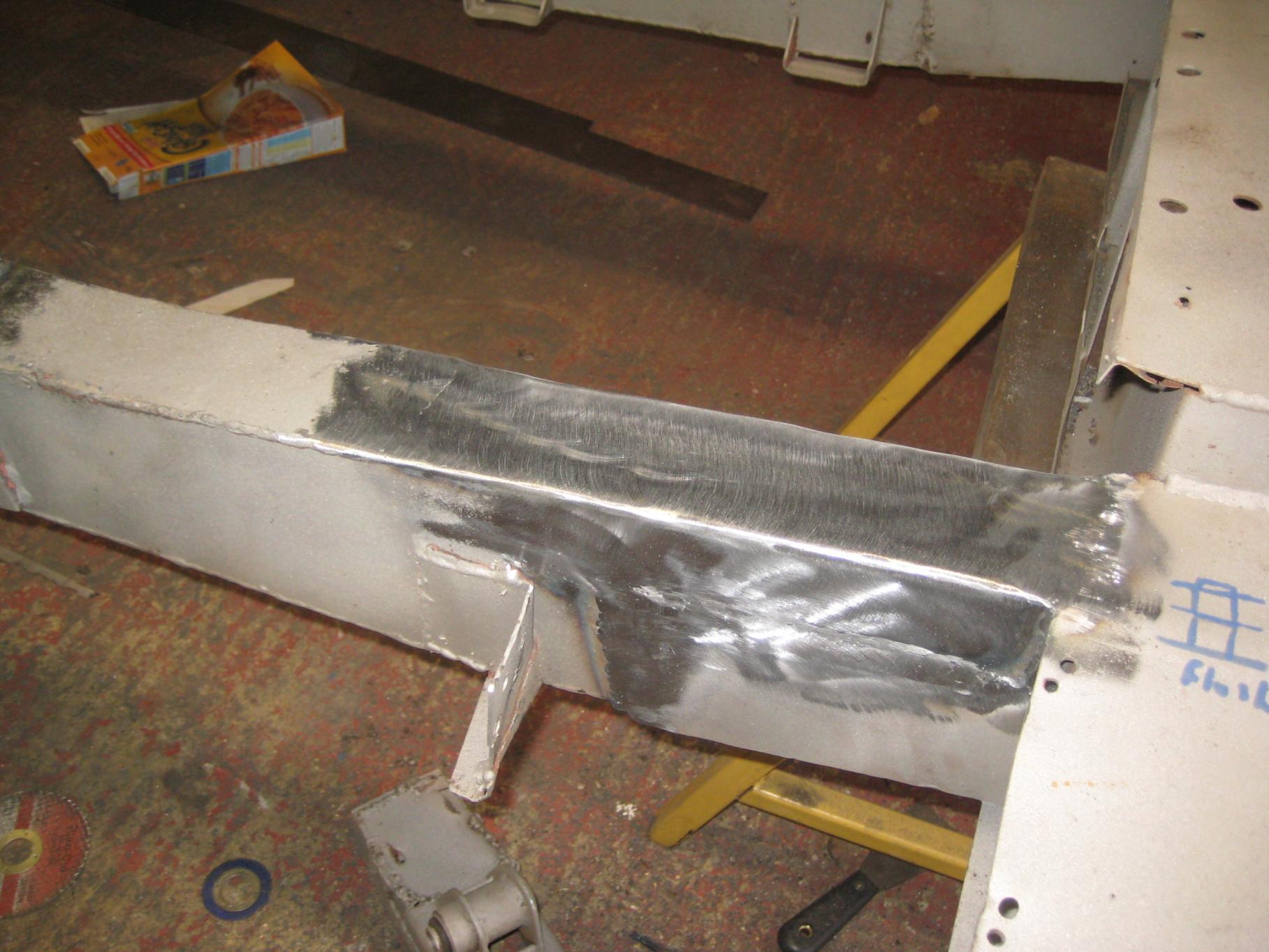

Did a bit of welding today. Getting there slowly but still loads to do.

b20wnx · Feb 26, 2011

its coming along nicely there, will post pics of some horrors i have found, i am envious of your garage, rain stopped play on me again today, and couldnt do anything in my shed has all the roof sheets etc have taken a right battering. i want a garage or at least some shelter.

robbie8922 · Feb 26, 2011

Its my mum and dads garage. Left home years ago bit dad never got his garage back. Always got a toy of some kind in.

Was looking out at the rain earlier thinking how nice it was being in the dry.

Im cant see how some people can cock up repairs so badly.

TheKeymeister · Feb 28, 2011

Interesting to see how the galvanising goes!

At that sort of price you can't really argue with it

ginge1100 · Feb 28, 2011

coming along nicely now,your chassis dont look too bad wait till you see the pics of mine

it will be interested to see the results of the galvanising.
keep it up,good luck.

ginge

1moley · Feb 28, 2011

b20wnx said:
its coming along nicely there, will post pics of some horrors i have found, i am envious of your garage, rain stopped play on me again today, and couldnt do anything in my shed has all the roof sheets etc have taken a right battering. i want a garage or at least some shelter.

Get 8 scaffolding polls and a tarp. Works a treat :biggrin1:

robbie8922 · Feb 28, 2011

Looking at the pics of other peoples chassis i think i got lucky with this one. Didnt really know what i was looking at when i brought it.

Did a bit more over the weekend. Just got to do the other side of the rear of the chassis and a bit on the dumb irons then time to start on the bulkhead!!!

Feel like sh*t today. Had a runny nose and sore throat all day. Think it must of been the fumes from the mig welder. Going to try and get a bit more ventilation in the garage from now on.

robbie8922 · Mar 2, 2011

Got a bit more done. Finshed the back of the chassie now and turned it over to start the dumb irons.

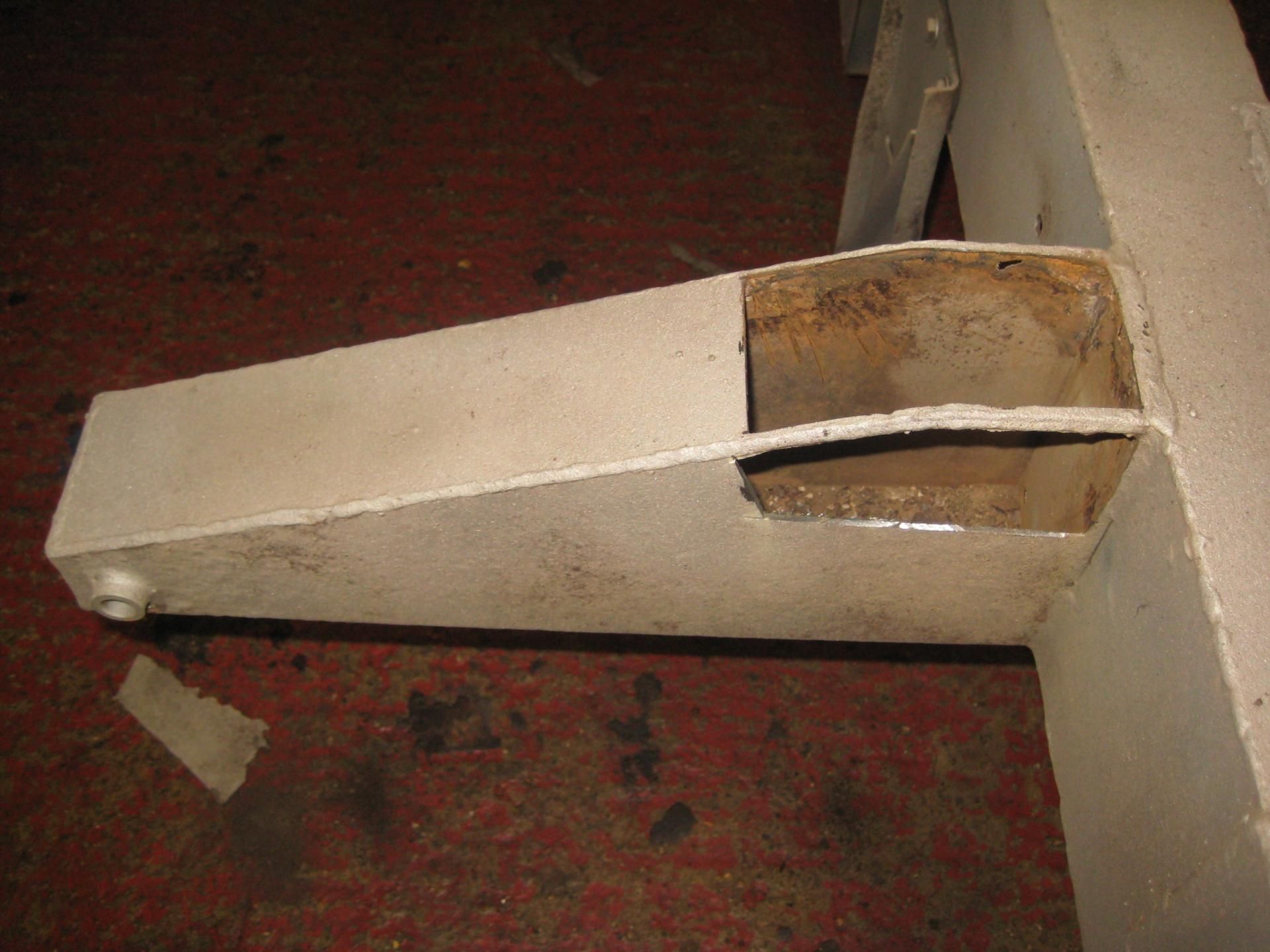

Cut the first one apart to get rid of the rot.

Going to weld it up tomorrow. Ill post some pics. Didnt have the camera today.

Also if any one needs an engine stand sealey have them on offer ES330 £43 +vat and ES550 £56+vat. Ordered a 550 for my self thinking the stronger one would be better. Just need to go over and pick it up now.

Spacemonkey... · Mar 10, 2011

Very impressive! That chassis looked pretty sound to me until you had it blasted..

Subscribing to thread to follow your progress!
