i have recently bought a 3.9 v8 es discovery
the interior was sold out of it but there seems to be bits and bobs missing here and there
there seems to be a lot of plugs not plugged into out was wondering if any one can help
these pictures are passenger footwell

this picture is under passenger seat



listerdiesel

Well-Known Member

Events Planner

• Sep 6, 2009

• #2

Looks like the bundle of connectors for the central electric window control panel that is on the centre console.

Peter



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Sep 6, 2009

• #3

Relay connectors - or at least the majority are.



C

CHUNKY3

New Member

• Sep 6, 2009

• #4

the engine turns over but there is no spark but it stinks of fuel .
was wondering is there something not connected

cheers for swift reply guys



vougese39

Well-Known Member

• Sep 6, 2009

• #5

all the yellow plugs are for the land rover yellow relay the blue ones will have alook at my soft dash for you tomorrow and the others maybe injection control relays



classic kev

Well-Known Member

• Sep 7, 2009

• #6

Looks to me like somebody removed the ABS ECU. Is it supposed to have ABS,Traction Control and Hill Descent?

The missing relays look like main EFI and Fuel pump (green bases) and electric windows? (yellow bases - could be electric seats if fitted).

Dunno if that helps ya but that's my guess anyways hehe.



C

CHUNKY3

New Member

• Sep 7, 2009

• #7

yeah it did have electric seats but the bloke i got it off sold them before i bought it. and it does have abs. the fuel pump buzzes when you turn the key and it smells of fuel but its like their is no spark
thanks for any help



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Sep 7, 2009

• #8

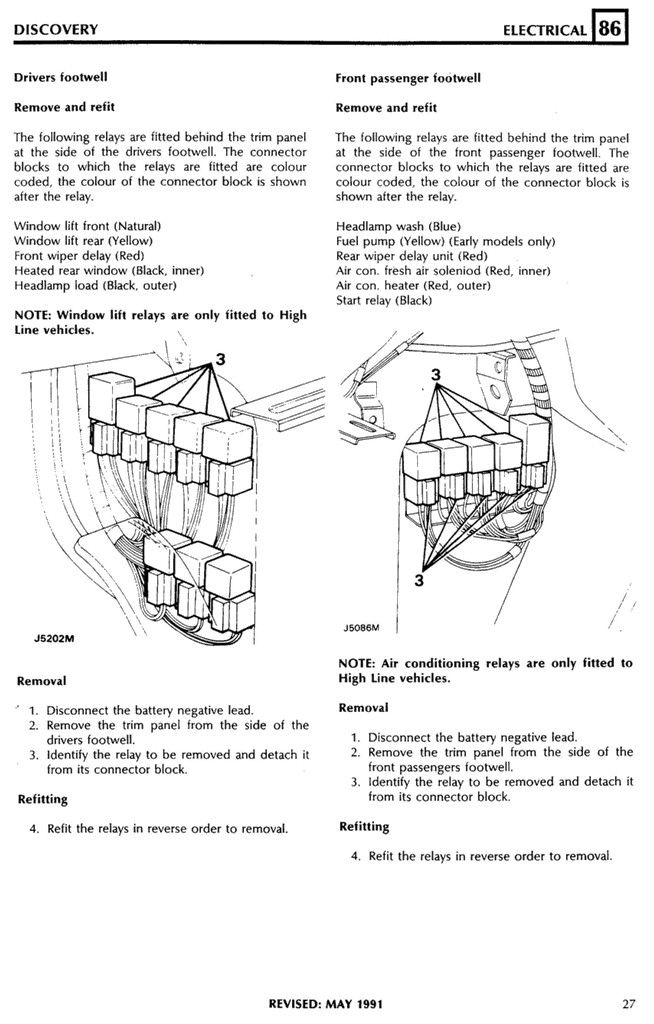

duz this help?



Attachments

•

  108.4 KB · Views: 284

jai_landrover

Well-Known Member

• Sep 7, 2009

• #9

buzzing is the ABS Pump, Check the purple and I think yellow trace wire under the rear floor cover see if it is live when you turn your ignition from (Important bit) fully off to ignition on (dash light on) it will pump be live for a short while I think



C

CHUNKY3

New Member

• Sep 12, 2009

• #10

cheers for replys fellas just the black plug in the photo to find what goes init now still have no spark its doing my head in now:mad2:



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

• Sep 12, 2009

• #11

see post #8 - black = start relay
