my mates 1992 200 tdi spontainiously combusted..

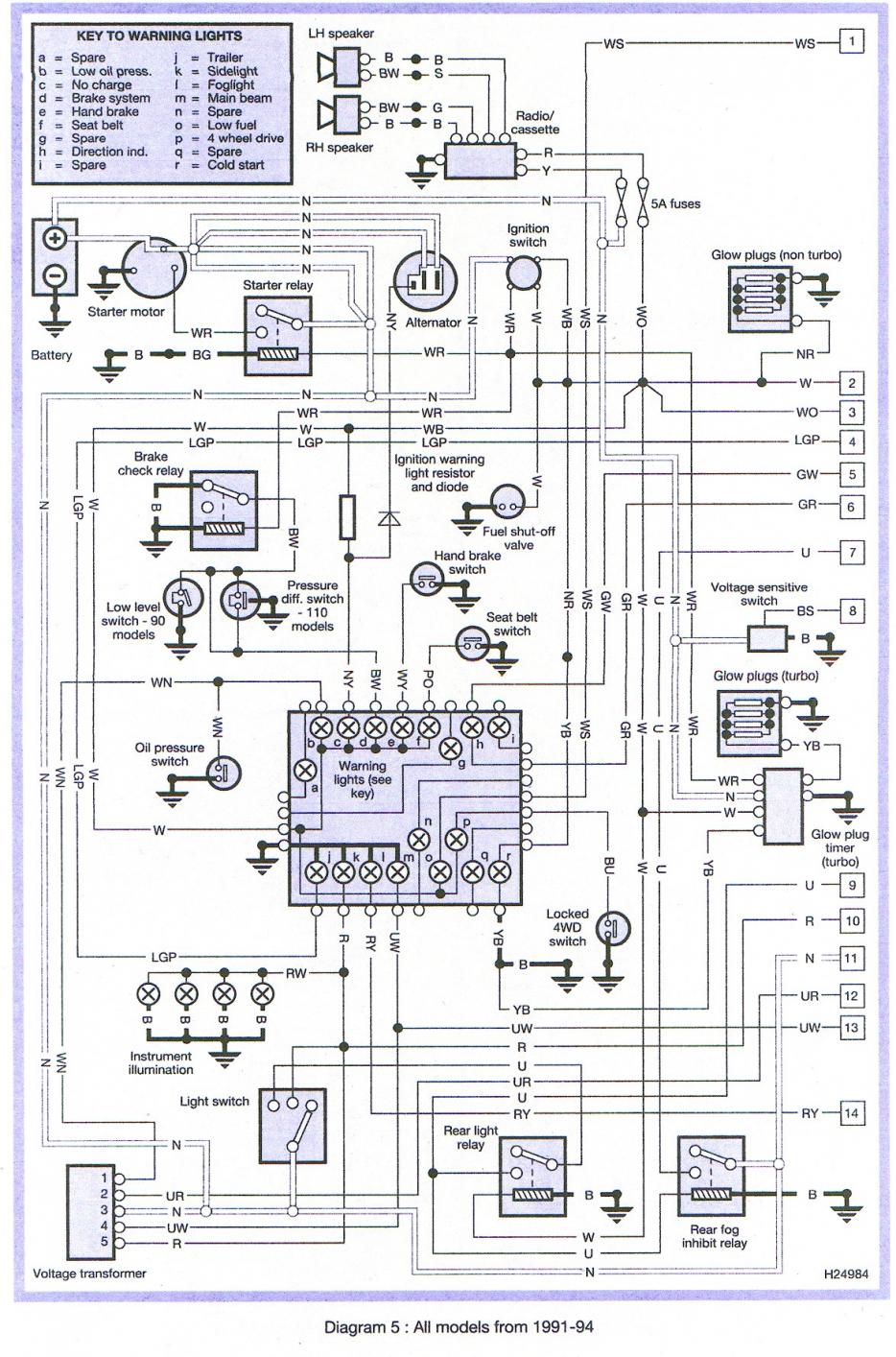

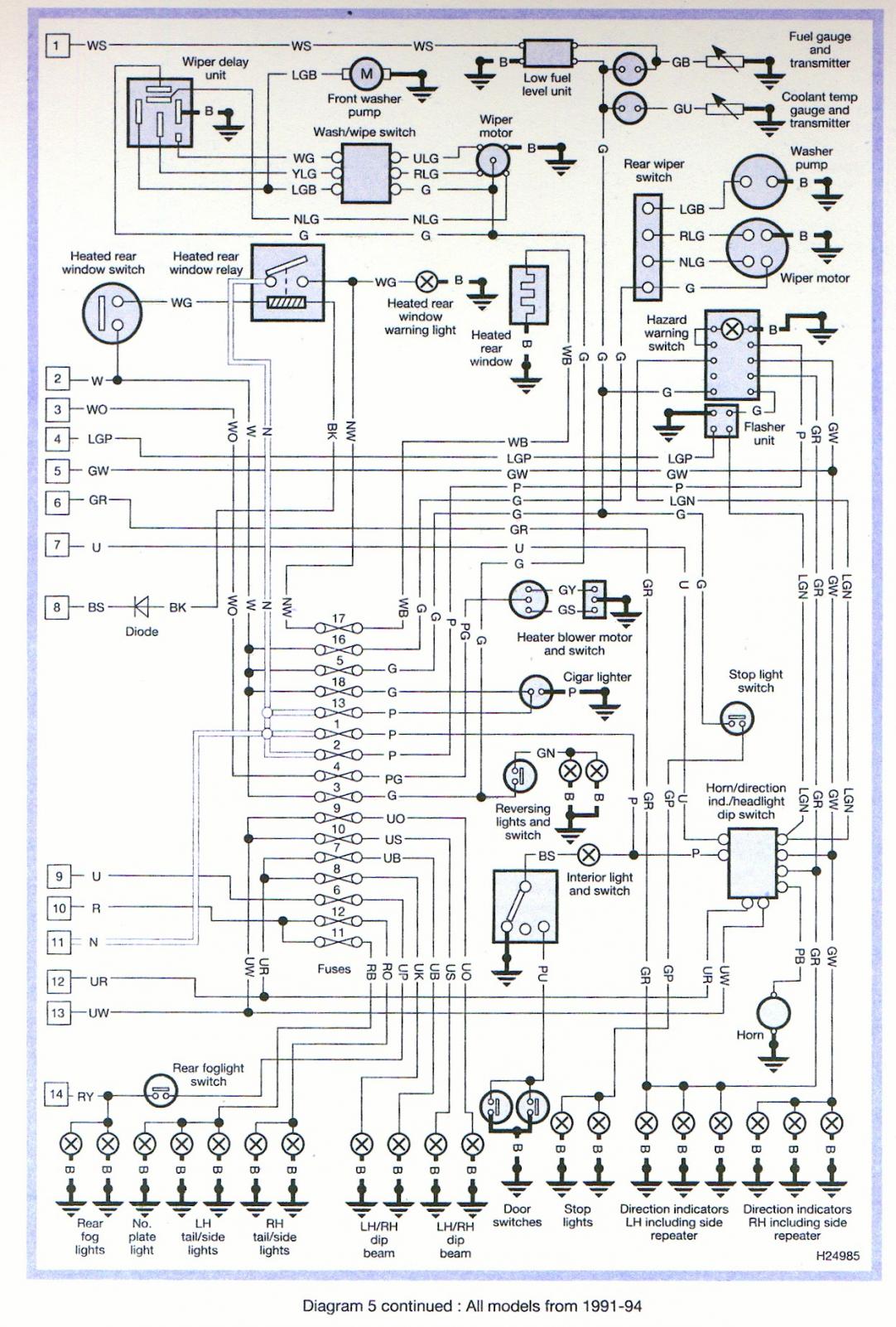

i removed the dash and found the wiring loom behind it had melted itself together.., i discovered the cause..someone had replaced the interior light fuse with a screw.. good idea that!, anyway, i just replaced all the wires one by one , and 900miles of new cable later, everything works now except, the indicators...some of the wires had totally disintigrated an i haven't a clue where to start. working on a budget of 50p, does anyone know where i can get a decent wiring diagram or explain how its supposed to work, so i dont have to sit in the passenger seat an stick my arm out of the window so she can turn left... thanks
i removed the dash and found the wiring loom behind it had melted itself together.., i discovered the cause..someone had replaced the interior light fuse with a screw.. good idea that!, anyway, i just replaced all the wires one by one , and 900miles of new cable later, everything works now except, the indicators...some of the wires had totally disintigrated an i haven't a clue where to start. working on a budget of 50p, does anyone know where i can get a decent wiring diagram or explain how its supposed to work, so i dont have to sit in the passenger seat an stick my arm out of the window so she can turn left... thanks
