Dent · Dec 29, 2009

For a 93 200tdi immobiliser/alarm, does the haynes manual cover this ?, I'll go and get one if it does.

Had to bypass mine but got no central locking, which is a pain, yer need long arms

.

Patch.Heffer · Dec 29, 2009

I have just looked in my Haynes Manual. Its just mentions that the Electronic Control unit also controls the alarm if the alarm is factory fitted. You could try www.green-oval.com, I downloaded the workshop manuals and owners handbook from there. It might give you better info??

Hope this helps
Best wishes
Ian

The Mad Hat Man · Dec 29, 2009

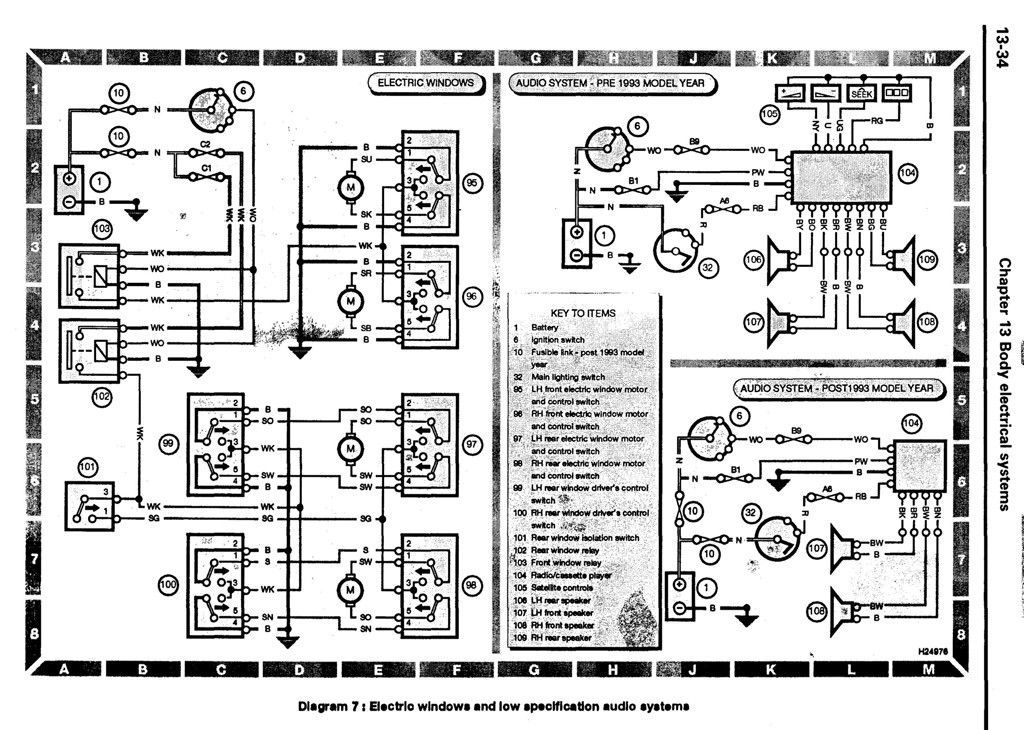

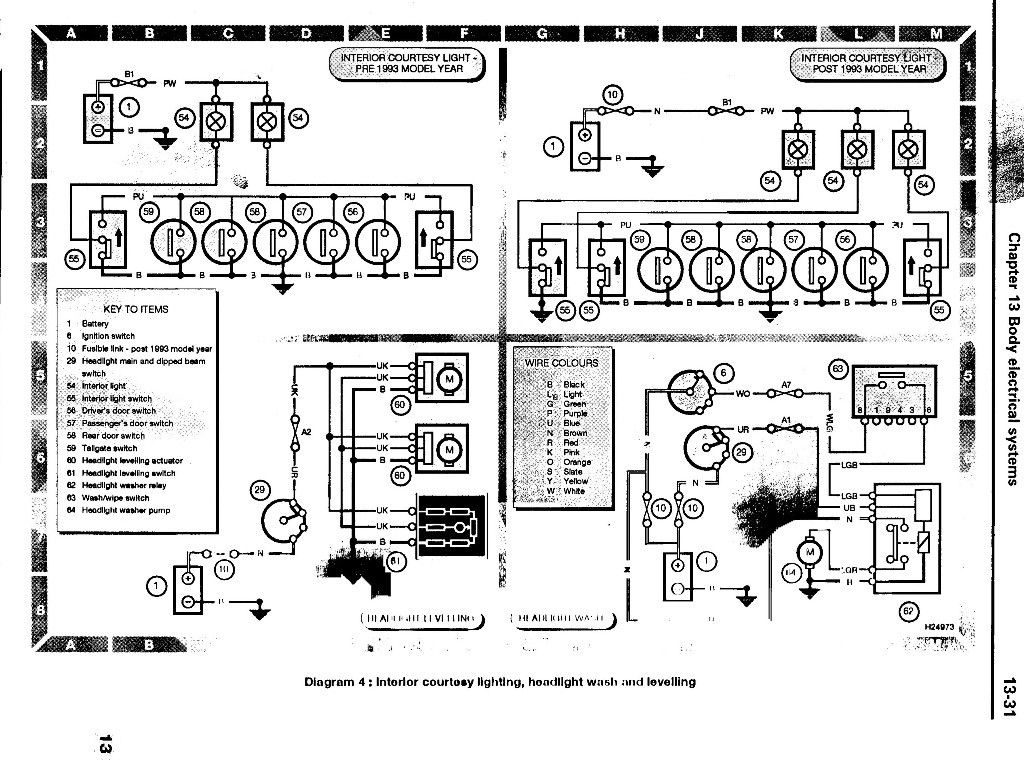

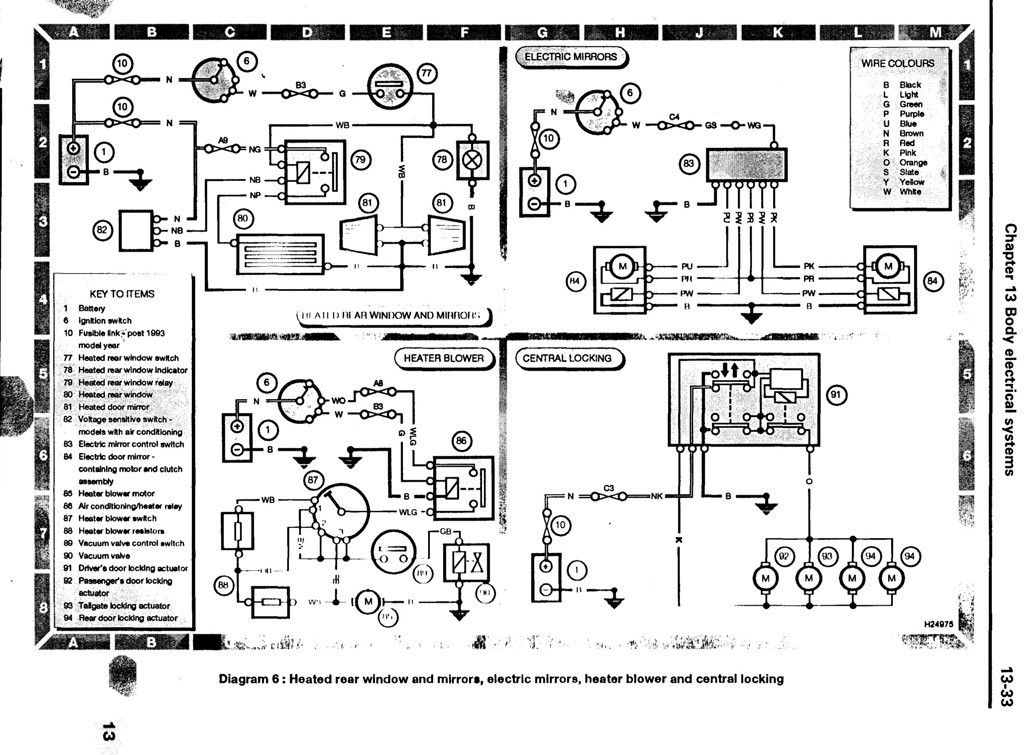

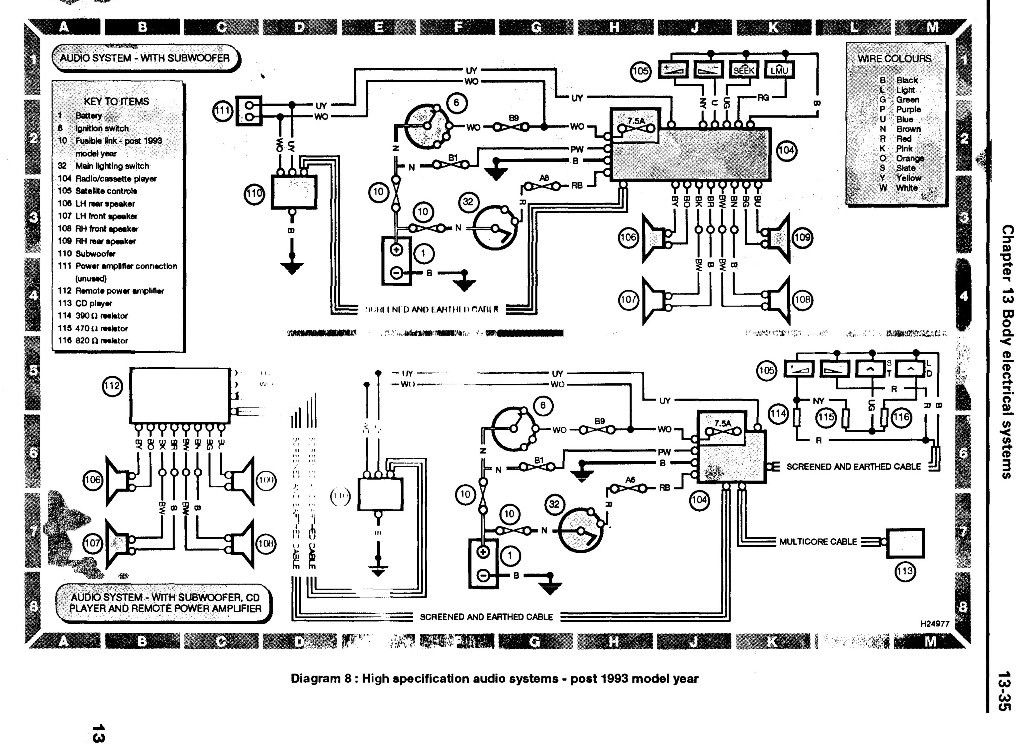

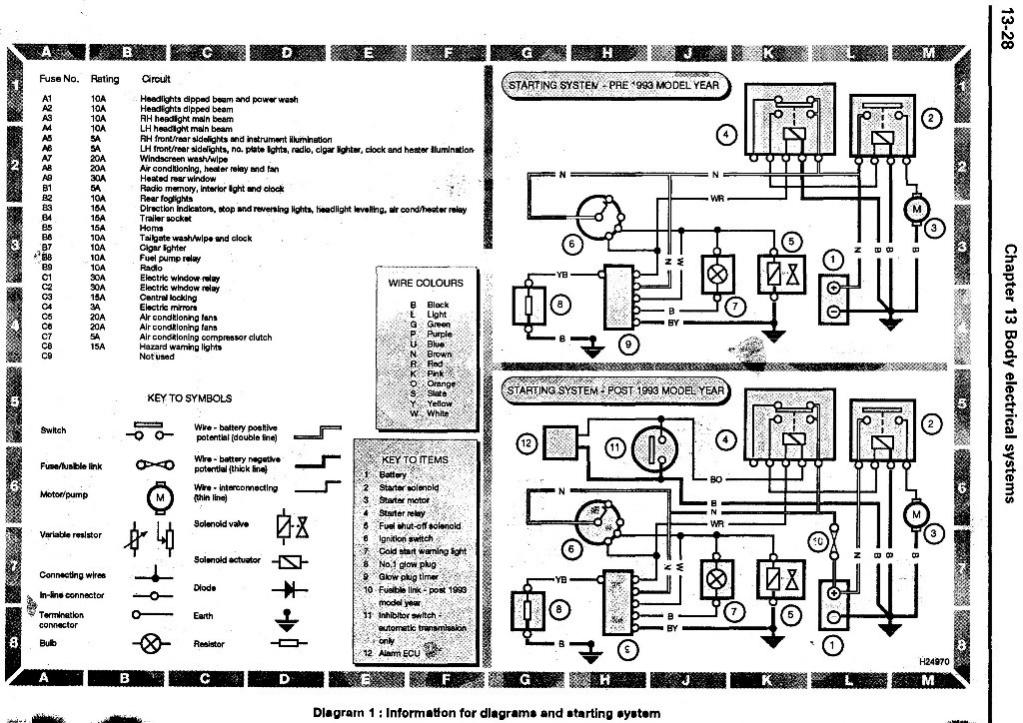

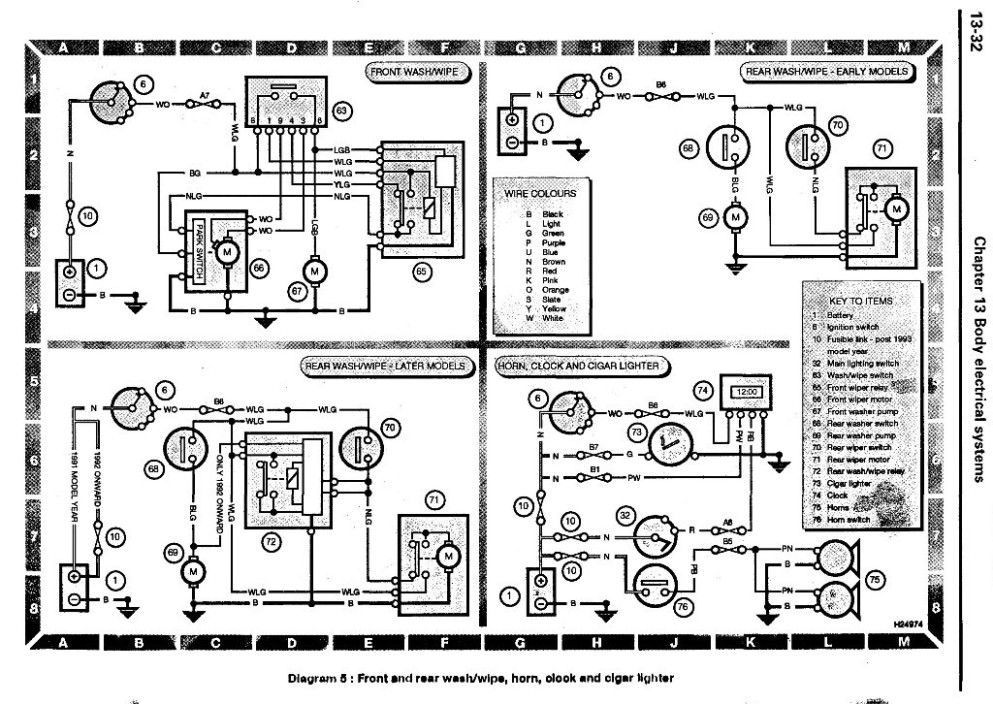

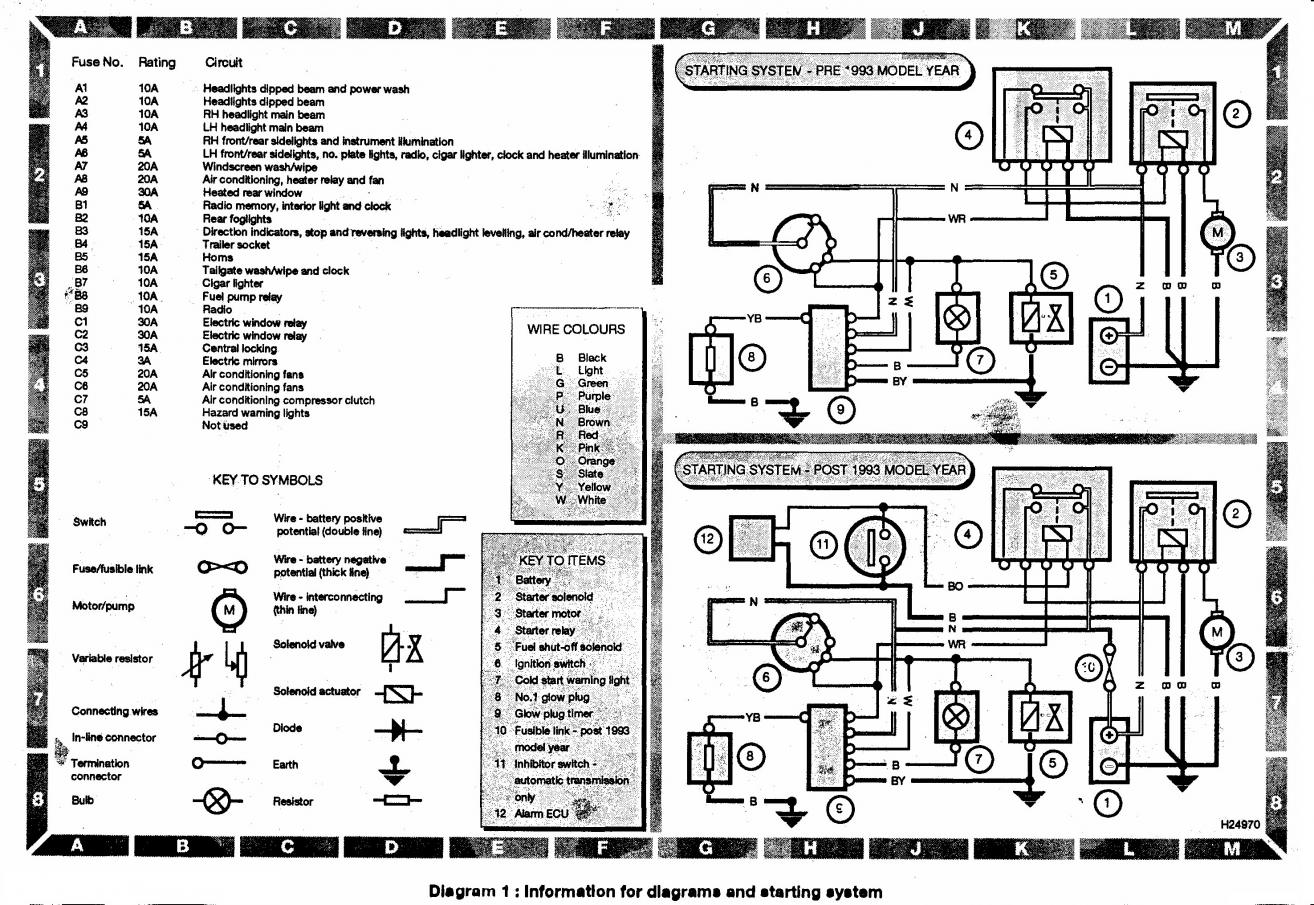

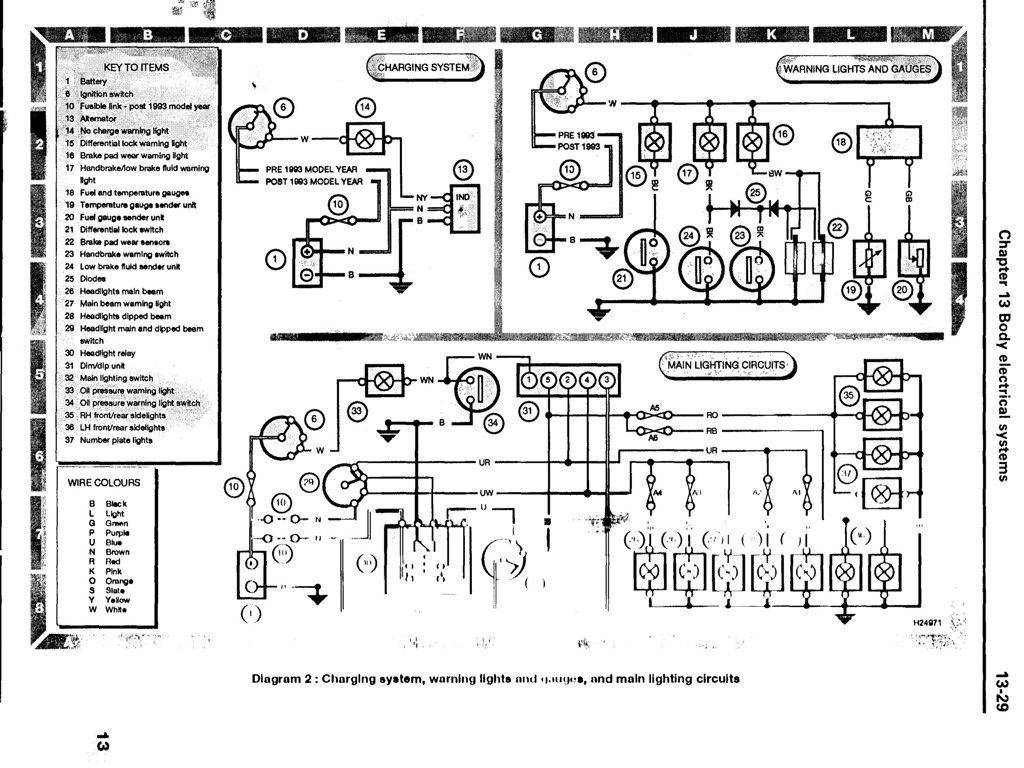

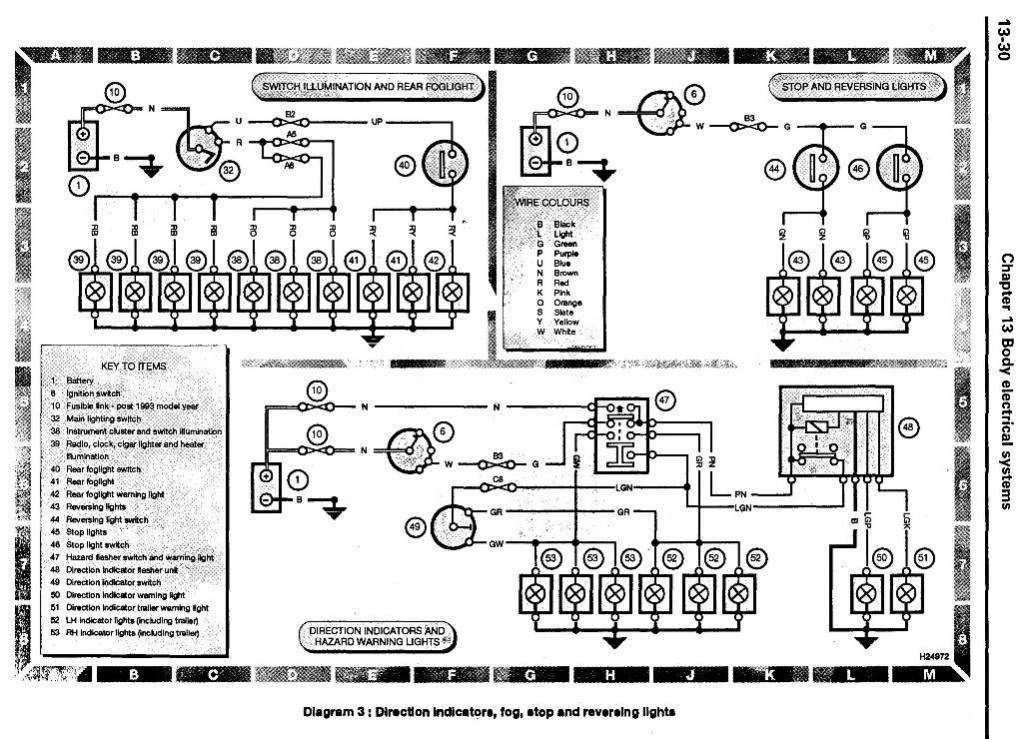

The wiring diagrams are on here- coz i posted em - but you mite need to :search:

Dent · Dec 29, 2009

Cheers Ian, I don't think rave covers the early 200, been having a look for a download, but me heads battered. lads just bought surround sound for his ps3, he's on COD, its just like being in a bloody warzone

.

Dent · Dec 29, 2009

The Mad Hat Man said:
The wiring diagrams are on here- coz i posted em - but you mite need to :search:

Bet you hid them under summit silly

.

The Mad Hat Man · Dec 29, 2009

ffs - do i have to do everything?

Sean · Dec 29, 2009

can you put the vac round please

Dent · Dec 29, 2009

Thanks MHM

si844 · Dec 30, 2009

The Mad Hat Man said:
ffs - do i have to do everything?

haha. u love being needed

daisydisco:) · Dec 27, 2010

i found those diagrams very usefull thankyou

discodave22 · May 30, 2019

Hi

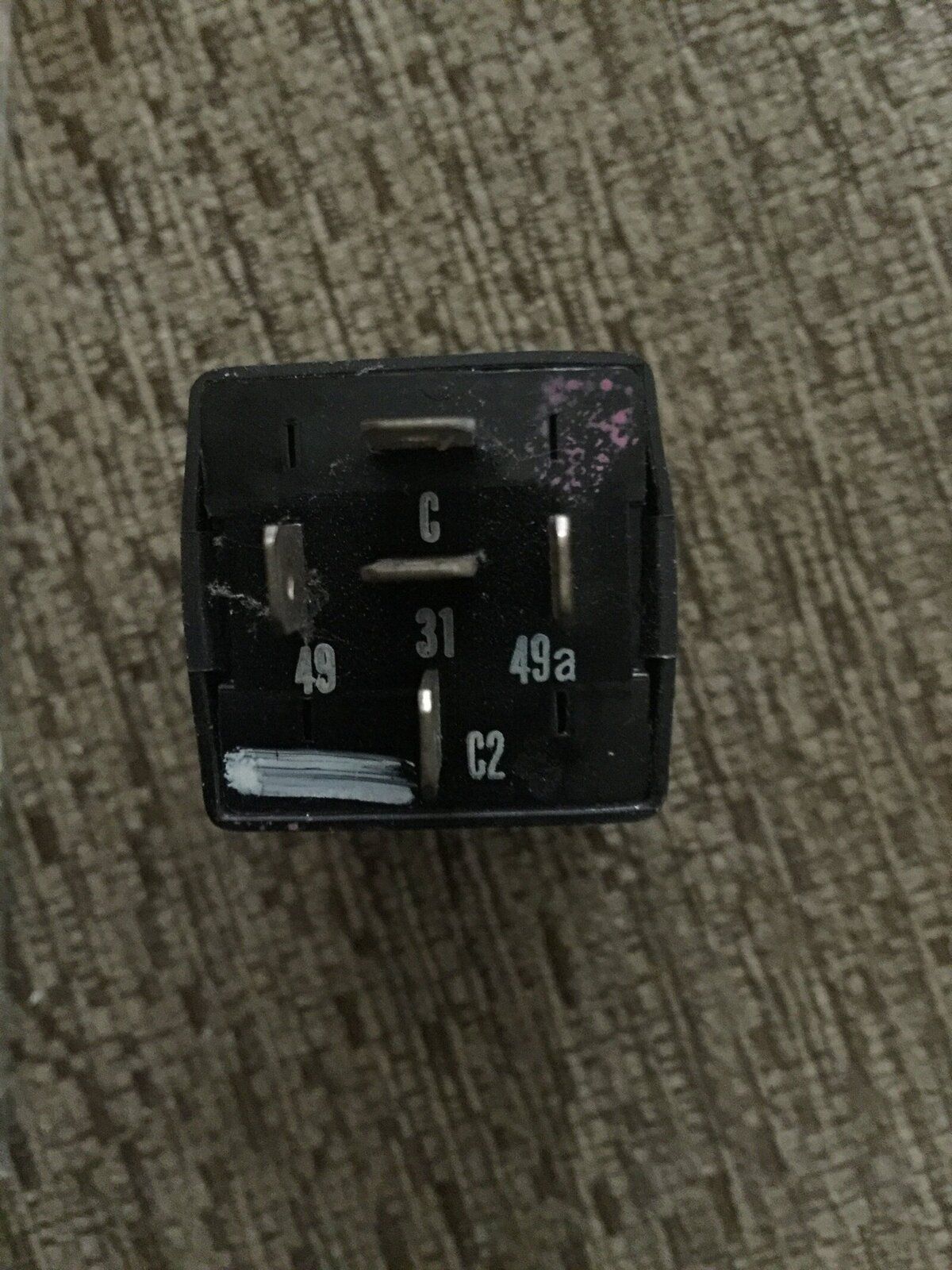

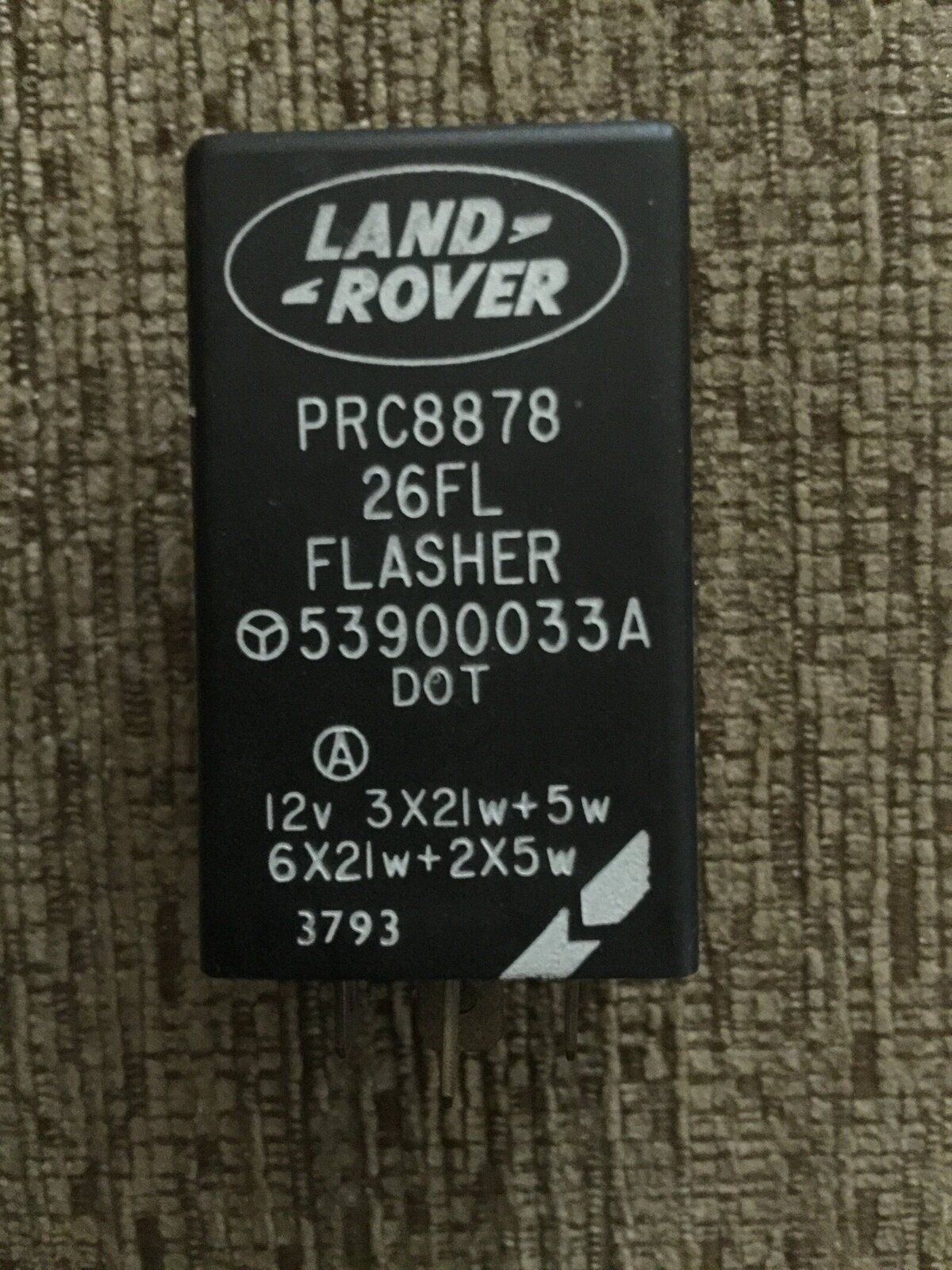

can anyone help with hazards relay flasher unit 200tdi wiring diagram in particular with terminal numbers-pictures attached-

Thanks

Dippypud · May 30, 2019

Hasn't it got it on the top ?

discodave22 · May 30, 2019

Dippypud said:
Hasn't it got it on the top ?

No

Dippypud · May 30, 2019

discodave22 said:
No

What is it not doing ?

Or do you wish it wouldn't ?

The Mad Hat Man · May 30, 2019

have ya got rave?

discool · May 30, 2019

discodave22 said:
Hi
can anyone help with hazards relay flasher unit 200tdi wiring diagram in particular with terminal numbers-pictures attached-
Thanks

You’re in luck as I have a few minutes spare, so I’m sure you have heard of Google... if you had entered the part number Google would have found u a diagram that u requested.

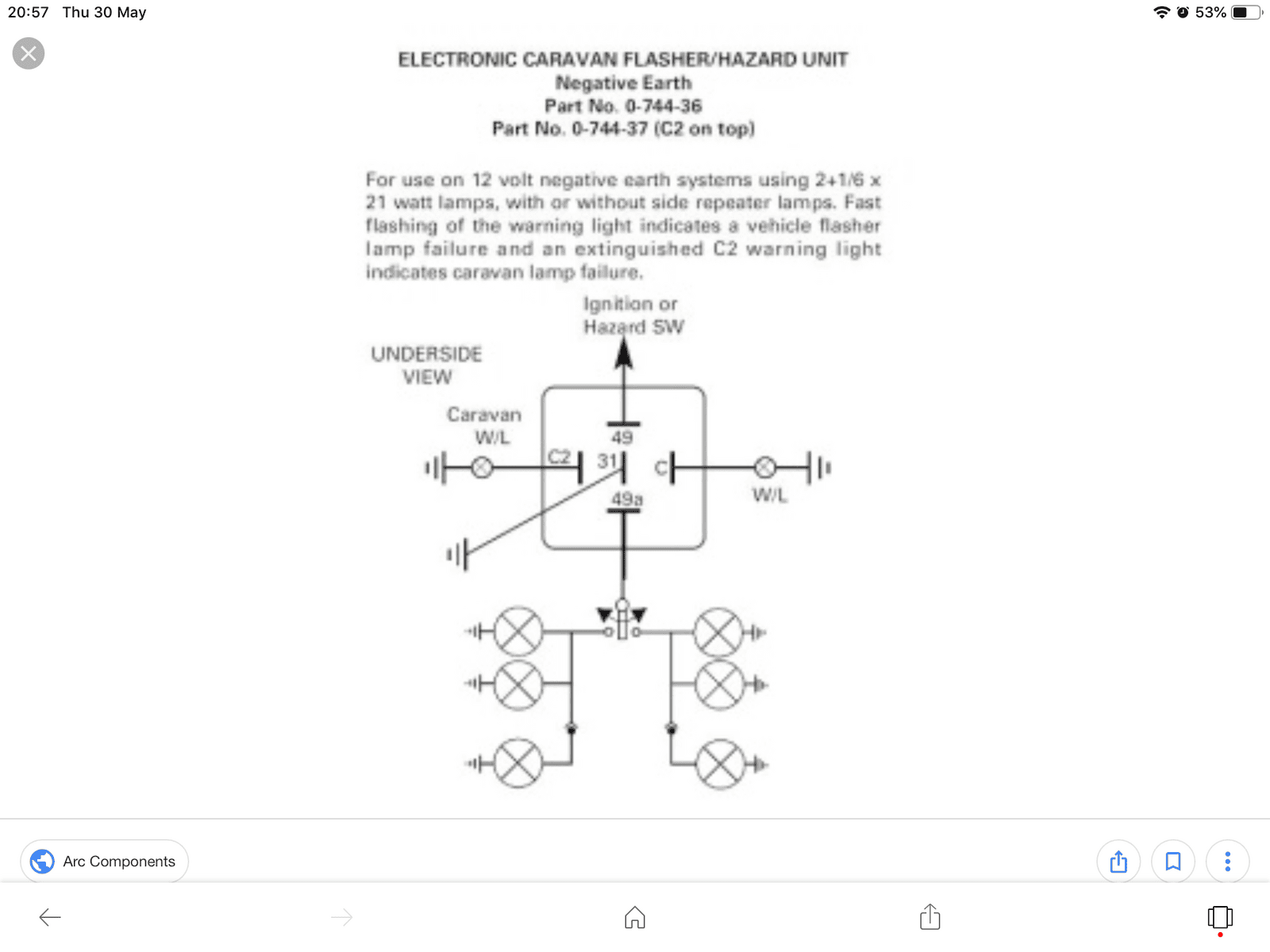

So here is the diagram I found with my very brief Google search:

discodave22 · May 30, 2019

discool said:
You’re in luck as I have a few minutes spare, so I’m sure you have heard of Google... if you had entered the part number Google would have found u a diagram that u requested.

So here is the diagram I found with my very brief Google search:
View attachment 179487

Thanks
i did try Google but nothing came up except relays to buy etc
How did you find this ie what did you enter into search ?

discool · May 30, 2019

discodave22 said:
Thanks
i did try Google but nothing came up except relays to buy etc
How did you find this ie what did you enter into search ?

Ok... that as I do, but select “ images” and then u will get a picture of wiring diagram if lucky.
I was lucky, there’s only one relay diagram in my quick search, among loads of ‘boring’ pick’s of relays,

but then there’s a diagram of the relay pin connections...brilliant

Who needs LRs RAVE.

What did we do before Forums, how did we manage ?

discodave22 · May 30, 2019

discool said:
Ok... that as I do, but select “ images” and then u will get a picture of wiring diagram if lucky.
I was lucky, there’s only one relay diagram in my quick search, among loads of ‘boring’ pick’s of relays, but then there’s a diagram of the relay pin connections...brilliant
Who needs LRs RAVE.

What did we do before Forums, how did we manage ?

If there was a fault with relay would this stop flashers working when you arm the alarm ??
or is there another relay on the alarm to activate flashers when arm/disarm ?

discodave22 · May 30, 2019

The Mad Hat Man said:
have ya got rave?

NO unfortunately
