T

TDIDISCO

New Member

• Feb 17, 2010

• #1

As i've said in a recent post I have a few items on my Disco that aren't working.Such as Interior lights not working on door opening,rear fog lights,rear wiper,intermittent front wipers and heated front & rear windscreens.
I'm trying to sort out and I'm led to believe it could be the MFU or fusebox.
Has anybody got a decent detailed wiring diagram of the fusebox and MFU as the one in the Haynes manual is not that helpful and don't really want to fork out money to a scrappy for something I might not need if it's a power or earth issue.
Thanks in advance.
Andy



Paul D

Old, nackered 'n broke, but the Landy is fine . :)

Events Planner

• Feb 17, 2010

• #2

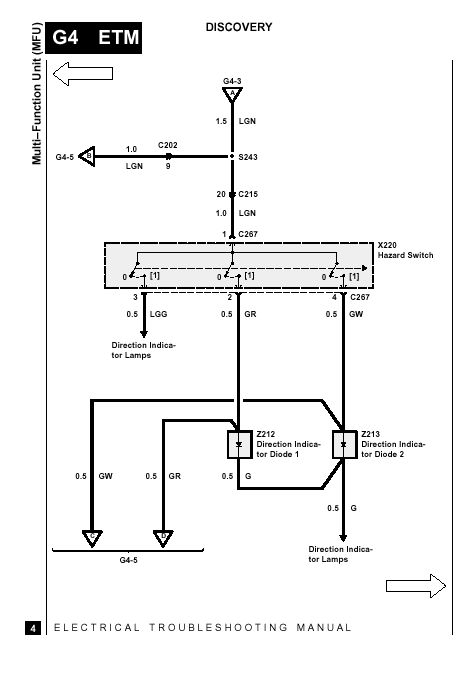

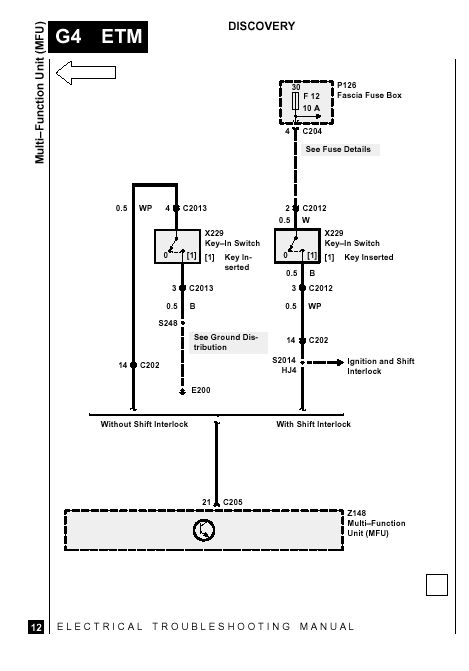

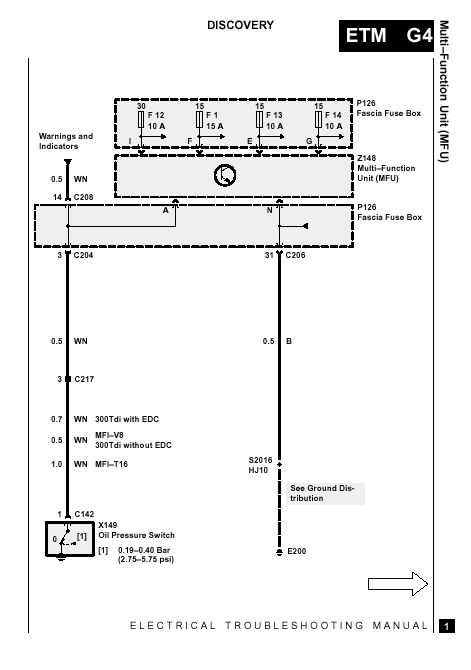

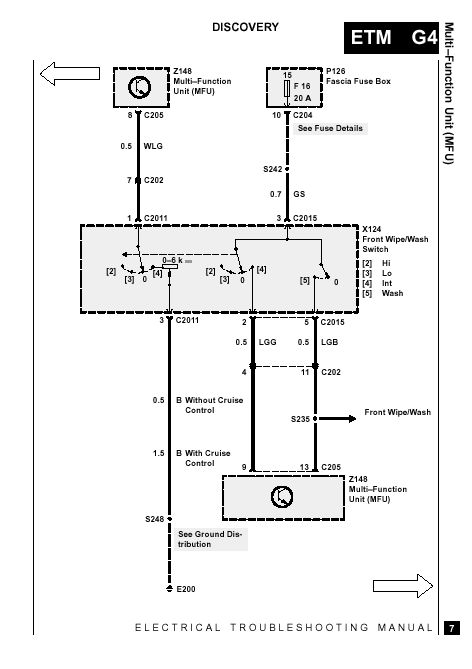

Rave has a wiring diag for the MFU, but it's 12 pages or so long, give us a bit OF TIME AND i'LL SORT PICS OUT ..



T

TDIDISCO

New Member

• Feb 17, 2010

• #3

Thank you



Paul D

Old, nackered 'n broke, but the Landy is fine . :)

Events Planner

• Feb 17, 2010

• #4

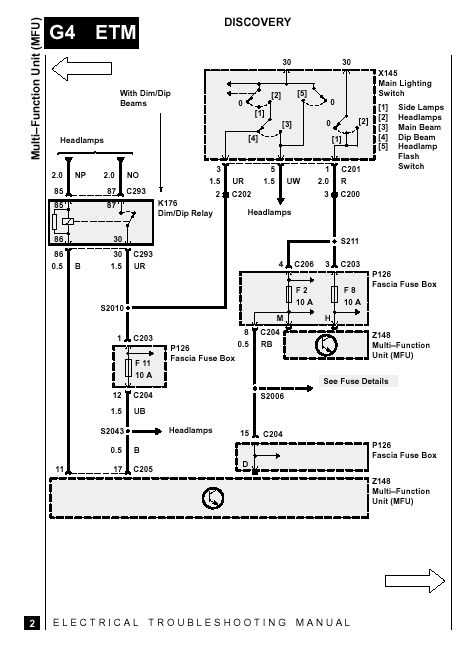

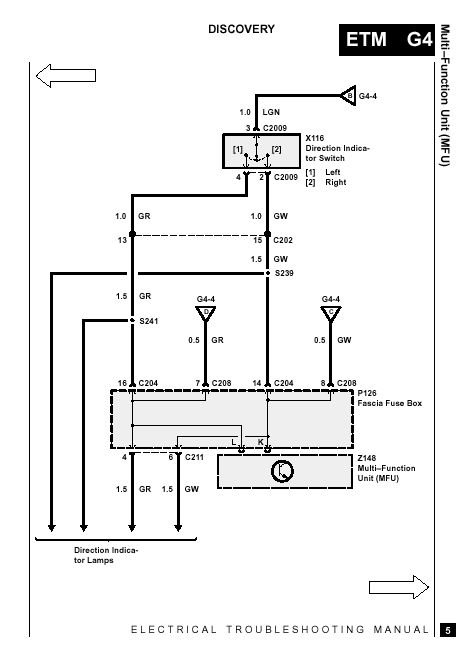

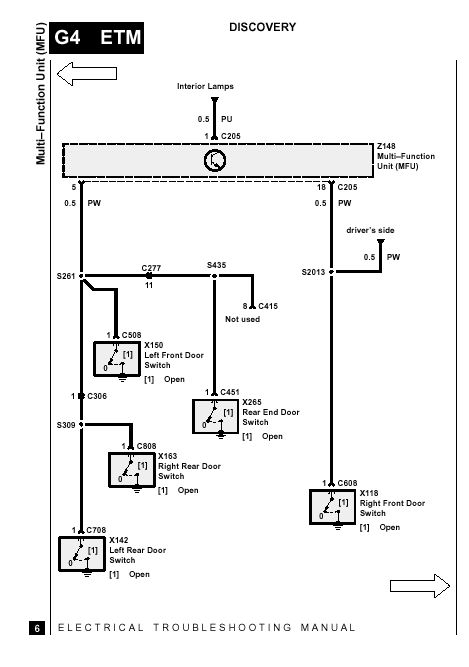

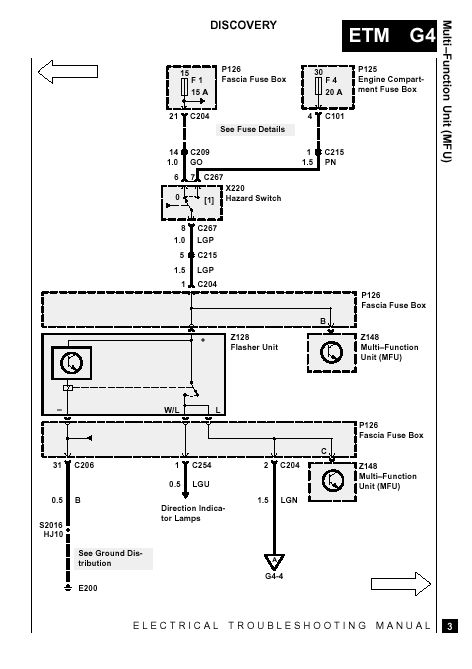

Not sure it'll do you any good .. but ..

See next post for next six pics ....



Attachments

•

  34.7 KB · Views: 186
•

  48.3 KB · Views: 189
•

  41.8 KB · Views: 298
•

  30.4 KB · Views: 183
•

  32.2 KB · Views: 159
•

  33.5 KB · Views: 298

Paul D

Old, nackered 'n broke, but the Landy is fine . :)

Events Planner

• Feb 17, 2010

• #5

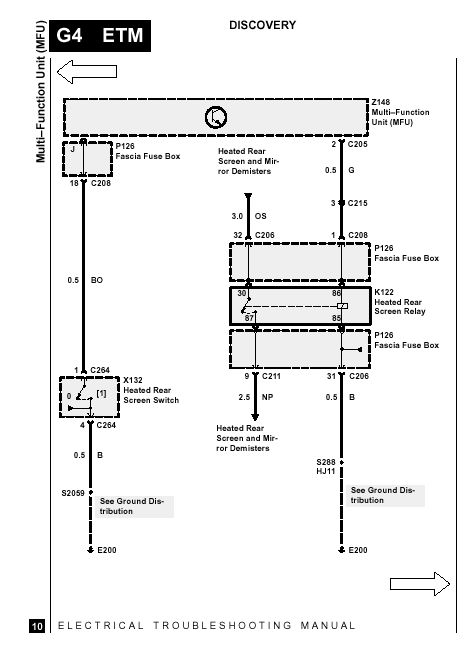

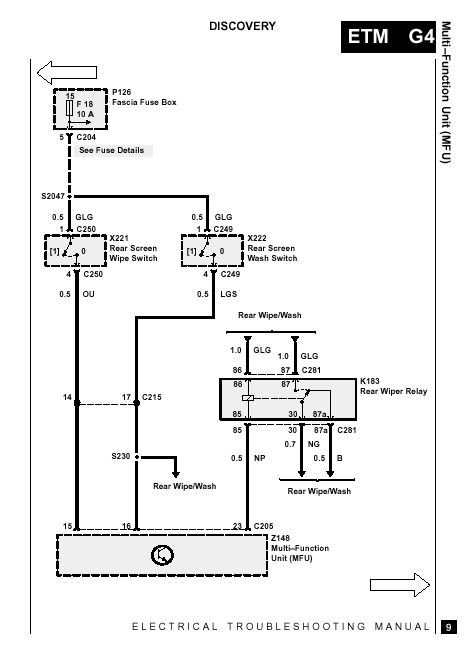

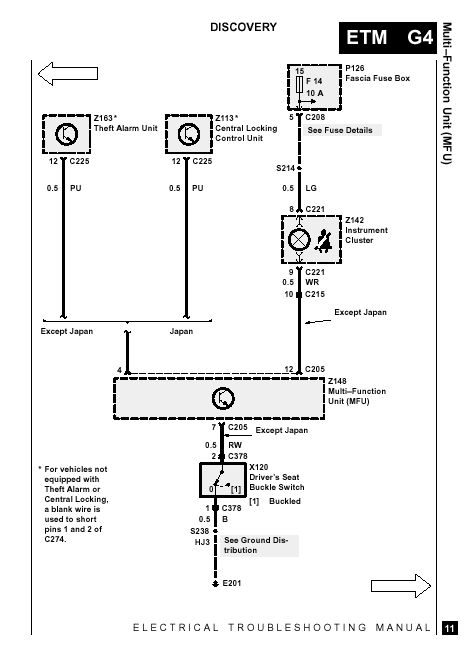

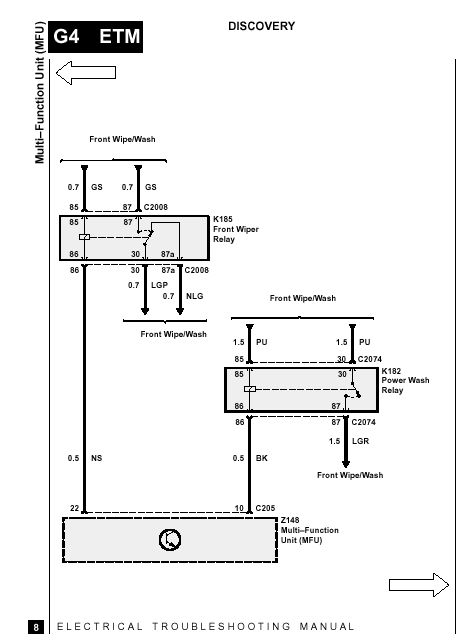

last set



Attachments

•

  38.7 KB · Views: 177
•

  38.3 KB · Views: 157
•

  36 KB · Views: 150
•

  30.6 KB · Views: 193
•

  36.9 KB · Views: 175
•

  31.5 KB · Views: 297
