Hi folks,
Can anyone tell me the distance between the hinge brackets mounted on the bulkhead?
I had to cut one off when repairing the bulkhead and although I made a measurement mark I want to double check if it is correct.
Thanks Peter



tottot

Well-Known Member

• May 4, 2019

• #2

Bonnet or screen ?



catman275

Well-Known Member

Full Member

• May 5, 2019

• #3

Sorry, they are the screen brackets that sit up above the top of the bulkhead.



tottot

Well-Known Member

• May 5, 2019

• #4

My series 3 lives without them, so someone else will have to answer this one.



Blackburn

Well-Known Member

• May 5, 2019

• #5

Can you not check the measurement between the two mounting brackets on the windscreen to confirm?



boguing

Well-Known Member

Full Member

• May 5, 2019

• #6

1,407mm between inside faces on my Lightweight. Same screen and hinges I think despite being a different bulkhead.



catman275

Well-Known Member

Full Member

• May 5, 2019

• #7

boguing said:

1,407mm between inside faces on my Lightweight. Same screen and hinges I think despite being a different bulkhead.

Click to expand...

I just checked my original mark and it measured 1406 mm so that looks fine.
My son is coming around later and will help me try the windscreen and bolts/brackets for position ( too heavy on my own).
Will see how near it is,
cheers for the help Peter



catman275

Well-Known Member

Full Member

• May 7, 2019

• #8

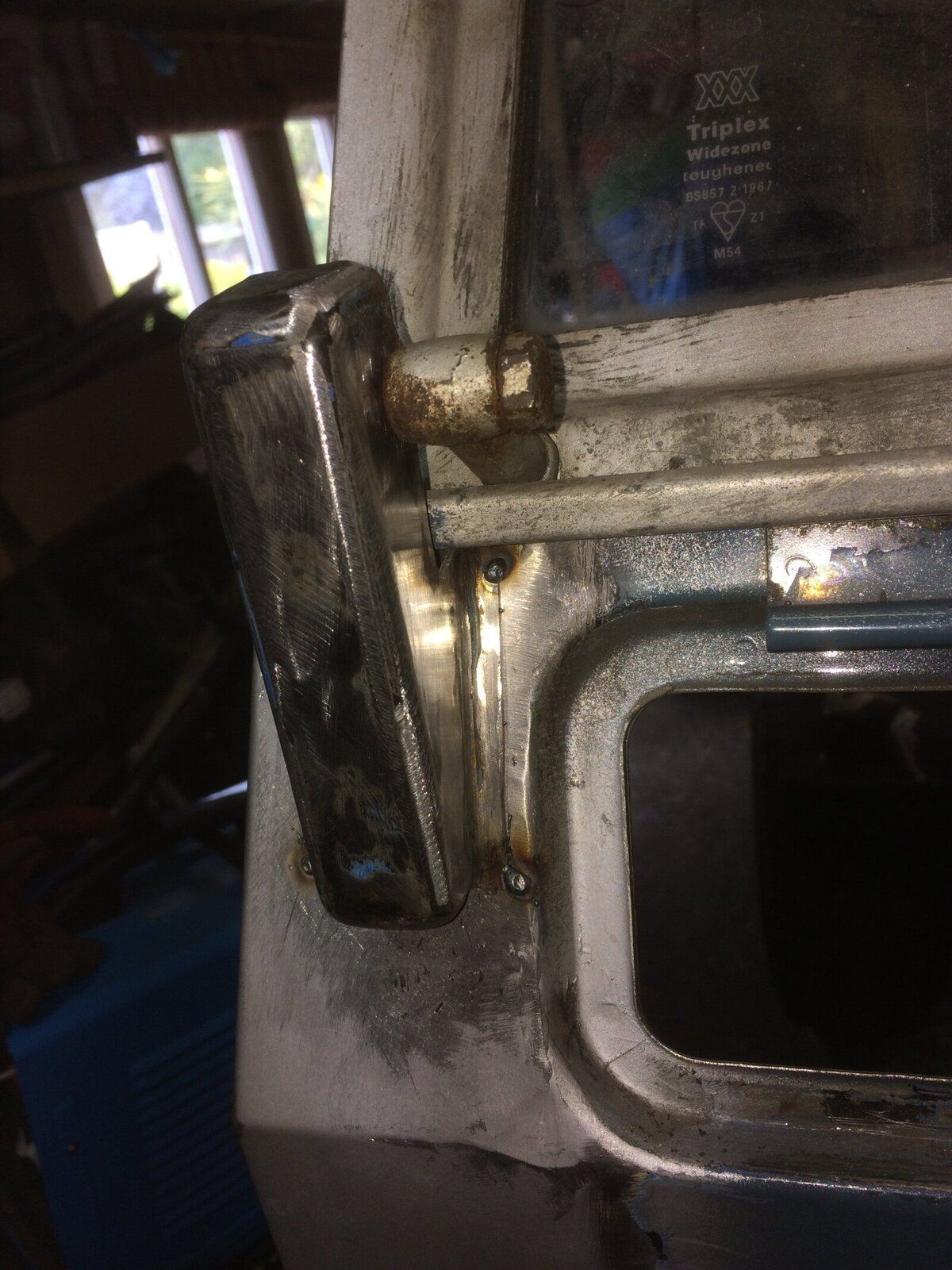

I cleaned down to bare metal, redrew my marks , tacked on the hinge and snugged down the bolts and it swings easy
